Final Drive Carrier and Differential Assembly: Disassembly

NOTE: Left-hand side shown, right-hand side similar.

NOTE: Do not damage the speed sensor wheel.

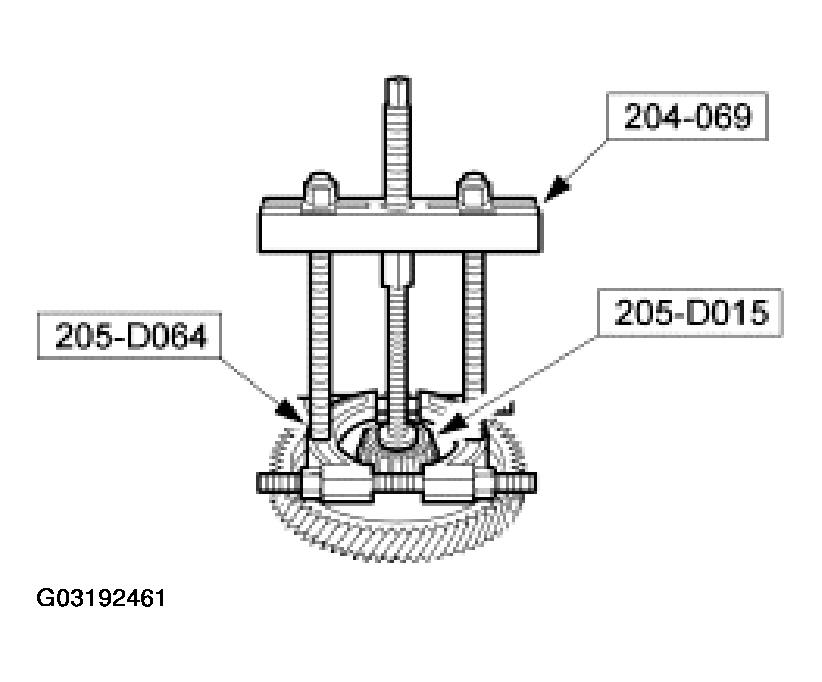

Fig 1: Removing Differential Case Bearings

Courtesy of FORD MOTOR CO.

NOTE: The roll pin cannot be driven through the housing.

NOTE: Note the location of the indent left by the flag on the roll pin.

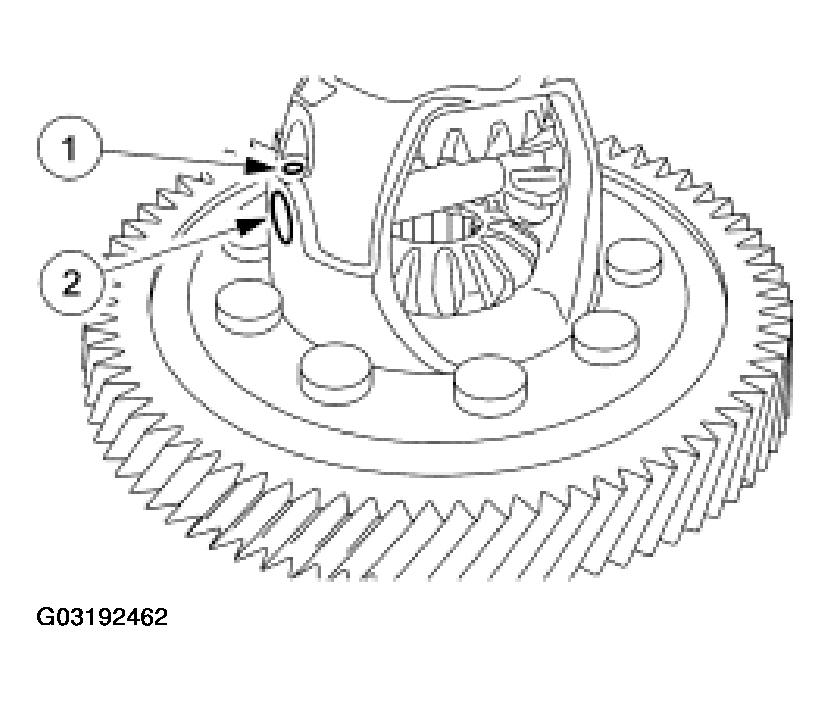

Fig 2: Removing Differential Pinion Shaft

Courtesy of FORD MOTOR CO.

Remove the differential pinion shaft.
1. Remove and discard the roll pin.
2. Remove the pinion shaft.
Remove the differential side gears.
1. Rotate the differential pinion gears 90 degrees and remove the differential pinion gears with the thrust washers.
2. Remove the differential side gears with the thrust washers.

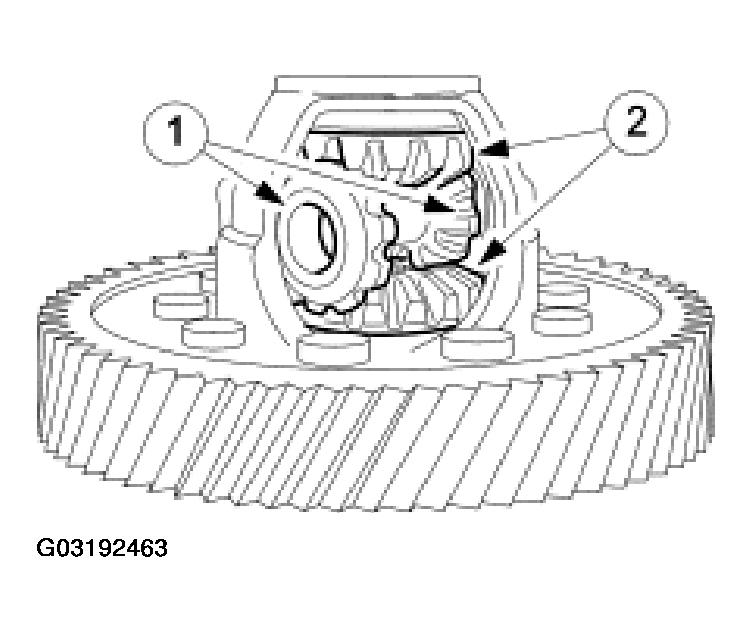

Fig 3: Removing Differential Side Gears
Courtesy of FORD MOTOR CO.
Clean all parts thoroughly in clean solvent and blow dry with moisture-free regulated compressed air.
Inspect the differential parts of damage and wear.
- Pinion gear teeth and bores
- Side gear teeth and five splines
- Thrust washers
- Differential pinion shaft
- Differential case bearing and surfaces
