Reverse Clutch: Disassembly

  1. Remove the reverse clutch pressure, friction and steel plates.
    1. Remove the retaining ring.
    2. Remove the plates.

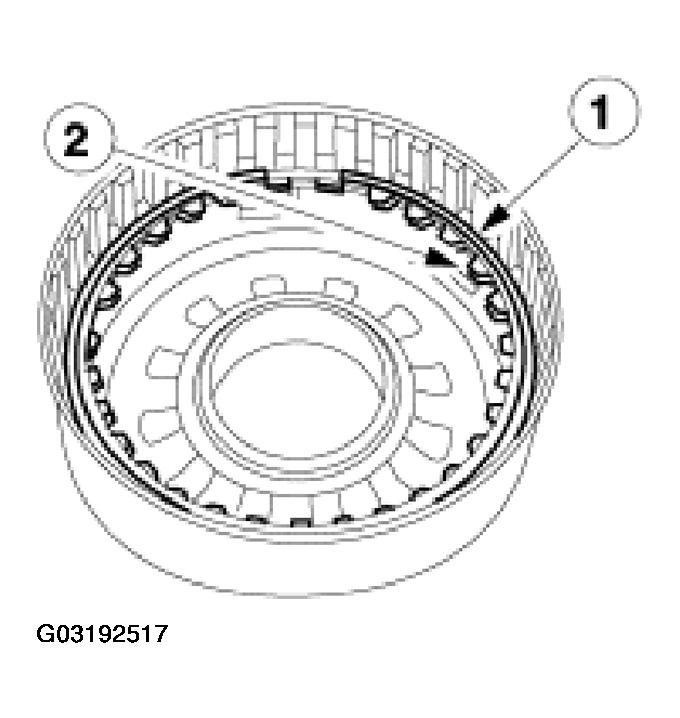

    Fig 1: Removing Reverse Clutch Pressure, Friction And Steel Plates
    G03192517Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the reverse clutch piston return spring retainer ring and retainer.

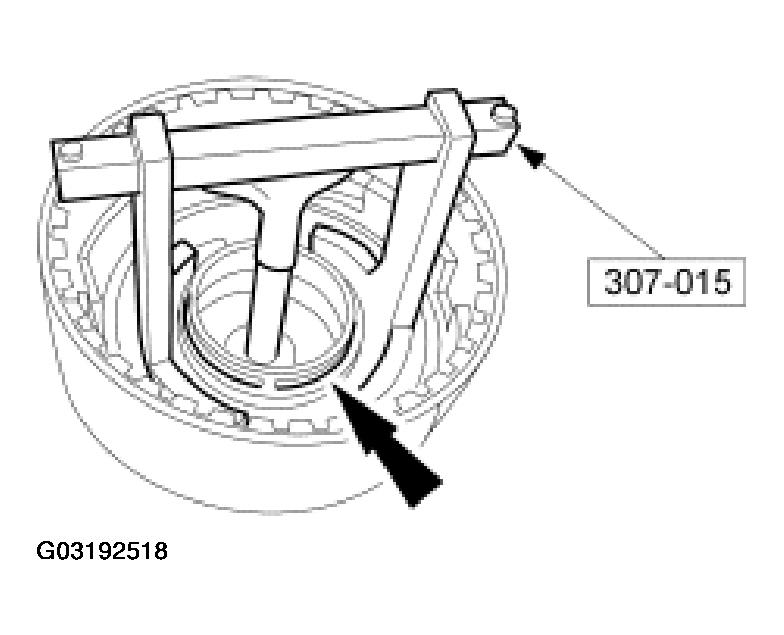

    Fig 2: Removing Reverse Clutch Piston Return Spring Retainer Ring And Retainer
    G03192518Courtesy of FORD MOTOR CO.
  3. Remove the reverse clutch piston return spring.

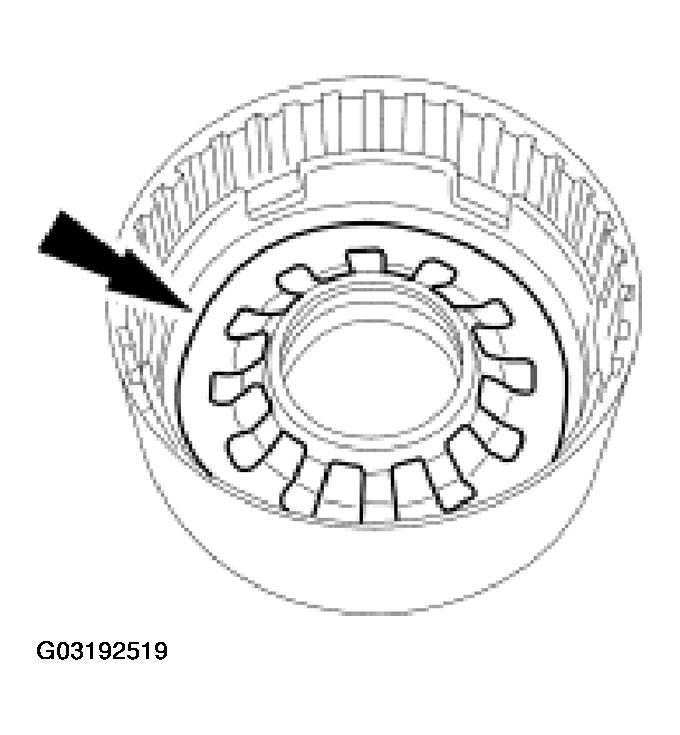

    Fig 3: Removing Reverse Clutch Piston Return Spring
    G03192519Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston assembly.

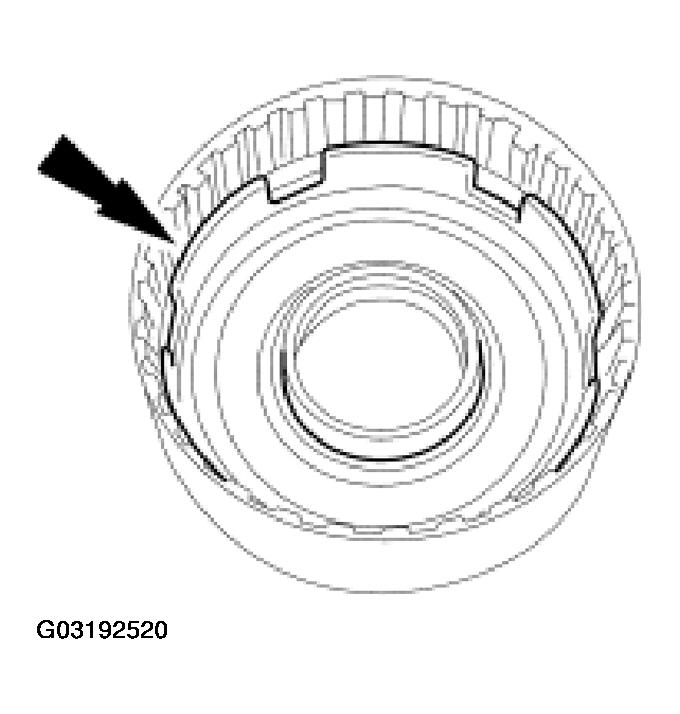

    Fig 4: Removing Reverse Clutch Piston Assembly
    G03192520Courtesy of FORD MOTOR CO.
    5. CAUTION: If damage is found to the reverse clutch piston seals, install a new reverse clutch piston.

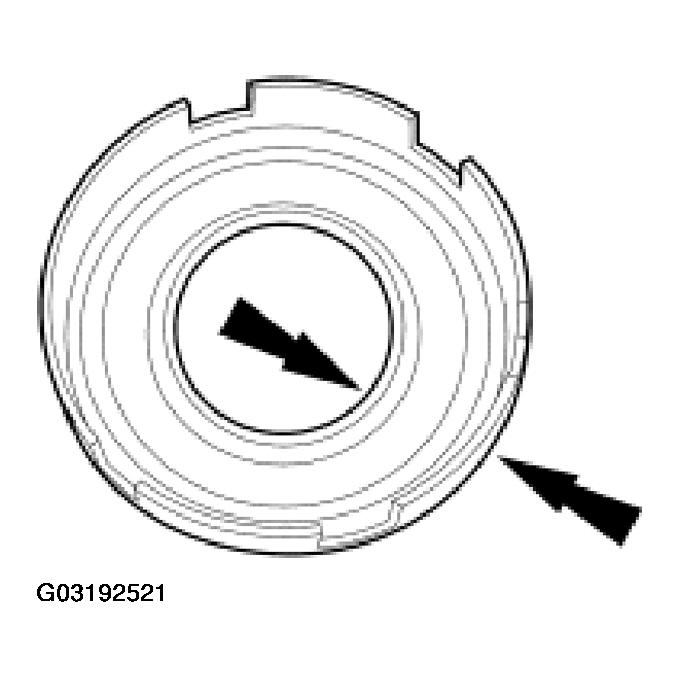

    Fig 5: Inspecting Seal Bore In Drum, Inner And Outer Seals
    G03192521Courtesy of FORD MOTOR CO.
  5. Inspect the seal bore in drum, inner and outer seals.
