Removal And Installation: Mouldings: Notes

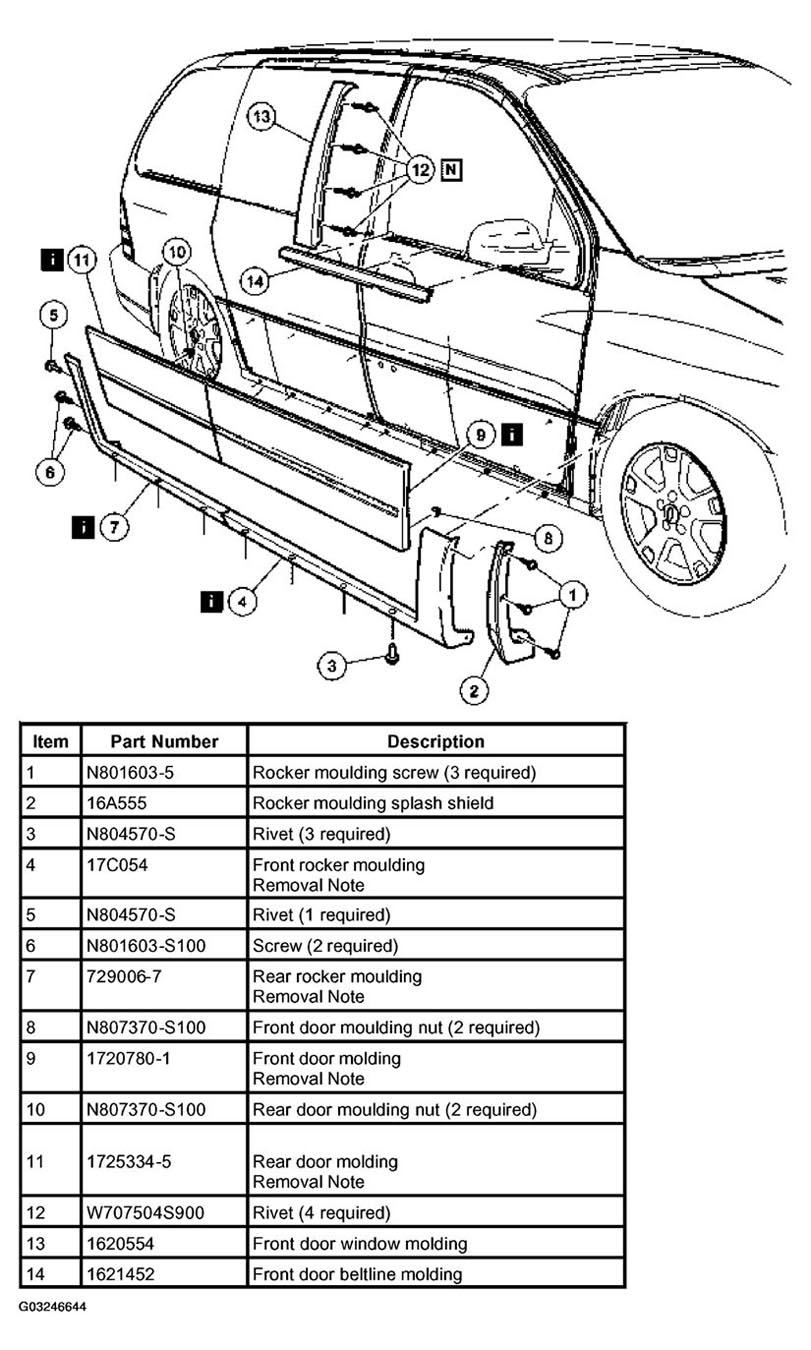

- Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
Part Steps Front rocker moulding 1-4 Rear rocker moulding 5-7 Front door moulding 8, 9 Sliding door moulding 10, 11 Front door beltline moulding 12-14 Front door window molding 12, 13 - To install, reverse the removal procedure.
