Rear Bumper: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    Part Steps
    Park aid sensor 1-8
    Rear bumper cover 1-5
    Rear bumper beam 1-12

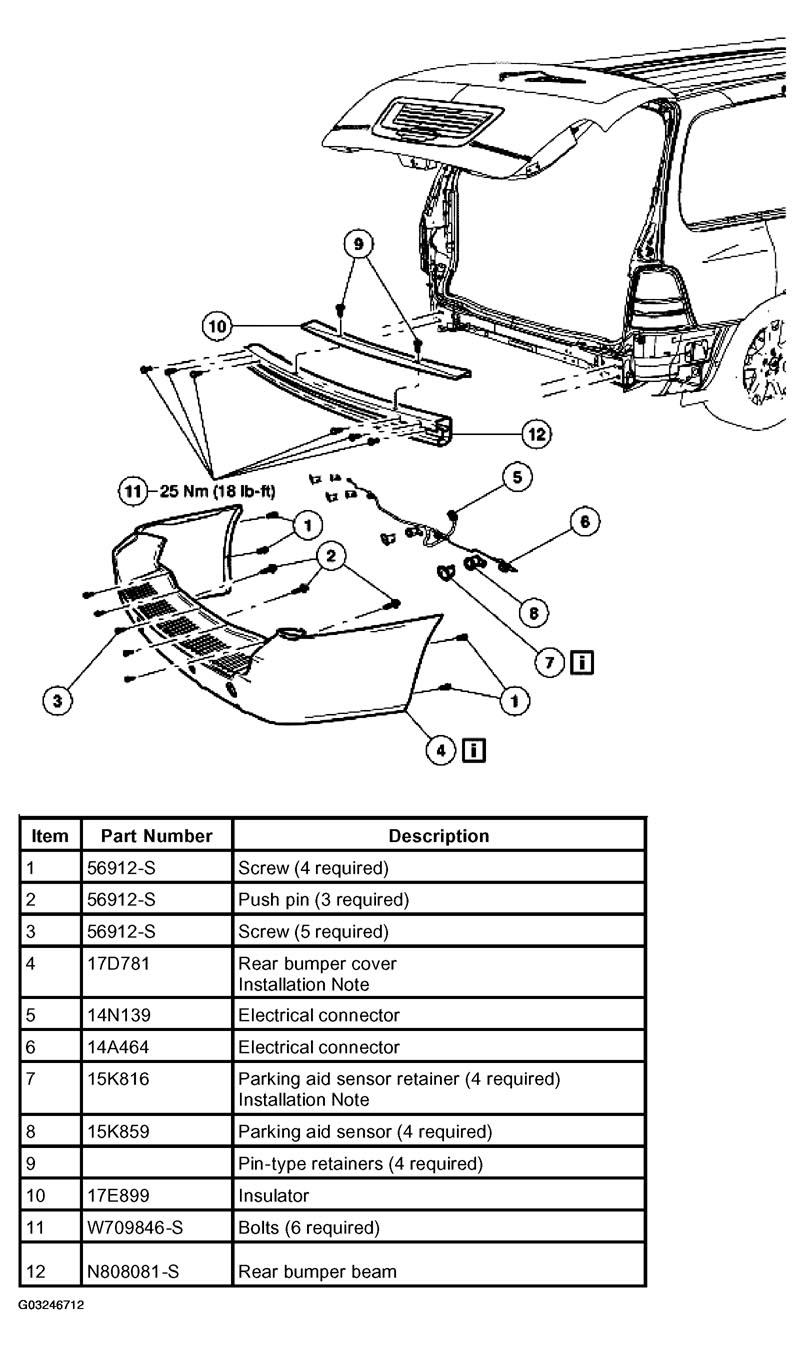

    Fig 1: Removing Rear Bumper
    G03246712Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
