Rear Window Wiper: Notes

  1. Remove the liftgate trim panel. For additional information, Refer to LIFTGATE TRIM PANEL .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    Part Steps
    Rear wiper pivot arm 1, 2
    Wiper assembly module 1-6

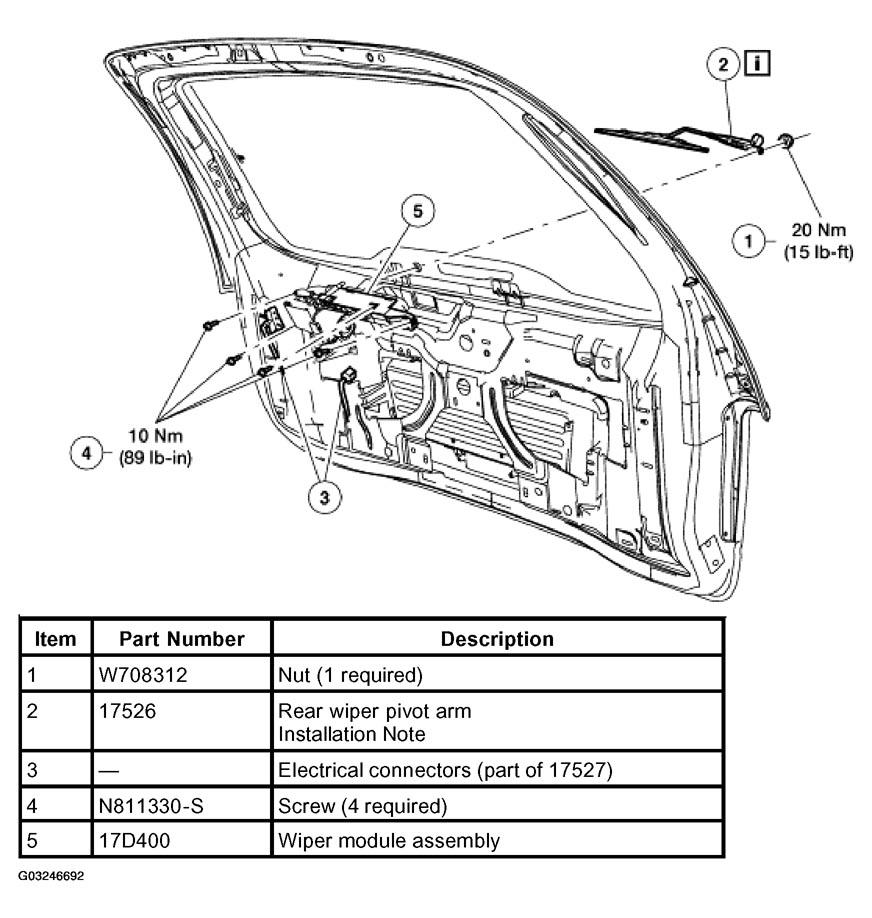

    Fig 1: Removing Rear Window Wiper
    G03246692Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
