Front Toe Adjustment

Start the engine and center the steering wheel.

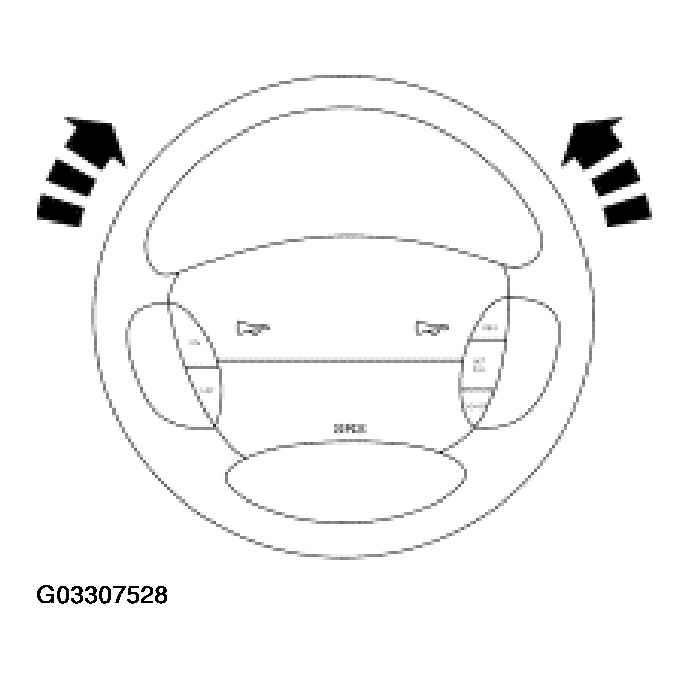

Fig 1: Centering Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the straight-forward position by attaching a rigid link from the steering wheel to the seat.
Check the toe settings. Follow the manufacturer's instructions.
Remove the clamps.

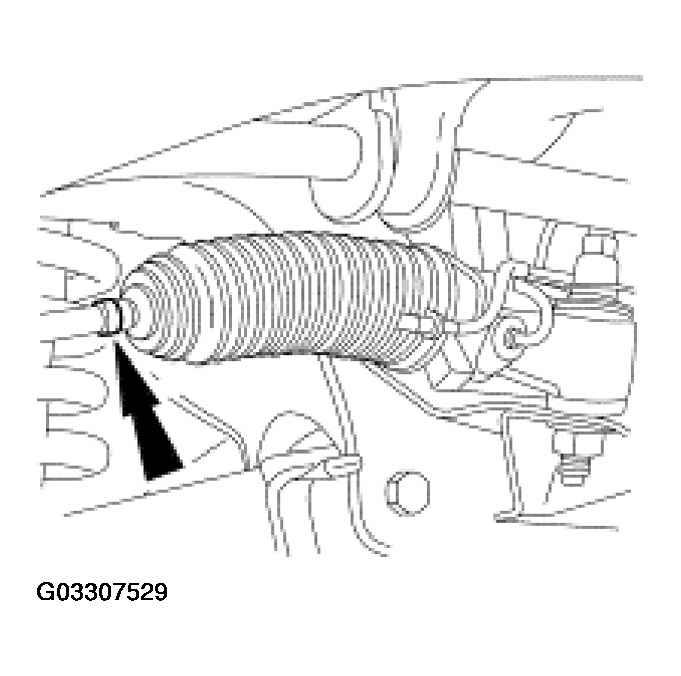

Fig 2: Removing Clamps
Courtesy of FORD MOTOR CO.
Loosen the nuts.
- Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.

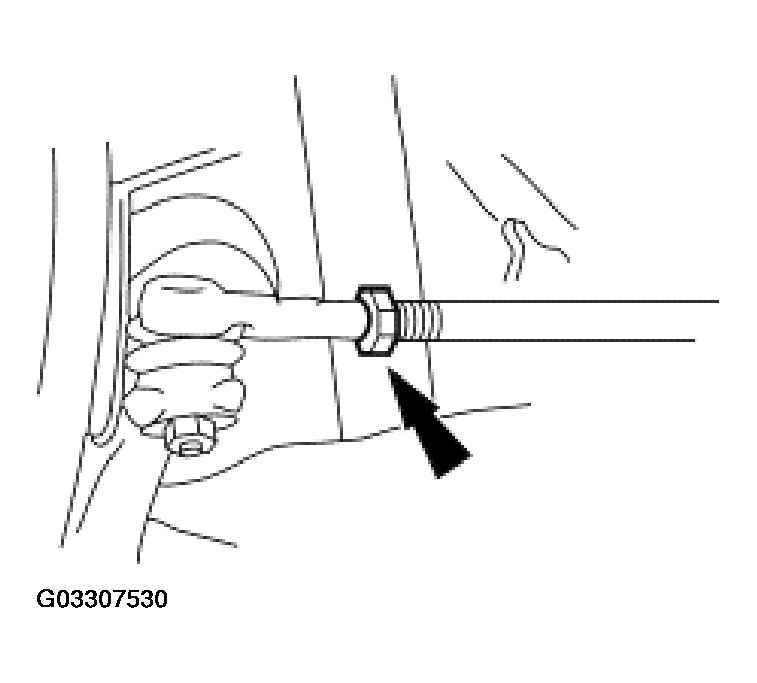

Fig 3: Loosening Front Wheel Spindle Tie-Rod Nut
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod is rotated.

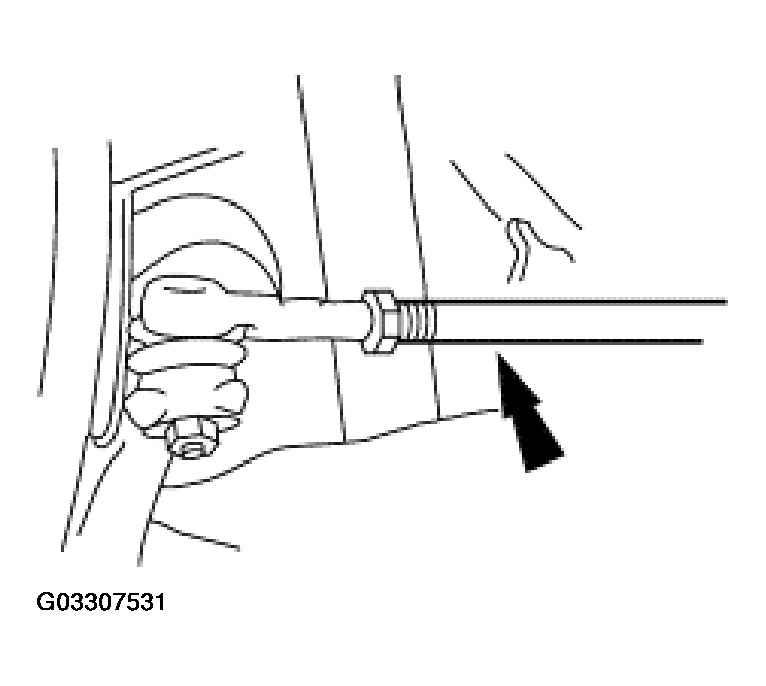

Fig 4: Rotating Front Wheel Spindle Tie-Rods

Courtesy of FORD MOTOR CO.

Rotate the front wheel spindle tie-rods.
Tighten the nuts.

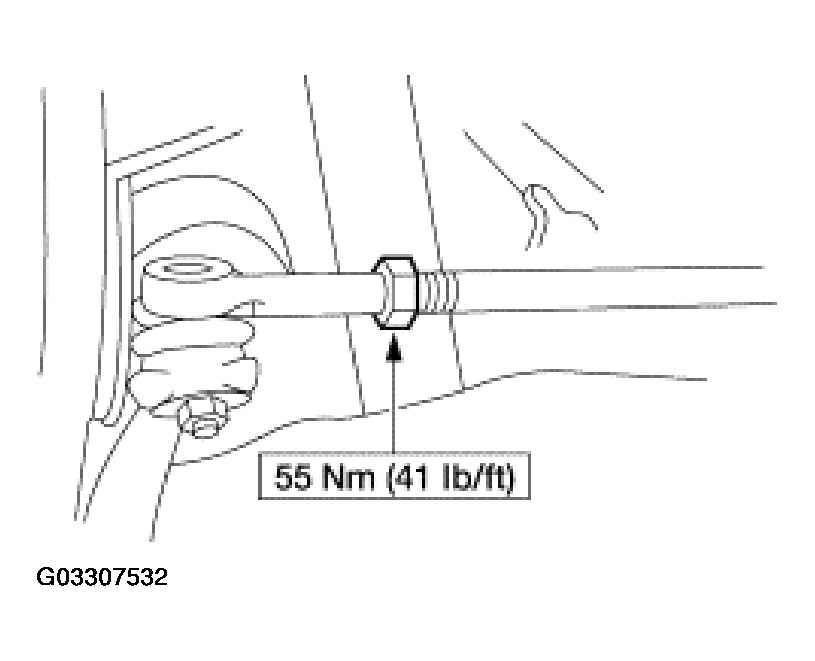

Fig 5: Tightening Front Wheel Spindle Tie-Rod Nut
Courtesy of FORD MOTOR CO.
Install the clamps.

Fig 6: Installing Clamps
Courtesy of FORD MOTOR CO.
Start the engine and re-center the steering wheel.
- Recheck the toe settings and adjust if necessary.
