Control Assembly: Removal

  1. Remove the center instrument panel register. For additional information, refer to AIR DISTRIBUTION & FILTERING .
  2. Remove the screws.

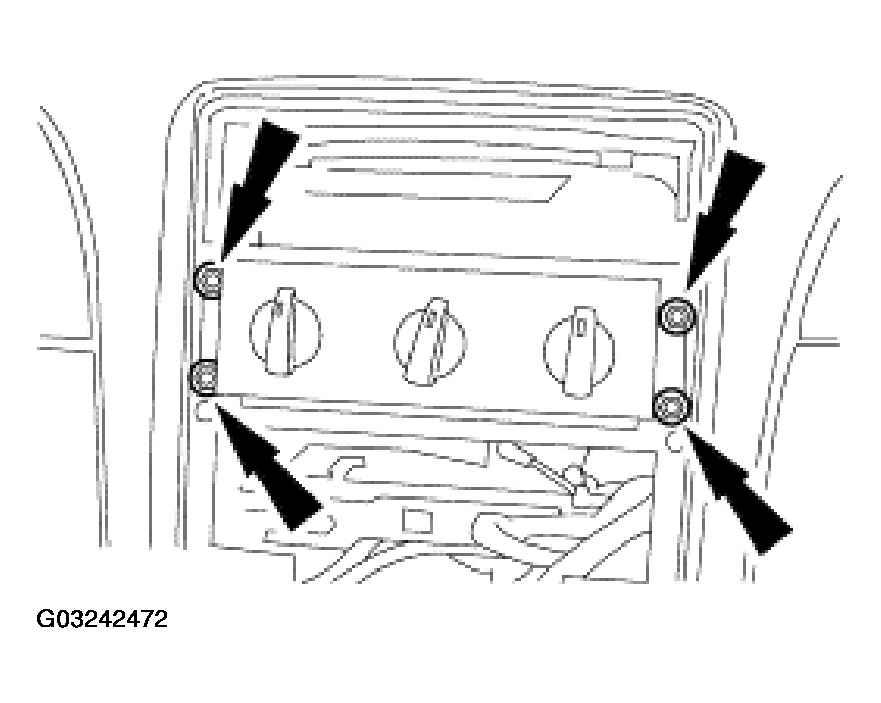

    Fig 1: Removing Control Head Screws
    G03242472Courtesy of FORD MOTOR CO.
  3. Disconnect the connectors.

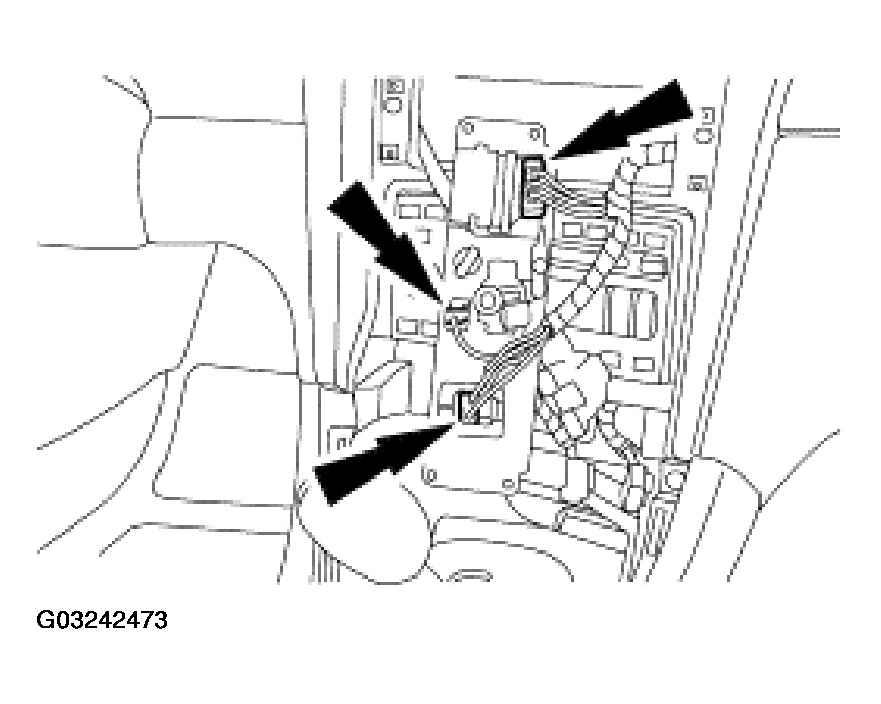

    Fig 2: Disconnecting Control Head Connectors
    G03242473Courtesy of FORD MOTOR CO.
  4. Using the special tool, disconnect the temperature control cable from the control head.

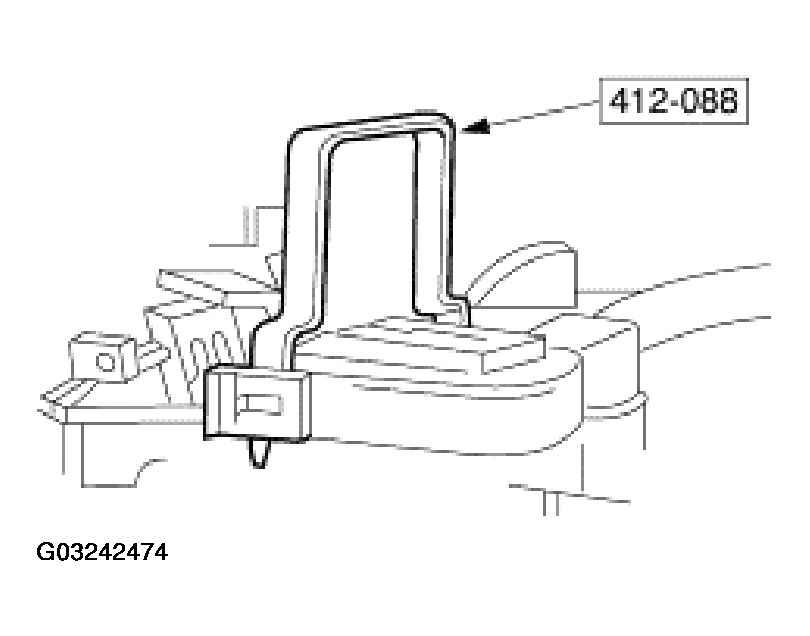

    Fig 3: Disconnecting Temperature Control Cable
    G03242474Courtesy of FORD MOTOR CO.
  5. Remove the nuts and disconnect the vacuum connector.

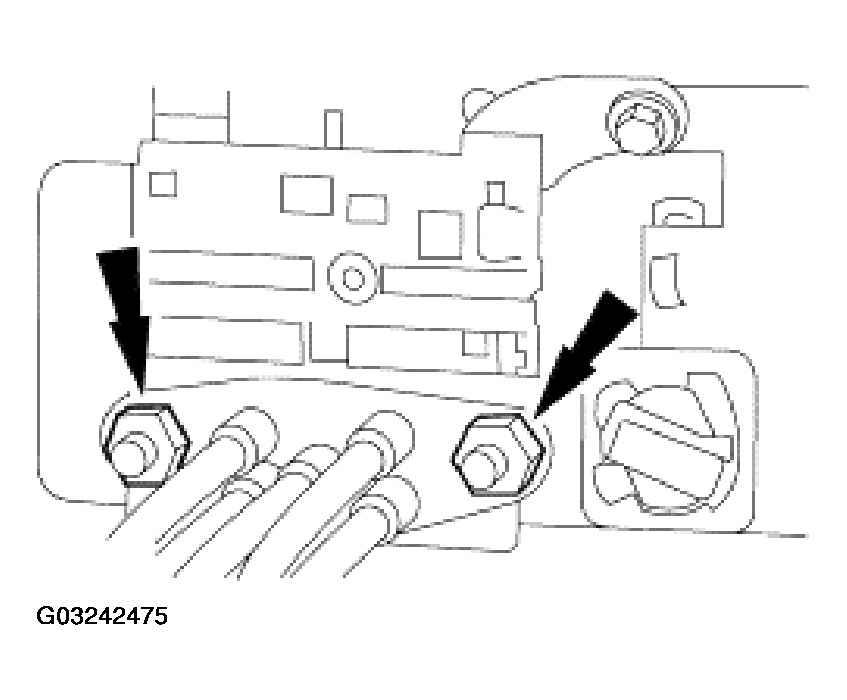

    Fig 4: Disconnecting Vacuum Connector
    G03242475Courtesy of FORD MOTOR CO.
