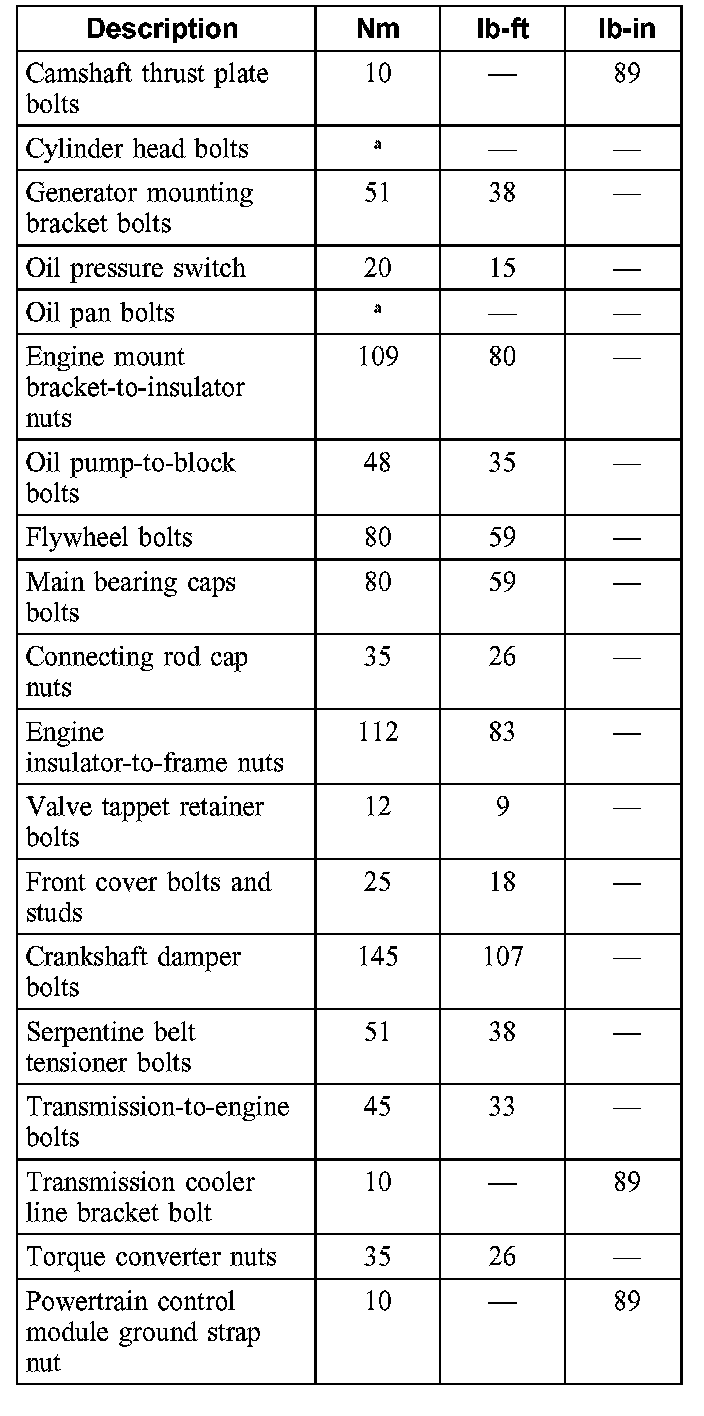

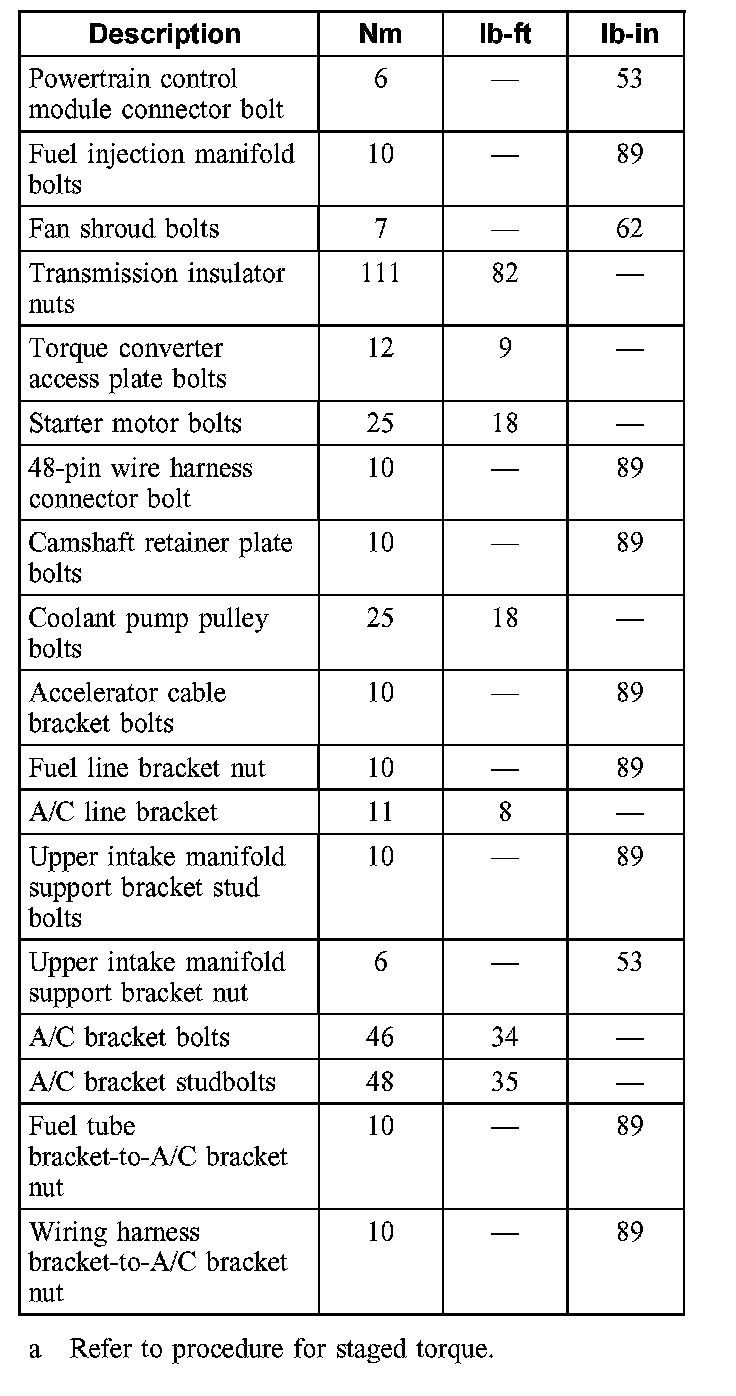

Torque Specifications

EXHAUST MANIFOLD

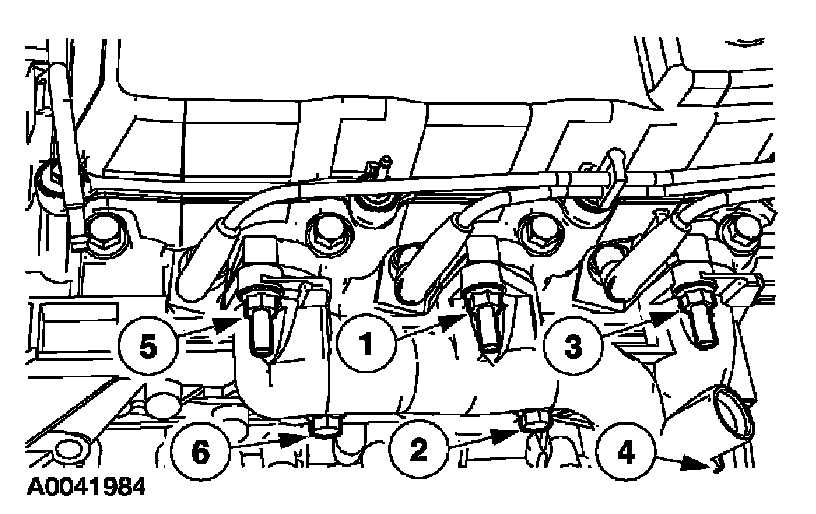

Right





Tighten in the sequence shown in two stages.
^ Stage 1: Tighten to 10 Nm (8 ft. lbs.)
^ Stage 2: Tighten to 23 Nm (17 ft. lbs.)

Left





Tighten the nuts and the bolts in the sequence shown, in two stages:
^ Stage 1: Tighten to 10 Nm (8 ft. lbs.)
^ Stage 2: Tighten to 23 Nm (17 ft. lbs.)

WATER PUMP
Water Pump To Cylinder Block 10 Nm (89 inch lbs.)
