Pinpoint Tests

PINPOINT TEST A: THE SMART JUNCTION BOX (SJB) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

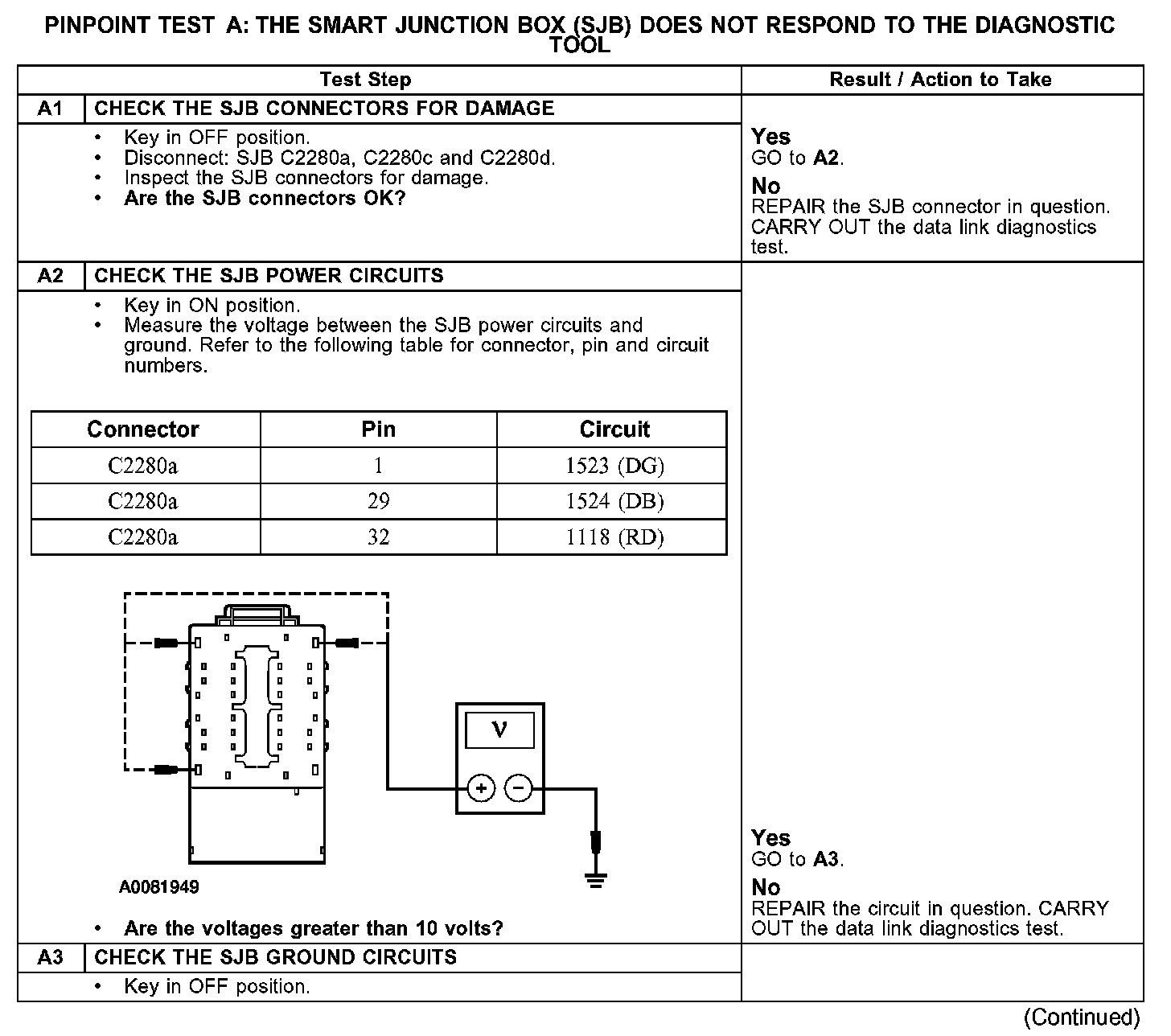

Test A1-A3:

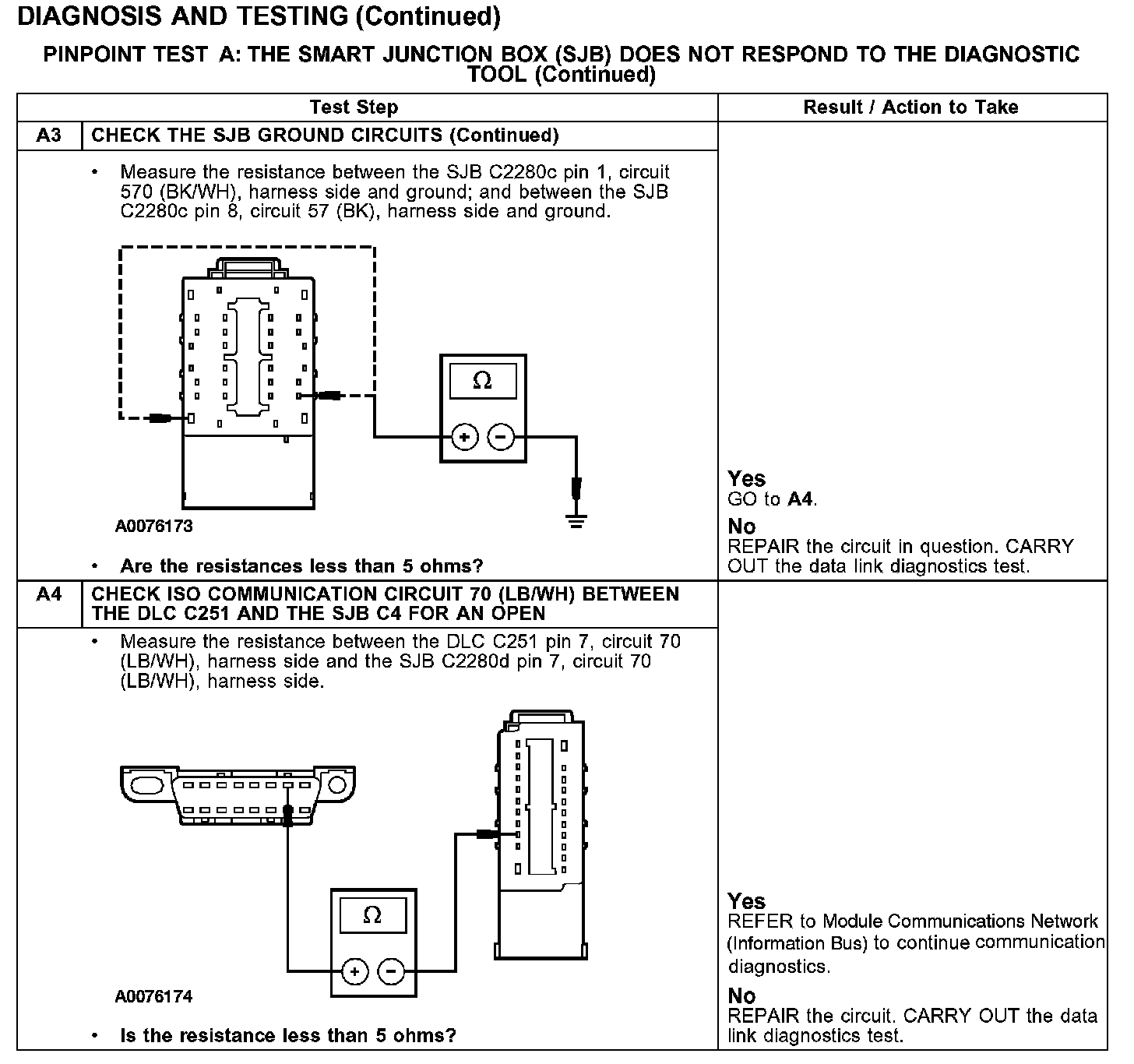

Test A3-A4:
