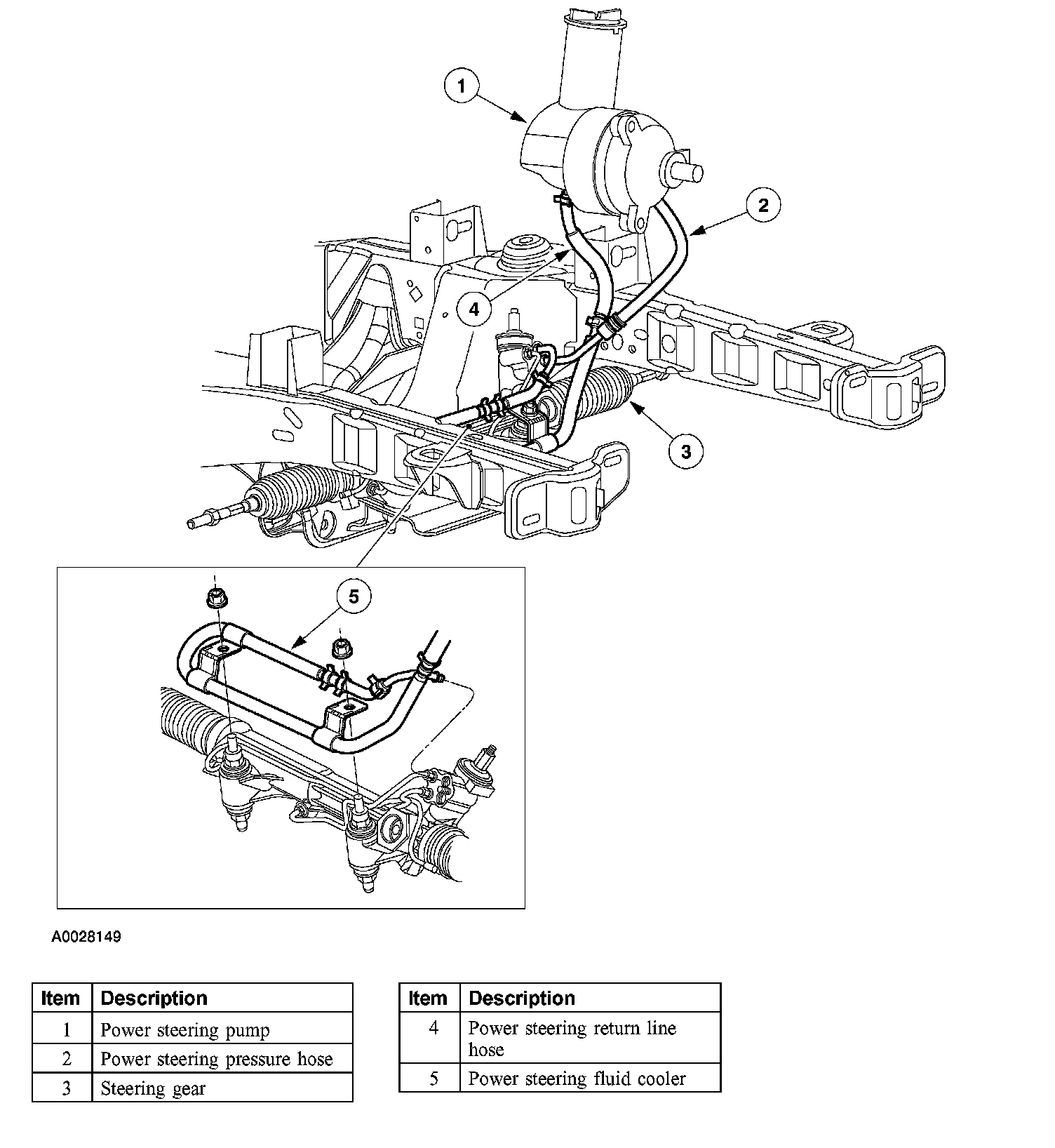

System Diagram

Steering System

The steering system has a typical rack-and-pinion design consisting of the following:





Steering System Components
