Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07839462

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07839463

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07839464

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07839465

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07839466

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C108)

G07839467

Courtesy of FORD MOTOR CO.

Fig 7: Knock Sensor Connector End View (C109)

G07839468

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07839469

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07839470

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07839471

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07839472

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 5 Connector End View (C115)

G07839473

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 6 Connector End View (C116)

G07839474

Courtesy of FORD MOTOR CO.

Fig 14: Inline Connector End View (C110)

G07839475

Courtesy of FORD MOTOR CO.

Fig 15: Speed Control Servo Connector End View (C122)

G07839476

Courtesy of FORD MOTOR CO.

Fig 16: EVAP Canister Purge Valve Connector End View (C123)

G07839477

Courtesy of FORD MOTOR CO.

Fig 17: Brake Fluid Level Switch Connector End View (C124)

G07839478

Courtesy of FORD MOTOR CO.

Fig 18: Windshield Wiper Motor Connector End View (C125)

G07839479

Courtesy of FORD MOTOR CO.

Fig 19: Anti-Theft Hood Switch Connector End View (C127)

G07839480

Courtesy of FORD MOTOR CO.

Fig 20: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07839481

Courtesy of FORD MOTOR CO.

Fig 21: Low Charge Protection Switch Connector End View (C130)

G07839482

Courtesy of FORD MOTOR CO.

Fig 22: Horn Connector End View (C131)

G07839483

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C133)

G07839484

Courtesy of FORD MOTOR CO.

Fig 24: Inline Connector End View (C134)

G07839485

Courtesy of FORD MOTOR CO.

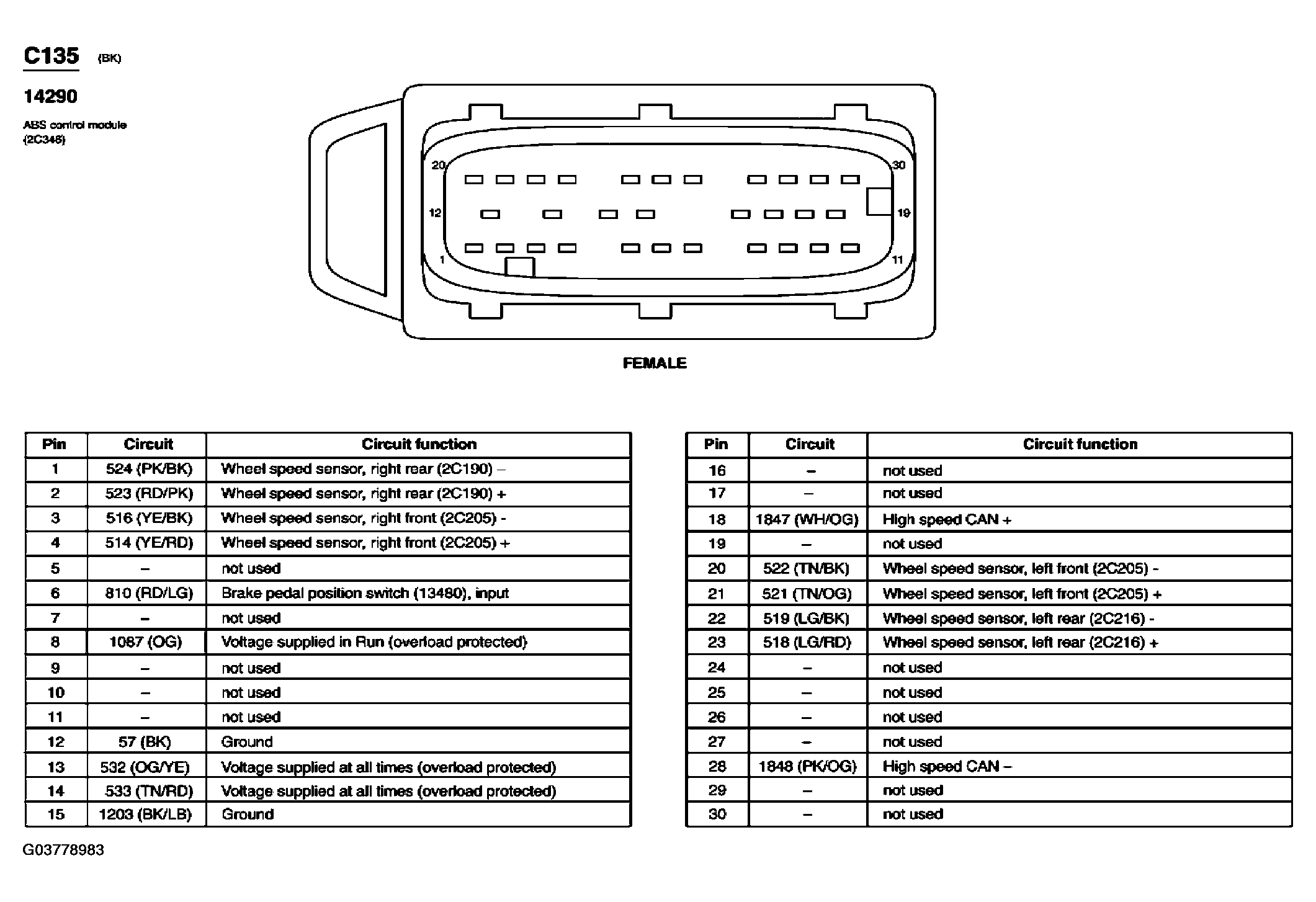

Fig 25: ABS Control Module Connector End View (C135)

G03778983

Courtesy of FORD MOTOR CO.

Fig 26: Windshield Washer Pump Motor Connector End View (C137)

G07839486

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C139)

G07839487

Courtesy of FORD MOTOR CO.

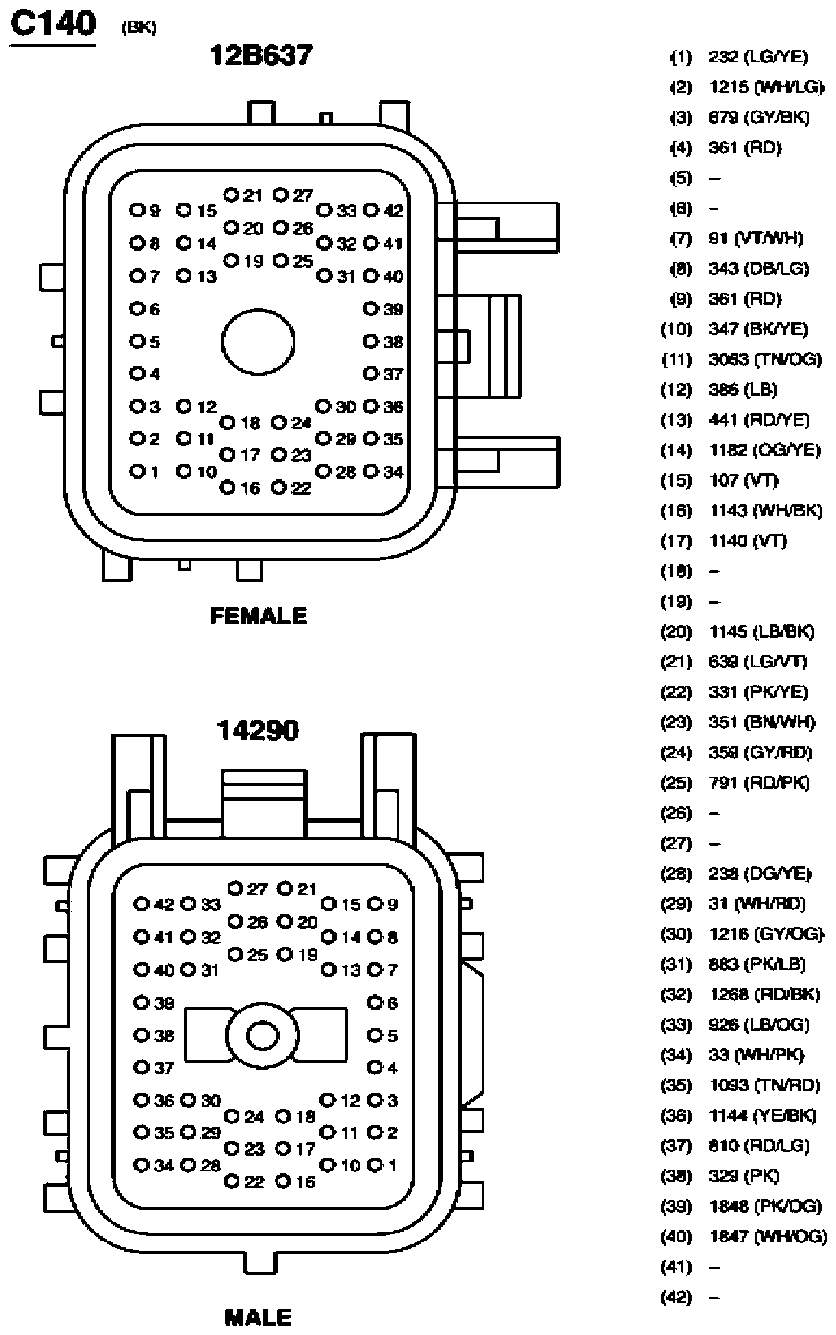

Fig 28: Inline Connector End View (C140)

G07839488

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07839489

Courtesy of FORD MOTOR CO.

Fig 30: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07839490

Courtesy of FORD MOTOR CO.

Fig 31: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07839491

Courtesy of FORD MOTOR CO.

Fig 32: Wheel Speed Sensor, Left Front Connector End View (C150)

G07839492

Courtesy of FORD MOTOR CO.

Fig 33: Fog Lamp, Left Front Connector End View (C152)

G07839493

Courtesy of FORD MOTOR CO.

Fig 34: Wheel Speed Sensor, Right Front Connector End View (C160)

G07839494

Courtesy of FORD MOTOR CO.

Fig 35: Fog Lamp, Right Front Connector End View (C162)

G07839495

Courtesy of FORD MOTOR CO.

Fig 36: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07839496

Courtesy of FORD MOTOR CO.

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07839497

Courtesy of FORD MOTOR CO.

Fig 38: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07839498

Courtesy of FORD MOTOR CO.

Fig 39: Ignition Transformer Capacitor 1 Connector End View (C174)

G07839499

Courtesy of FORD MOTOR CO.

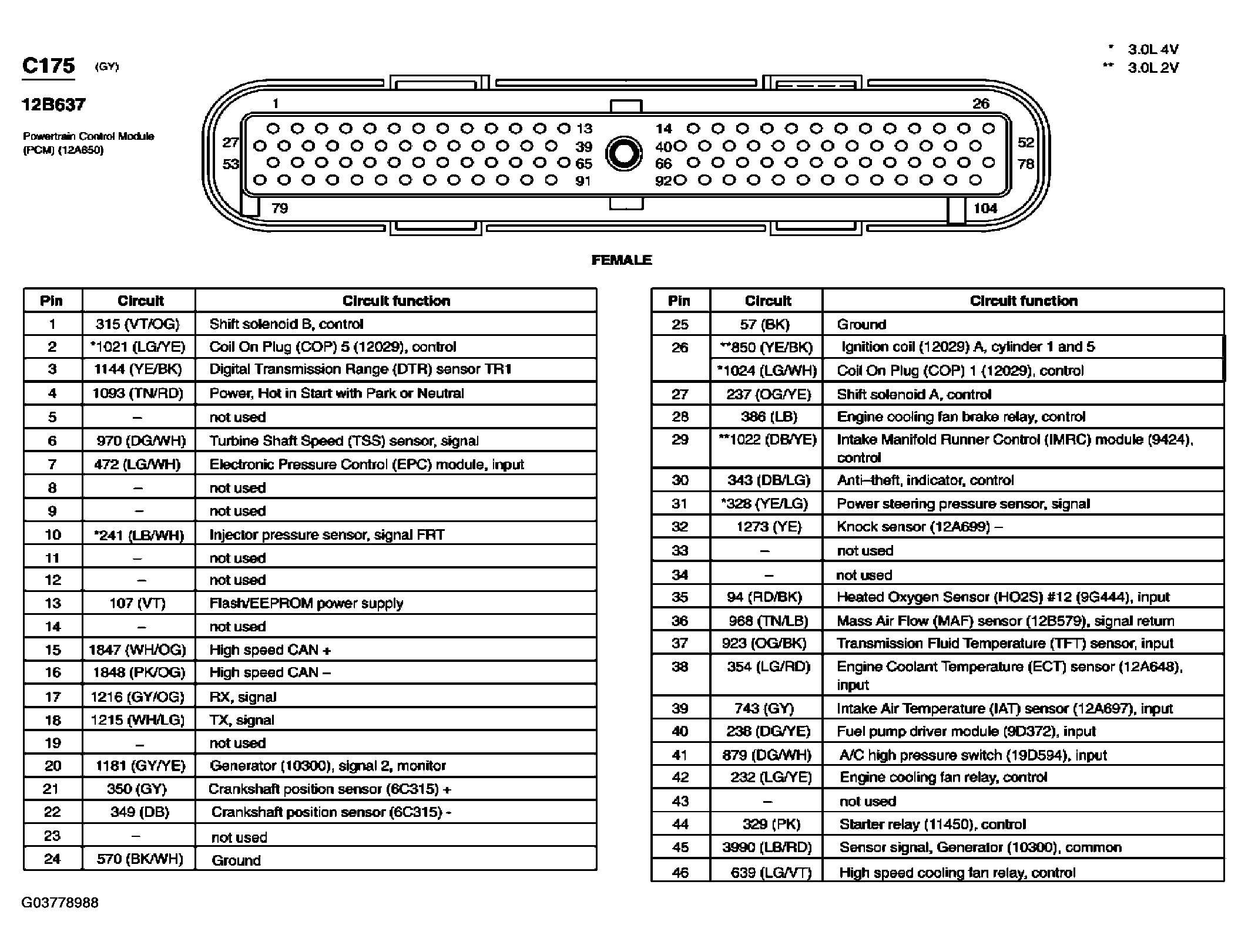

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03778988

Courtesy of FORD MOTOR CO.

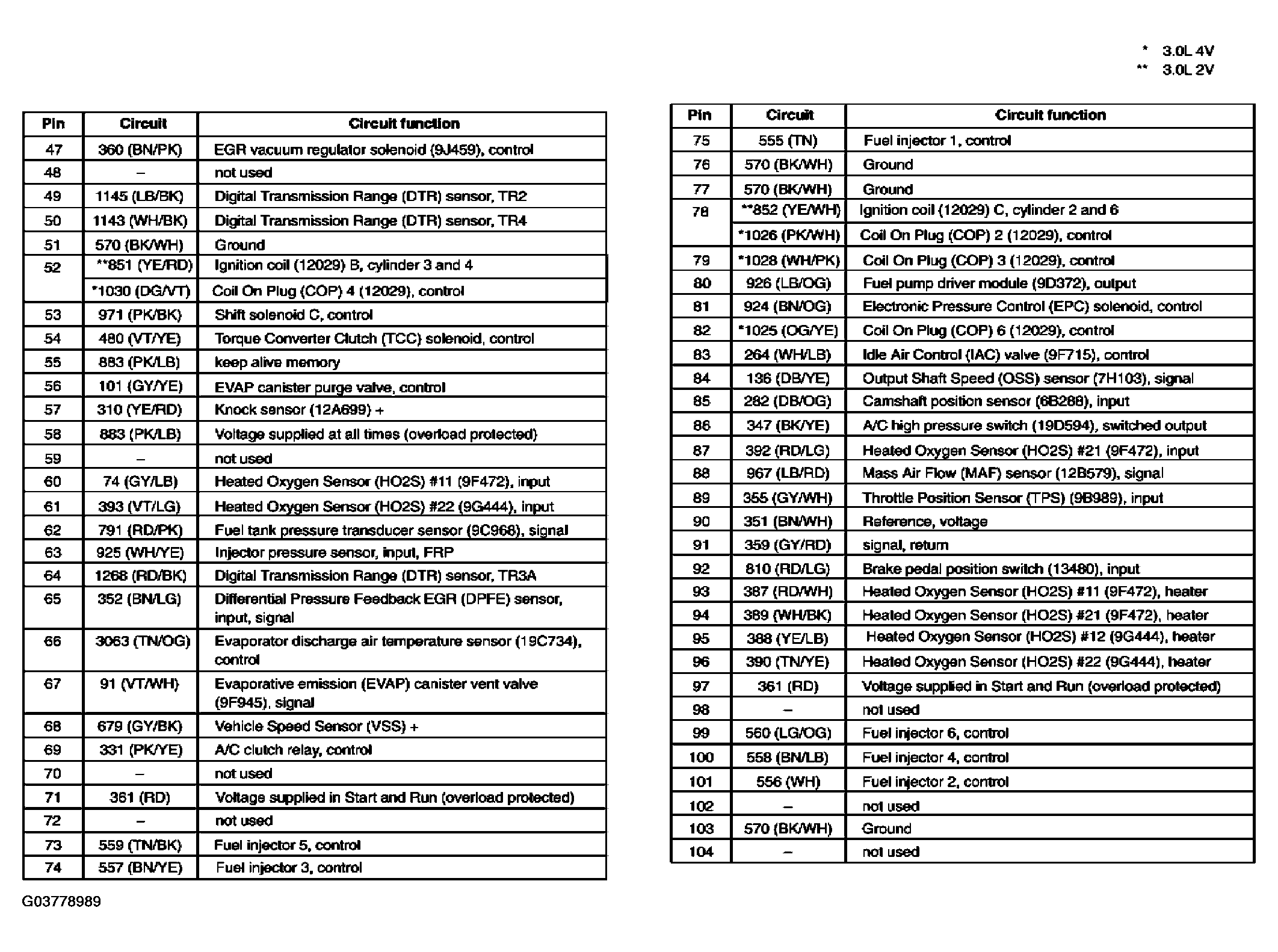

Fig 41: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03778989

Courtesy of FORD MOTOR CO.

Fig 42: Forward Crash Sensor Connector End View (C177)

G07839500

Courtesy of FORD MOTOR CO.

Fig 43: Camshaft Position Sensor Connector End View (C180)

G07839501

Courtesy of FORD MOTOR CO.

Fig 44: Fuel Injector 1 Connector End View (C181)

G07839502

Courtesy of FORD MOTOR CO.

Fig 45: Fuel Injector 2 Connector End View (C182)

G07839503

Courtesy of FORD MOTOR CO.

Fig 46: Fuel Injector 3 Connector End View (C183)

G07839504

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Injector 4 Connector End View (C184)

G07839505

Courtesy of FORD MOTOR CO.

Fig 48: Fuel Injector 5 Connector End View (C185)

G07839506

Courtesy of FORD MOTOR CO.

Fig 49: Fuel Injector 6 Connector End View (C186)

G07839507

Courtesy of FORD MOTOR CO.

Fig 50: Throttle Position Sensor (TPS) Connector End View (C189)

G07839508

Courtesy of FORD MOTOR CO.

Fig 51: Positive Crankcase Ventilation Heater Connector End View (C190)

G07839509

Courtesy of FORD MOTOR CO.

Fig 52: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07839510

Courtesy of FORD MOTOR CO.

Fig 53: Starter Motor Connector End View (C197a)

G07839511

Courtesy of FORD MOTOR CO.

Fig 54: Starter Motor Connector End View (C197b)

G07839512

Courtesy of FORD MOTOR CO.

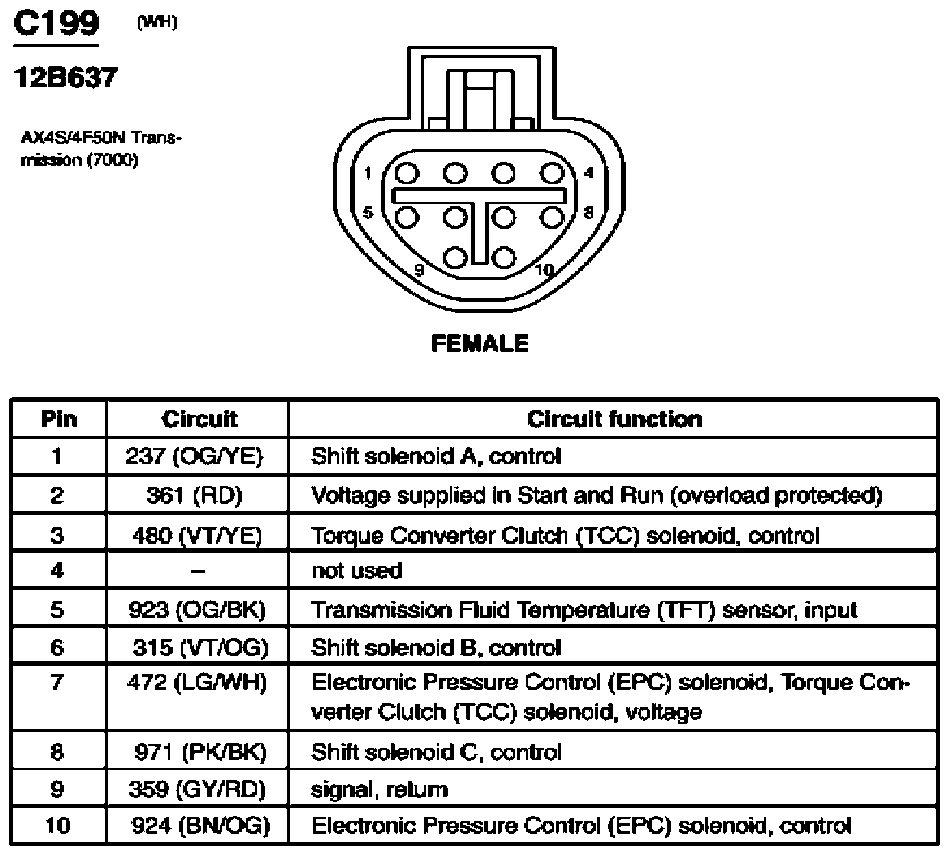

Fig 55: AX4S/4F50N Transmission Connector End View (C199)

G07839513

Courtesy of FORD MOTOR CO.

Fig 56: Ambient Air Temperature Sensor Connector End View (C198)

G07839514

Courtesy of FORD MOTOR CO.

Fig 57: Multifunction Switch Connector End View (C202a)

G07839515

Courtesy of FORD MOTOR CO.

Fig 58: Multifunction Switch Connector End View (C202b)

G07839516

Courtesy of FORD MOTOR CO.

Fig 59: Multifunction Switch Connector End View (C202c)

G07839517

Courtesy of FORD MOTOR CO.

Fig 60: Main Light Switch Connector End View (C205a)

G07839518

Courtesy of FORD MOTOR CO.

Fig 61: Main Light Switch Connector End View (C205b)

G07839519

Courtesy of FORD MOTOR CO.

Fig 62: Luggage Compartment Lid Release Switch Connector End View (C207)

G07839520

Courtesy of FORD MOTOR CO.

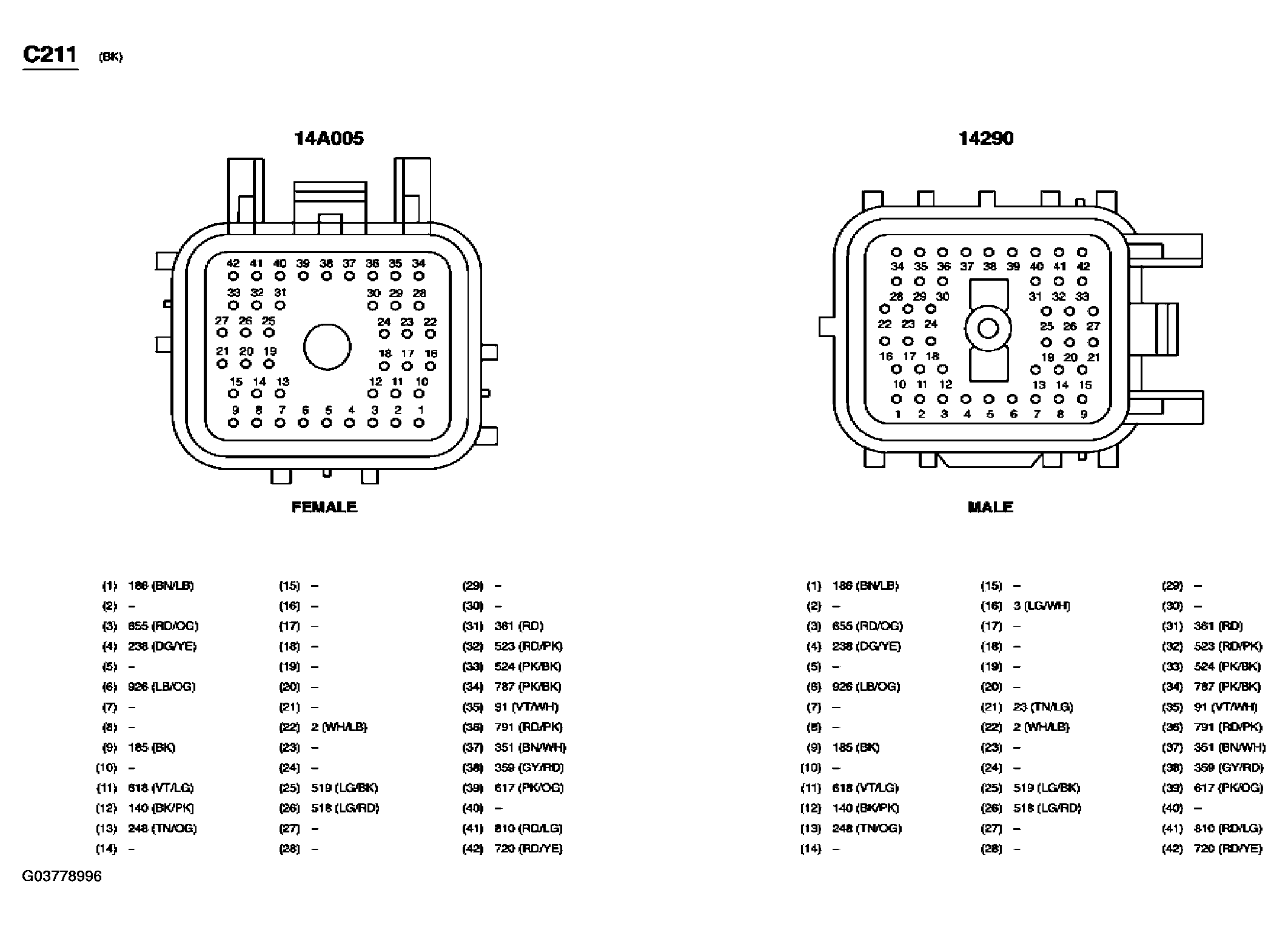

Fig 63: Inline Connector End View (C211)

G03778996

Courtesy of FORD MOTOR CO.

Fig 64: Inline Connector End View (C212)

G07839521

Courtesy of FORD MOTOR CO.

Fig 65: Inline Connector End View (C214)

G07839522

Courtesy of FORD MOTOR CO.

Fig 66: Air Bag Sliding Contact Connector End View (C218a)

G07839523

Courtesy of FORD MOTOR CO.

Fig 67: Driver Air Bag Unit Connector End View (C216)

G07839524

Courtesy of FORD MOTOR CO.

Fig 68: Air Bag Sliding Contact Connector End View (C218b)

G07839525

Courtesy of FORD MOTOR CO.

Fig 69: Inline Connector End View (C219)

G07839526

Courtesy of FORD MOTOR CO.

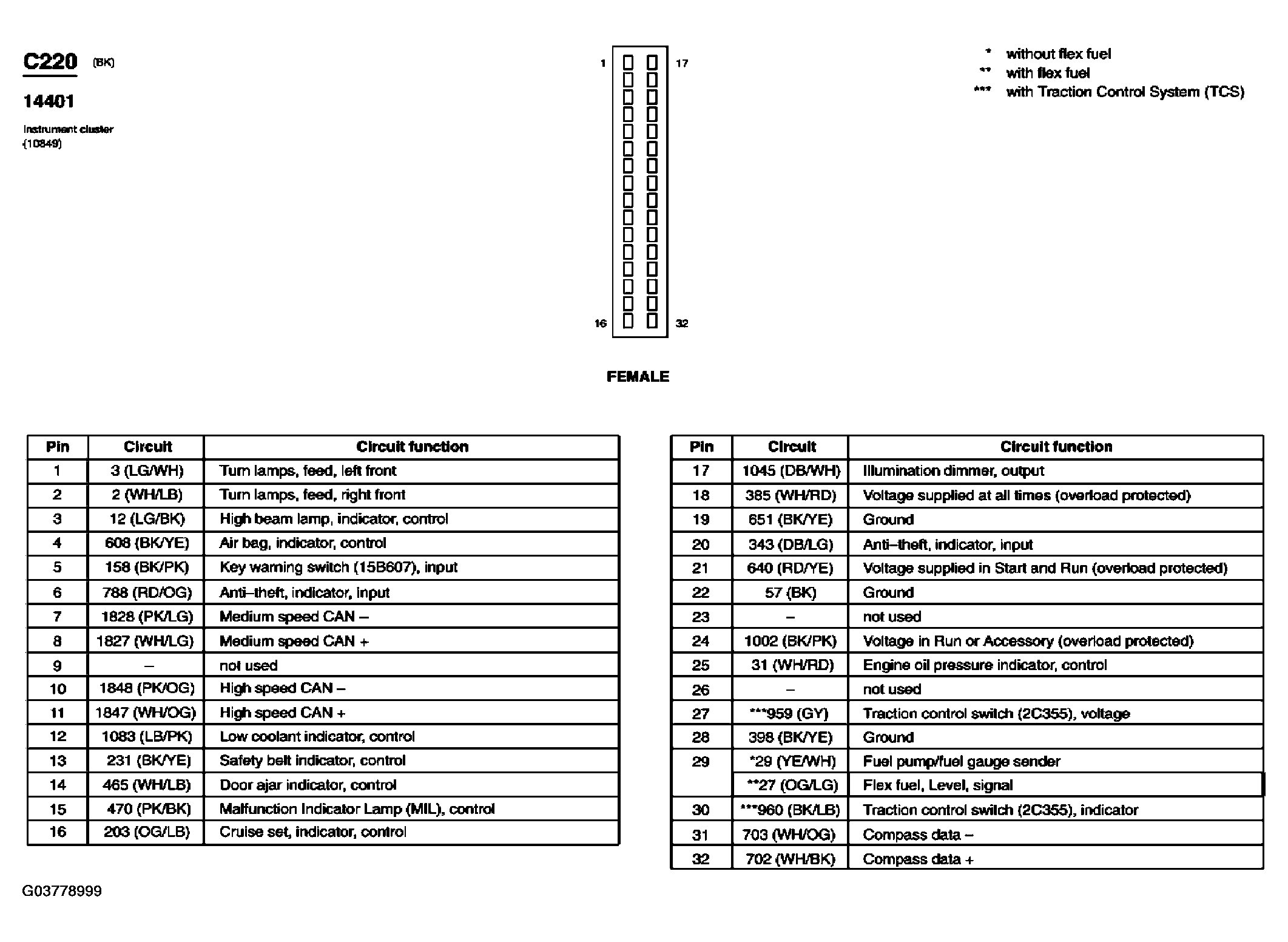

Fig 70: Instrument Cluster Connector End View (C220)

G03778999

Courtesy of FORD MOTOR CO.

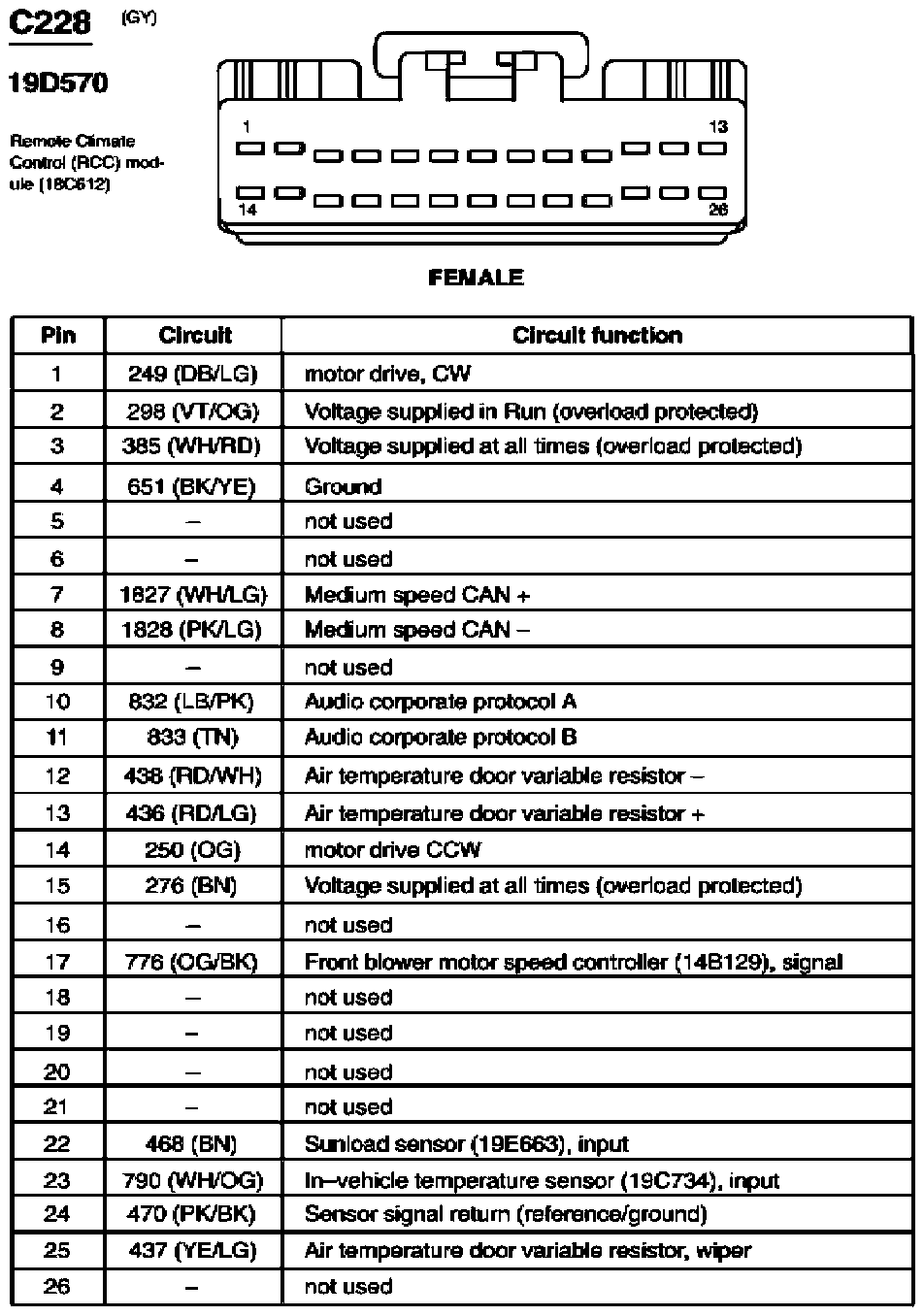

Fig 71: Remote Climate Control (RCC) Module Connector End View (C228)

G07839527

Courtesy of FORD MOTOR CO.

Fig 72: CD Changer Connector End View (C243)

G07839528

Courtesy of FORD MOTOR CO.

Fig 73: In-Vehicle Temperature Sensor Connector End View (C233)

G07839529

Courtesy of FORD MOTOR CO.

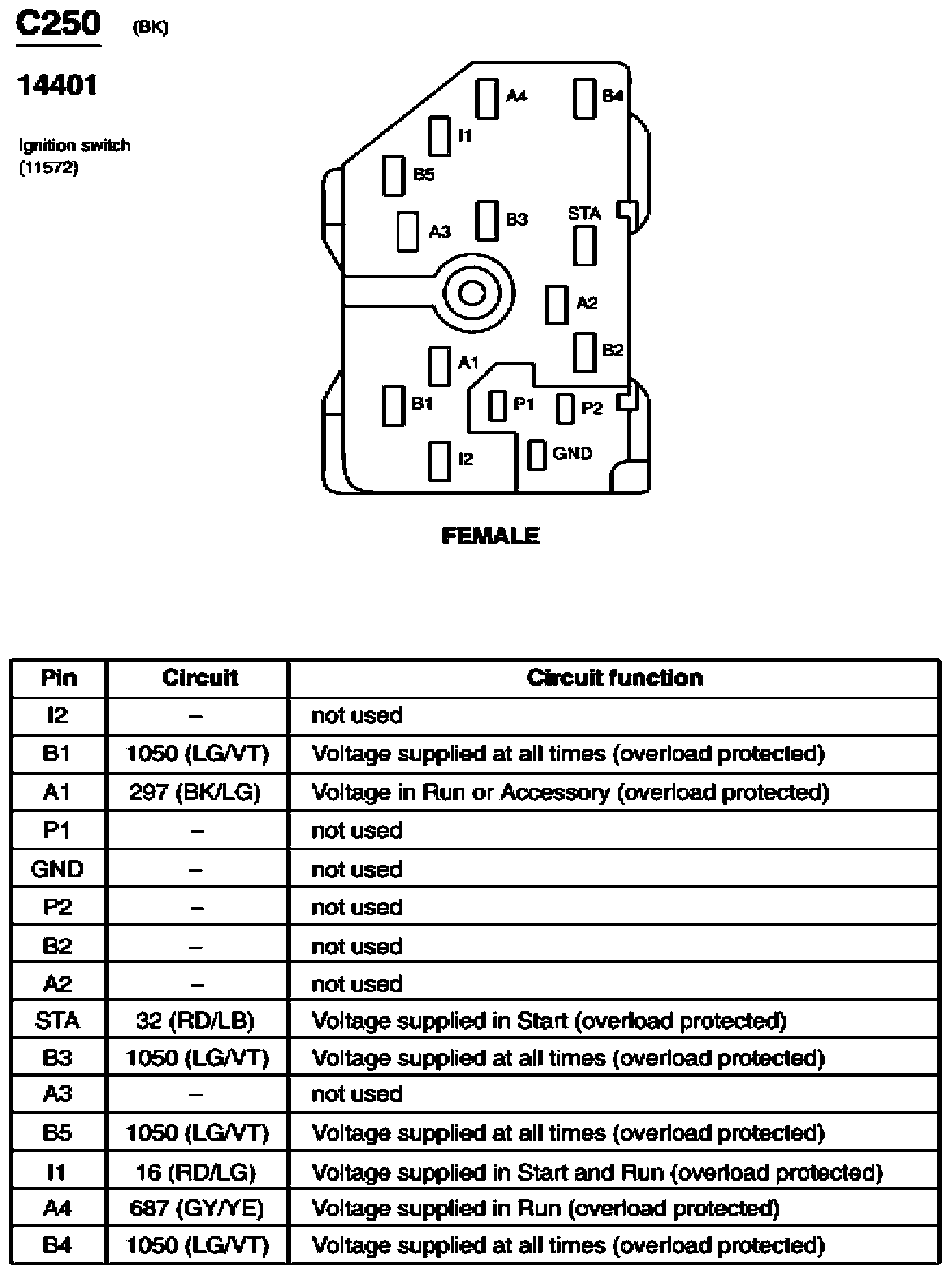

Fig 74: Ignition Switch Connector End View (C250)

G07839530

Courtesy of FORD MOTOR CO.

Fig 75: Data Link Connector (DLC) Connector End View (C251)

G07839531

Courtesy of FORD MOTOR CO.

Fig 76: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07839532

Courtesy of FORD MOTOR CO.

Fig 77: Message Center Switch Connector End View (C253)

G07839533

Courtesy of FORD MOTOR CO.

Fig 78: Passenger Air Bag Module Connector End View (C256)

G07839534

Courtesy of FORD MOTOR CO.

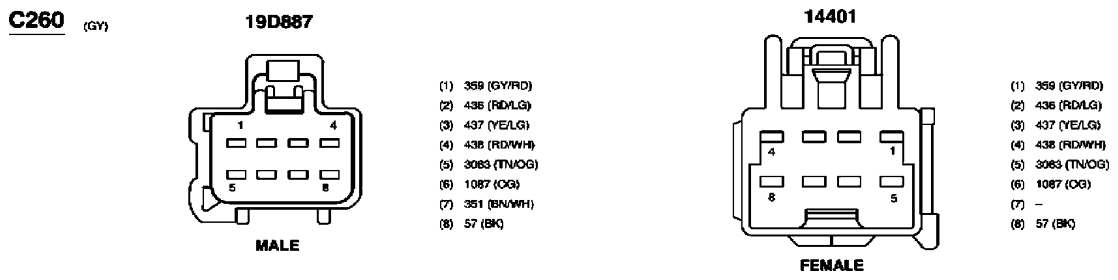

Fig 79: Inline Connector End View (C260)

G07839535

Courtesy of FORD MOTOR CO.

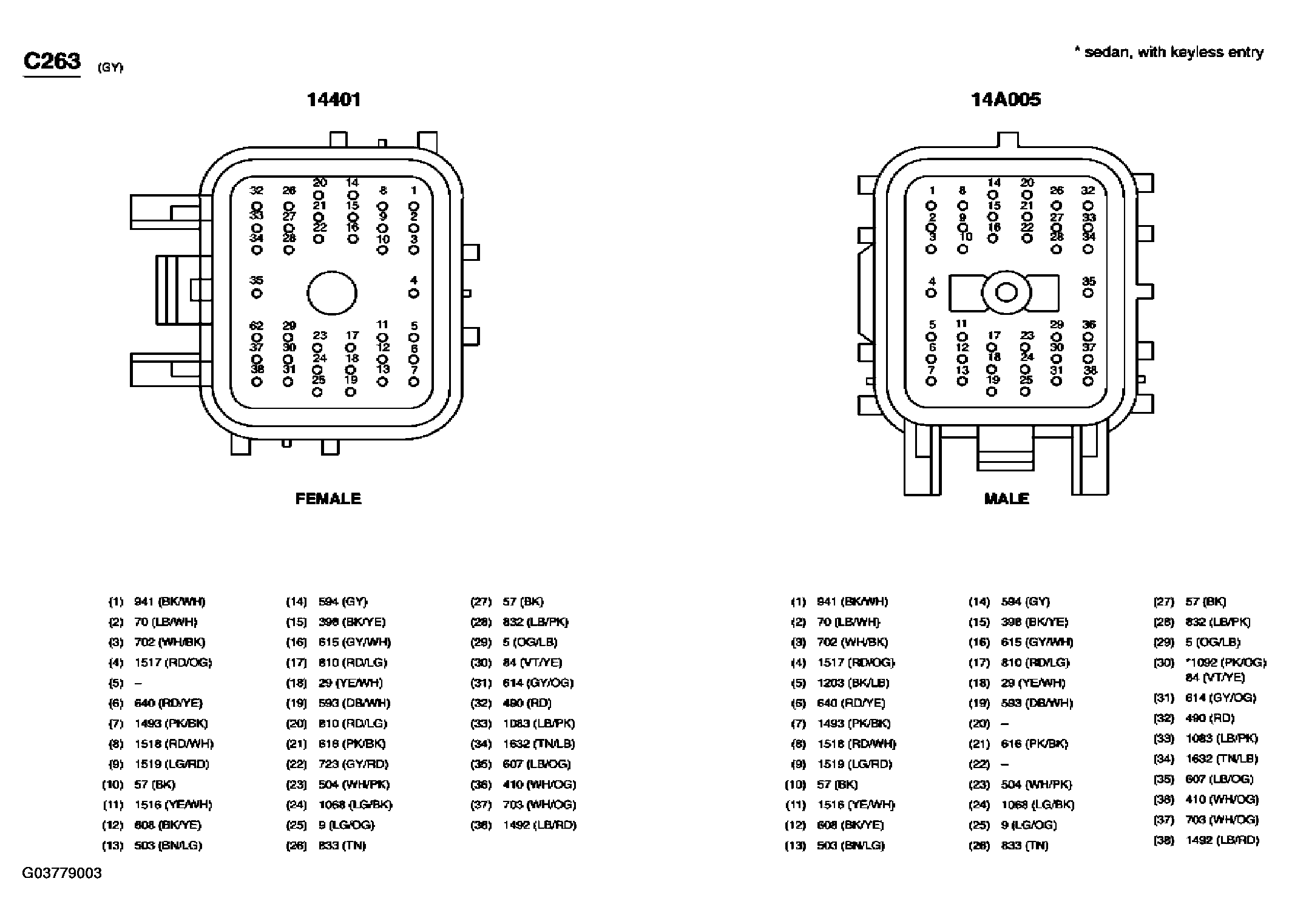

Fig 80: Inline Connector End View (C263)

G03779003

Courtesy of FORD MOTOR CO.

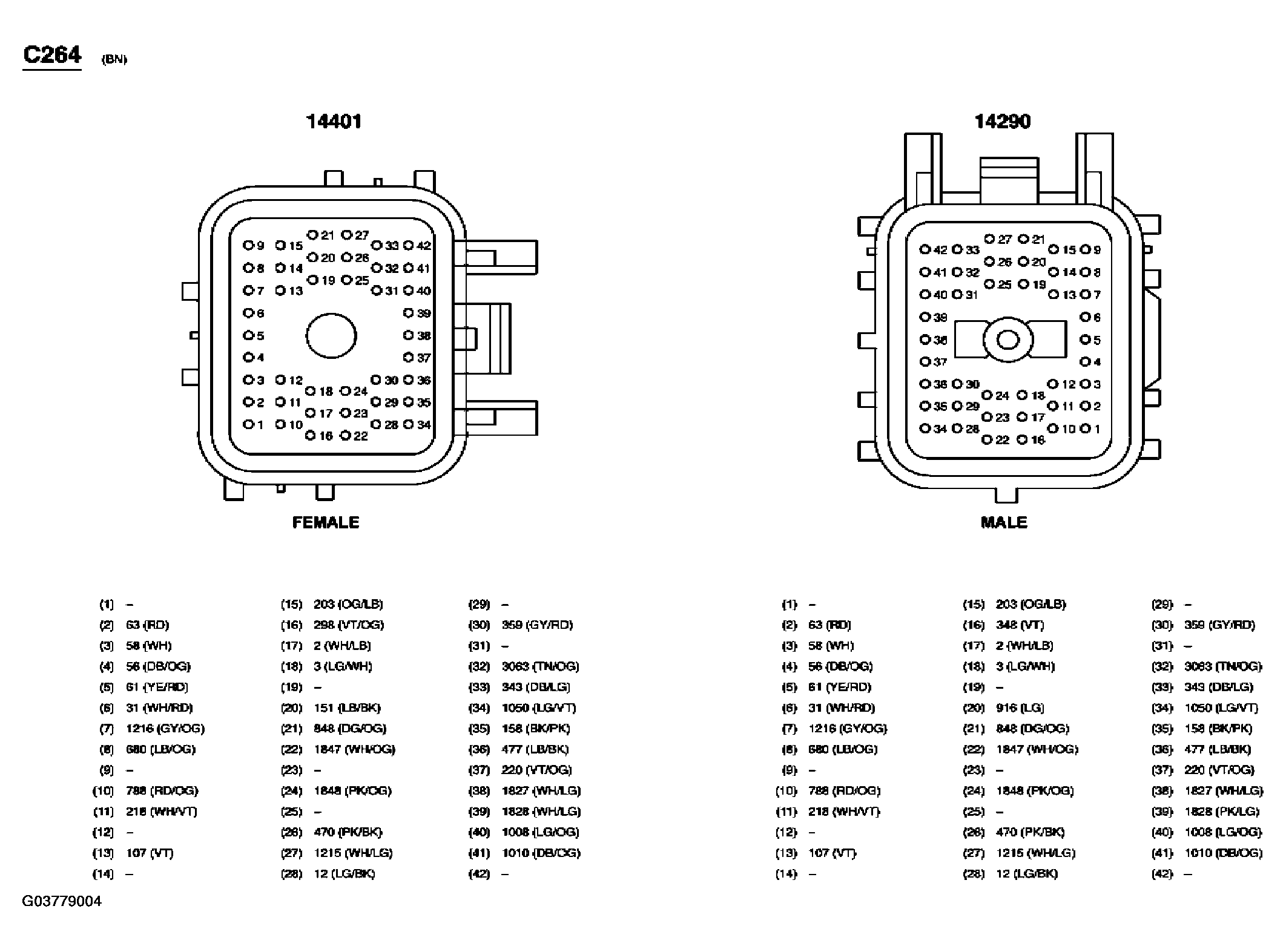

Fig 81: Inline Connector End View (C264)

G03779004

Courtesy of FORD MOTOR CO.

Fig 82: Inline Connector End View (C265)

G07839536

Courtesy of FORD MOTOR CO.

Fig 83: Front Blower Motor Speed Controller Connector End View (C271a)

G07839537

Courtesy of FORD MOTOR CO.

Fig 84: Brake Pedal Position Switch Connector End View (C278)

G07839538

Courtesy of FORD MOTOR CO.

Fig 85: Deactivator Switch Connector End View (C277)

G07839539

Courtesy of FORD MOTOR CO.

Fig 86: Traction Control Switch Connector End View (C280)

G07839540

Courtesy of FORD MOTOR CO.

Fig 87: Autolamp/Sunload Sensor Connector End View (C287)

G07839541

Courtesy of FORD MOTOR CO.

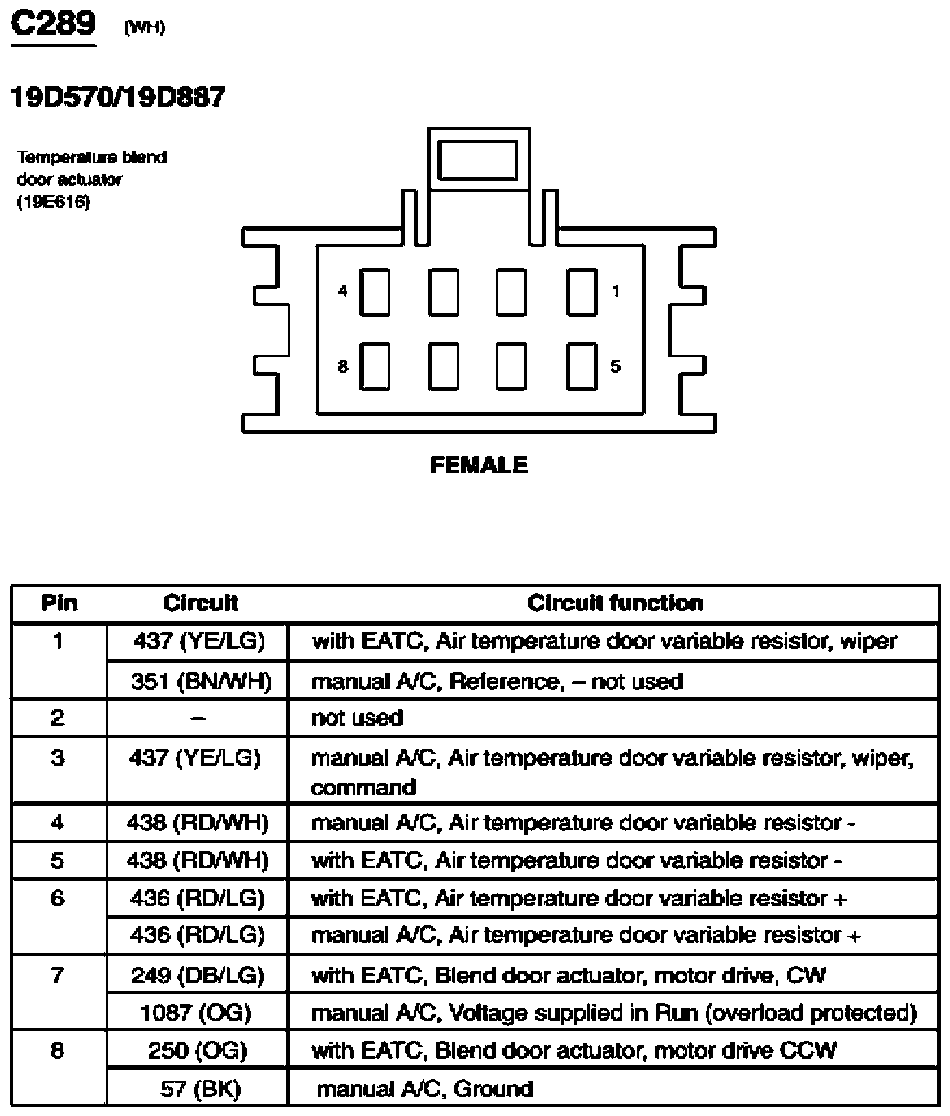

Fig 88: Temperature Blend Door Actuator Connector End View (C289)

G07839542

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C291)

G07839543

Courtesy of FORD MOTOR CO.

Fig 90: Front Blower Motor Resistor Assembly Connector End View (C293)

G07839544

Courtesy of FORD MOTOR CO.

Fig 91: Function Selector Switch Assembly Connector End View (C294a)

G07839545

Courtesy of FORD MOTOR CO.

Fig 92: Function Selector Switch Assembly Connector End View (C294b)

G07839546

Courtesy of FORD MOTOR CO.

Fig 93: Function Selector Switch Assembly Connector End View (C294c)

G07839547

Courtesy of FORD MOTOR CO.

Fig 94: Evaporator Discharge Air Temperature Sensor Connector End View (C296)

G07839548

Courtesy of FORD MOTOR CO.

Fig 95: High Mounted Stoplamp Connector End View (C302a)

G07839549

Courtesy of FORD MOTOR CO.

Fig 96: High Mounted Stoplamp Connector End View (C302b)

G07839550

Courtesy of FORD MOTOR CO.

Fig 97: Side Impact Sensor, Right Connector End View (C304)

G07839551

Courtesy of FORD MOTOR CO.

Fig 98: Side Impact Sensor, Left Connector End View (C305)

G07839552

Courtesy of FORD MOTOR CO.

Fig 99: Parking Brake Switch Connector End View (C306)

G07839553

Courtesy of FORD MOTOR CO.

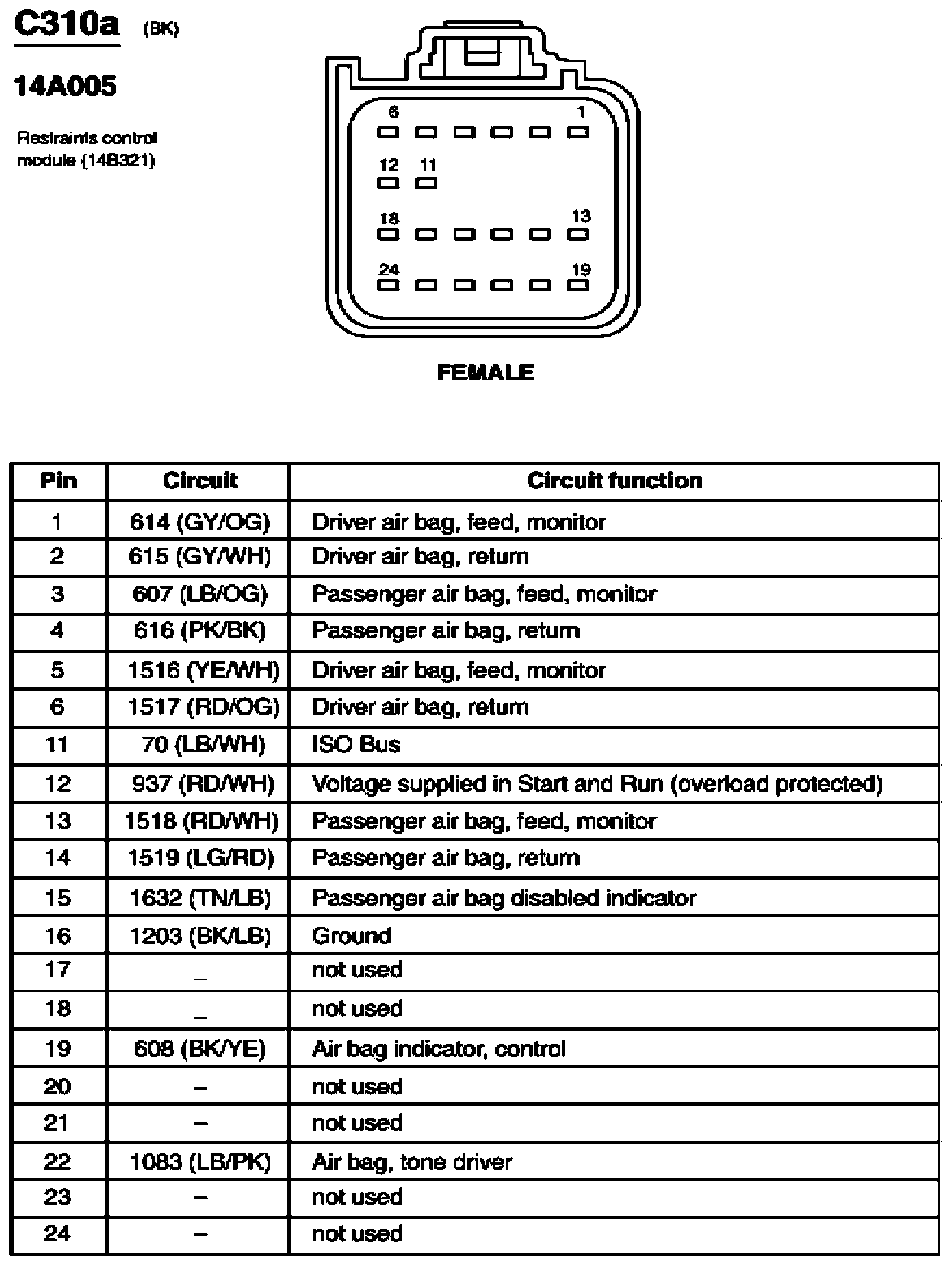

Fig 100: Restraints Control Module Connector End View (C310a)

G03779010

Courtesy of FORD MOTOR CO.

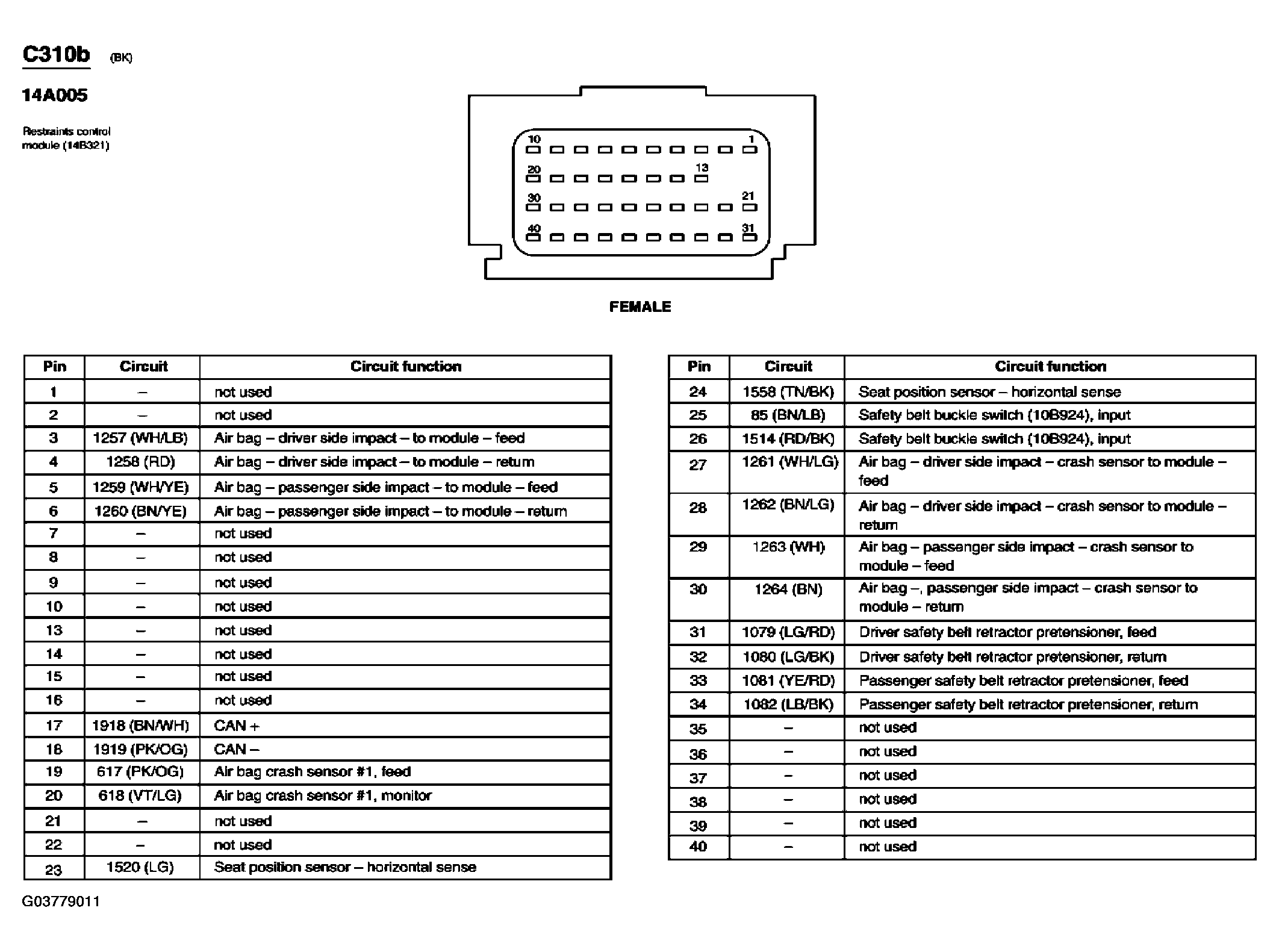

Fig 101: Restraints Control Module Connector End View (C310b)

G03779011

Courtesy of FORD MOTOR CO.

Fig 102: Inline Connector End View (C313)

G07839554

Courtesy of FORD MOTOR CO.

Fig 103: Inline Connector End View (C314)

G07839555

Courtesy of FORD MOTOR CO.

Fig 104: Inline Connector End View (C315)

G07839556

Courtesy of FORD MOTOR CO.

Fig 105: Inline Connector End View (C316)

G07839557

Courtesy of FORD MOTOR CO.

Fig 106: Cigar Lighter, Front Connector End View (C319)

G07839558

Courtesy of FORD MOTOR CO.

Fig 107: Inline Connector End View (C327)

G07839559

Courtesy of FORD MOTOR CO.

Fig 108: Seat Adjust Switch, Driver Side Front Connector End View (C330)

G07839560

Courtesy of FORD MOTOR CO.

Fig 109: Power Seat Motor Assembly, Right Connector End View (C332)

G07839561

Courtesy of FORD MOTOR CO.

Fig 110: Side Air Bag Module, Right Connector End View (C337)

G07839562

Courtesy of FORD MOTOR CO.

Fig 111: Seat Track Position Sensor, Left Connector End View (C356)

G07839563

Courtesy of FORD MOTOR CO.

Fig 112: Power Seat Motor Assembly, Left Connector End View (C357)

G07839564

Courtesy of FORD MOTOR CO.

Fig 113: Seat Track Position Sensor, Left Connector End View (C358)

G07839565

Courtesy of FORD MOTOR CO.

Fig 114: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07839566

Courtesy of FORD MOTOR CO.

Fig 115: Side Air Bag Module, Left Connector End View (C367)

G07839567

Courtesy of FORD MOTOR CO.

Fig 116: Power Point Connector End View (C380)

G07839568

Courtesy of FORD MOTOR CO.

Fig 117: Safety Belt Assembly Left Connector End View (C381)

G07839569

Courtesy of FORD MOTOR CO.

Fig 118: Power Antenna Module Connector End View (C387)

G07839570

Courtesy of FORD MOTOR CO.

Fig 119: Rear Control Unit (RCU) Connector End View (C388a)

G07839571

Courtesy of FORD MOTOR CO.

Fig 120: Rear Control Unit (RCU) Connector End View (C388b)

G07839572

Courtesy of FORD MOTOR CO.

Fig 121: Rear Control Unit (RCU) Connector End View (C388c)

G07839573

Courtesy of FORD MOTOR CO.

Fig 122: Safety Belt Assembly, Right Connector End View (C389)

G07839574

Courtesy of FORD MOTOR CO.

Fig 123: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07839575

Courtesy of FORD MOTOR CO.

Fig 124: Rear Window Defrost Grid Connector End View (C402a)

G07839576

Courtesy of FORD MOTOR CO.

Fig 125: Rear Window Defrost Grid Connector End View (C402b)

G07839577

Courtesy of FORD MOTOR CO.

Fig 126: Inline Connector End View (C406)

G07839578

Courtesy of FORD MOTOR CO.

Fig 127: Inline Connector End View (C408)

G07839579

Courtesy of FORD MOTOR CO.

Fig 128: Inline Connector End View (C410)

G07839580

Courtesy of FORD MOTOR CO.

Fig 129: Inline Connector End View (C411)

G07839581

Courtesy of FORD MOTOR CO.

Fig 130: Park/Turn Lamp, Left Rear Connector End View (C412)

G07839582

Courtesy of FORD MOTOR CO.

Fig 131: Turn Lamp, Left Rear Connector End View (C413)

G07839583

Courtesy of FORD MOTOR CO.

Fig 132: Park/Turn Lamp, Right Rear Connector End View (C415)

G07839584

Courtesy of FORD MOTOR CO.

Fig 133: Turn Lamp, Right Rear Connector End View (C416)

G07839585

Courtesy of FORD MOTOR CO.

Fig 134: Tail Lamp, Right Connector End View (C418)

G07839586

Courtesy of FORD MOTOR CO.

Fig 135: Tail Lamp, Left Connector End View (C419)

G07839587

Courtesy of FORD MOTOR CO.

Fig 136: Inline Connector End View (C423)

G07839588

Courtesy of FORD MOTOR CO.

Fig 137: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07839589

Courtesy of FORD MOTOR CO.

Fig 138: Luggage Compartment Lamp Connector End View (C428)

G07839590

Courtesy of FORD MOTOR CO.

Fig 139: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07839591

Courtesy of FORD MOTOR CO.

Fig 140: Inline Connector End View (C431)

G07839592

Courtesy of FORD MOTOR CO.

Fig 141: Inline Connector End View (C432)

G07839593

Courtesy of FORD MOTOR CO.

Fig 142: Fuel Pump Driver Module Connector End View (C433)

G07839594

Courtesy of FORD MOTOR CO.

Fig 143: Fuel Sender Connector End View (C434)

G07839595

Courtesy of FORD MOTOR CO.

Fig 144: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07839596

Courtesy of FORD MOTOR CO.

Fig 145: Inline Connector End View (C438)

G07839597

Courtesy of FORD MOTOR CO.

Fig 146: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07839598

Courtesy of FORD MOTOR CO.

Fig 147: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07839599

Courtesy of FORD MOTOR CO.

Fig 148: Reversing Lamp, Left Connector End View (C451)

G07839600

Courtesy of FORD MOTOR CO.

Fig 149: License Plate Lamp, Left Connector End View (C452)

G07839601

Courtesy of FORD MOTOR CO.

Fig 150: Reversing Lamp, Right Connector End View (C461)

G07839602

Courtesy of FORD MOTOR CO.

Fig 151: License Plate Lamp, Right Connector End View (C462)

G07839603

Courtesy of FORD MOTOR CO.

Fig 152: Inline Connector End View (C465)

G07839604

Courtesy of FORD MOTOR CO.

Fig 153: High Mounted Stoplamp Connector End View (C475)

G07839605

Courtesy of FORD MOTOR CO.

Fig 154: Rear Wiper Motor Assembly Connector End View (C476)

G07839606

Courtesy of FORD MOTOR CO.

Fig 155: Rear Window Washer Pump Motor Connector End View (C477)

G07839607

Courtesy of FORD MOTOR CO.

Fig 156: Liftgate Glass Ajar Switch Connector End View (C478)

G07839608

Courtesy of FORD MOTOR CO.

Fig 157: Liftgate Ajar Switch Connector End View (C479)

G07839609

Courtesy of FORD MOTOR CO.

Fig 158: Liftgate Lock Actuator Connector End View (C480)

G07839610

Courtesy of FORD MOTOR CO.

Fig 159: Side Lamp, Left Rear Connector End View (C481)

G07839611

Courtesy of FORD MOTOR CO.

Fig 160: Side Lamp, Right Rear Connector End View (C482)

G07839612

Courtesy of FORD MOTOR CO.

Fig 161: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G07839613

Courtesy of FORD MOTOR CO.

Fig 162: Speaker, Left Rear Connector End View (C484)

G07839614

Courtesy of FORD MOTOR CO.

Fig 163: Speaker, Right Rear Connector End View (C485)

G07839615

Courtesy of FORD MOTOR CO.

Fig 164: Reversing Lamp, Left Connector End View (C487)

G07839616

Courtesy of FORD MOTOR CO.

Fig 165: Reversing Lamp, Right Connector End View (C488)

G07839617

Courtesy of FORD MOTOR CO.

Fig 166: Cargo Space Lamp Connector End View (C489)

G07839618

Courtesy of FORD MOTOR CO.

Fig 167: License Lamps Connector End View (C490)

G07839619

Courtesy of FORD MOTOR CO.

Fig 168: Pulse Stretcher Module Connector End View (C491)

G07839620

Courtesy of FORD MOTOR CO.

Fig 169: Key Pad Switch Assembly Connector End View (C500)

G07839621

Courtesy of FORD MOTOR CO.

Fig 170: Lock Cylinder Switch, Left Connector End View (C502)

G07839622

Courtesy of FORD MOTOR CO.

Fig 171: Master Window Adjust Switch Connector End View (C504a)

G07839623

Courtesy of FORD MOTOR CO.

Fig 172: Master Window Adjust Switch Connector End View (C504b)

G07839624

Courtesy of FORD MOTOR CO.

Fig 173: Door Lock Switch, Driver Side Connector End View (C505)

G07839625

Courtesy of FORD MOTOR CO.

Fig 174: Inline Connector End View (C510)

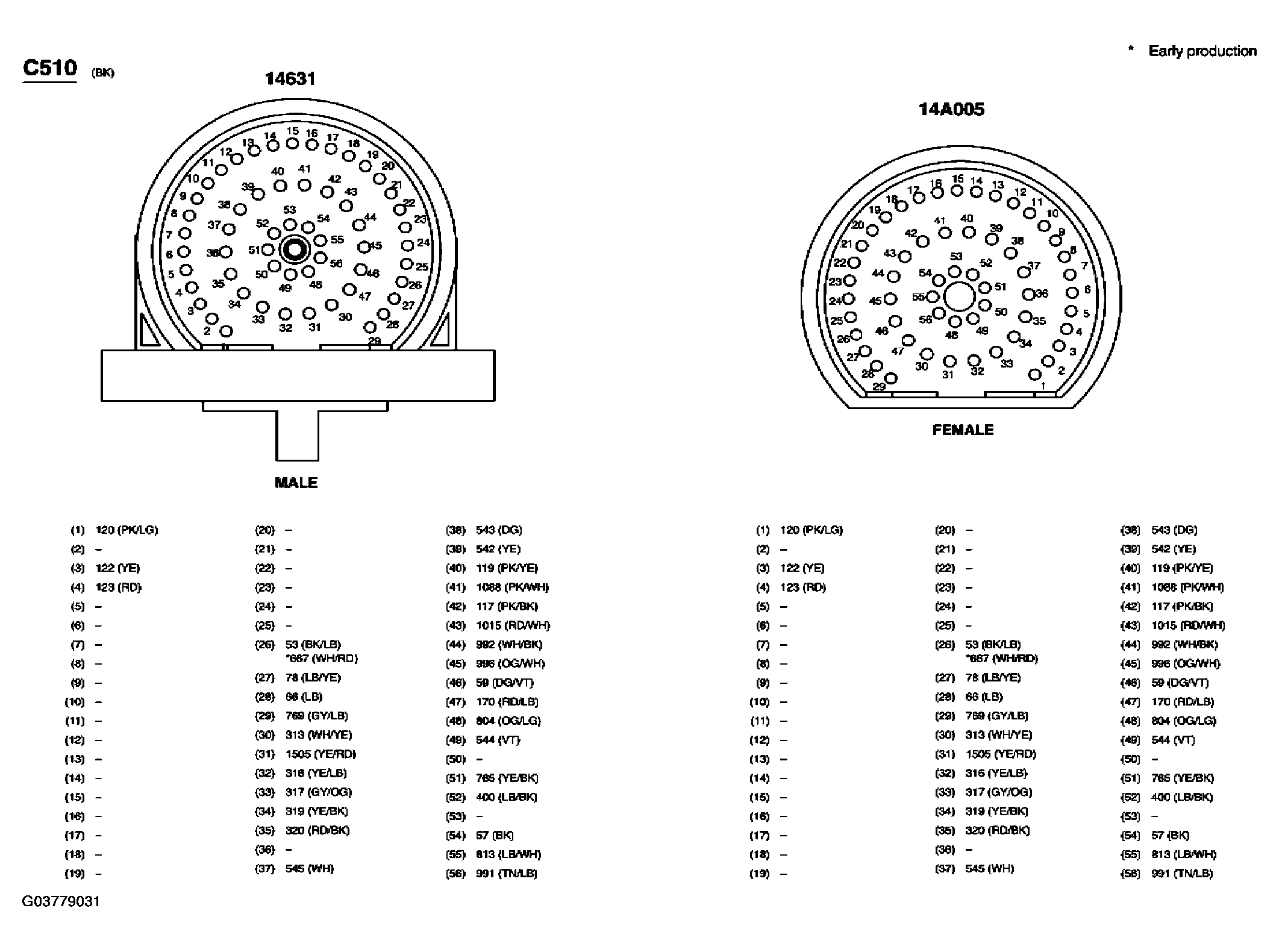

G03779031

Courtesy of FORD MOTOR CO.

Fig 175: Tweeter, Left Front Connector End View (C513)

G07839626

Courtesy of FORD MOTOR CO.

Fig 176: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G07839627

Courtesy of FORD MOTOR CO.

Fig 177: Speaker, Left Front Connector End View (C523)

G07839628

Courtesy of FORD MOTOR CO.

Fig 178: Power Window Motor, Driver Side Front Connector End View (C524)

G07839629

Courtesy of FORD MOTOR CO.

Fig 179: Door Lock Actuator, Left Front Connector End View (C525)

G07839630

Courtesy of FORD MOTOR CO.

Fig 180: Door Ajar Switch, Left Front Connector End View (C526)

G07839631

Courtesy of FORD MOTOR CO.

Fig 181: Exterior Rear View Mirror Switch Connector End View (C527)

G07839632

Courtesy of FORD MOTOR CO.

Fig 182: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07839633

Courtesy of FORD MOTOR CO.

Fig 183: Door Ajar Switch, Right Front Connector End View (C602)

G07839634

Courtesy of FORD MOTOR CO.

Fig 184: Door Lock Actuator, Right Front Connector End View (C603)

G07839635

Courtesy of FORD MOTOR CO.

Fig 185: Window Adjust Switch, Passenger Side Connector End View (C604)

G07839636

Courtesy of FORD MOTOR CO.

Fig 186: Door Lock Switch, Passenger Side Connector End View (C605)

G07839637

Courtesy of FORD MOTOR CO.

Fig 187: Power Window Motor, Passenger Side Front Connector End View (C608)

G07839638

Courtesy of FORD MOTOR CO.

Fig 188: Speaker, Right Front Connector End View (C612)

G07839639

Courtesy of FORD MOTOR CO.

Fig 189: Tweeter, Right Front Connector End View (C613)

G07839640

Courtesy of FORD MOTOR CO.

Fig 190: Window Adjust Switch, Left Rear Connector End View (C701)

G07839641

Courtesy of FORD MOTOR CO.

Fig 191: Power Window Motor, Left Rear Connector End View (C703)

G07839642

Courtesy of FORD MOTOR CO.

Fig 192: Door Lock Actuator, Left Rear Connector End View (C704)

G07839643

Courtesy of FORD MOTOR CO.

Fig 193: Inline Connector End View (C710)

G07839644

Courtesy of FORD MOTOR CO.

Fig 194: Door Ajar Switch, Left Rear Connector End View (C715)

G07839645

Courtesy of FORD MOTOR CO.

Fig 195: Window Adjust Switch, Right Rear Connector End View (C801)

G07839646

Courtesy of FORD MOTOR CO.

Fig 196: Power Window Motor, Right Rear Connector End View (C803)

G07839647

Courtesy of FORD MOTOR CO.

Fig 197: Door Lock Actuator, Right Rear Connector End View (C804)

G07839648

Courtesy of FORD MOTOR CO.

Fig 198: Inline Connector End View (C810)

G07839649

Courtesy of FORD MOTOR CO.

Fig 199: Door Ajar Switch, Right Rear Connector End View (C820)

G07839650

Courtesy of FORD MOTOR CO.

Fig 200: Map Reading Lamps Connector End View (C901)

G07839651

Courtesy of FORD MOTOR CO.

Fig 201: Vanity Mirror Lamp, Right Connector End View (C906)

G07839652

Courtesy of FORD MOTOR CO.

Fig 202: Vanity Mirror Lamp, Left Connector End View (C907)

G07839653

Courtesy of FORD MOTOR CO.

Fig 203: Electronic Compass Connector End View (C909)

G07839654

Courtesy of FORD MOTOR CO.

Fig 204: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07839655

Courtesy of FORD MOTOR CO.

Fig 205: Roof Opening Panel Switch Connector End View (C912)

G07839656

Courtesy of FORD MOTOR CO.

Fig 206: Inline Connector End View (C913)

G07839657

Courtesy of FORD MOTOR CO.

Fig 207: Interior Lamps, Front Connector End View (C918)

G07839658

Courtesy of FORD MOTOR CO.

Fig 208: Inline Connector End View (C919)

G07839659

Courtesy of FORD MOTOR CO.

Fig 209: Roof Opening Panel Module Connector End View (C921)

G07839660

Courtesy of FORD MOTOR CO.

Fig 210: Inline Connector End View (C922)

G07839661

Courtesy of FORD MOTOR CO.

Fig 211: Wiper High/Low Relay Connector End View (C1001)

G07839662

Courtesy of FORD MOTOR CO.

Fig 212: Wiper Run/Park Relay Connector End View (C1002)

G07839663

Courtesy of FORD MOTOR CO.

Fig 213: Fog Lamp Relay Connector End View (C1007)

G07839664

Courtesy of FORD MOTOR CO.

Fig 214: A/C Clutch Relay Connector End View (C1008)

G07839665

Courtesy of FORD MOTOR CO.

Fig 215: PCM Power Relay Connector End View (C1016)

G07839666

Courtesy of FORD MOTOR CO.

Fig 216: Starter Relay Connector End View (C1017)

G07839667

Courtesy of FORD MOTOR CO.

Fig 217: Headlamp, Left Connector End View (C1021)

G07839668

Courtesy of FORD MOTOR CO.

Fig 218: Park/Turn Lamp, Left Front Connector End View (C1023)

G07839669

Courtesy of FORD MOTOR CO.

Fig 219: Engine Cooling Fan Resistor Connector End View (C1027)

G07839670

Courtesy of FORD MOTOR CO.

Fig 220: Engine Cooling Fan Brake Relay Connector End View (C1028)

G07839671

Courtesy of FORD MOTOR CO.

Fig 221: Battery Junction Box (BJB) Connector End View (C1035a)

G07839672

Courtesy of FORD MOTOR CO.

Fig 222: Headlamp, Right Connector End View (C1041)

G07839673

Courtesy of FORD MOTOR CO.

Fig 223: Battery Junction Box (BJB) Connector End View (C1035b)

G07839674

Courtesy of FORD MOTOR CO.

Fig 224: Park/Turn Lamp, Right Front Connector End View (C1043)

G07839675

Courtesy of FORD MOTOR CO.

Fig 225: Fuel Pump Relay Connector End View (C1051)

G07839676

Courtesy of FORD MOTOR CO.

Fig 226: Engine Cooling Fan Relay Connector End View (C1055)

G07839677

Courtesy of FORD MOTOR CO.

Fig 227: High Speed Fan Control Relay Connector End View (C1056)

G07839678

Courtesy of FORD MOTOR CO.

Fig 228: Low Speed Fan Control Relay Connector End View (C1058)

G07839679

Courtesy of FORD MOTOR CO.

Fig 229: Dual Pressure Switch Connector End View (C1062)

G07839680

Courtesy of FORD MOTOR CO.

Fig 230: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07839681

Courtesy of FORD MOTOR CO.

Fig 231: Ignition Coil Connector End View (C1065)

G07839682

Courtesy of FORD MOTOR CO.

Fig 232: Idle Air Control (IAC) Valve Connector End View (C1066)

G07839683

Courtesy of FORD MOTOR CO.

Fig 233: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07839684

Courtesy of FORD MOTOR CO.

Fig 234: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07839685

Courtesy of FORD MOTOR CO.

Fig 235: Injector Pressure Sensor Connector End View (C1073)

G07839686

Courtesy of FORD MOTOR CO.

Fig 236: Engine Cooling Fan Motor 1 Connector End View (C1074)

G07839687

Courtesy of FORD MOTOR CO.

Fig 237: Engine Cooling Fan Motor 2 Connector End View (C1077)

G07839688

Courtesy of FORD MOTOR CO.

Fig 238: Rear Window Defrost Relay 2 Connector End View (C1099)

G07839689

Courtesy of FORD MOTOR CO.

Fig 239: Battery Connector End View (C1100a)

G07839690

Courtesy of FORD MOTOR CO.

Fig 240: Battery Connector End View (C1100b)

G07839691

Courtesy of FORD MOTOR CO.

Fig 241: Generator Connector End View (C1104)

G07839692

Courtesy of FORD MOTOR CO.

Fig 242: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07839693

Courtesy of FORD MOTOR CO.

Fig 243: Power Steering Pressure Sensor Connector End View (C1311)

G07839694

Courtesy of FORD MOTOR CO.

Fig 244: Rear Window Wiper/Washer Switch Connector End View (C2000)

G07839695

Courtesy of FORD MOTOR CO.

Fig 245: PRNDL Illumination Lamp Connector End View (C2002)

G07839696

Courtesy of FORD MOTOR CO.

Fig 246: Adjustable Pedal Motor Connector End View (C2003)

G07839697

Courtesy of FORD MOTOR CO.

Fig 247: Front Blower Motor Connector End View (C2004)

G07839698

Courtesy of FORD MOTOR CO.

Fig 248: Flexible Fuel Sensor Module Connector End View (C2005)

G07839699

Courtesy of FORD MOTOR CO.

Fig 249: Brake Shift Interlock Connector End View (C2008)

G07839700

Courtesy of FORD MOTOR CO.

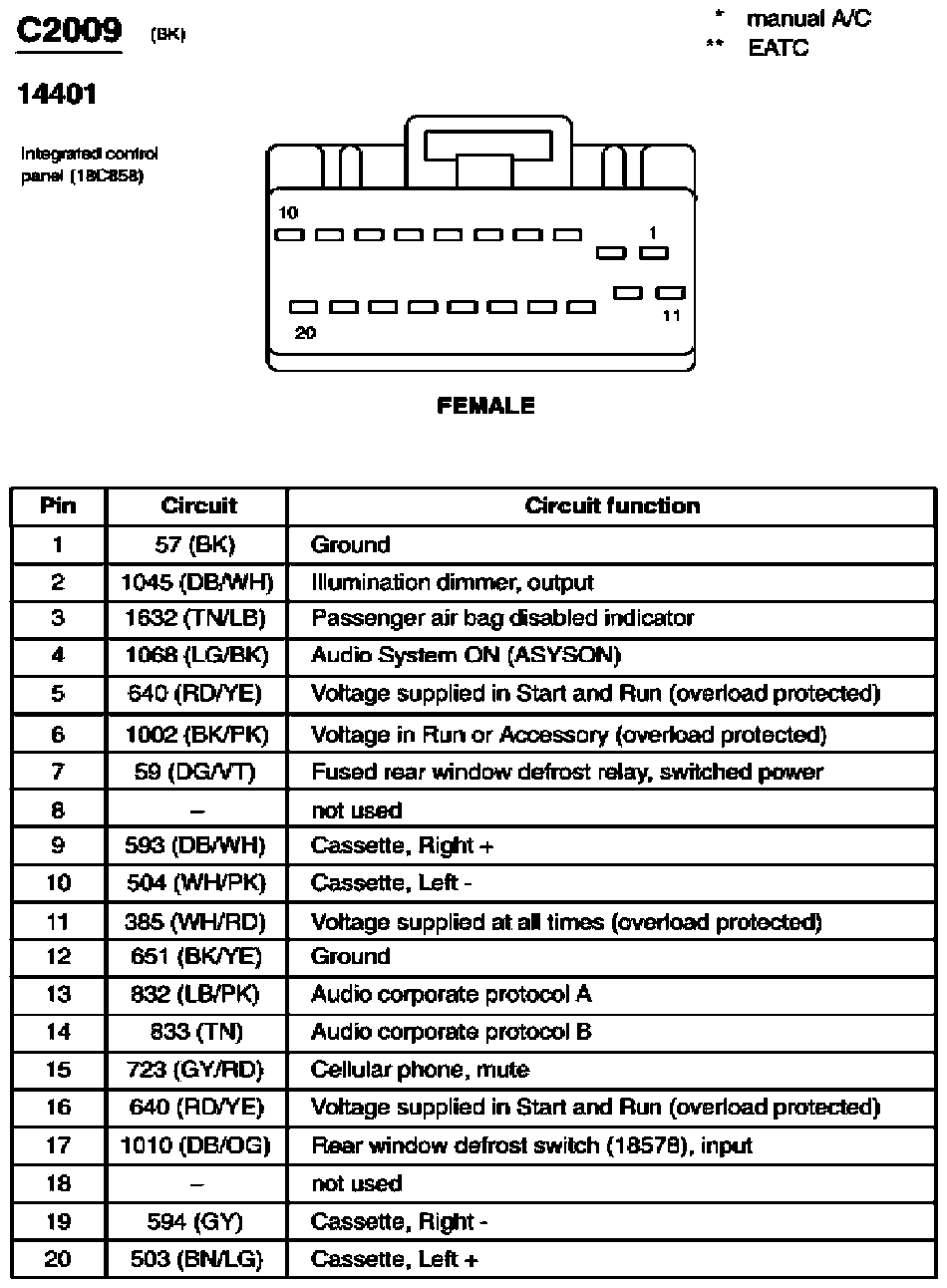

Fig 250: Integrated Control Panel Connector End View (C2009)

G07839701

Courtesy of FORD MOTOR CO.

Fig 251: Blower Motor Relay Connector End View (C2017)

G07839702

Courtesy of FORD MOTOR CO.

Fig 252: Rear Window Defrost Relay 1 Connector End View (C2021)

G07839703

Courtesy of FORD MOTOR CO.

Fig 253: Electronic Flasher Module Connector End View (C2027)

G07839704

Courtesy of FORD MOTOR CO.

Fig 254: One-Touch Window Relay Connector End View (C2051)

G07839705

Courtesy of FORD MOTOR CO.

Fig 255: Accessory Relay Connector End View (C2050)

G07839706

Courtesy of FORD MOTOR CO.

Fig 256: Adjustable Pedal Switch Connector End View (C2089)

G03779054

Courtesy of FORD MOTOR CO.

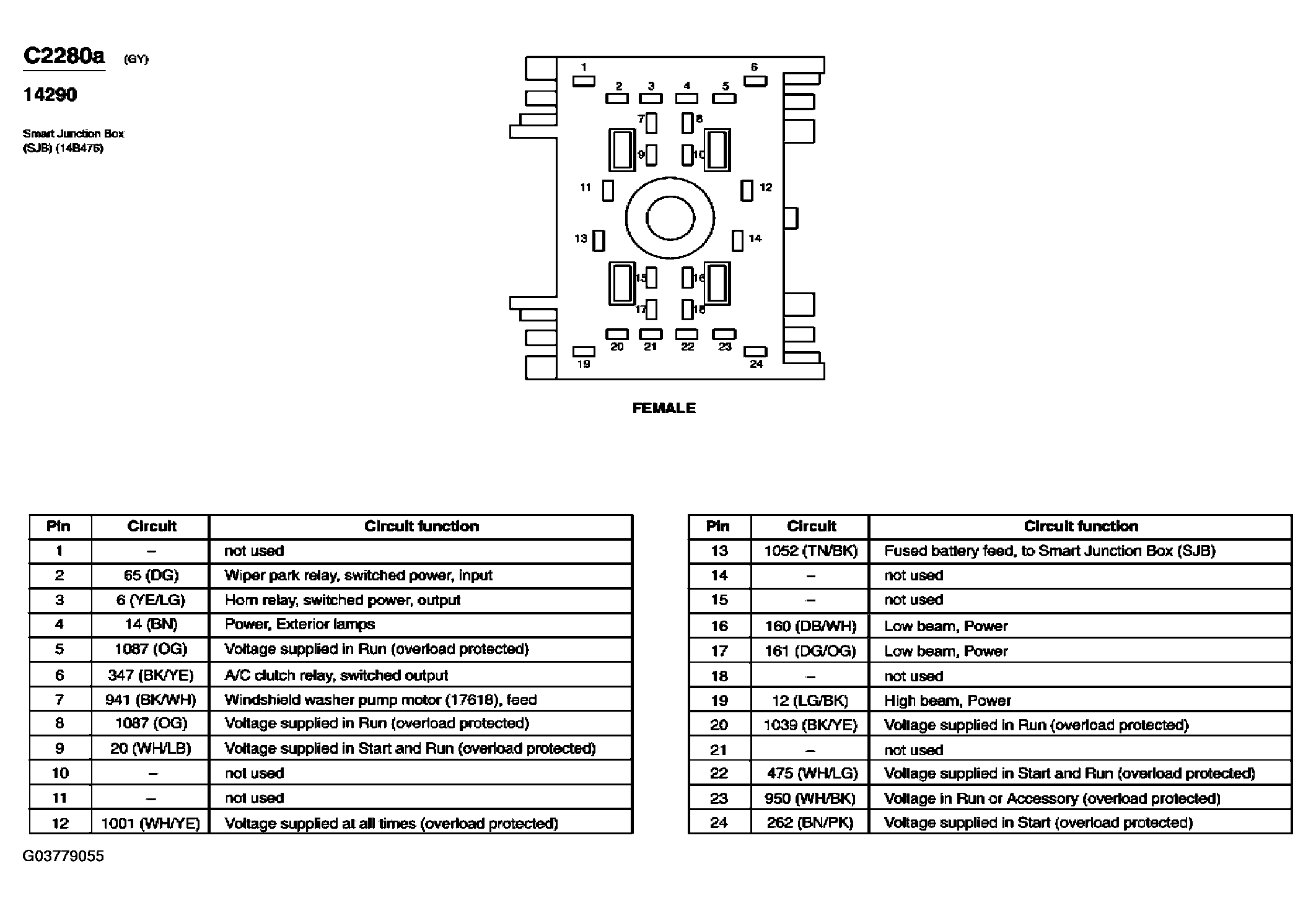

Fig 257: Smart Junction Box (SJB) Connector End View (C2280a)

G03779055

Courtesy of FORD MOTOR CO.

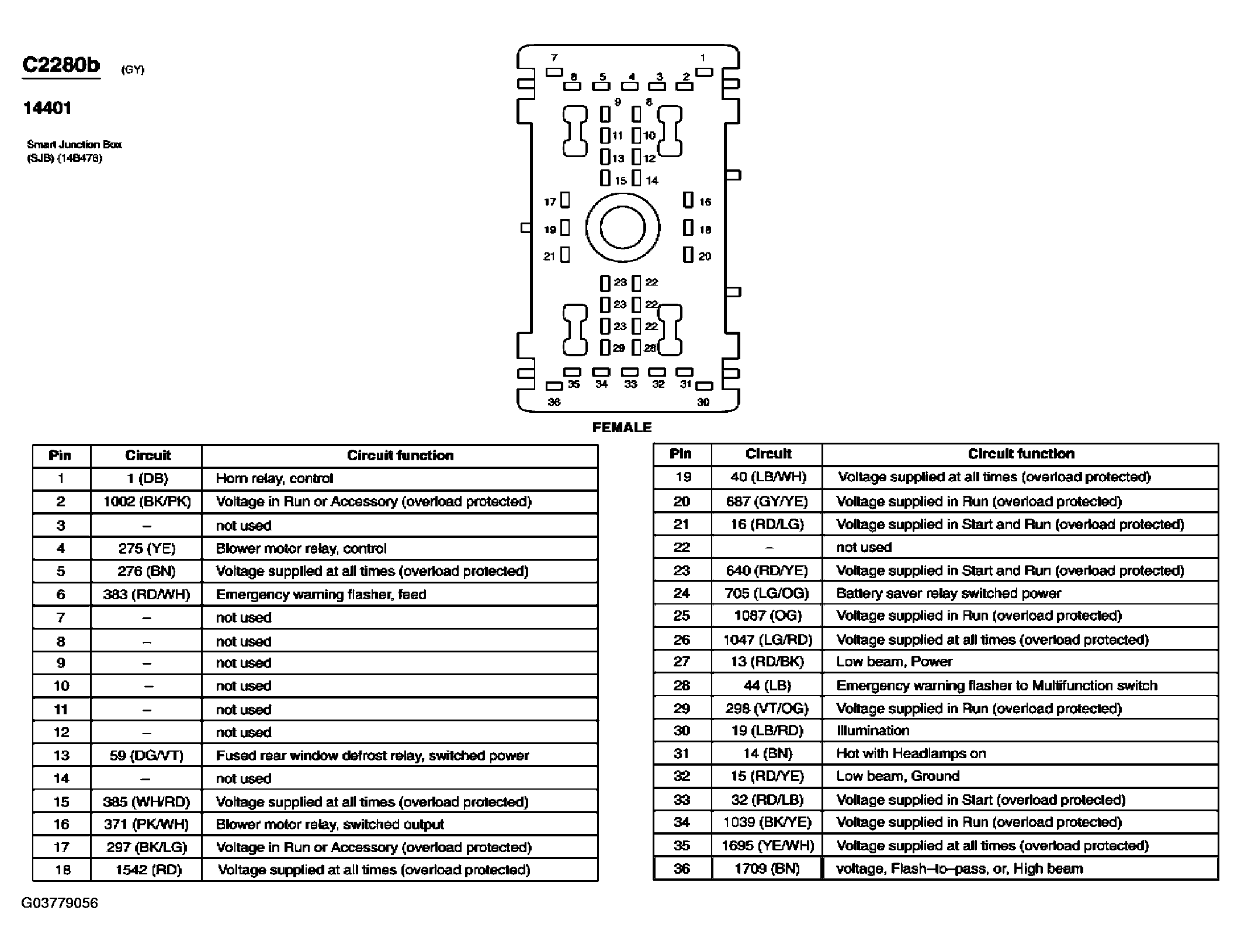

Fig 258: Smart Junction Box (SJB) Connector End View (C2280b)

G03779056

Courtesy of FORD MOTOR CO.

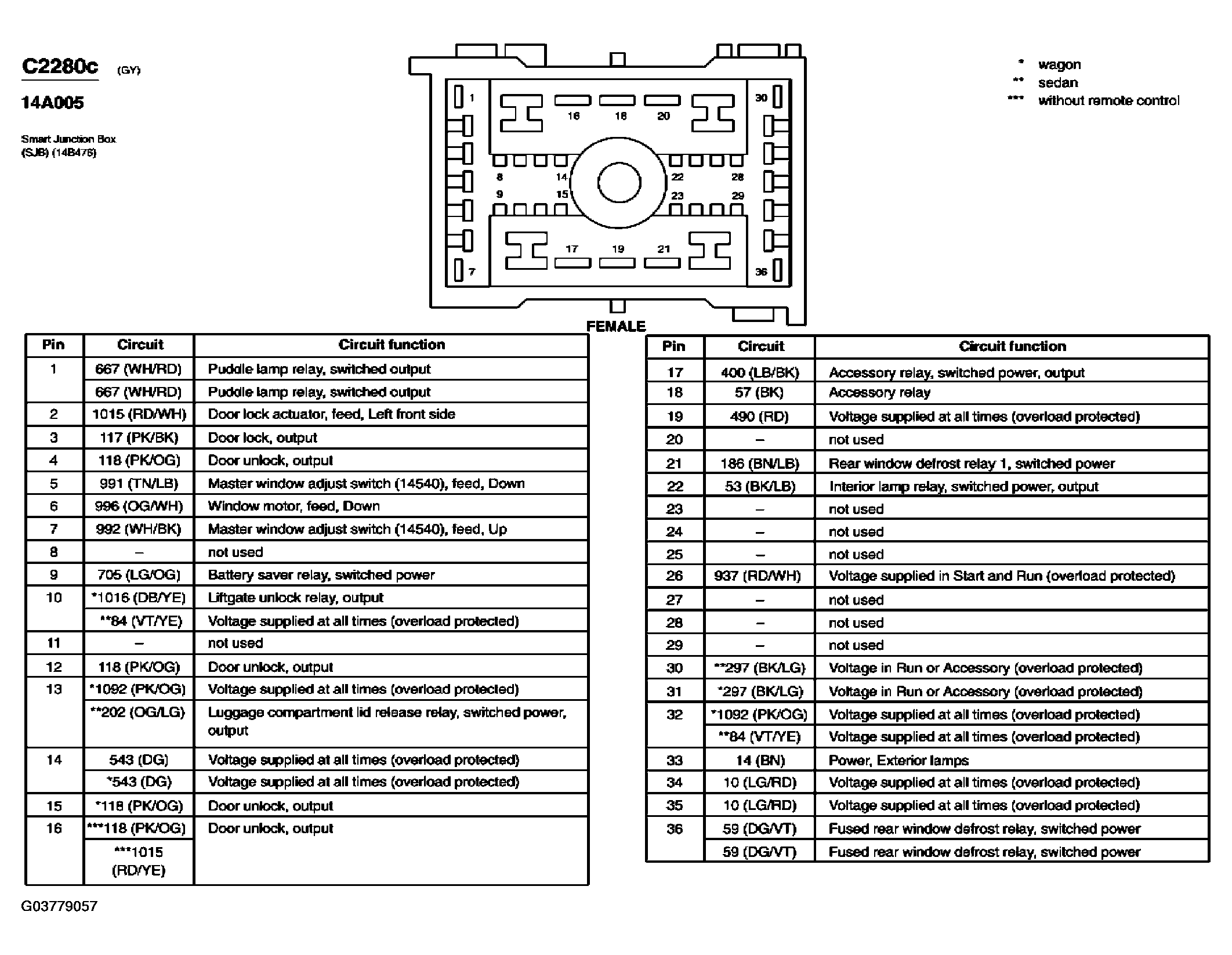

Fig 259: Smart Junction Box (SJB) Connector End View (C2280c)

G03779057

Courtesy of FORD MOTOR CO.

Fig 260: Smart Junction Box (SJB) Connector End View (C2280d)

G07839707

Courtesy of FORD MOTOR CO.

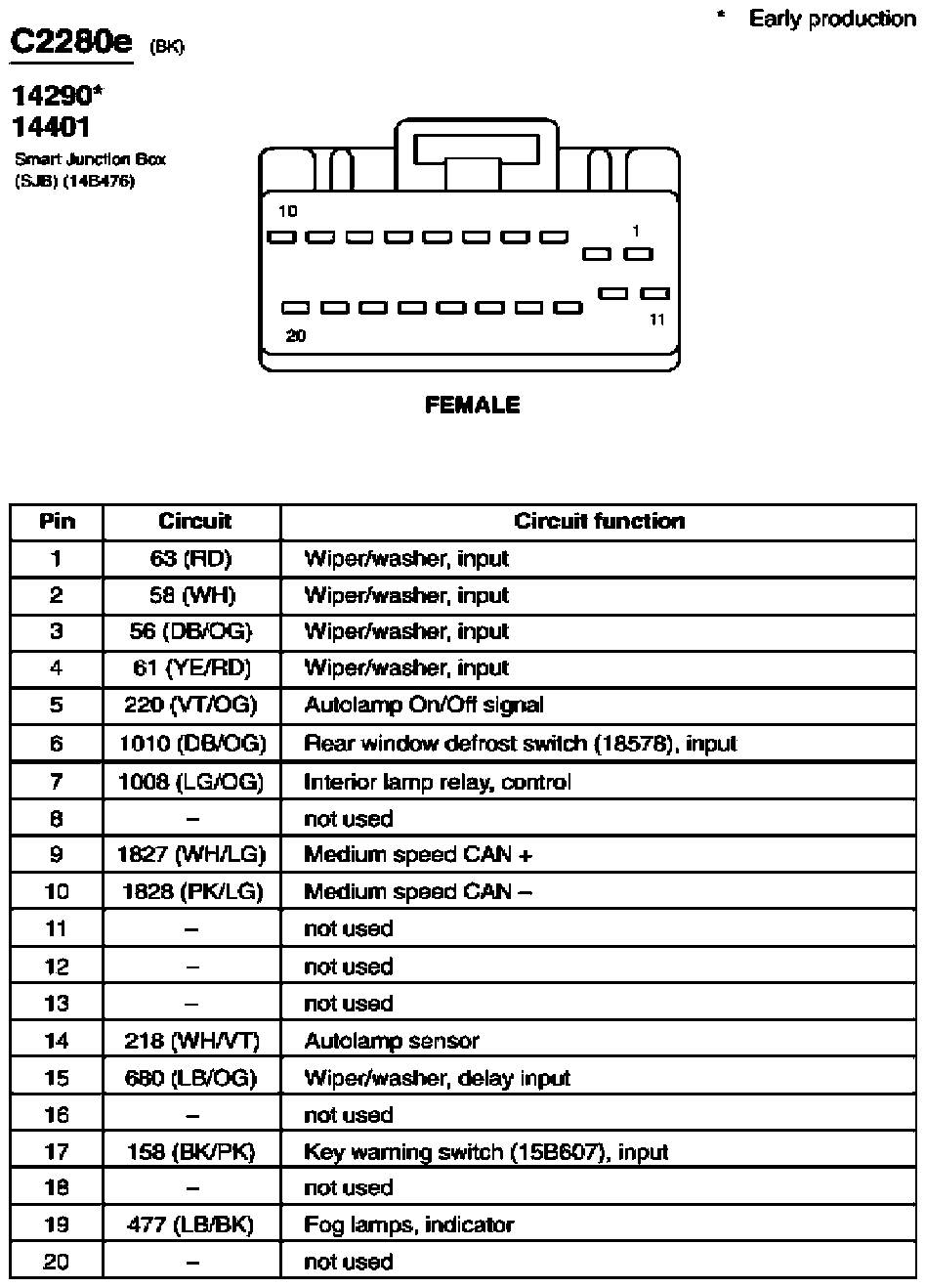

Fig 261: Smart Junction Box (SJB) Connector End View (C2280e)

G07839708

Courtesy of FORD MOTOR CO.

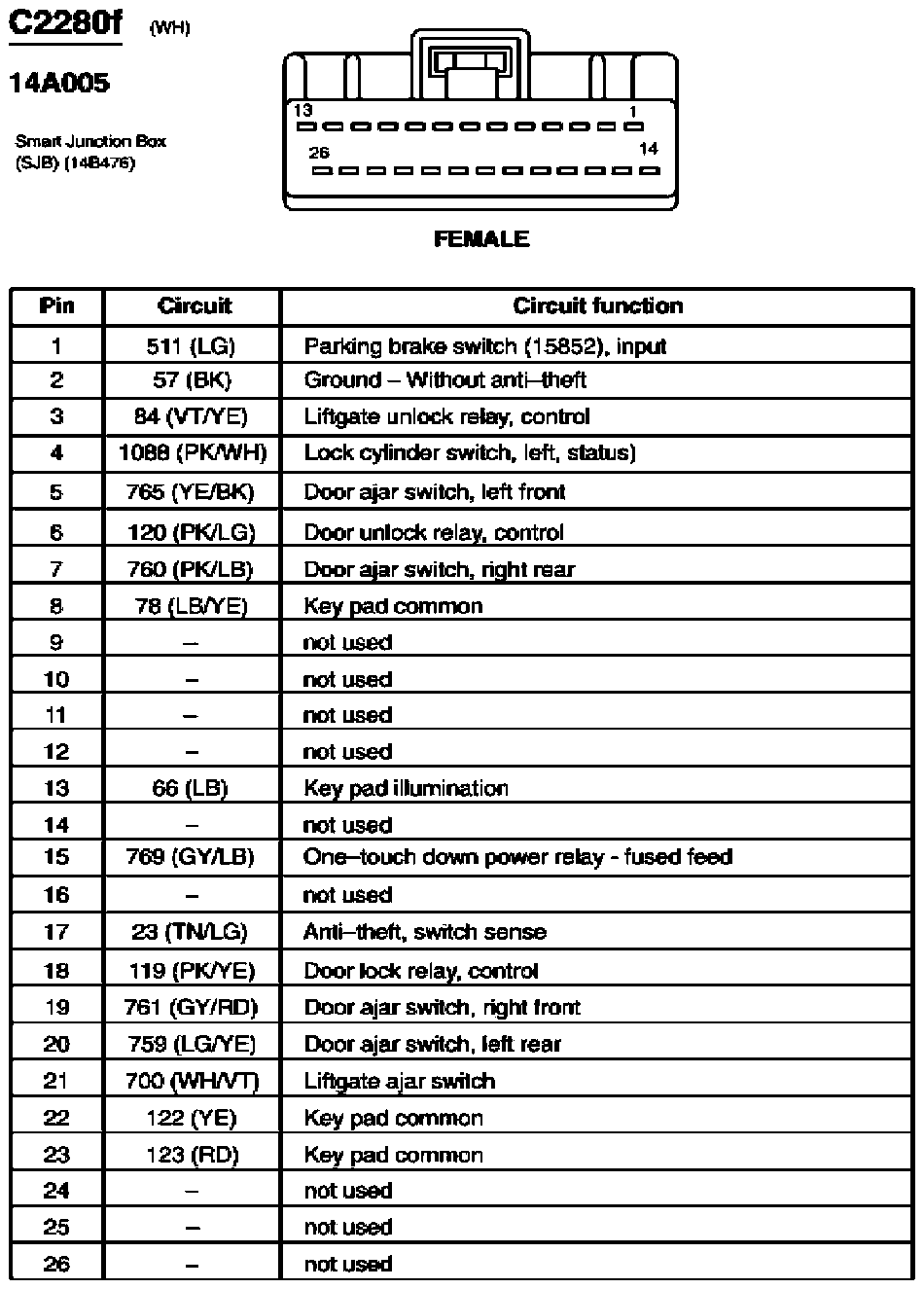

Fig 262: Smart Junction Box (SJB) Connector End View (C2280f)

G07839709

Courtesy of FORD MOTOR CO.

Fig 263: Seat Pressure Sensor Connector End View (C3042)

G07839710

Courtesy of FORD MOTOR CO.

Fig 264: Seat Weight Sensor Module Connector End View (C3043)

G07839711

Courtesy of FORD MOTOR CO.

Fig 265: High Mounted Stoplamp Connector End View (C3175)

G07839712

Courtesy of FORD MOTOR CO.

Fig 266: Safety Belt Tension Sensor Connector End View (C3251)

G07839713

Courtesy of FORD MOTOR CO.

Fig 267: Turn Lamp, Left Rear Connector End View (C4139)

G07839714

Courtesy of FORD MOTOR CO.

Fig 268: Turn Lamp, Right Rear Connector End View (C4140)

G07839715

Courtesy of FORD MOTOR CO.
