Pinpoint Test C: Restraint Control Module (RCM) Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

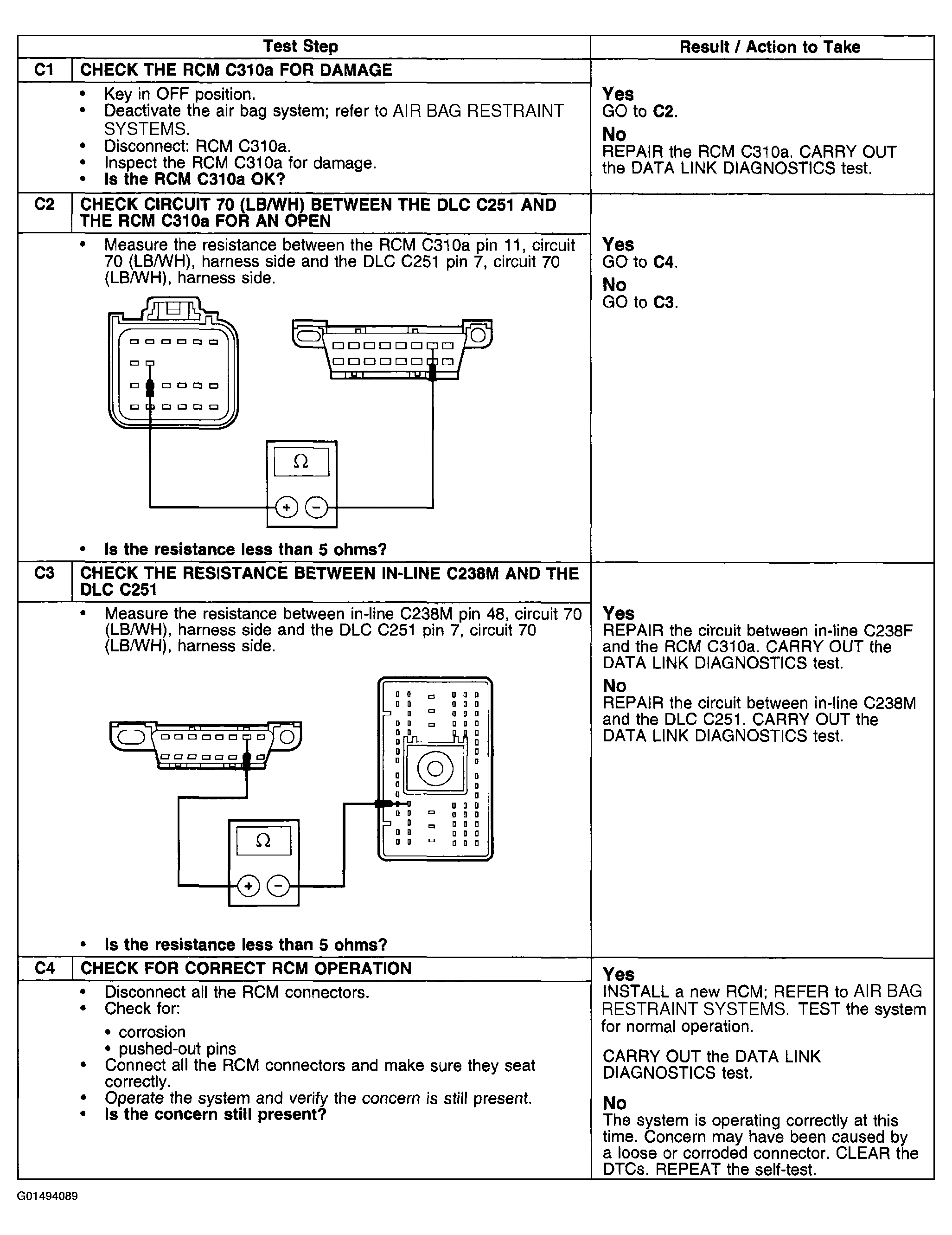

Fig 1: Pinpoint Test C: Restraint Control Module (RCM) Does Not Respond To Diagnostic Tool
G01494089Courtesy of FORD MOTOR CO.
