Symptom Chart

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Self-Test Diagnostics must be carried out before proceeding to the SYMPTOM CHART.

NOTE: New speed control diagnostic software is available on some diagnostic tools.

NOTE: Refer to Wiring Diagrams for connector numbers stated in the pinpoint test.

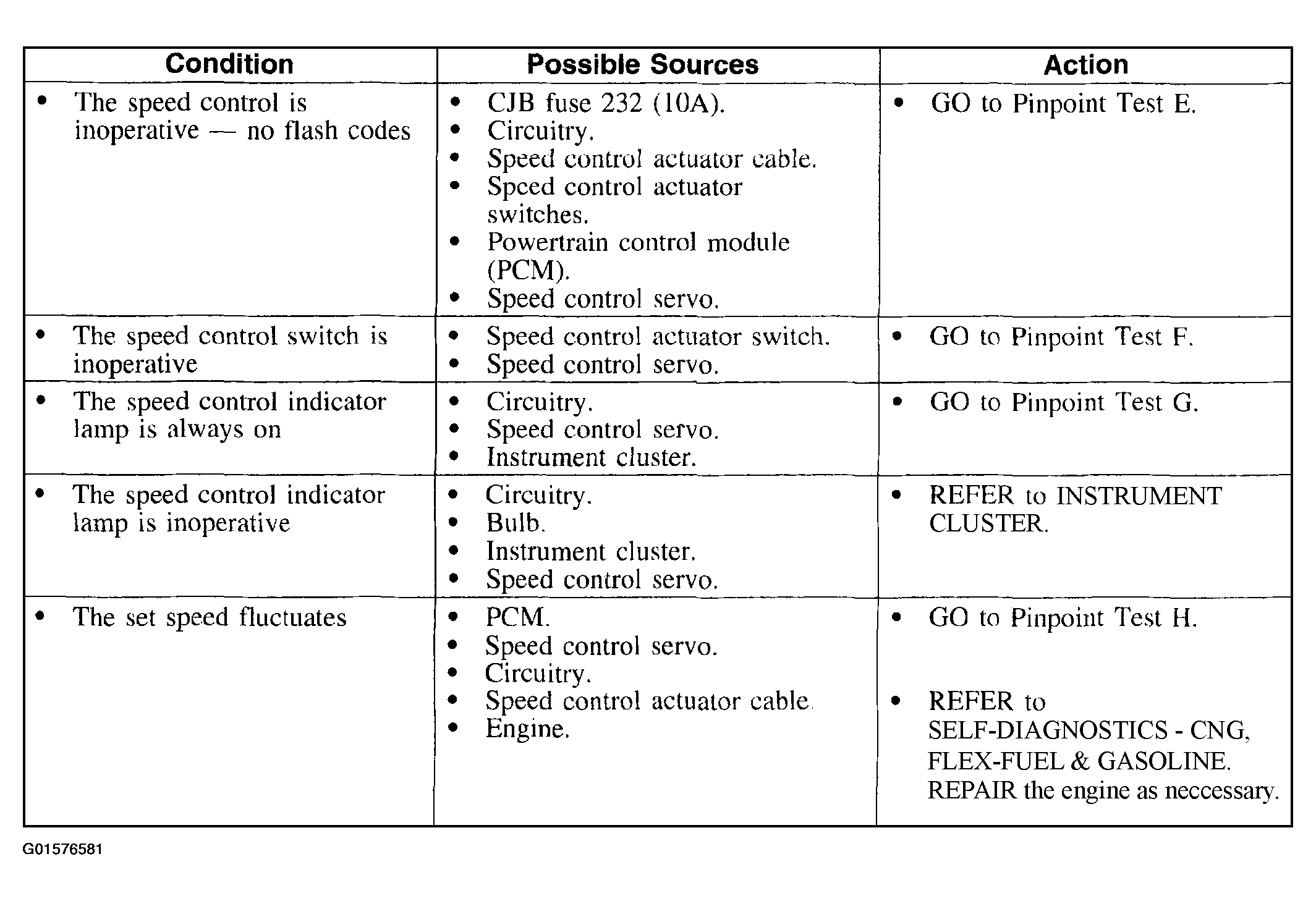

Fig 1: Symptom Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

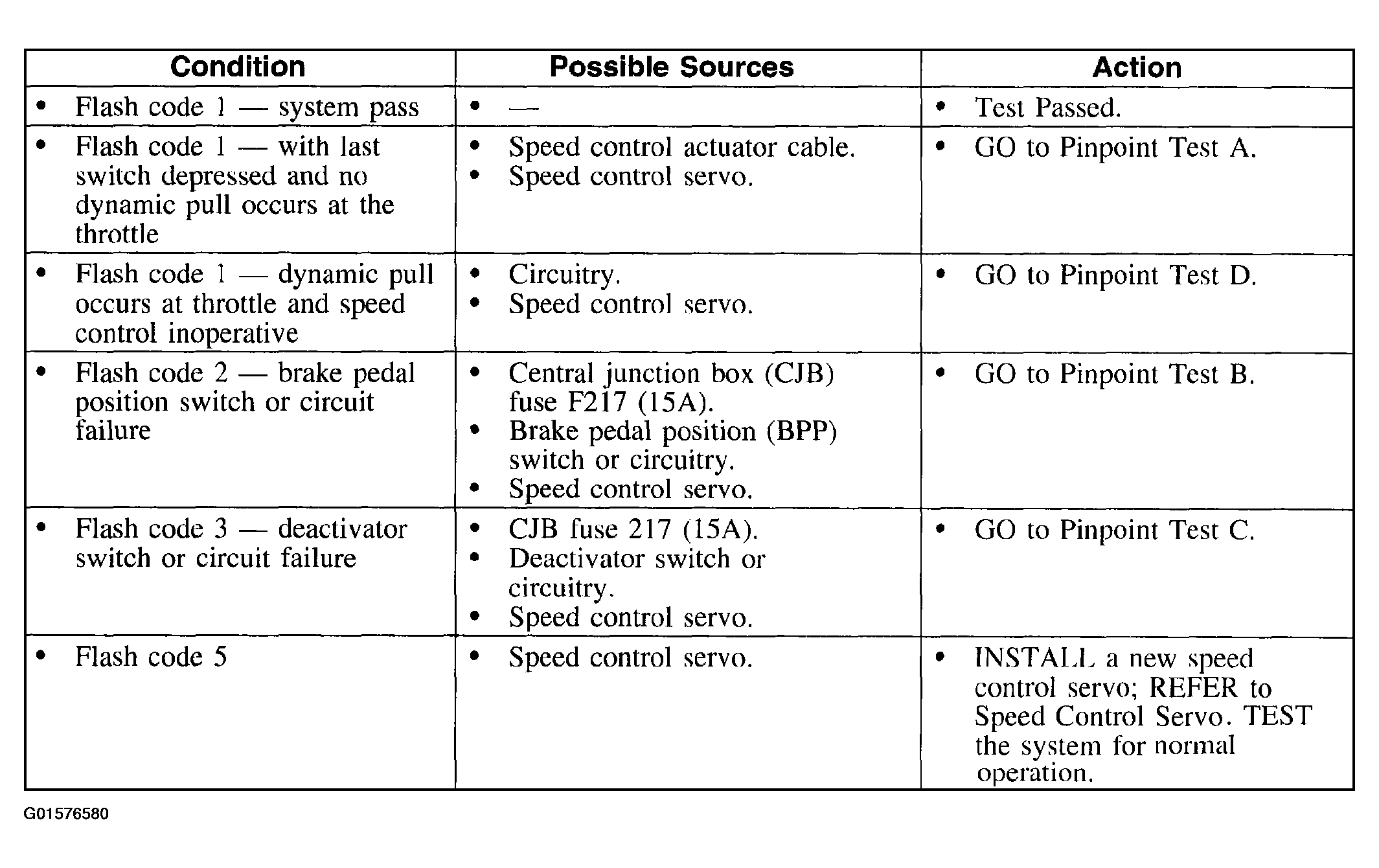

Fig 2: Symptom Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
