Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Front Electronic Module (Fem)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

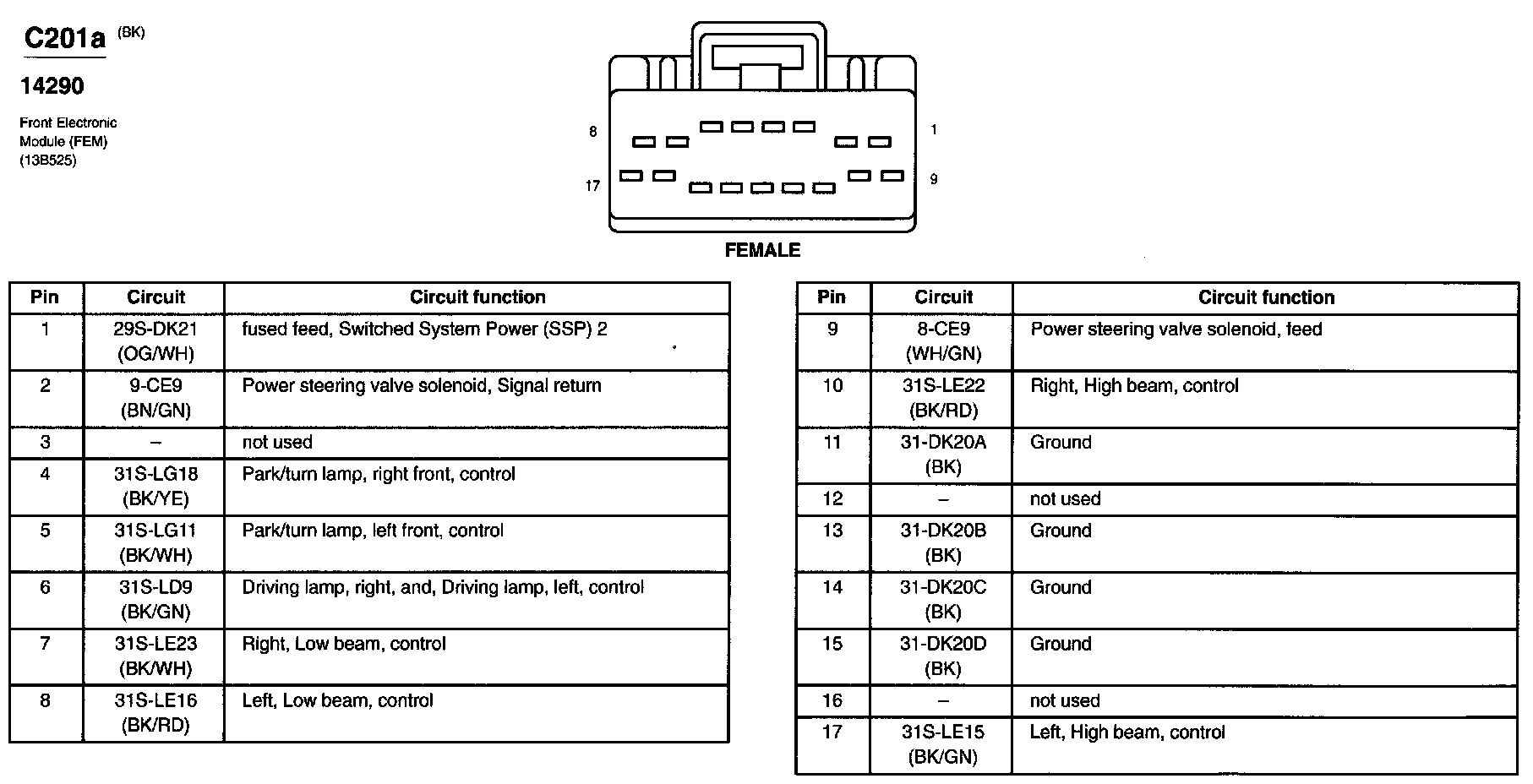

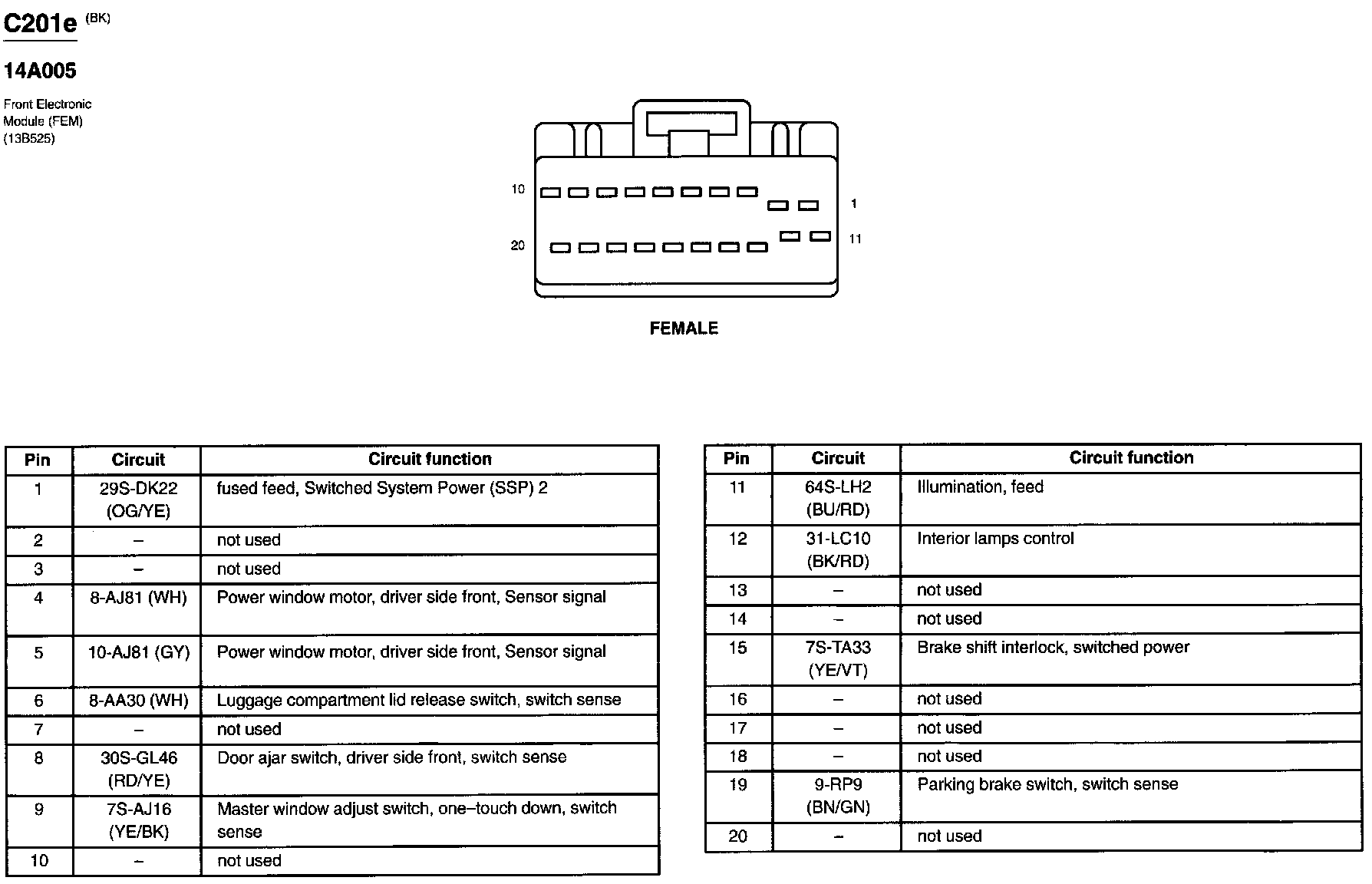

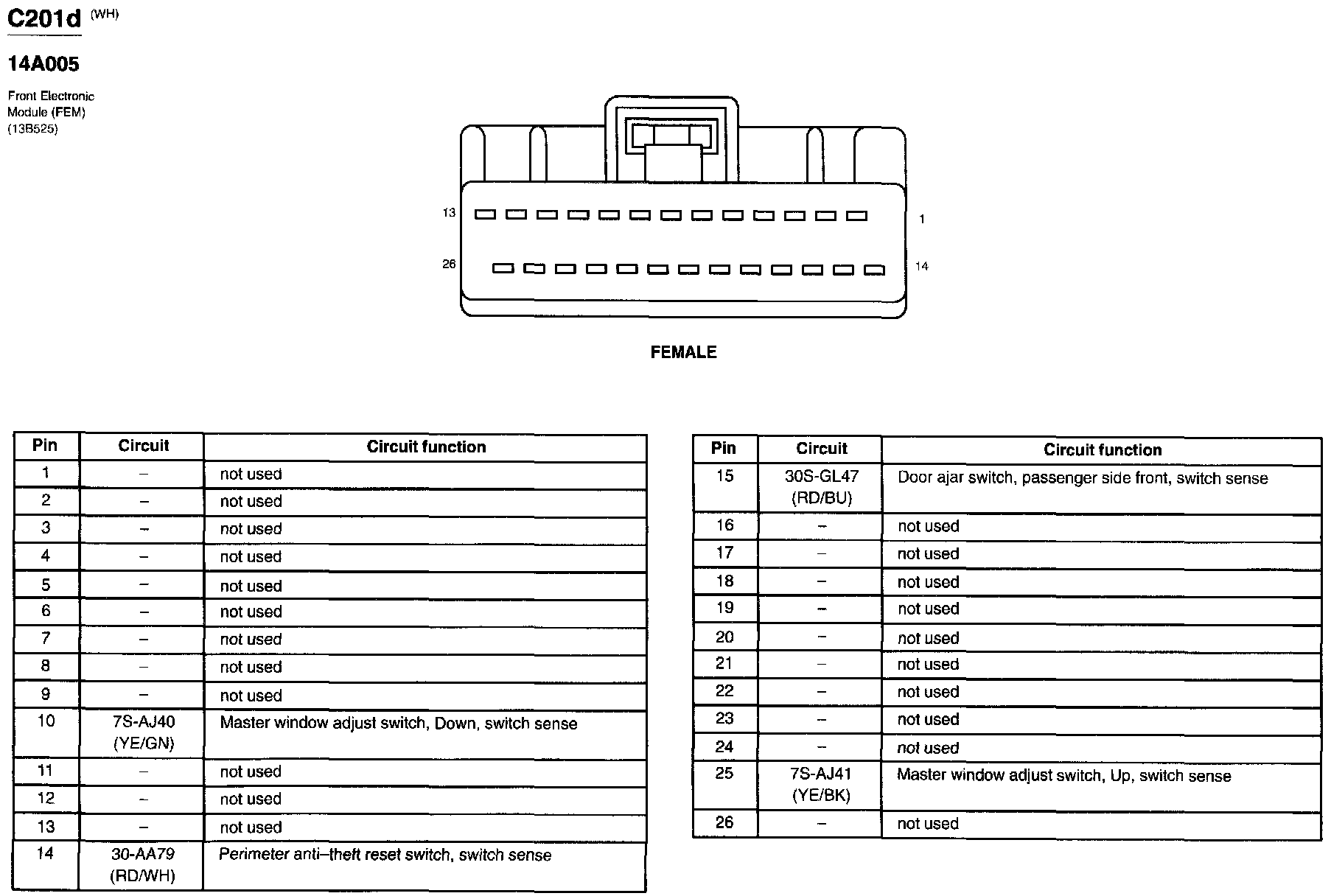

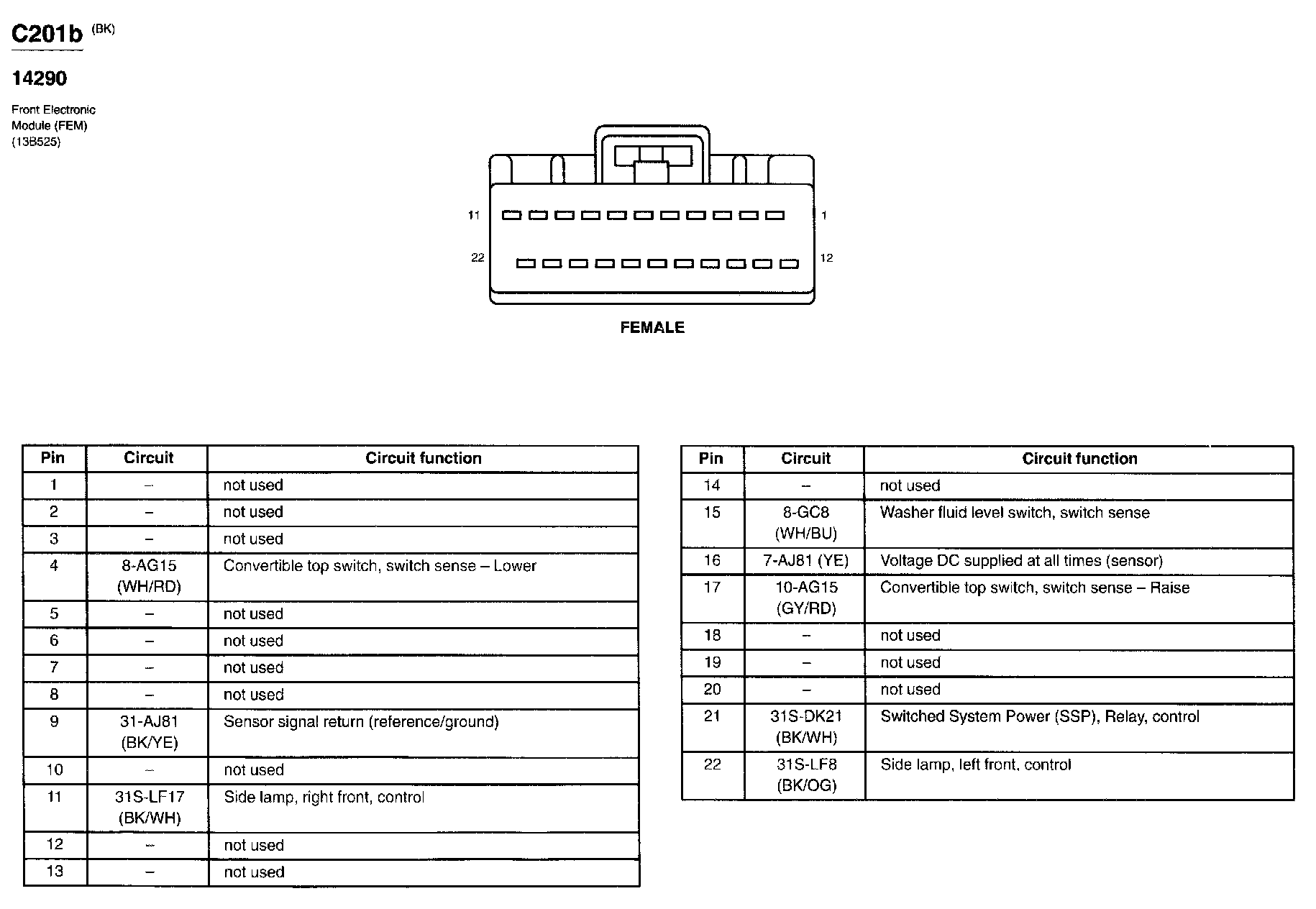

Front Electronic Module (Fem)
