Timing Cover





Engine Front Cover

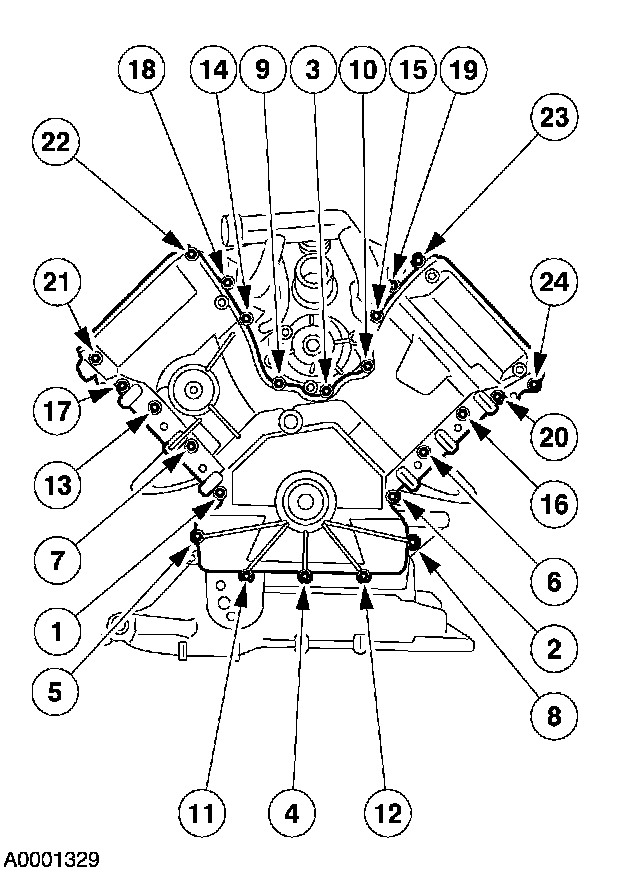

Tighten the bolts in two stages in the sequence shown.
Tighten 5 Nm (44 inch lbs.)
Tighten 10 Nm (89 inch lbs.)
