Convertible Top Assembly: Notes

Item	Specification
Threadlock and Sealer E0AZ-19554-AA	WSK-M2G351-A5
Weather Strip Adhesive E8AZ-19552-A	ESB-M2G14-A
Motorcraft MERCON Multi-Purpose (ATF) Transmission Fluid XT-2-QDX	MERCON

1. Remove the parts in the order indicated in the following illustration and table.

   To remove individual parts only, carry out the listed steps:

   CONVERTIBLE TOP ASSEMBLY COMPONENT REMOVAL STEPS



   Part	Steps
   Convertible top assembly	1-11, 16, 17
   Convertible top material	1-3, 18-34
   Convertible top rear window glass	1-3, 18, 32, 33
   Convertible top switch	47-50
   Headliner assembly	19-22, 37, 45, 46
   Hard top hold down bracket	9-11
   Hydraulic system	1, 4-7, 12, 13, 15
   Top well sling interior trim cover	1

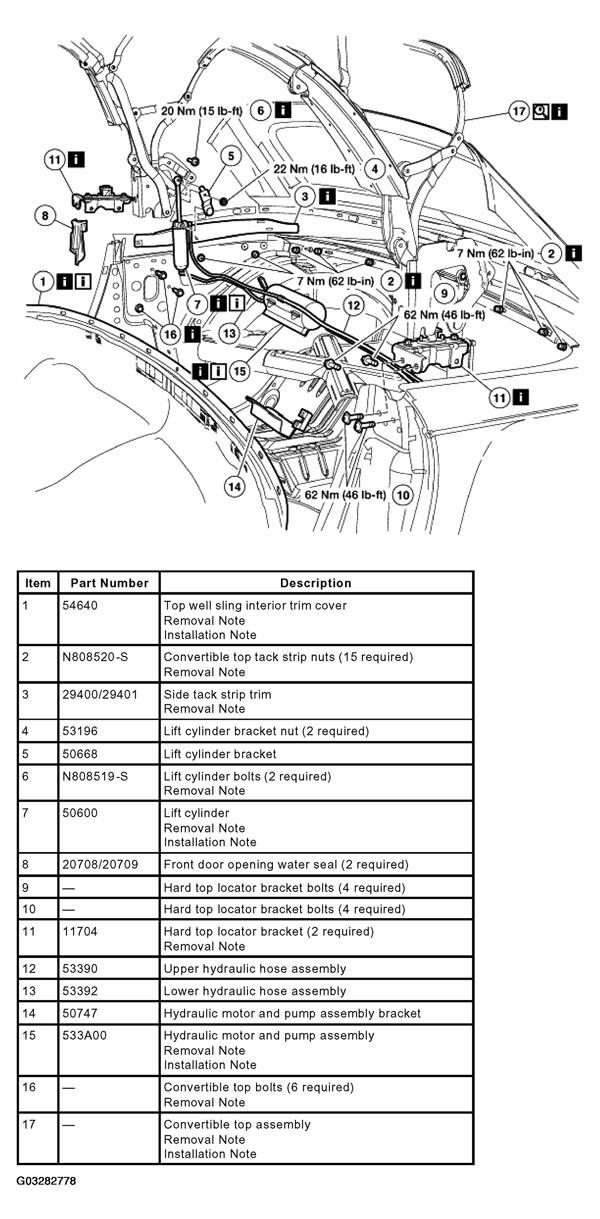

   Fig 1: Convertible Top Assembly Removal Sequence (Items 1-17)

   Courtesy of FORD MOTOR CO.

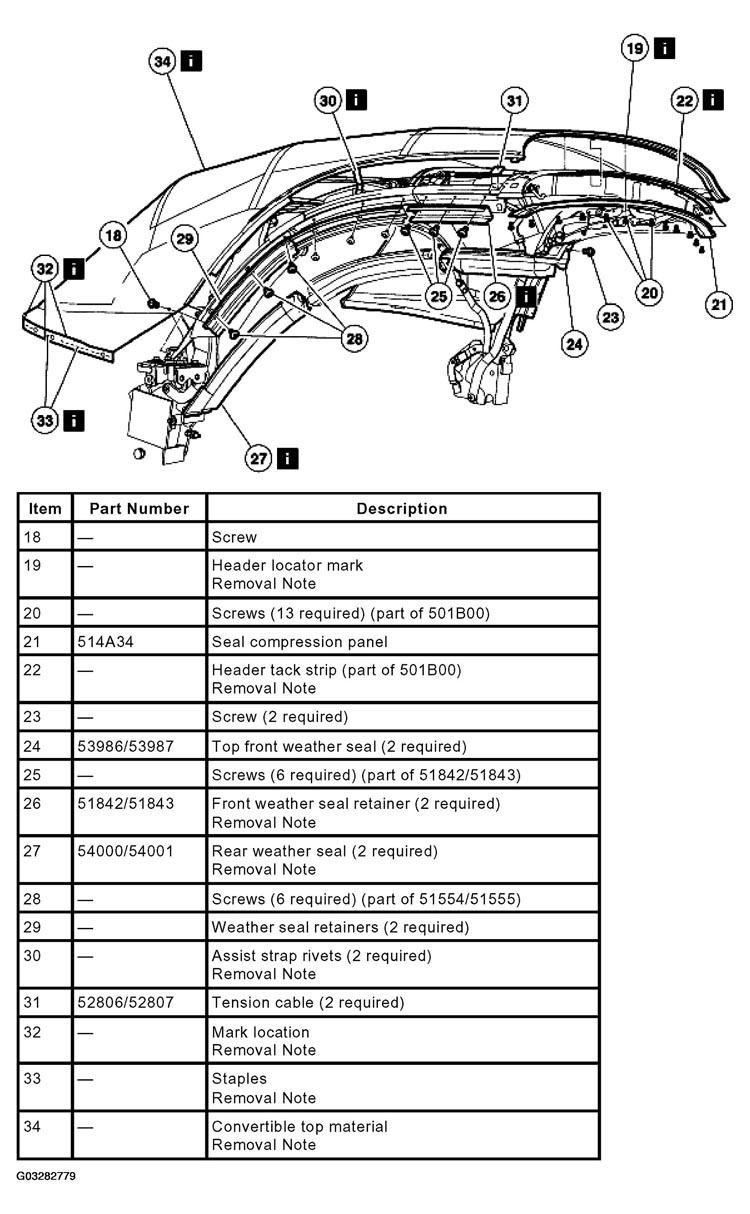

   Fig 2: Convertible Top Assembly Removal Sequence (Items 18-34)

   Courtesy of FORD MOTOR CO.

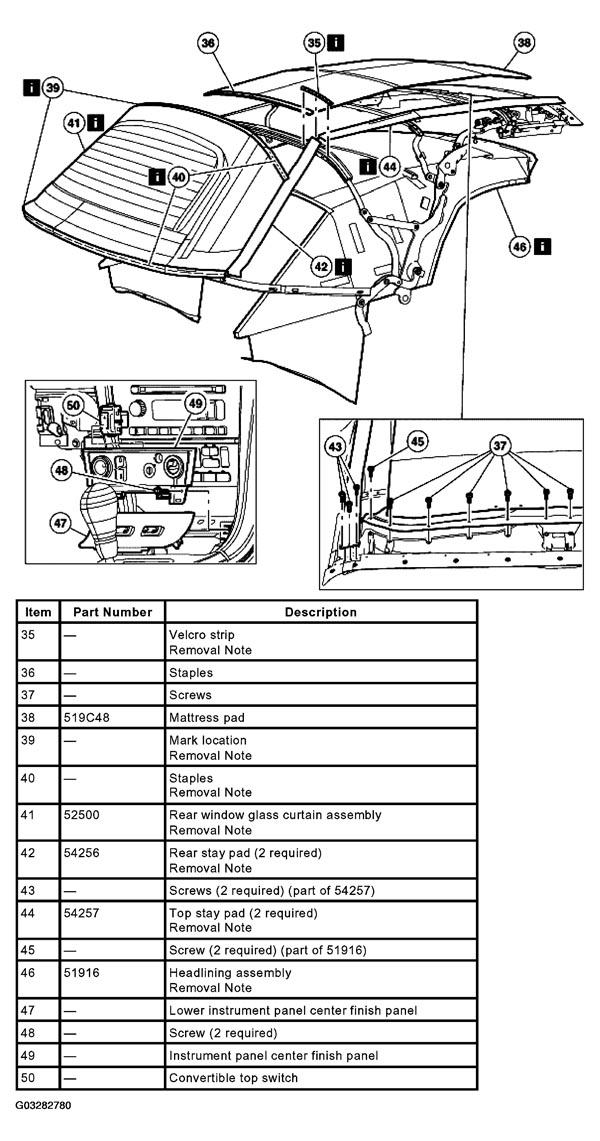

   Fig 3: Convertible Top Assembly Removal Sequence (Items 35-50)

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.
