Auxiliary Climate Control Assembly - Front

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

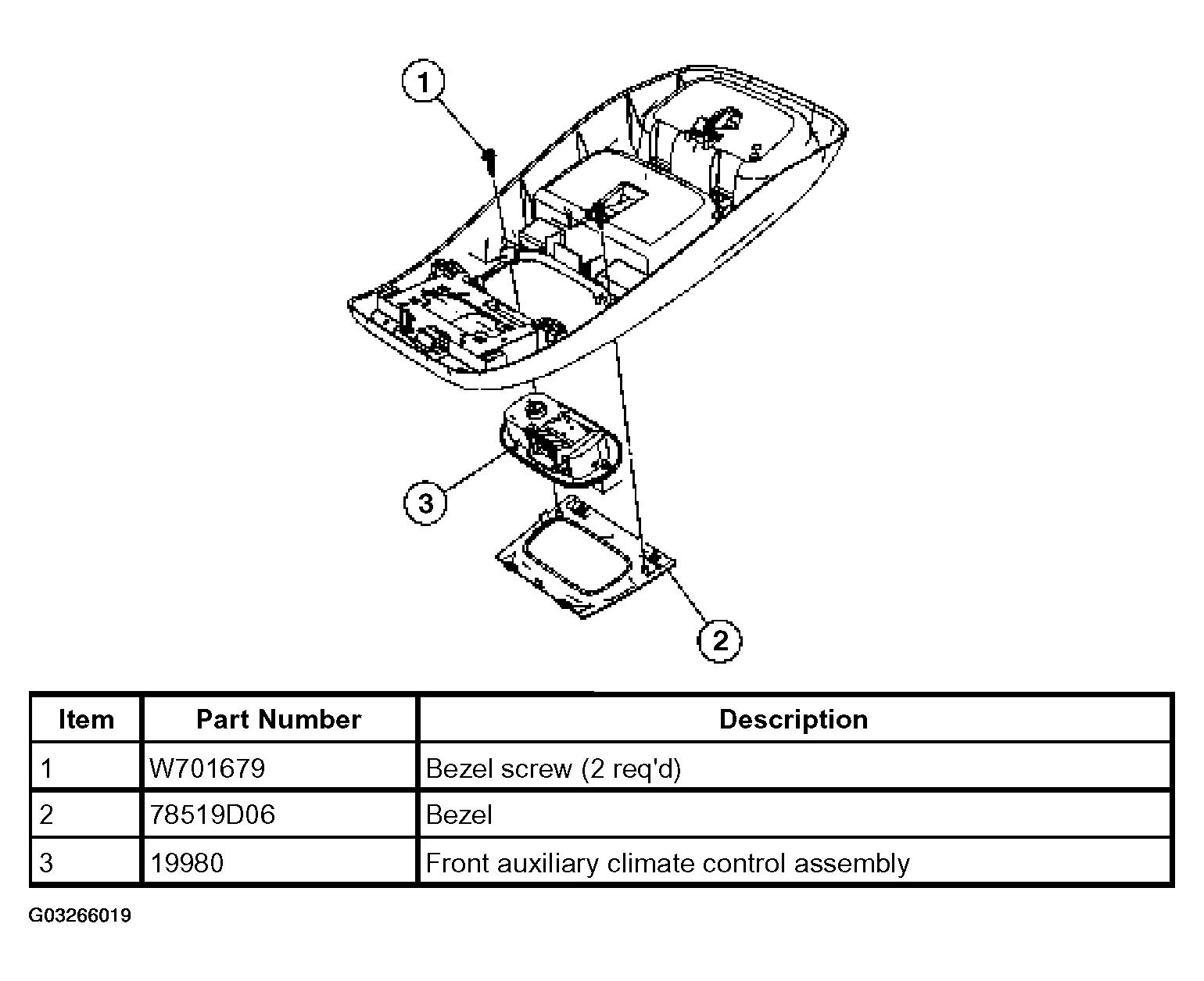

Fig 1: Identifying Removal Sequence Of Auxiliary Climate Control Assembly - Front
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
