Plenum Chamber, Assembly and Components

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the defroster duct. For additional information, refer to Air Distribution Ducts .
Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY .
Remove the parts in the order indicated in the following illustration and table.

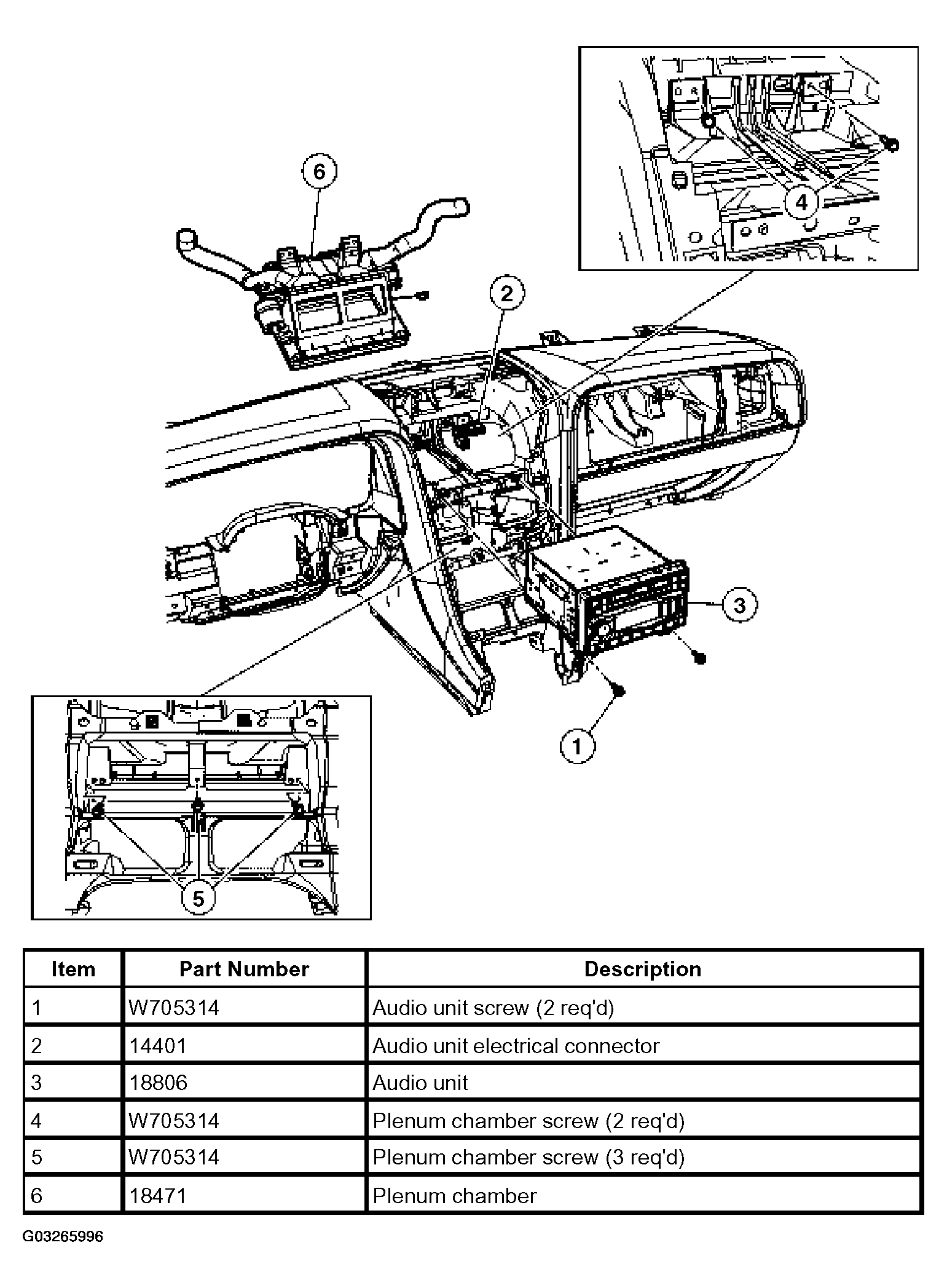

Fig 1: Identifying Plenum Chamber Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
