Escape Base, 2.3 Z, 4WD, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing
>>
Component Testing
>>
Light switch
>>
Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Light switch: Schematic

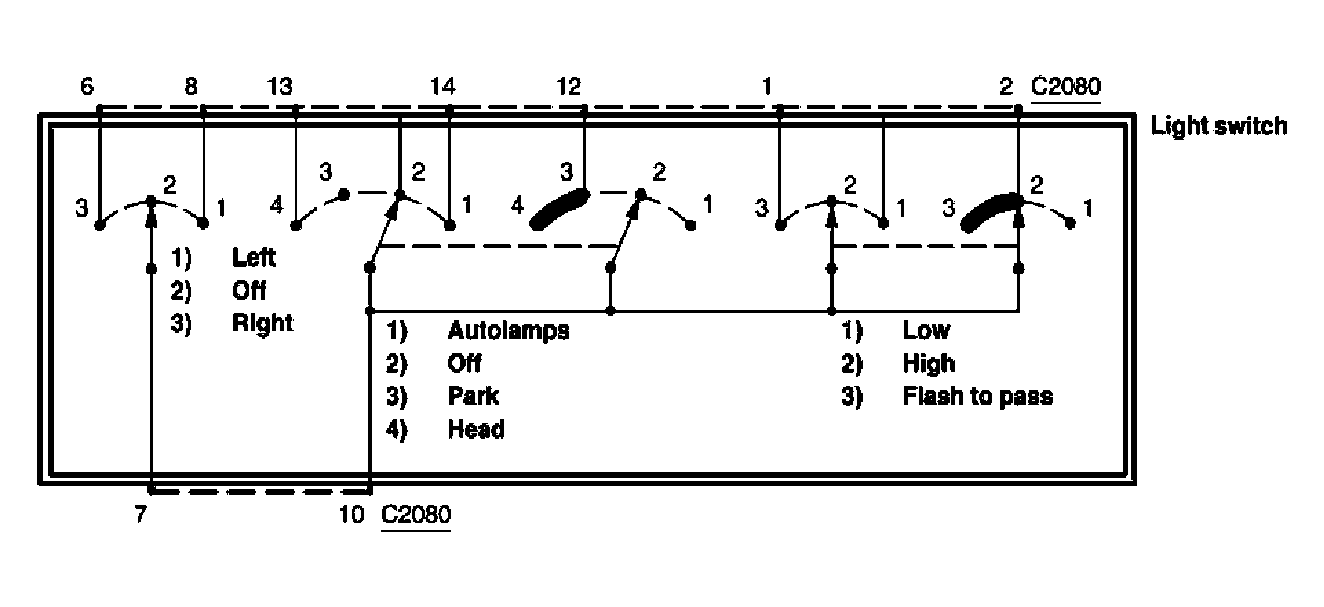

Fig 1: Light Switch - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
