Home
>>
Ford
>>
2005
>>
Escape Base, 3.0 1, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission External Controls - Cd4E
>>
Removal And Installation
>>
Selector Lever
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Selector Lever: Notes

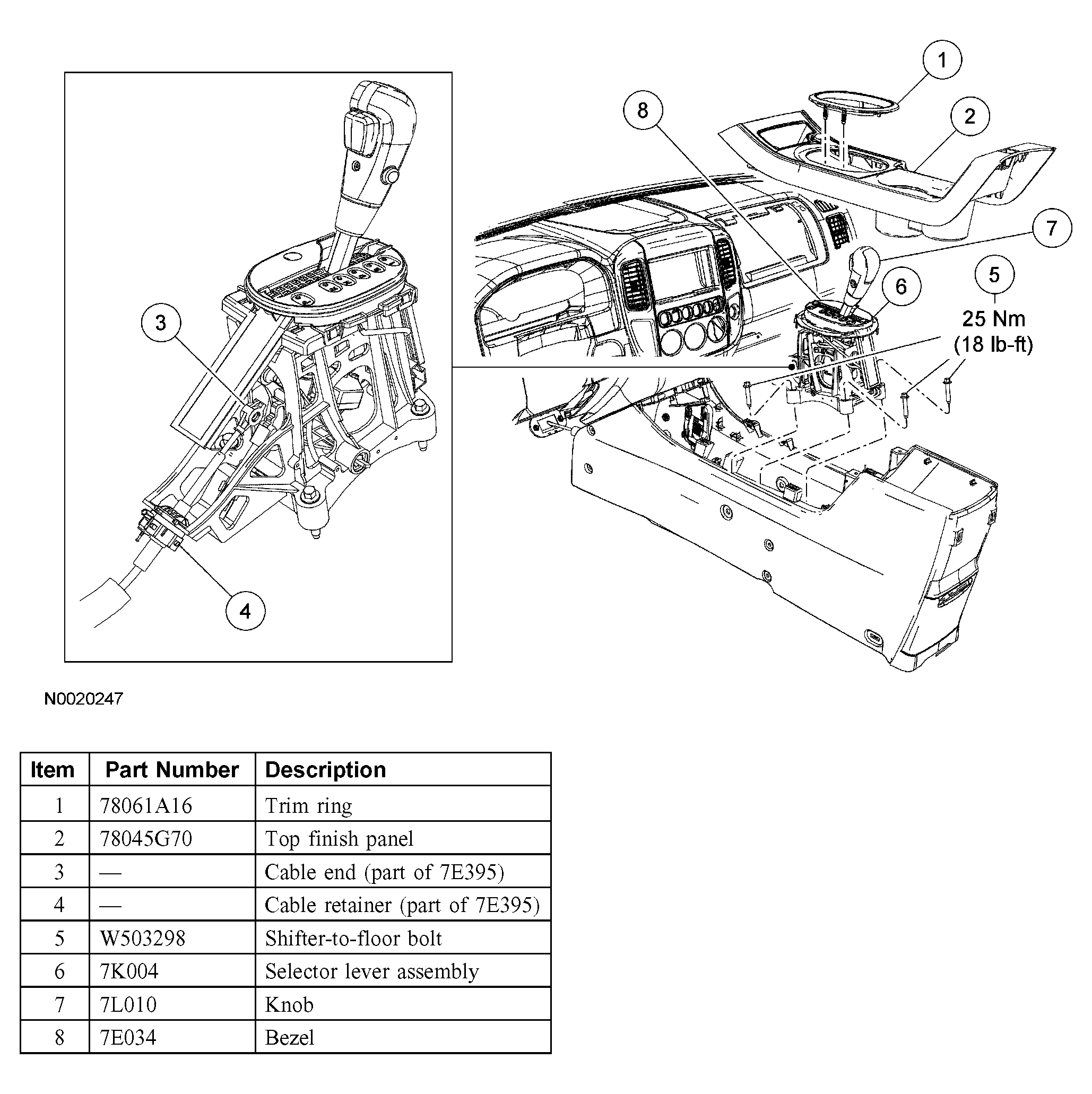

Fig 1: Removing/Installing Selector Lever Component With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
