Pinpoint Tests

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

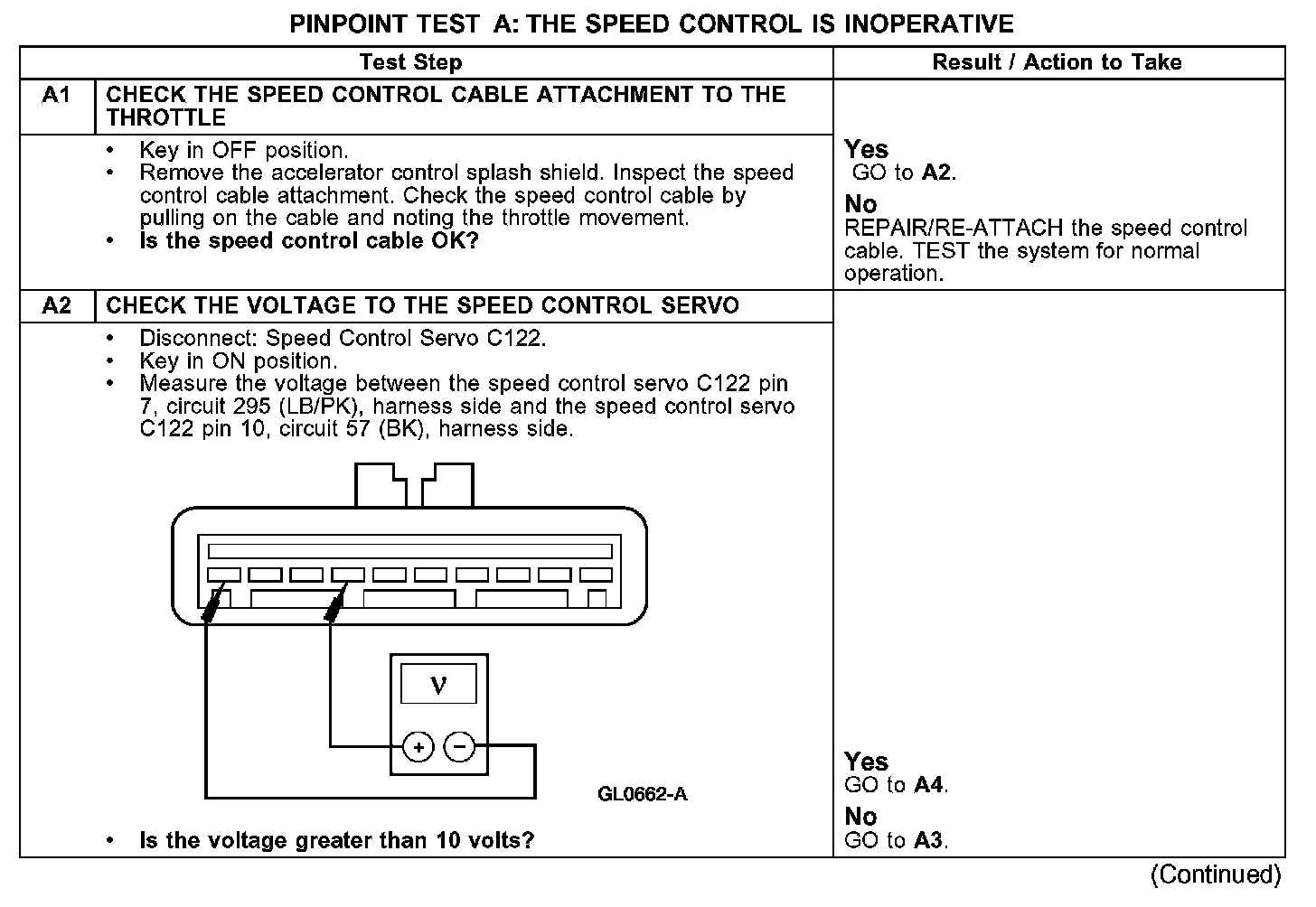

A1-A2:

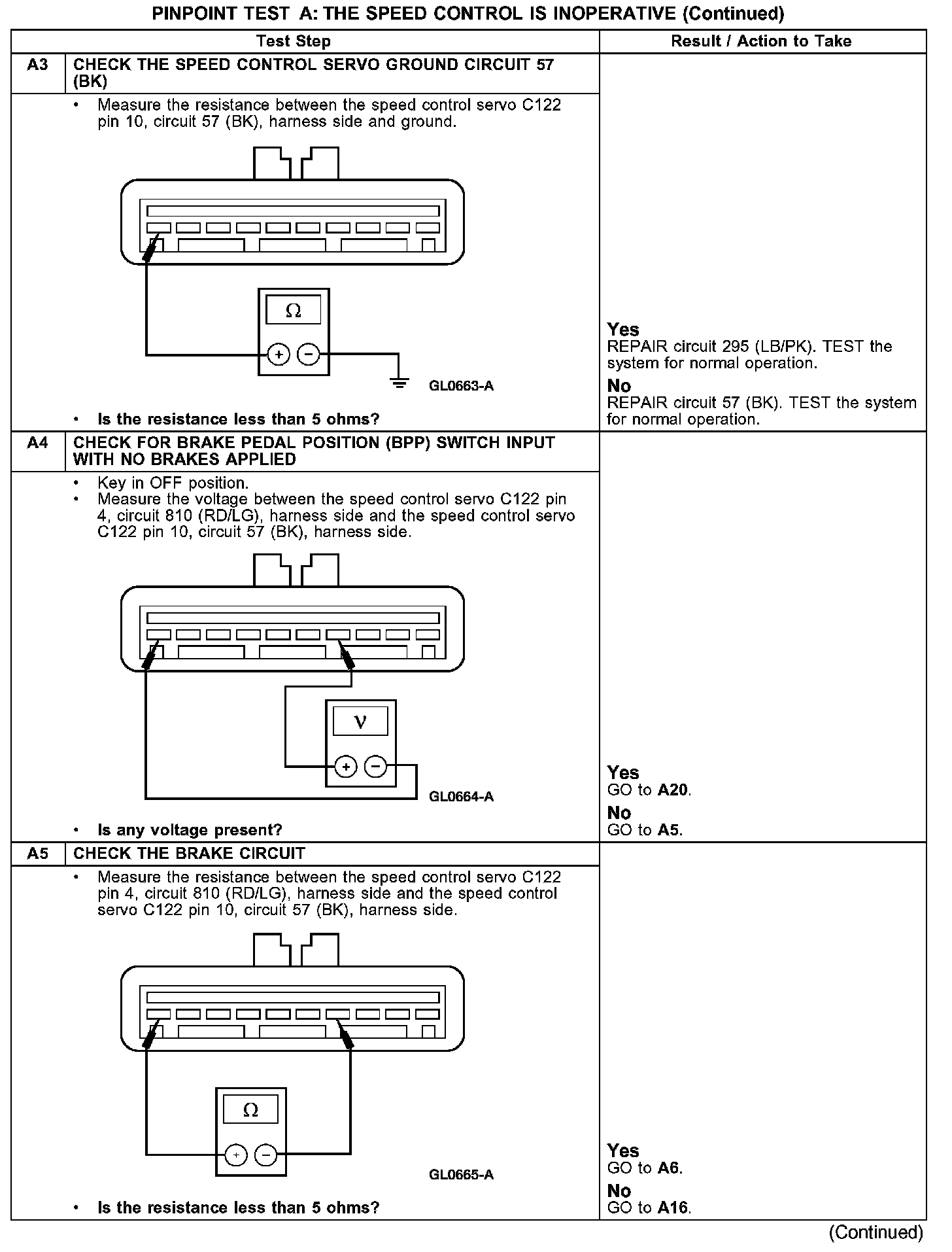

A3-A5:

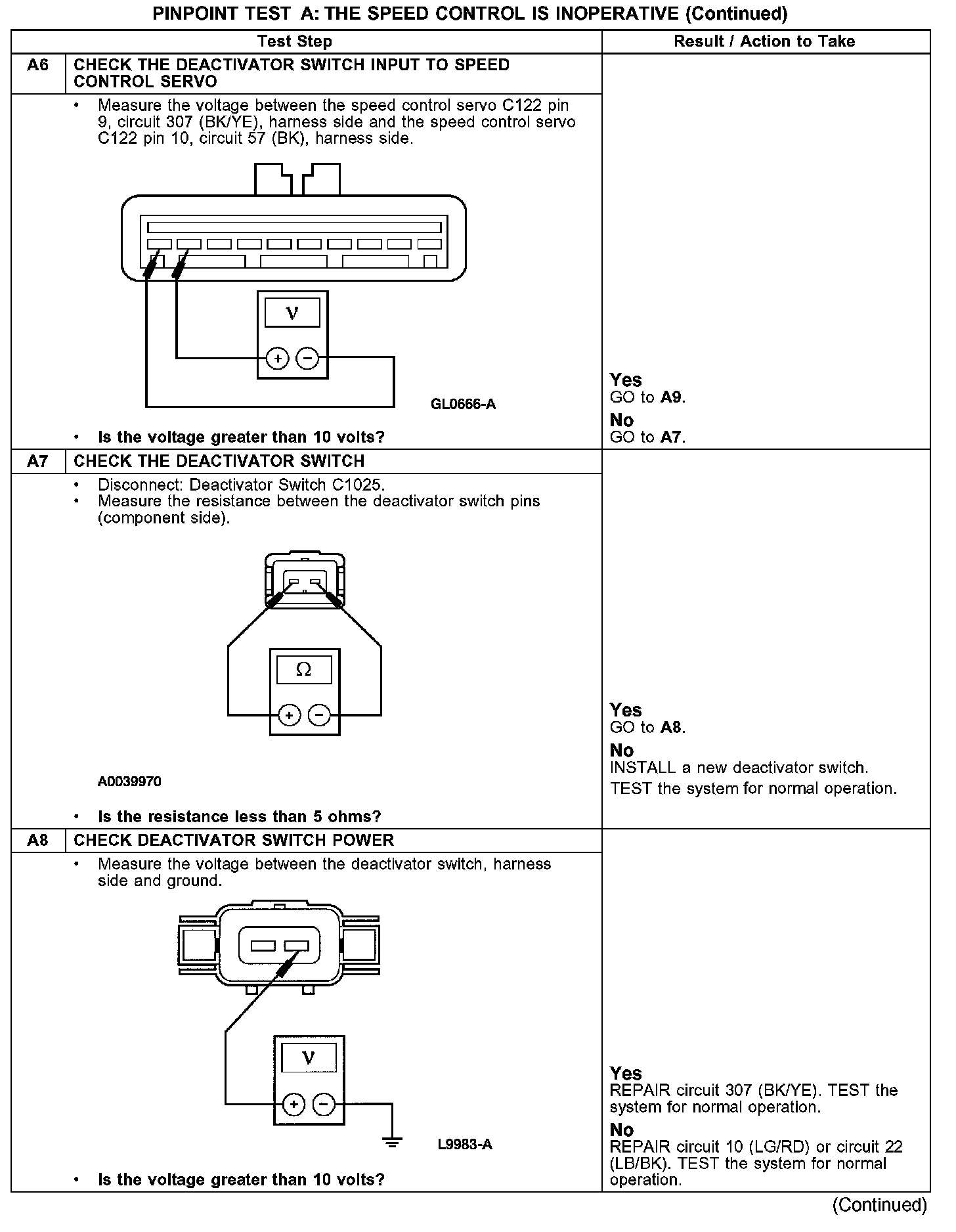

A6-A8:

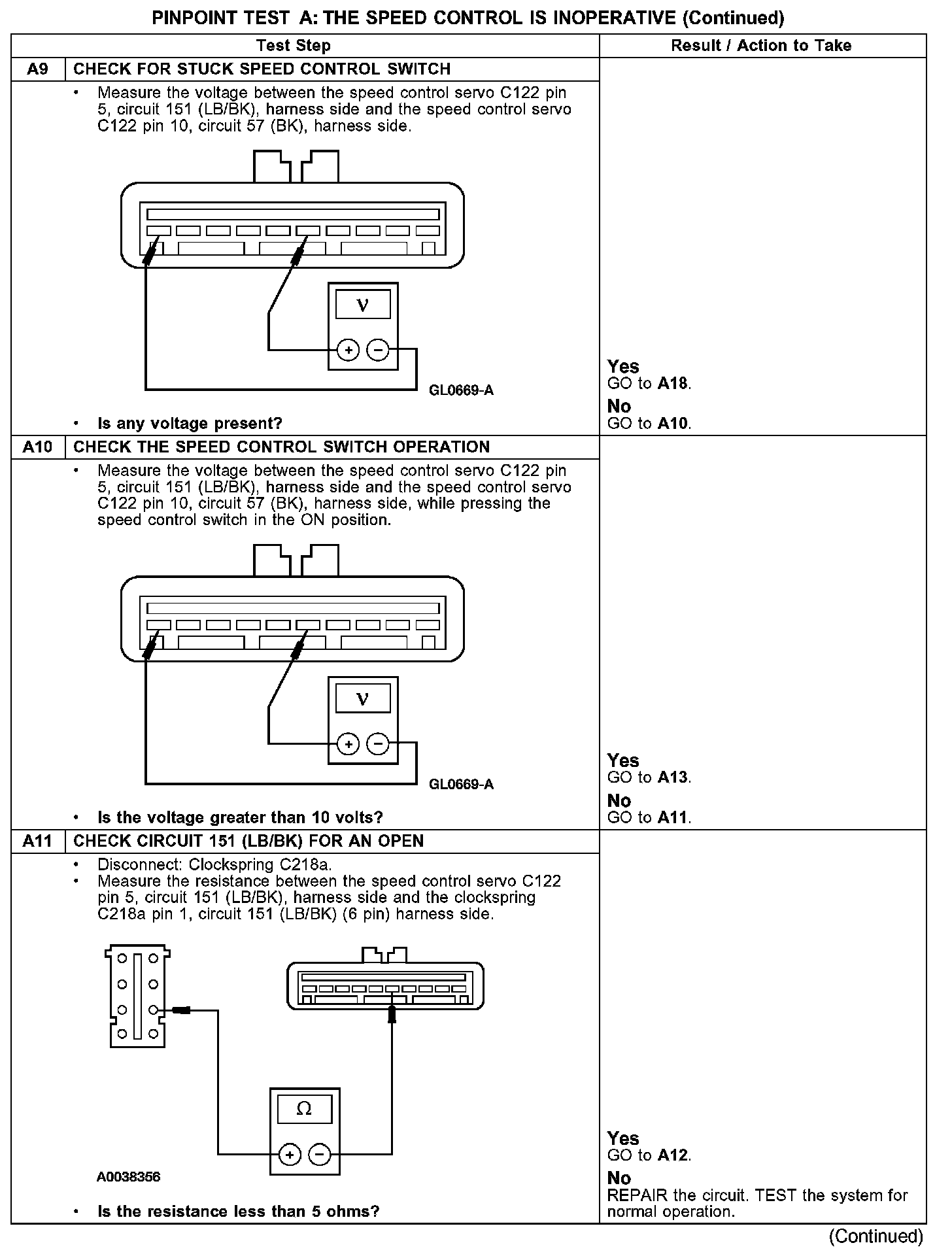

A9-A11:

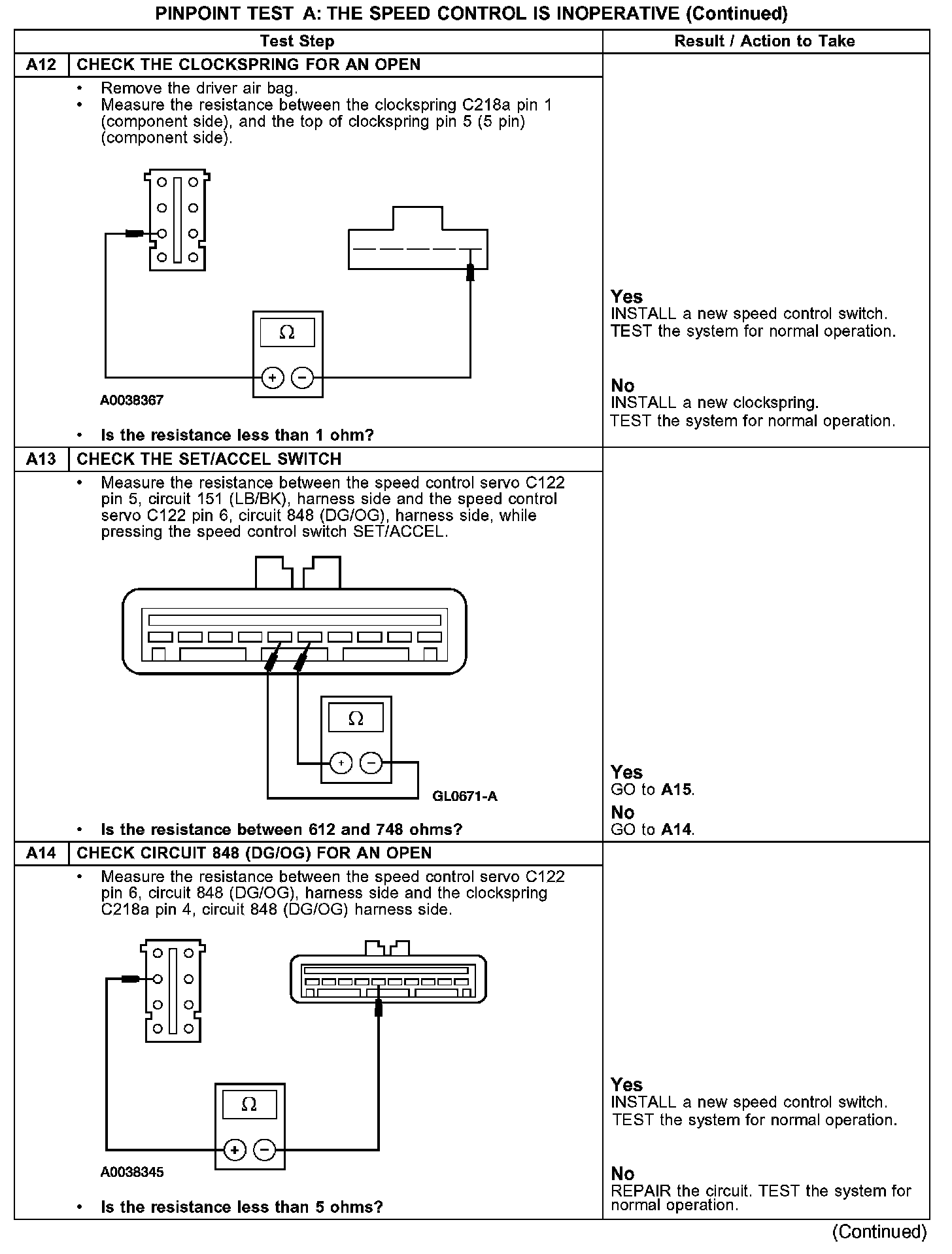

A12-A14:






A15-A19:

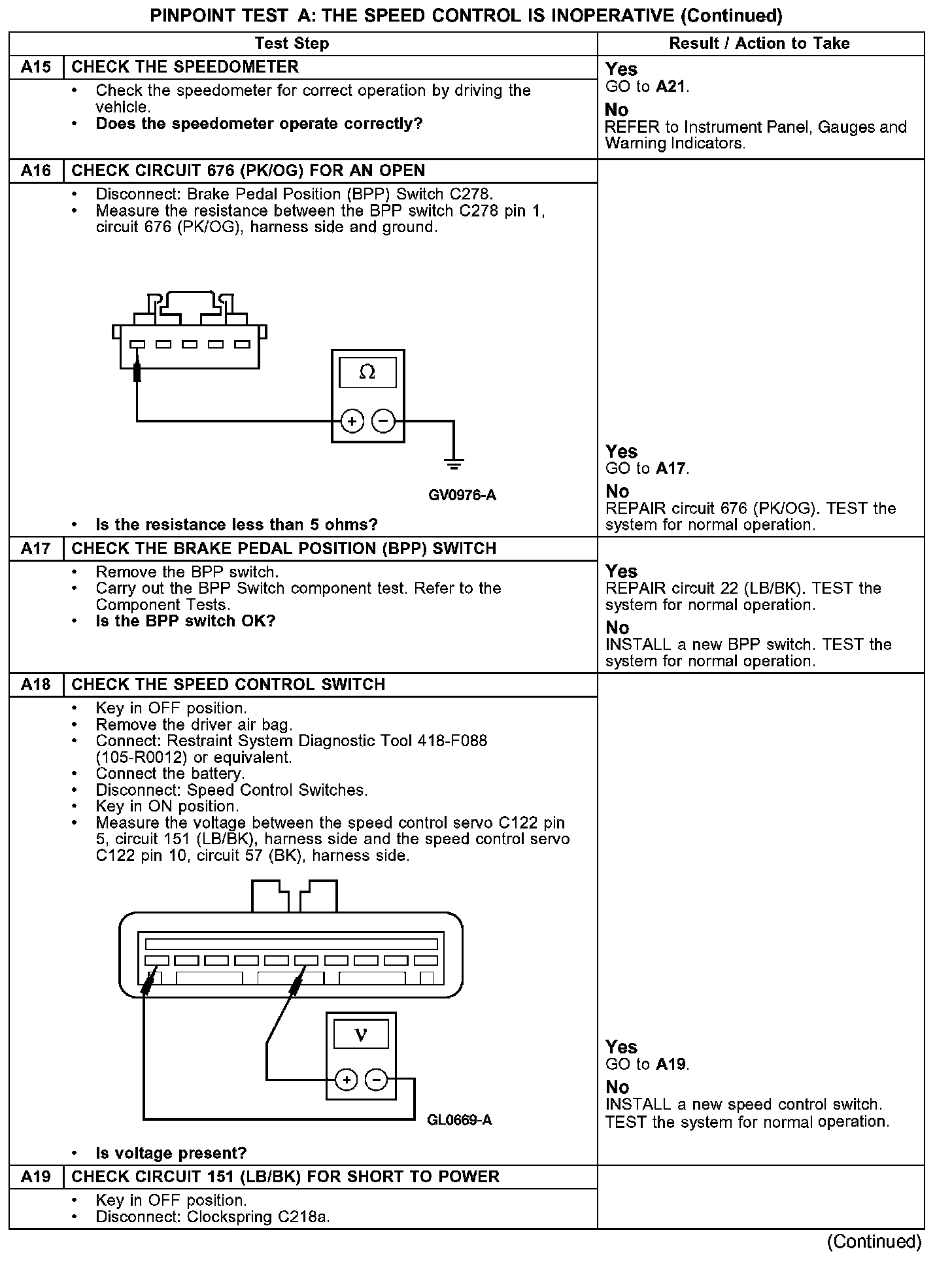

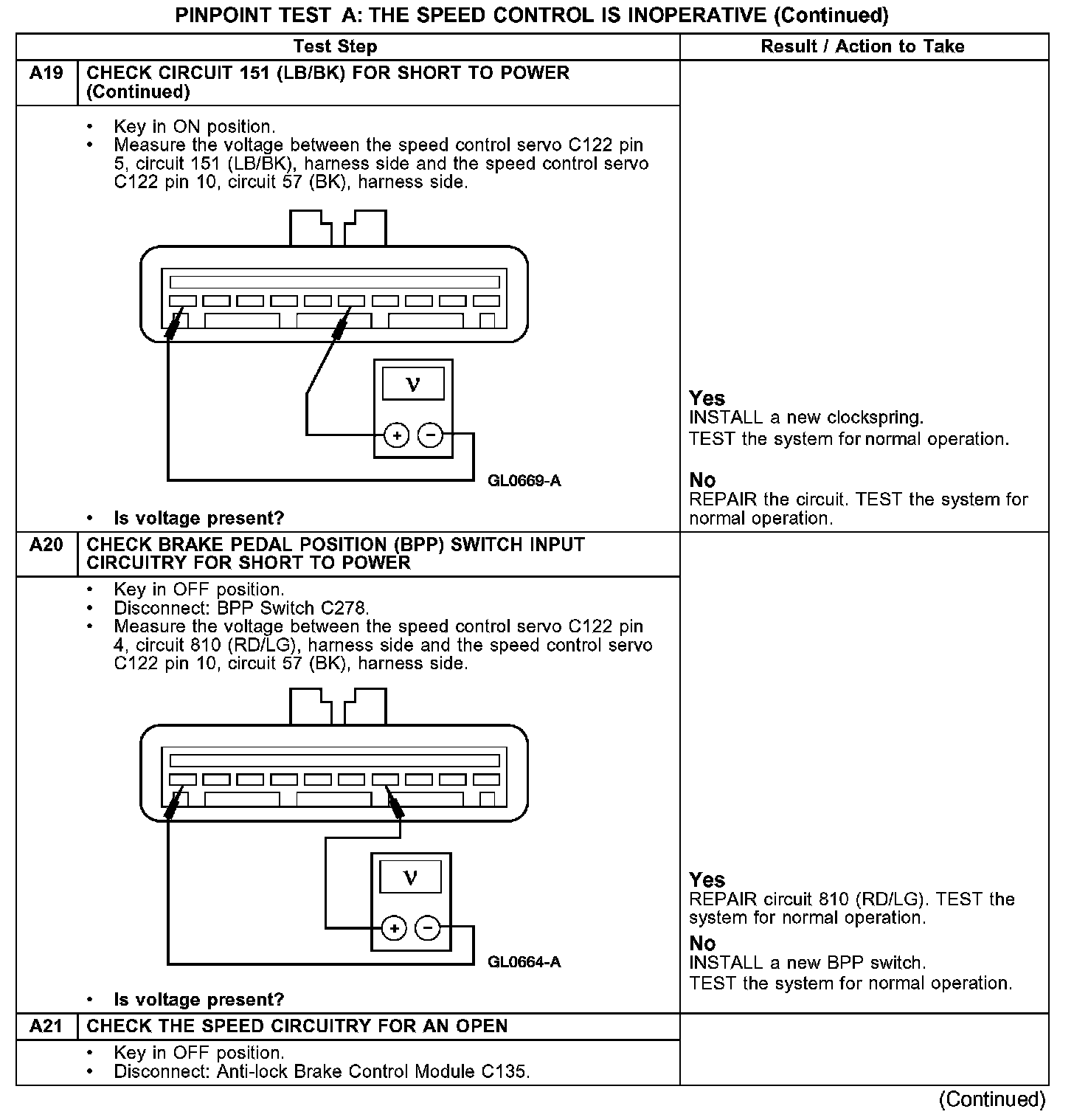

A19-A21:

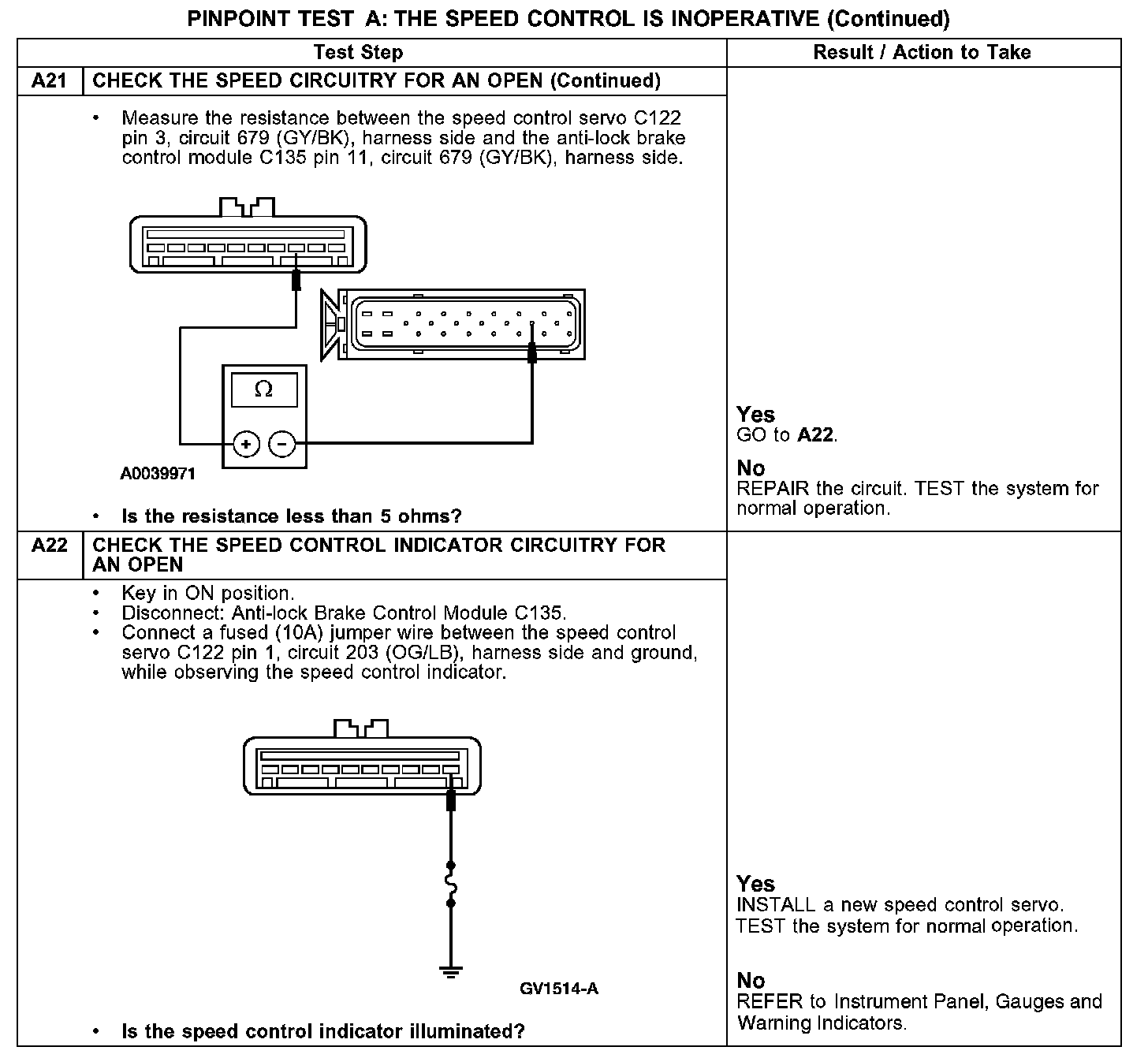

A21-A22:
