Tests AX: Exhaust Gas Recirculation Throttle Control



PINPOINT TEST AX: EXHAUST GAS RECIRCULATION THROTTLE CONTROL

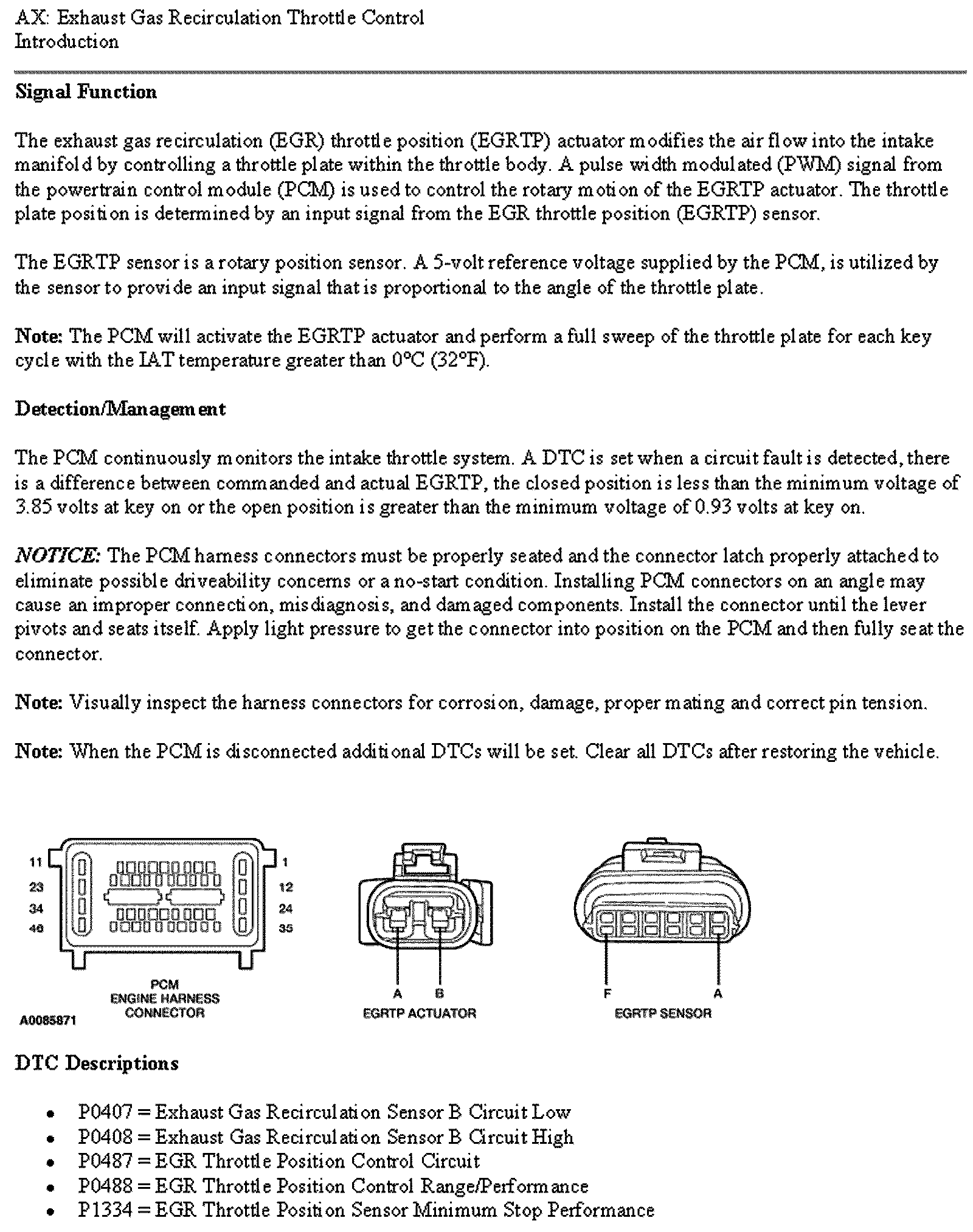

AX Introduction:

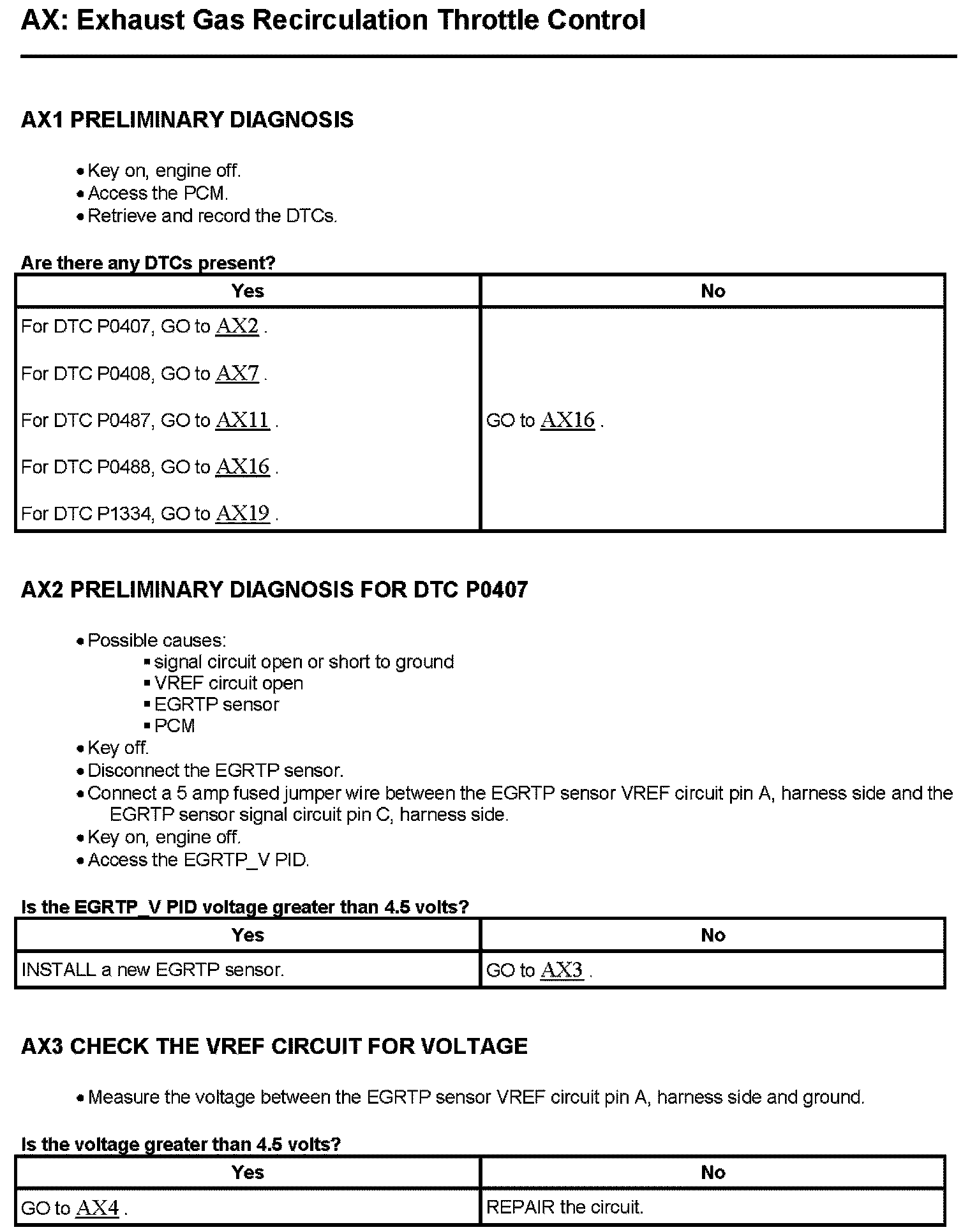

AX1-AX3:

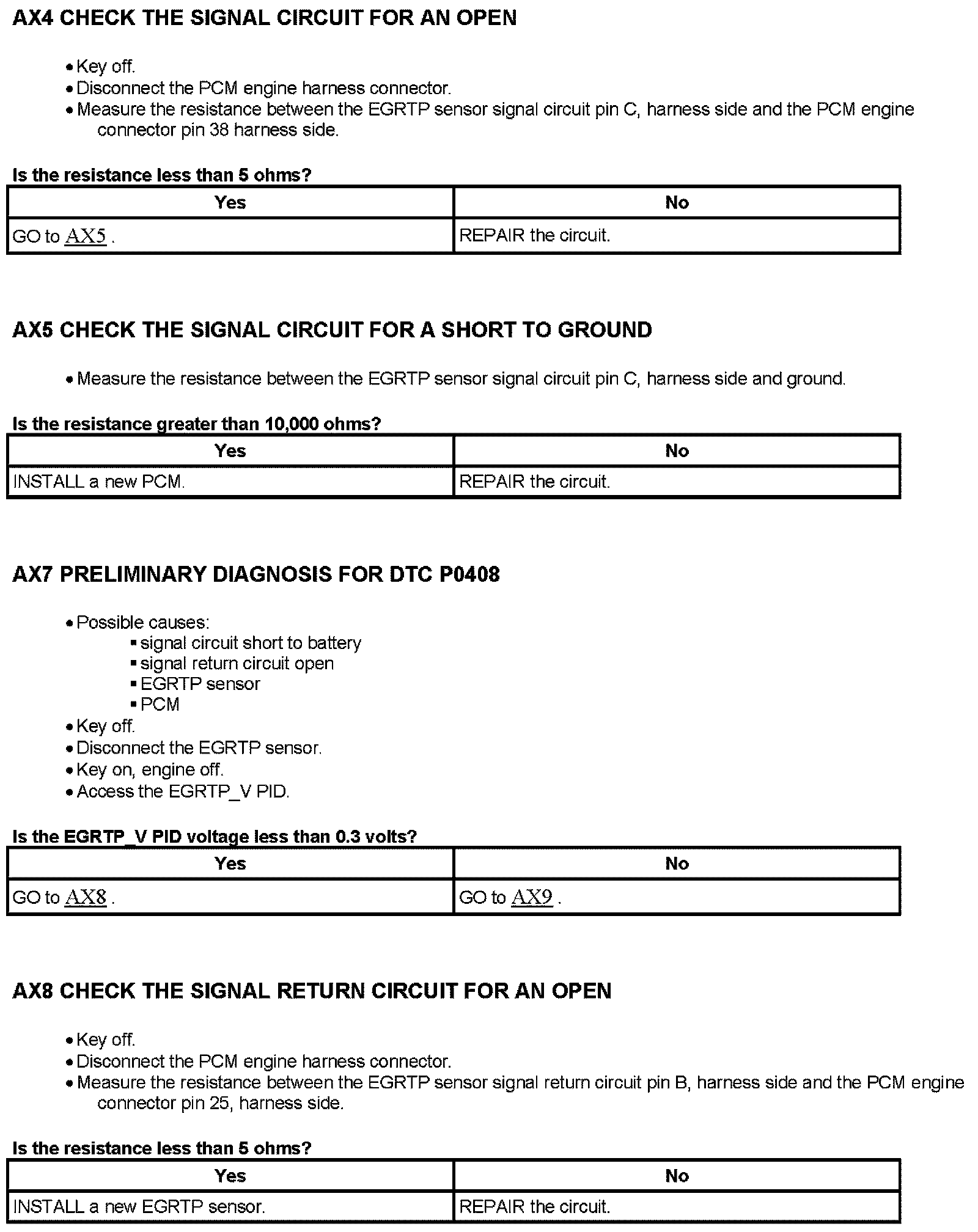

AX4-AX8:

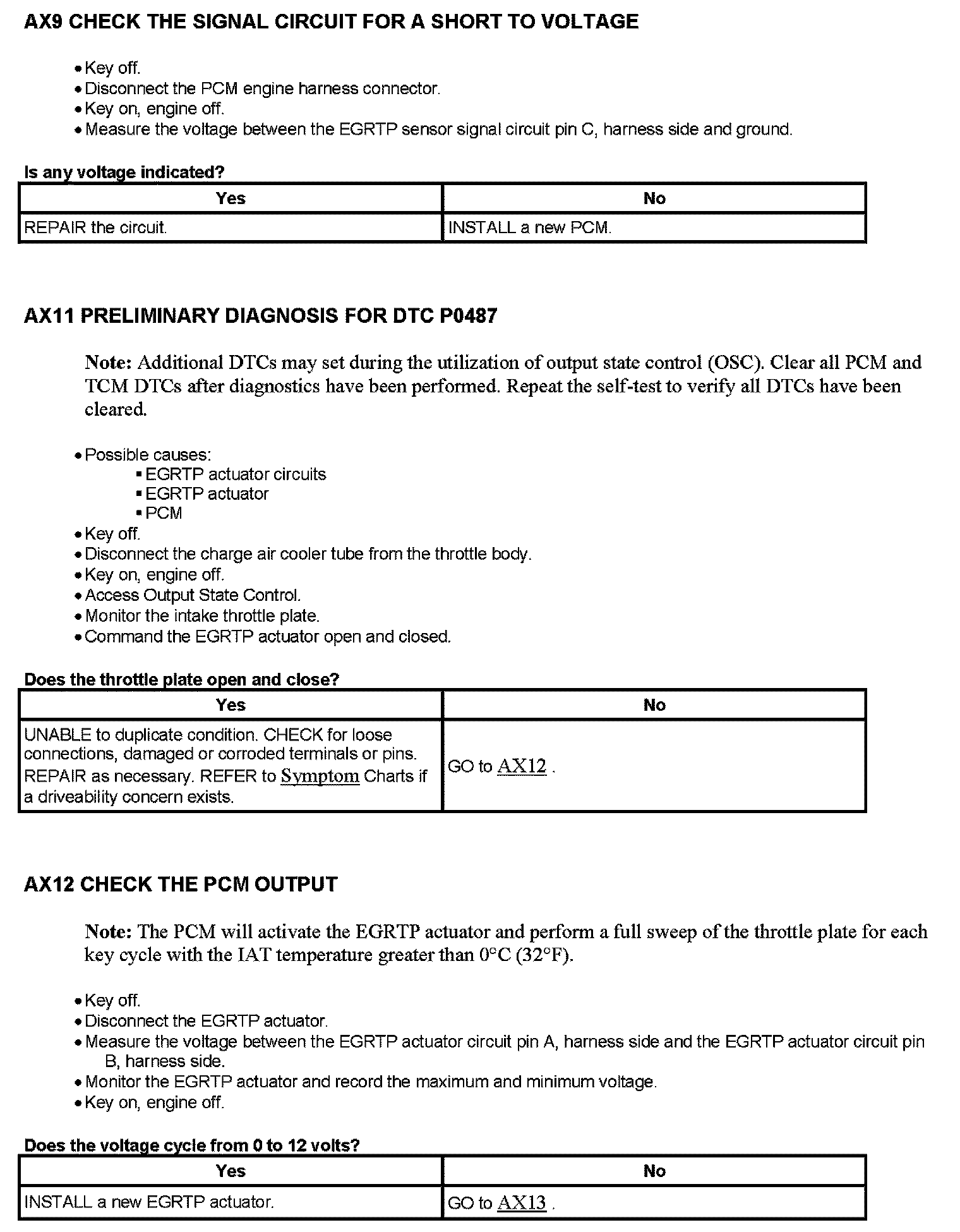

AX9-AX12:

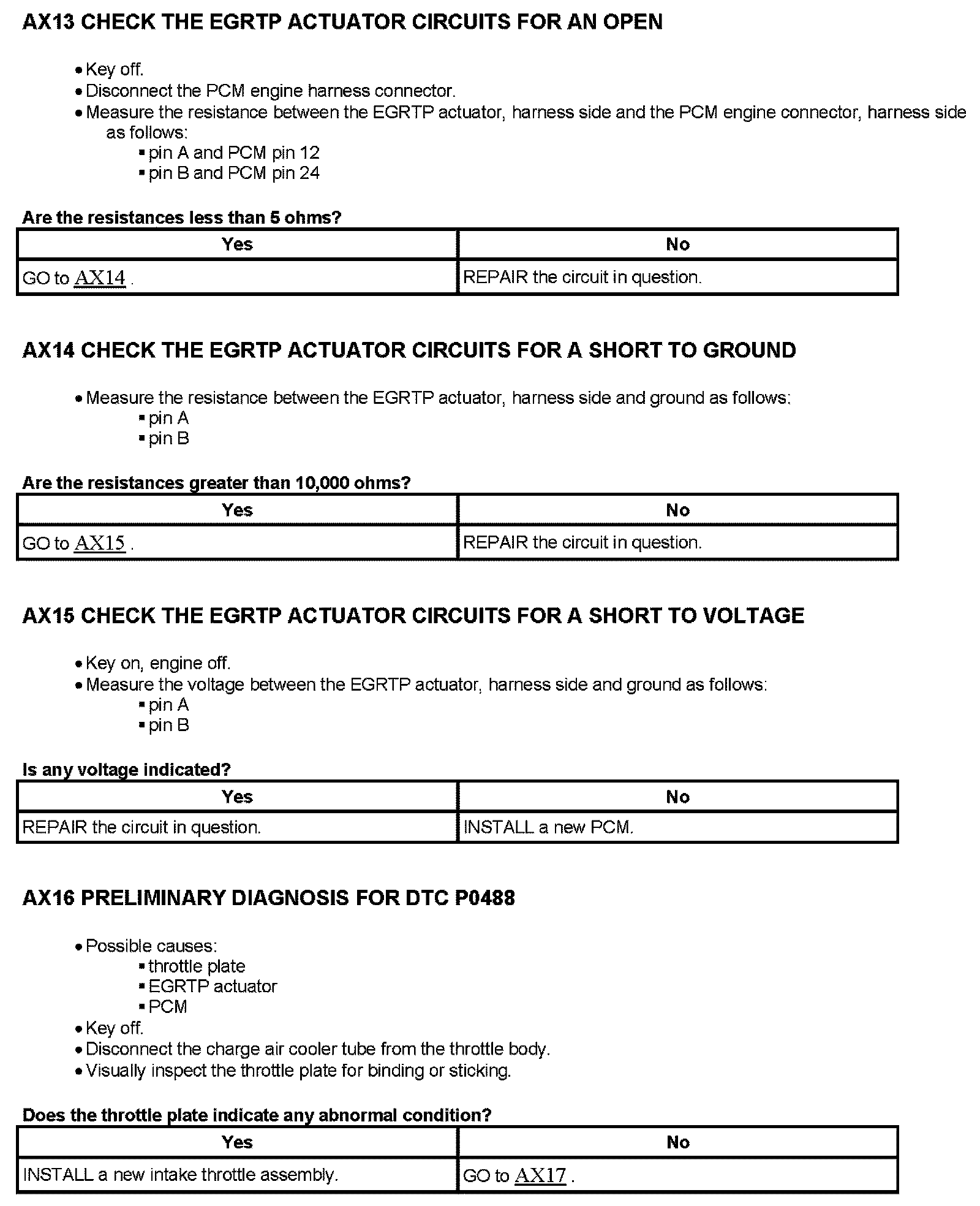

AX13-AX16:

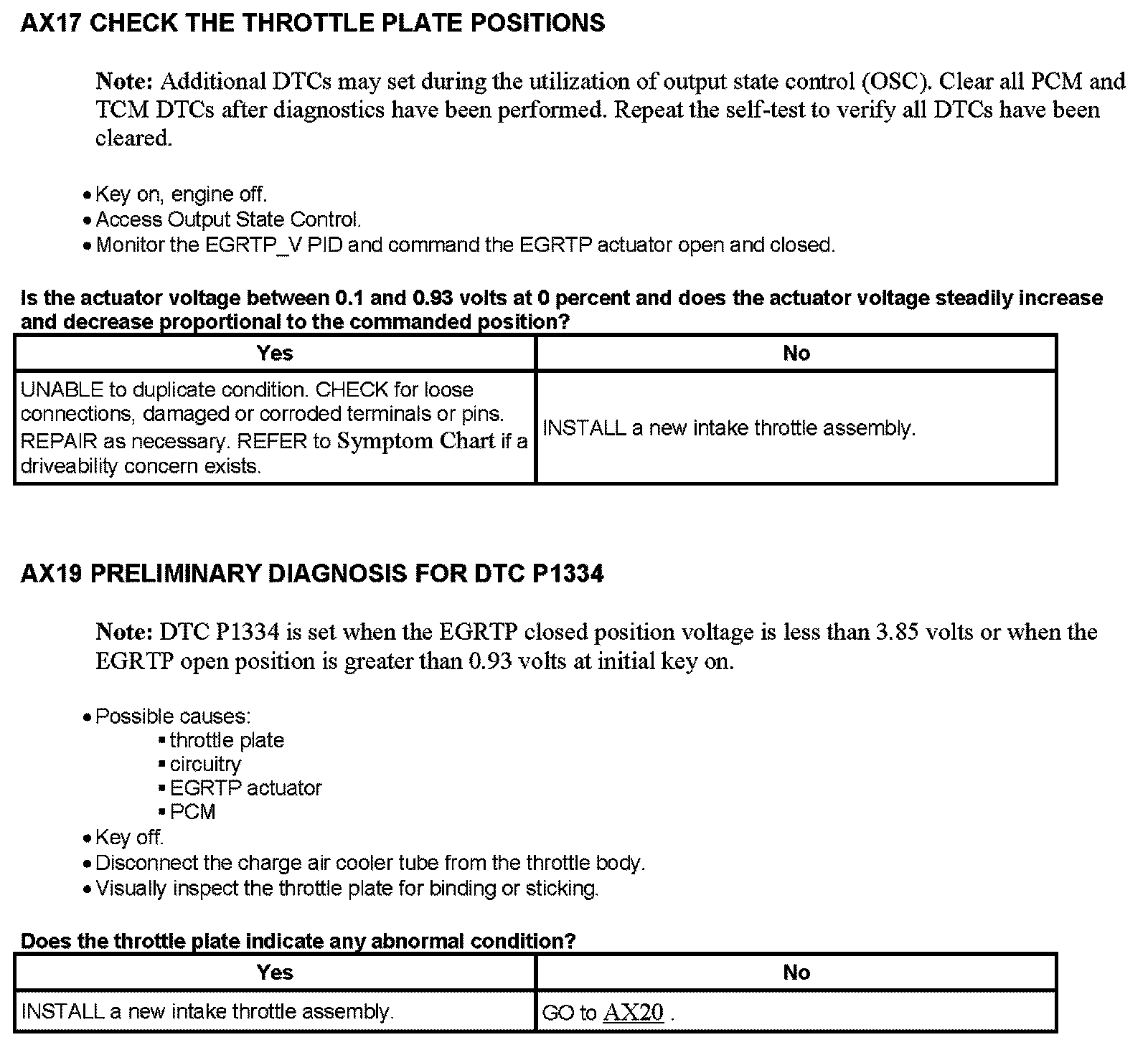

AX17-AX19:

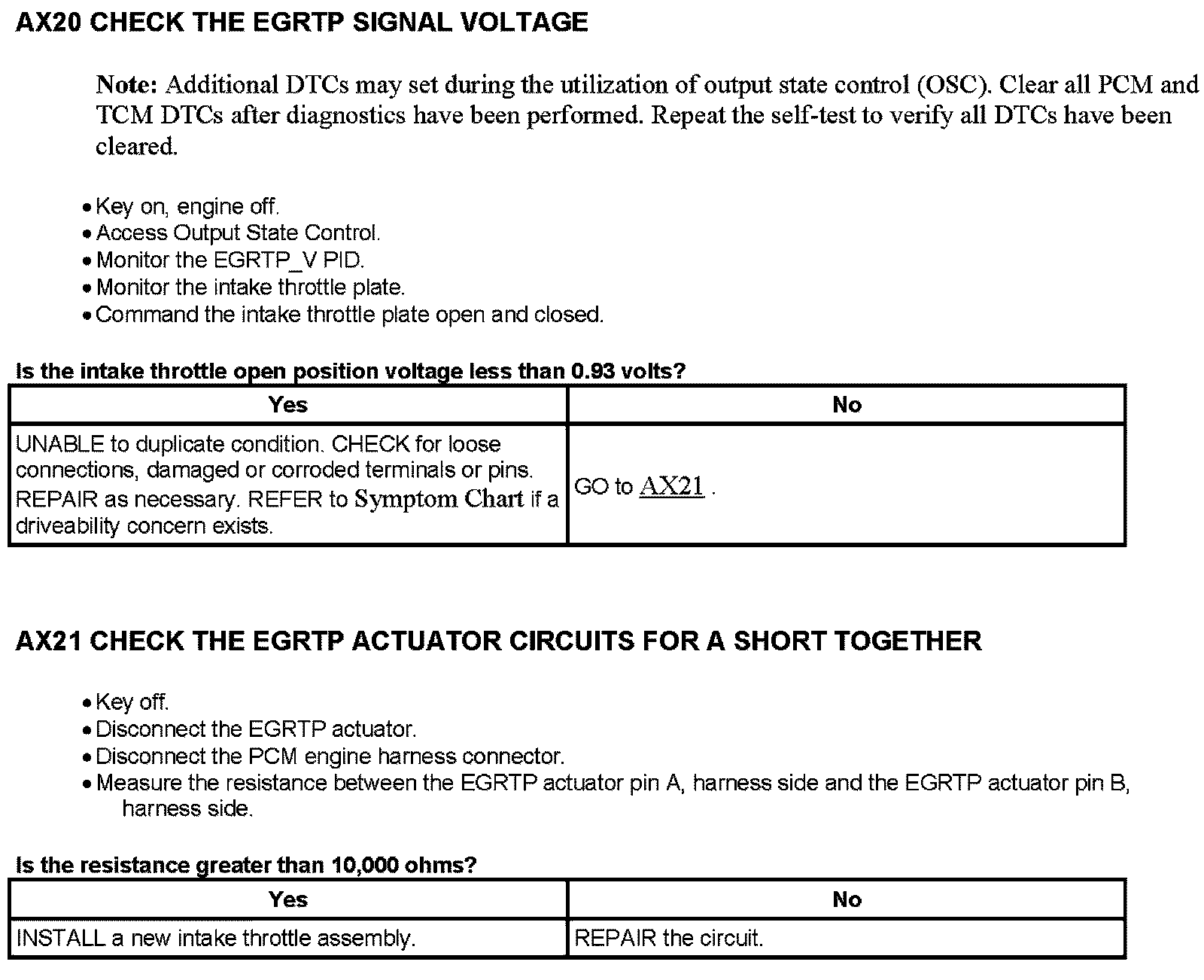

AX20-AX21:
