Removal and Installation

Remove the hydraulic control unit (HCU). For additional information, refer to HYDRAULIC CONTROL UNIT (HCU) in this article.
Disconnect the pump motor electrical connector from the anti-lock brake system (ABS) module.

Fig 1: Disconnecting Pump Motor Electrical Connector From Anti-Lock Brake System (ABS) Module
Courtesy of FORD MOTOR CO.
Remove the ABS module.
1. Remove the screws.
2. Remove the ABS module.

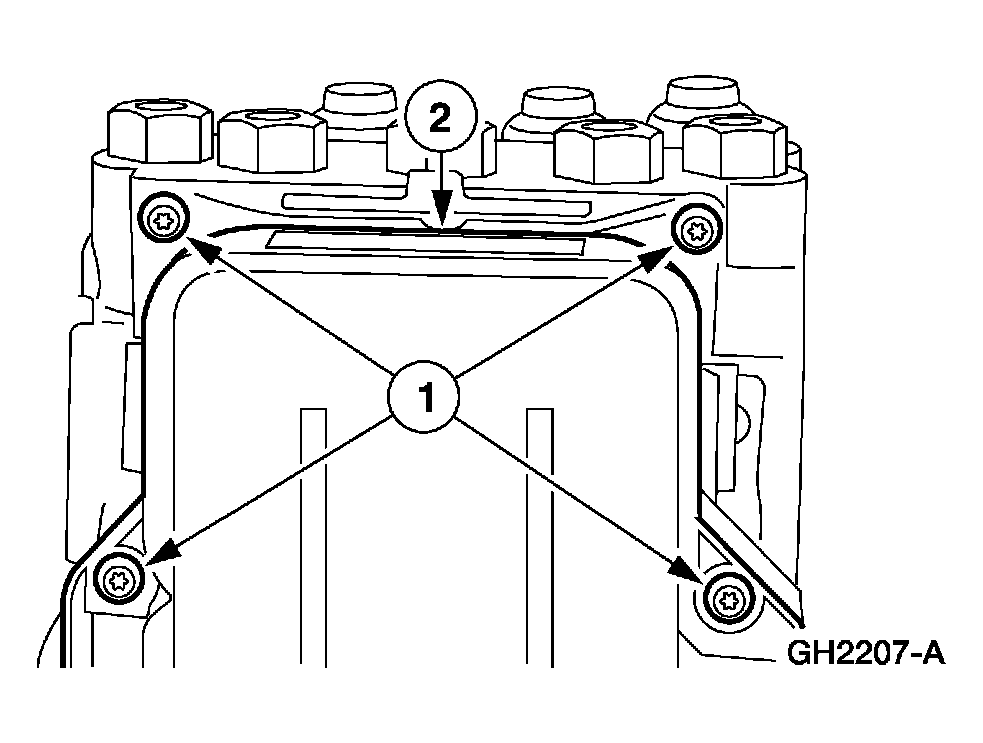

Fig 2: Removing Screws
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

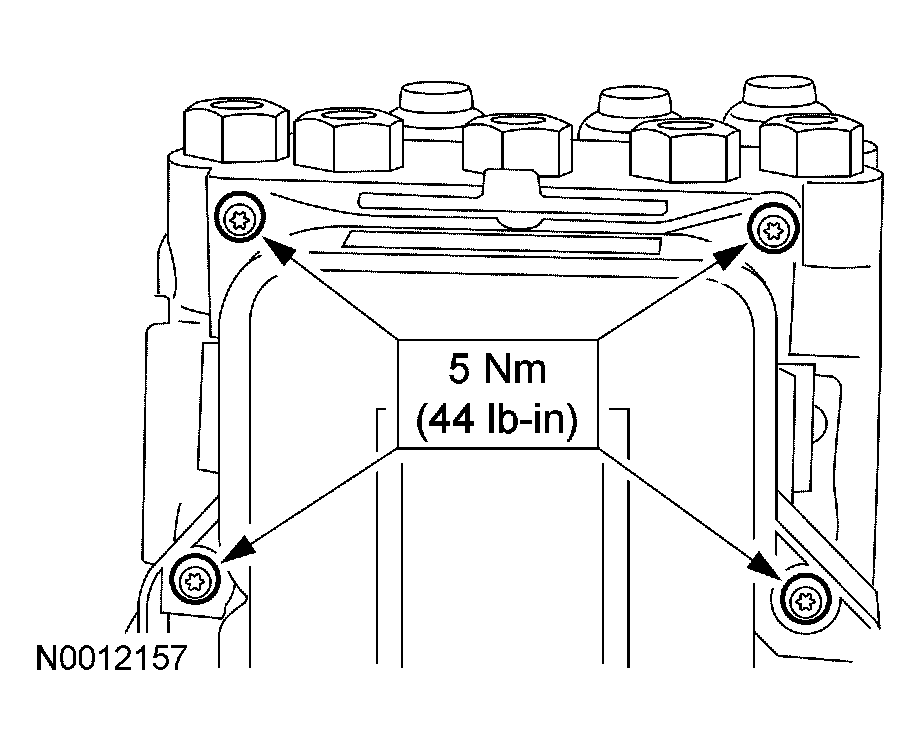

Fig 3: Installing Screws With Torque Specifications
Courtesy of FORD MOTOR CO.
