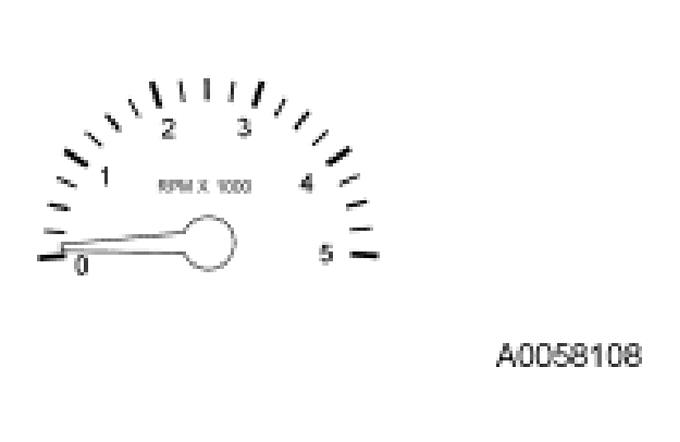

Diesel Powertrain Control Module (PCM) Outputs: Tachometer
The tachometer is controlled by the instrument cluster. The PCM sends an engine speed message through the SCP network (Excursion) or CAN (F-Super Duty or E-Series) to the instrument cluster indicating the engine RPM.
Courtesy of FORD MOTOR CO.
