Section 432 (Engine): Removal: Engine

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04627186Courtesy of FORD MOTOR CO.
 Modular Engine Lift Bracket
303-F047 (014-00073)

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  3. Remove the radiator. For additional information, refer to REMOVAL AND INSTALLATION .
  4. Remove the accessory drive belt.
  5. Remove the powertrain control module (PCM) and the support bracket. For additional information, refer to REMOVAL .
  6. If equipped, remove the bolts, nuts and the skid plate.

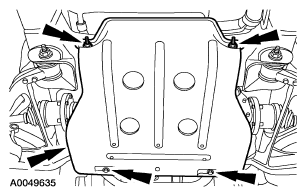

    Fig 1: Locating Skid Plate Nut & Bolts
    G04627187Courtesy of FORD MOTOR CO.
  7. Remove the starter. For additional information, refer to REMOVAL .
  8. Drain the engine oil.
  9. Remove and discard the oil filter.
    Fig 2: Locating Oil Filter
    G04627188Courtesy of FORD MOTOR CO.
  10. Disconnect the engine oil temperature (EOT) sensor electrical connector.
    Fig 3: Locating Engine Oil Temperature Sensor Electrical Connector
    G03920098Courtesy of FORD MOTOR CO.
  11. Remove the hood.
  12. Disconnect the heater hose.
    Fig 4: Locating Heater Hose
    G04627190Courtesy of FORD MOTOR CO.
  13. Disconnect the degas bottle coolant hose.
    Fig 5: Locating Coolant Hose Clip
    G04627191Courtesy of FORD MOTOR CO.
  14. Remove the bolt and the ground cable.
    Fig 6: Locating Ground Cable Bolts
    G04627192Courtesy of FORD MOTOR CO.
  15. If equipped, disconnect the block heater electrical connector.
    Fig 7: Locating Block Heater Electrical Connector
    G03920195Courtesy of FORD MOTOR CO.
  16. Remove the bolts and position the power steering pump aside.
    Fig 8: Identifying Power Steering Pump Bolts
    G03886436Courtesy of FORD MOTOR CO.
  17. Disconnect the A/C compressor electrical connector.
    Fig 9: Locating A/C Compressor Electrical Connector
    G04627195Courtesy of FORD MOTOR CO.
  18. Remove the 2 nuts and the wiring harness retainers.
    Fig 10: Locating Wiring Harness Retainers Nut
    G04627196Courtesy of FORD MOTOR CO.
  19. Disconnect the crankshaft position (CKP) sensor electrical connector.
    Fig 11: Locating Crankshaft Position (CKP) Sensor Electrical Connector
    G04612789Courtesy of FORD MOTOR CO.
  20. Remove the bolts and position the A/C compressor aside.
    Fig 12: Locating A/C Compressor Bolts
    G04627198Courtesy of FORD MOTOR CO.

    21. Expedition vehicles

  21. Remove the transmission fluid filler tube support bolt.
    Fig 13: Identifying Transmission Filler Tube Retaining Bolt
    G03964058Courtesy of FORD MOTOR CO.

    22. All vehicles

  22. Remove the nut and the transmission cooler tube support bracket.

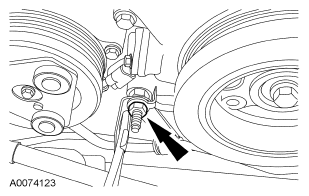

    Fig 14: Locating Transmission Cooler Tube Support Bracket Nut
    G04627200Courtesy of FORD MOTOR CO.
  23. Remove the nut and the power steering pressure hose support bracket.
    Fig 15: Locating Power Steering Pressure Hose Support Bracket Nut
    G04627201Courtesy of FORD MOTOR CO.
  24. Remove the bolt and the starter electrical harness support bracket.
    Fig 16: Locating Starter Electrical Harness Support Bracket Bolts
    G04627202Courtesy of FORD MOTOR CO.
  25. If equipped, remove the 3 bolts and the LH engine-to-transmission support bracket.
    Fig 17: Locating LH Engine-To-Transmission Support Bracket Bolts
    G04627203Courtesy of FORD MOTOR CO.
  26. If equipped, remove the 3 bolts and the RH engine-to-transmission support bracket.
    Fig 18: Locating RH Engine-To-Transmission Support Bracket Bolts
    G04627204Courtesy of FORD MOTOR CO.
  27. Remove the bolts and the flexplate inspection cover.
    Fig 19: Identifying Flexplate Inspection Cover Bolts
    G03885458Courtesy of FORD MOTOR CO.
  28. Remove the cylinder block opening cover.
    Fig 20: Identifying Access Plug
    G03908385Courtesy of FORD MOTOR CO.
  29. Remove the torque converter-to-flexplate nuts.
    • Discard the nuts.
      Fig 21: Locating Torque Converter-To-Flexplate Nuts
      G03885557Courtesy of FORD MOTOR CO.
  30. If equipped with a 4R70E or 4R75E automatic transmission, remove the 2 bolts, disconnect the shift cable and position the cable and bracket assembly aside.
    Fig 22: Locating Shift Cable End And Bracket
    G03964050Courtesy of FORD MOTOR CO.
    31. NOTE: The upper 2 transmission-to-engine bolts will be removed later.
    Fig 23: Identifying Lower Transmission-To-Engine Bolts
    G03920193Courtesy of FORD MOTOR CO.
  31. Remove the lower 5 transmission-to-engine bolts.
  32. Disconnect the RH heated exhaust gas oxygen sensor (HO2S) electrical connector.
    Fig 24: Locating RH Heated Exhaust Gas Oxygen Sensor (HO2S) Electrical Connector
    G04627210Courtesy of FORD MOTOR CO.
  33. Remove the 4 exhaust manifold flange nuts.
    Fig 25: Identifying Exhaust Manifold Flange Nuts
    G03885400Courtesy of FORD MOTOR CO.
    34. CAUTION: Only use hand tools when removing the engine mount nut or damage to the engine mount can occur.
    Fig 26: Locating RH Engine Mount Nut
    G04627212Courtesy of FORD MOTOR CO.
  34. Remove the RH engine mount nut.
    35. CAUTION: Only use hand tools when removing the LH engine mount through bolt or damage to the cage nut can occur.
    NOTE: If the LH engine mount through bolt nut is missing or damaged install a new nut using service part number W709375. If the LH engine mount through bolt nut cage is damaged or missing, remove the cage and install a new nut using service part number W520516-S301.
    Fig 27: Locating LH Engine Mount Through Bolt
    G04627213Courtesy of FORD MOTOR CO.
  35. Remove the LH engine mount through bolt.
  36. Remove the upper 2 transmission-to-engine bolts and install the special tool.
    Fig 28: Identifying Special Tool (303-F047)
    G03920205Courtesy of FORD MOTOR CO.
  37. Using a suitable floor crane, remove the engine assembly from the vehicle.
