Camshaft Position (CMP) Sensor: Notes

WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

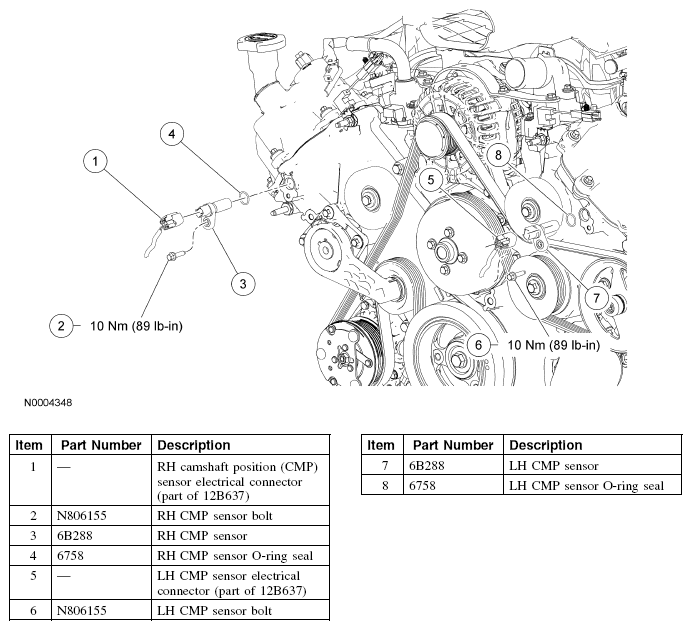

Fig 1: Camshaft Position (CMP) Sensor Replacement Components With Torque Specifications
G04627660Courtesy of FORD MOTOR CO.
