Safety Belt System - Exploded View, Second Row, 60/40

Fig 1: Exploded View Of Second Row, 60/40, RH Side Rear Safety Belt
G03946263Courtesy of FORD MOTOR CO.

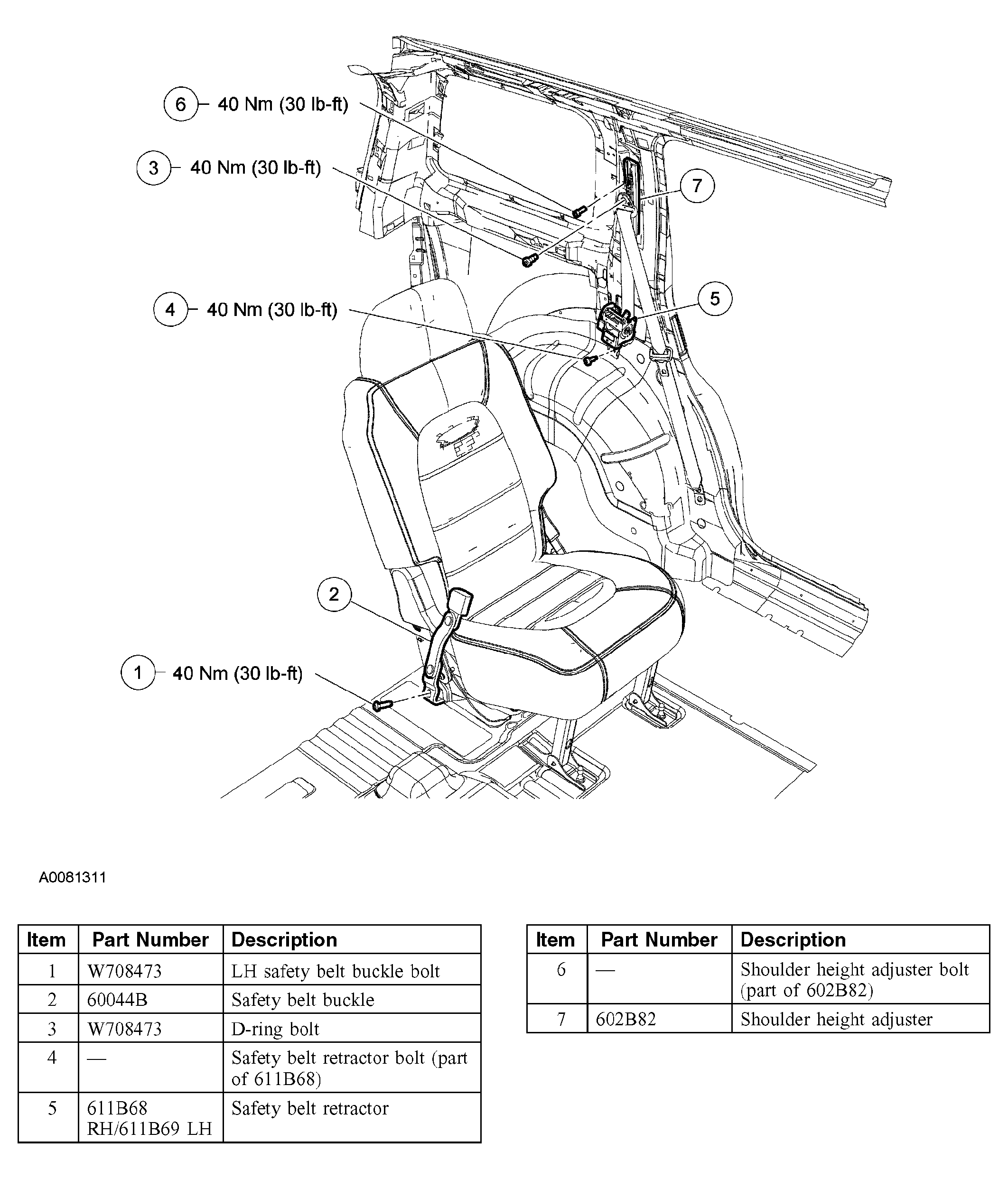

Fig 2: Exploded View Of Second Row, 60/40, LH Side Rear Safety Belt
G03946264Courtesy of FORD MOTOR CO.
