Forward Geartrain: Notes

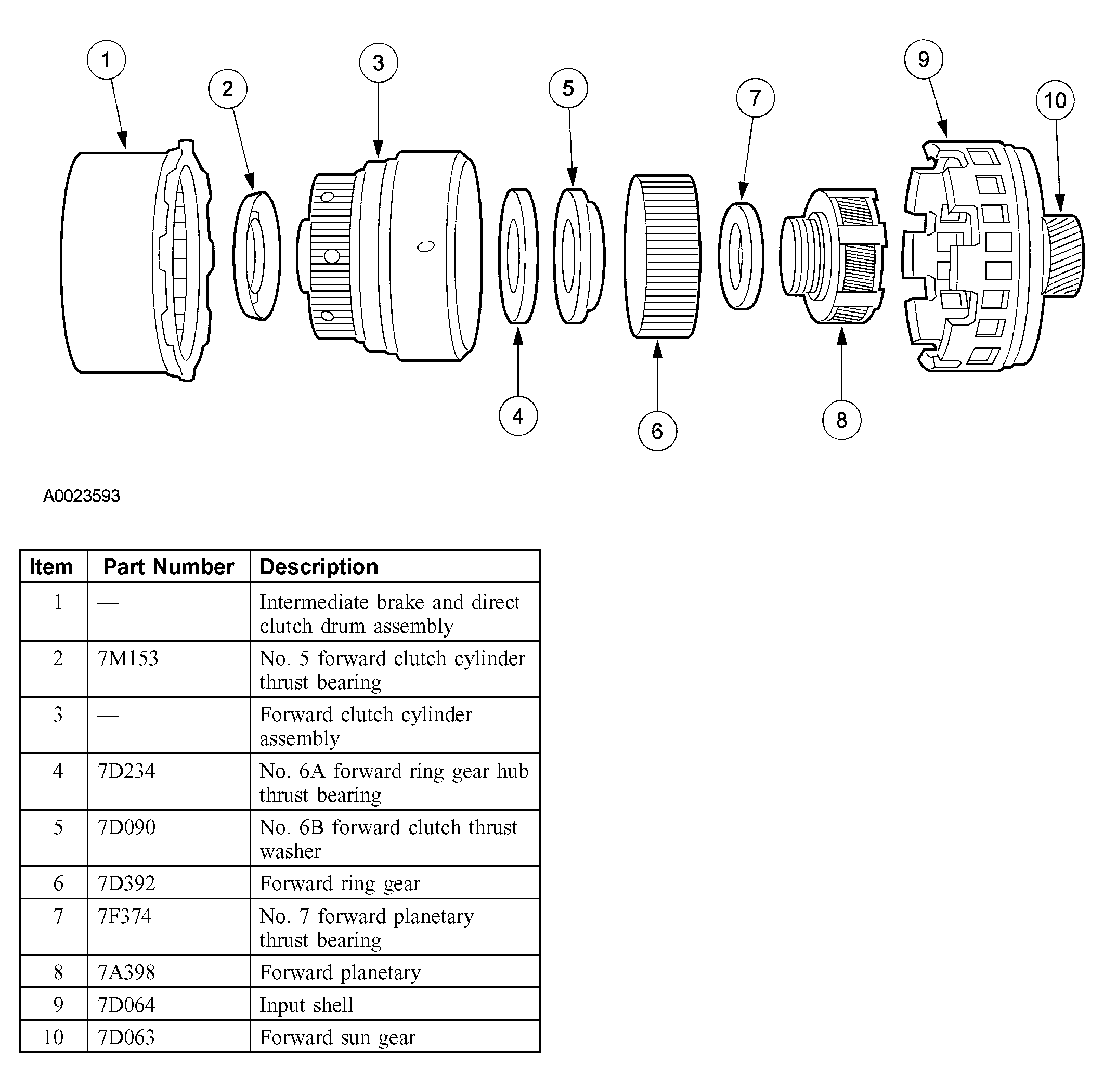

Fig 1: Identifying Forward Geartrain Assembly
G03915079Courtesy of FORD MOTOR CO.
