Forward Clutch: Notes

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL SPECIFICATION

G03951486
 Compressor, Spring Washer 307-209
MATERIAL SPECIFICATION

Item Specification
Automatic Transmission Fluid XT-5-QM MERCON® V

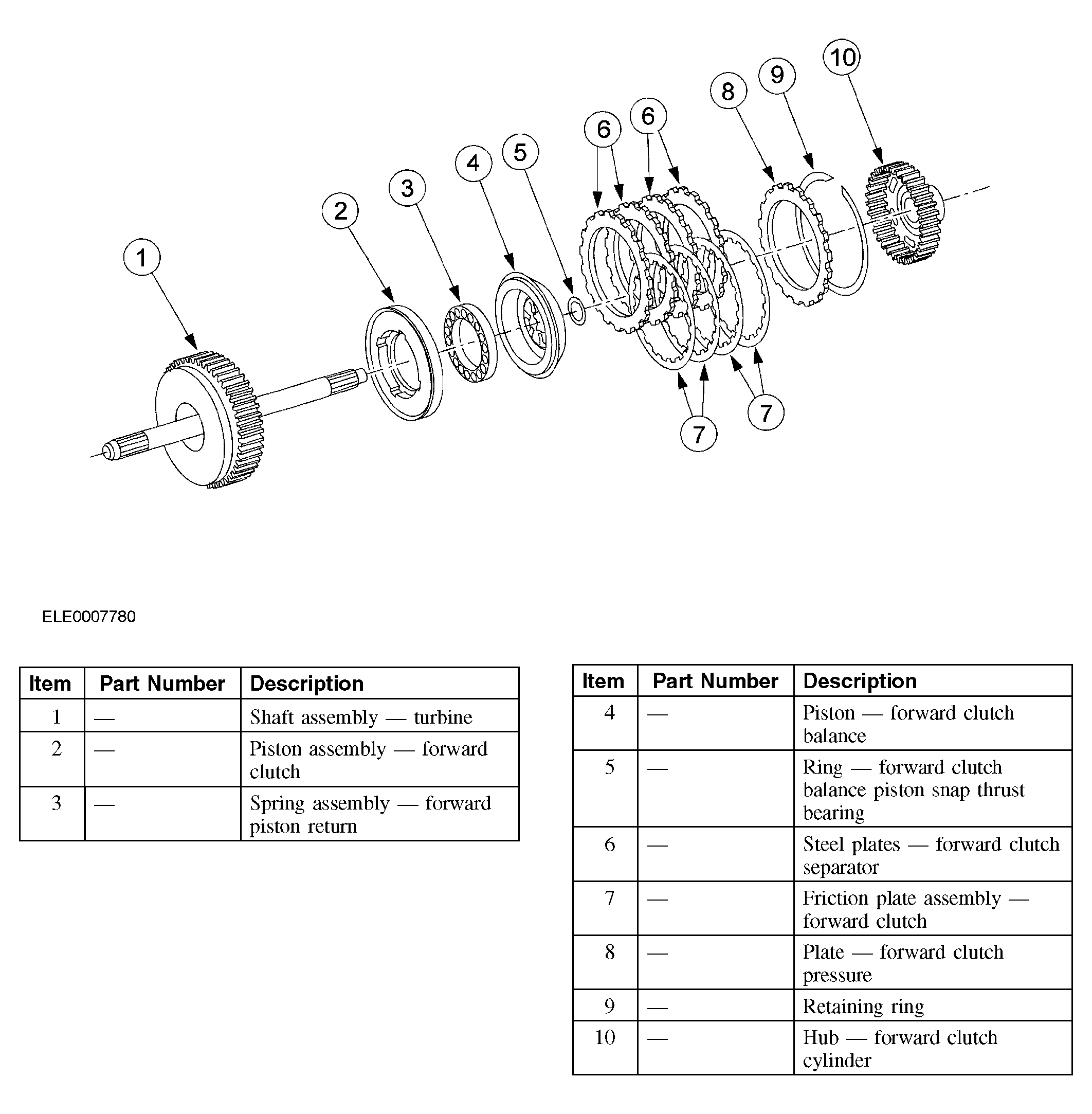

Fig 1: Exploded View Of Forward Clutch
G03951466Courtesy of FORD MOTOR CO.
