Disassembly And Assembly Of Subassemblies: Differential: Disassembly

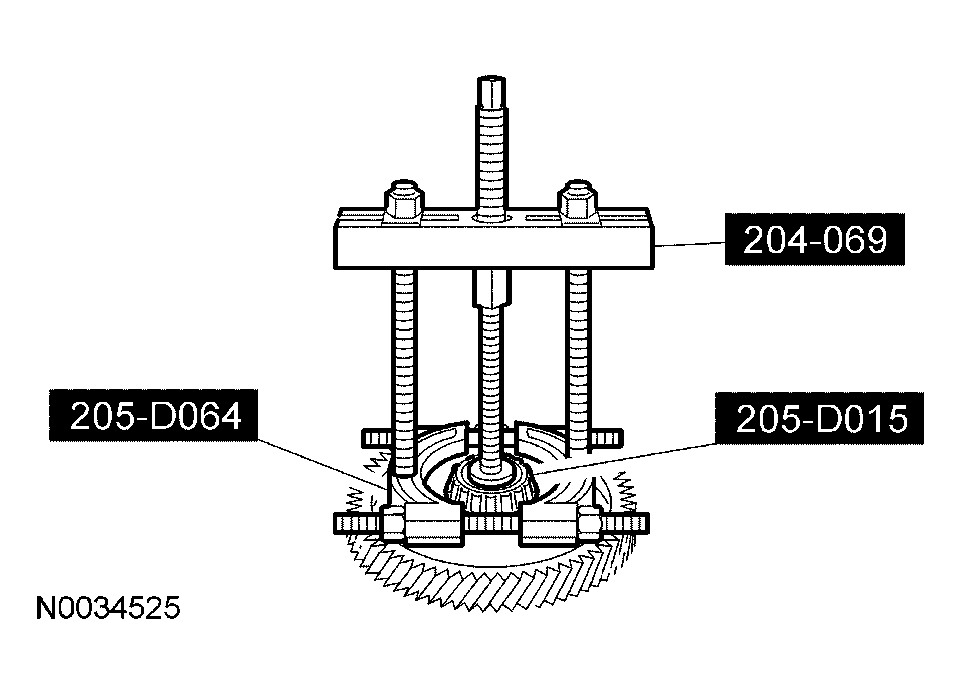

- Using the special tools, remove the differential case bearings.
- Remove the speed sensor wheel.
- Remove the differential case bolts. Lightly tap the ring gear to separate it from the differential case.
- Clean all parts in clean solvent and blow dry with compressed air.
- Inspect the differential parts for damage or wear.
NOTE:
Do not damage the speed sensor wheel.
