Transaxle Cooling

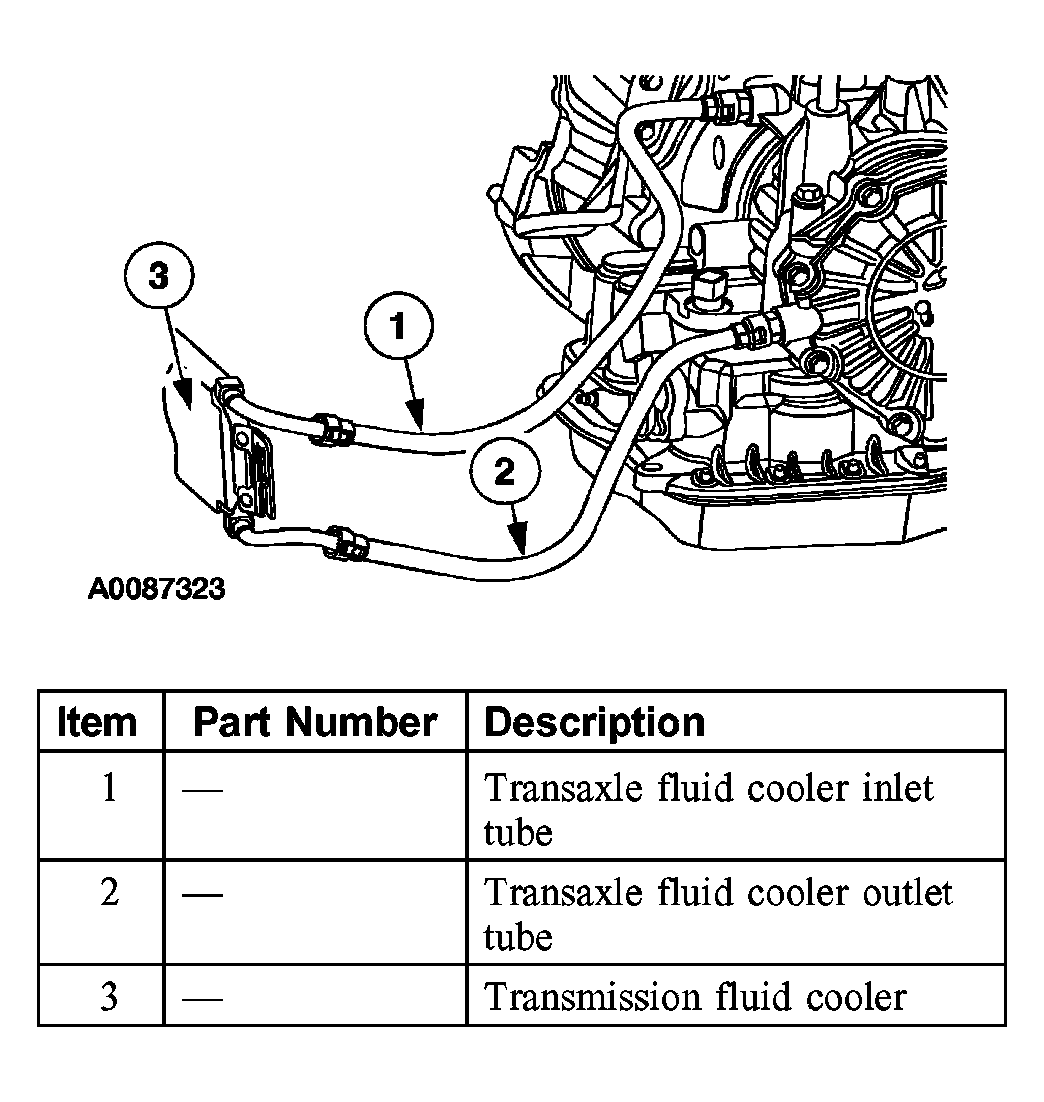

Fig 1: Identifying Transaxle Cooling (2.0L - Duratec)

Courtesy of FORD MOTOR CO.

CAUTION: The connections on the automatic transmission fluid cooler are sealed with O-ring seals.

The transmission fluid cooler is installed in front of the engine cooling radiator.

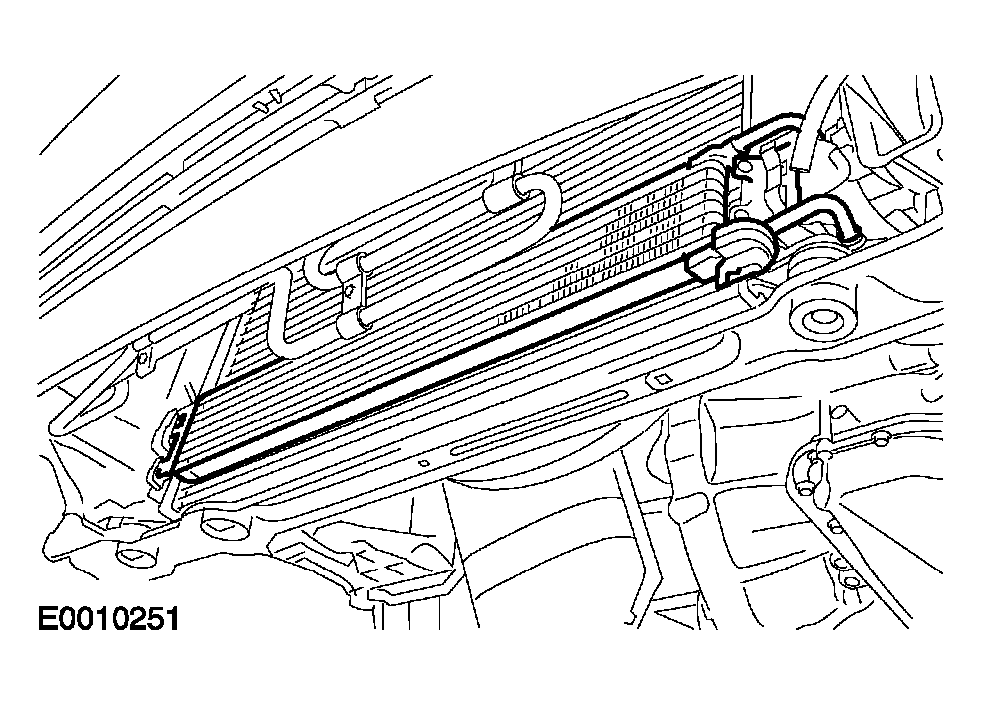

Fig 2: Identifying Radiator

Courtesy of FORD MOTOR CO.
