Seat Cushion - Third Row: Notes

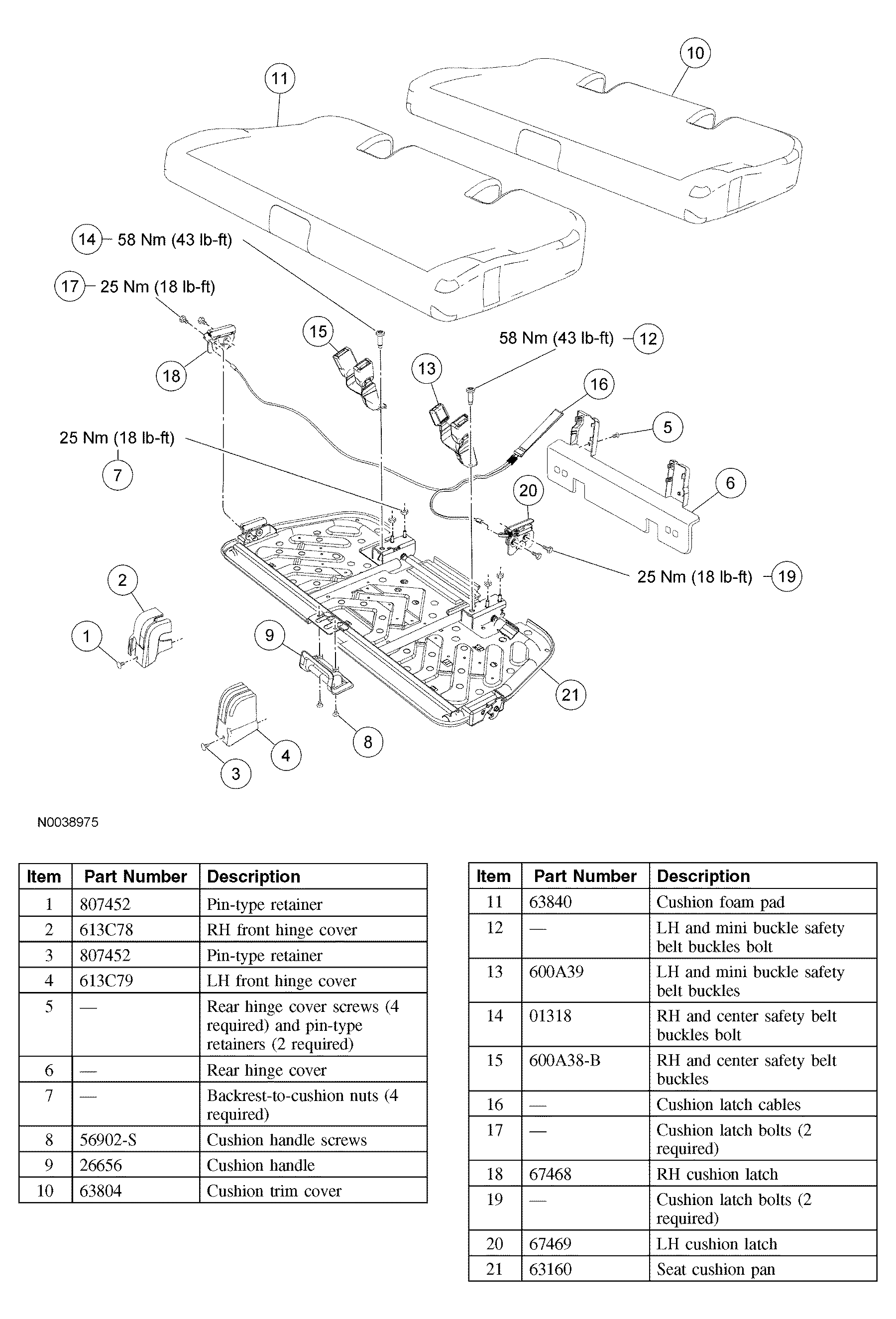

Fig 1: Exploded View Of Seat Cushion - Third Row

G04010976

Courtesy of FORD MOTOR CO.
