Glass, Frames and Mechanisms - Exploded View

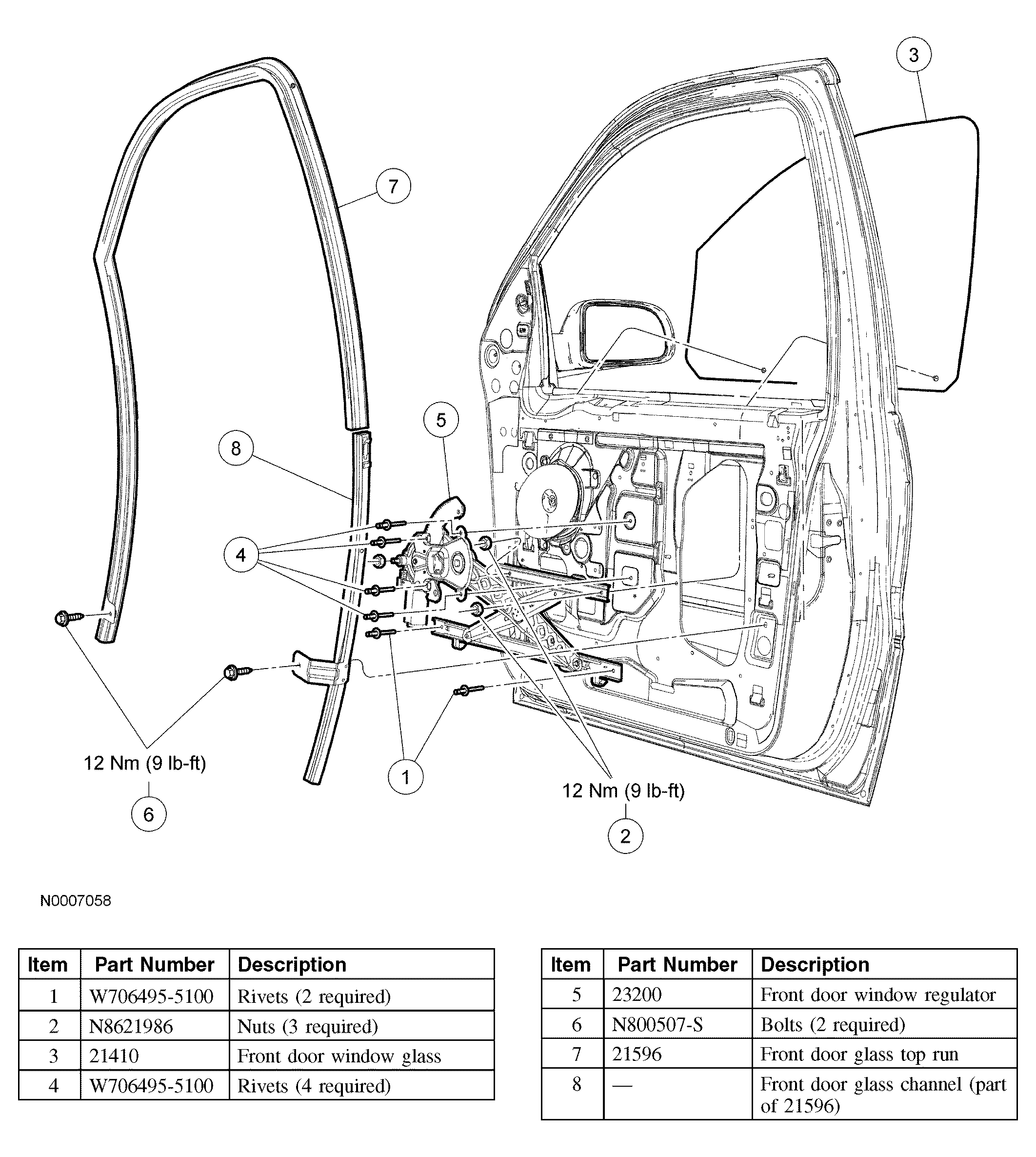

Fig 1: Exploded View Of Glass, Frames And Mechanisms
G04011100Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate component procedures.
