Fuel Level Sensor: Installation

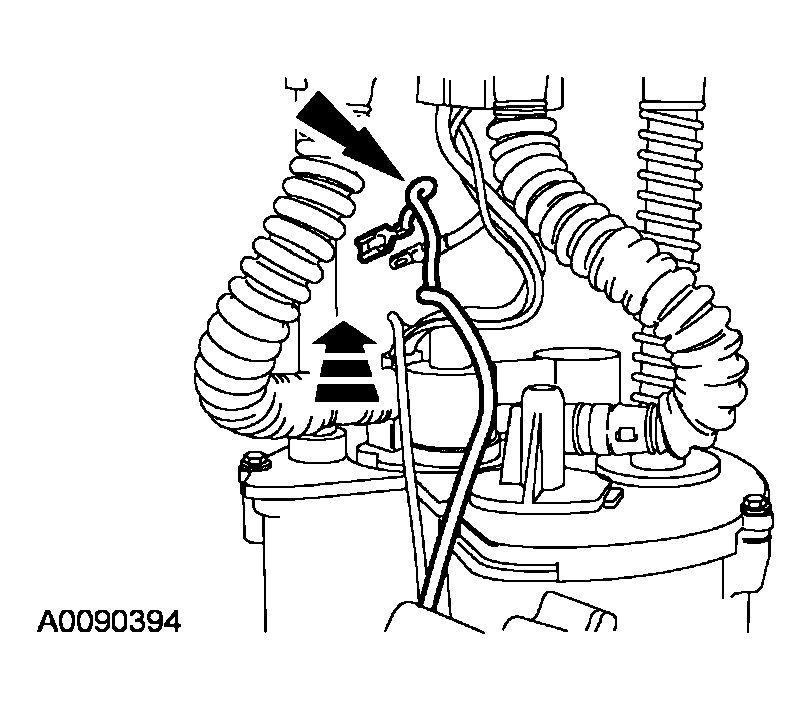

- Route the fuel gauge sending unit wire through the center of the fuel pump module.

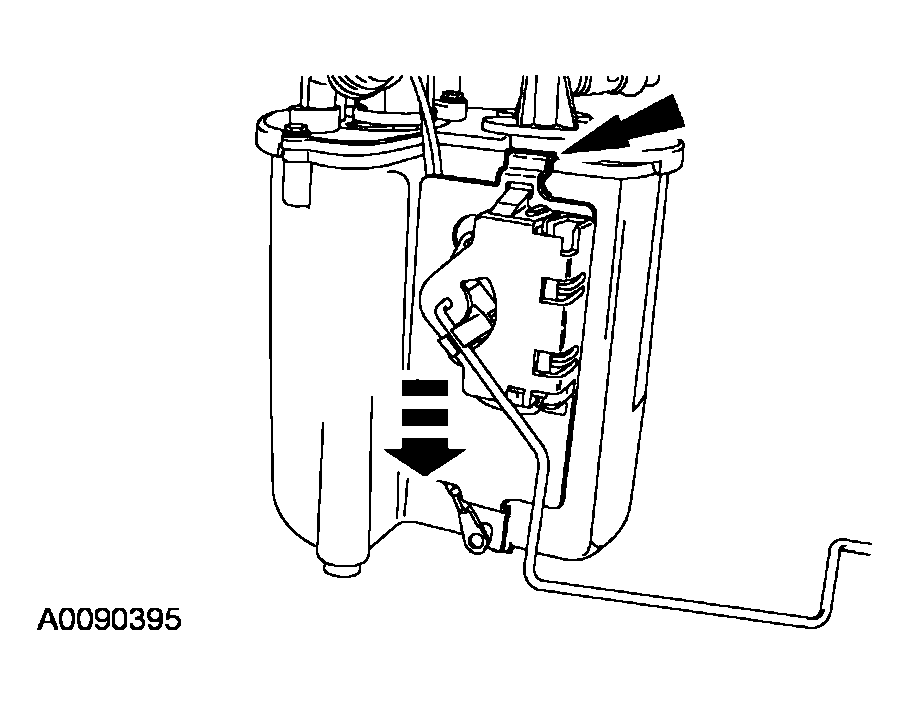

- Hook the fuel gauge sending unit on the fuel pump module.

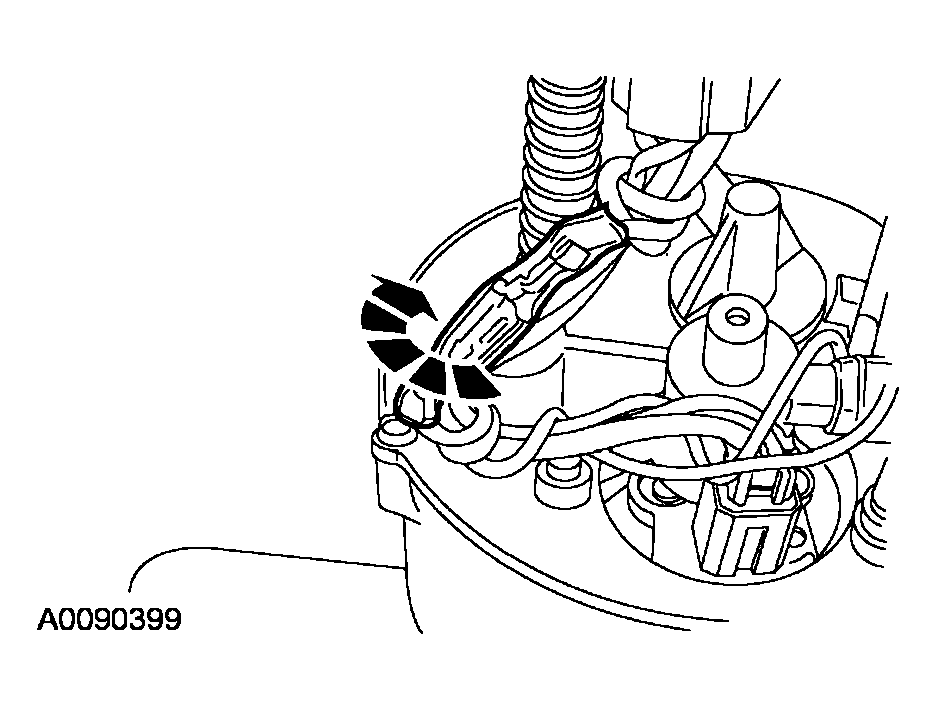

- Install the screw through the grounding eyelet and tighten the screw.
- Slide the heat shrink tube onto the wire harness and connect the electrical connector.
- Using a heat gun, heat the heat shrink tube.
- Wrap the sending unit wire around the fuel pump module wire harness to make sure the wire will not interfere with the movement of the fuel gauge sending unit float arm.
- Install the fuel pump module. For additional information, Refer to FUEL PUMP .
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
NOTE:
Both fuel gauge sending unit wires must be routed behind the metal sending unit plate.
NOTE:
The grounding eyelet must be on the front side of the sending unit.
WARNING:
Do not use an open flame to heat the heat shrink tube, only use a heat gun.
