Turbine Shaft Speed (TSS) Sensor: Notes

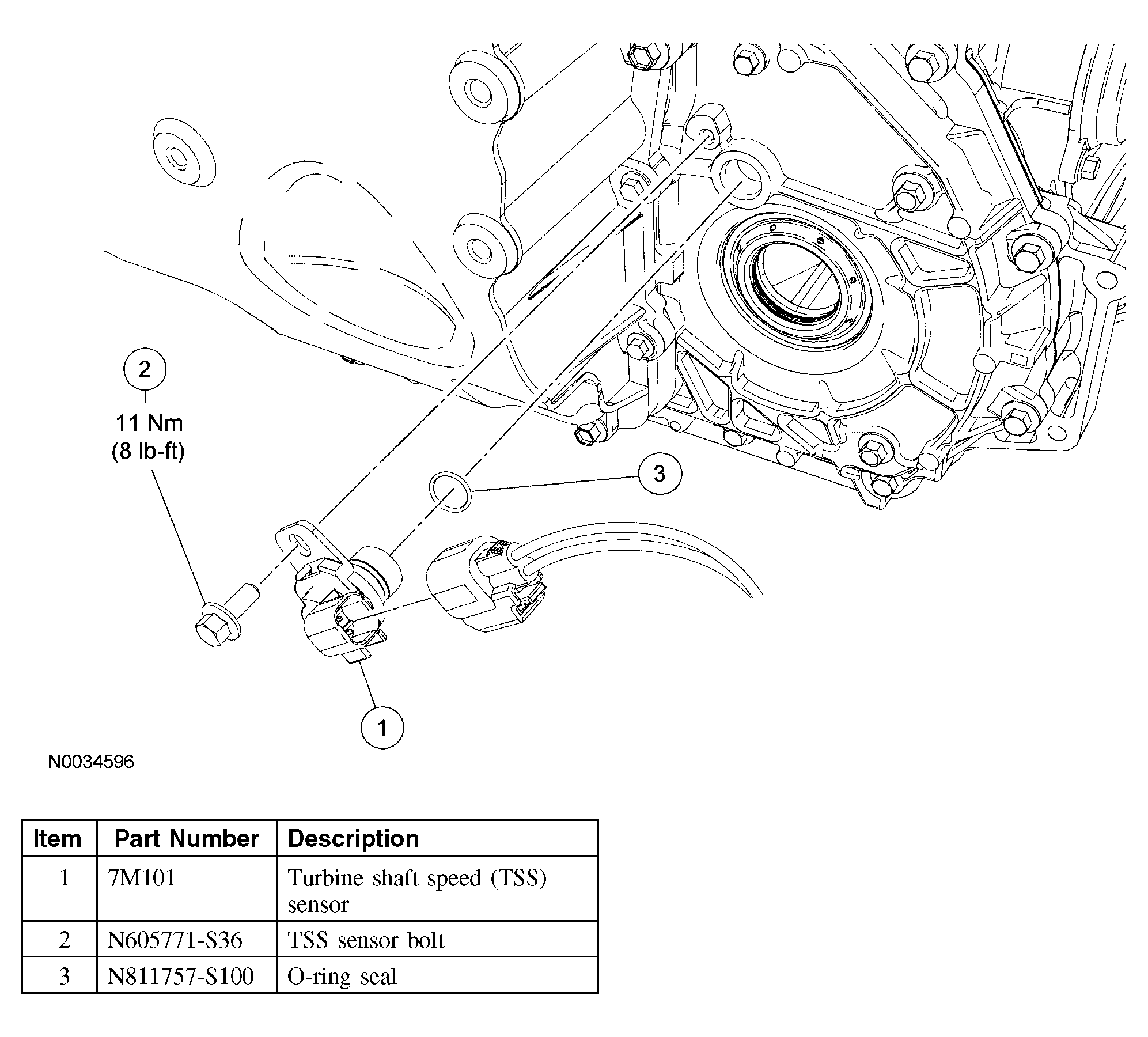

Fig 1: Identifying Tightening Torque Of Turbine Shaft Speed (TSS) Sensor Bolt
G04004716Courtesy of FORD MOTOR CO.
