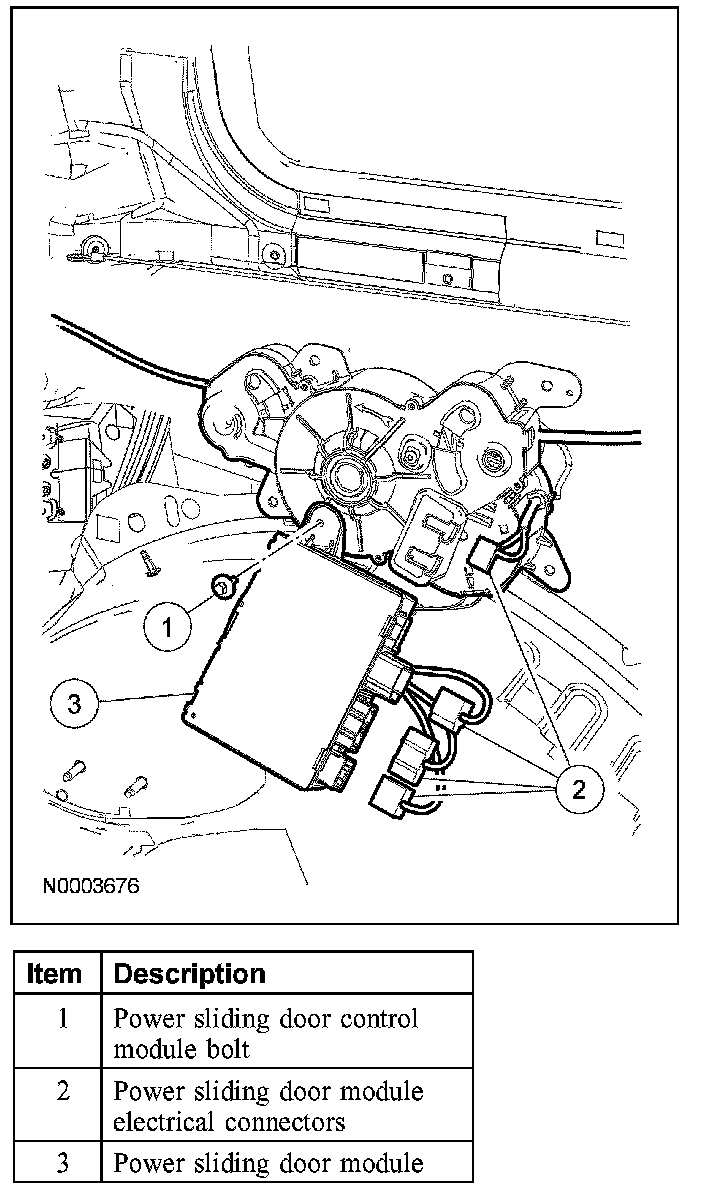

Power Sliding Door (PSD) Module - RH

POWER SLIDING DOOR (PSD) MODULE - RH







Removal and Installation
1. Remove the rear quarter trim panel.
2. Disconnect the power sliding door control module electrical connectors.
3. Remove the power sliding door control module bolt.







4. Slide the module off the drive assembly.
5. To install, reverse the removal procedure.
6. Initialize the power sliding door.
