LH Front Window Control Switch C508a

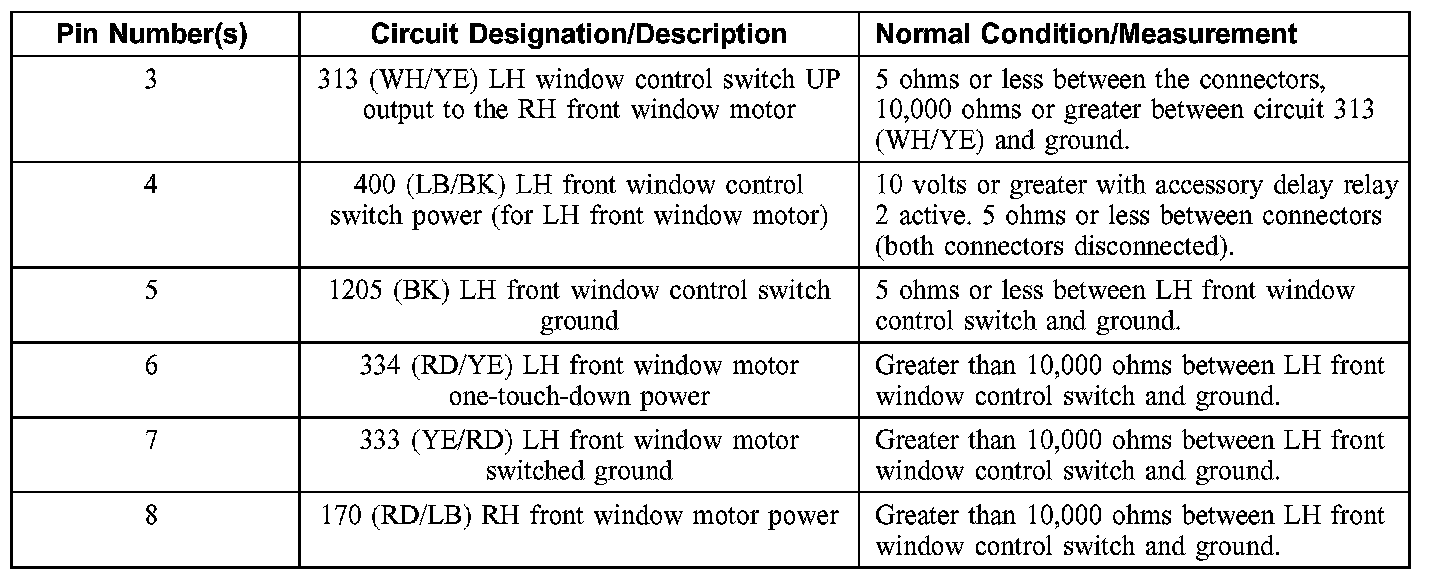

LH Front Window Control Switch C508a (Part 1):



LH Front Window Control Switch C508a (Part 2):
