Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

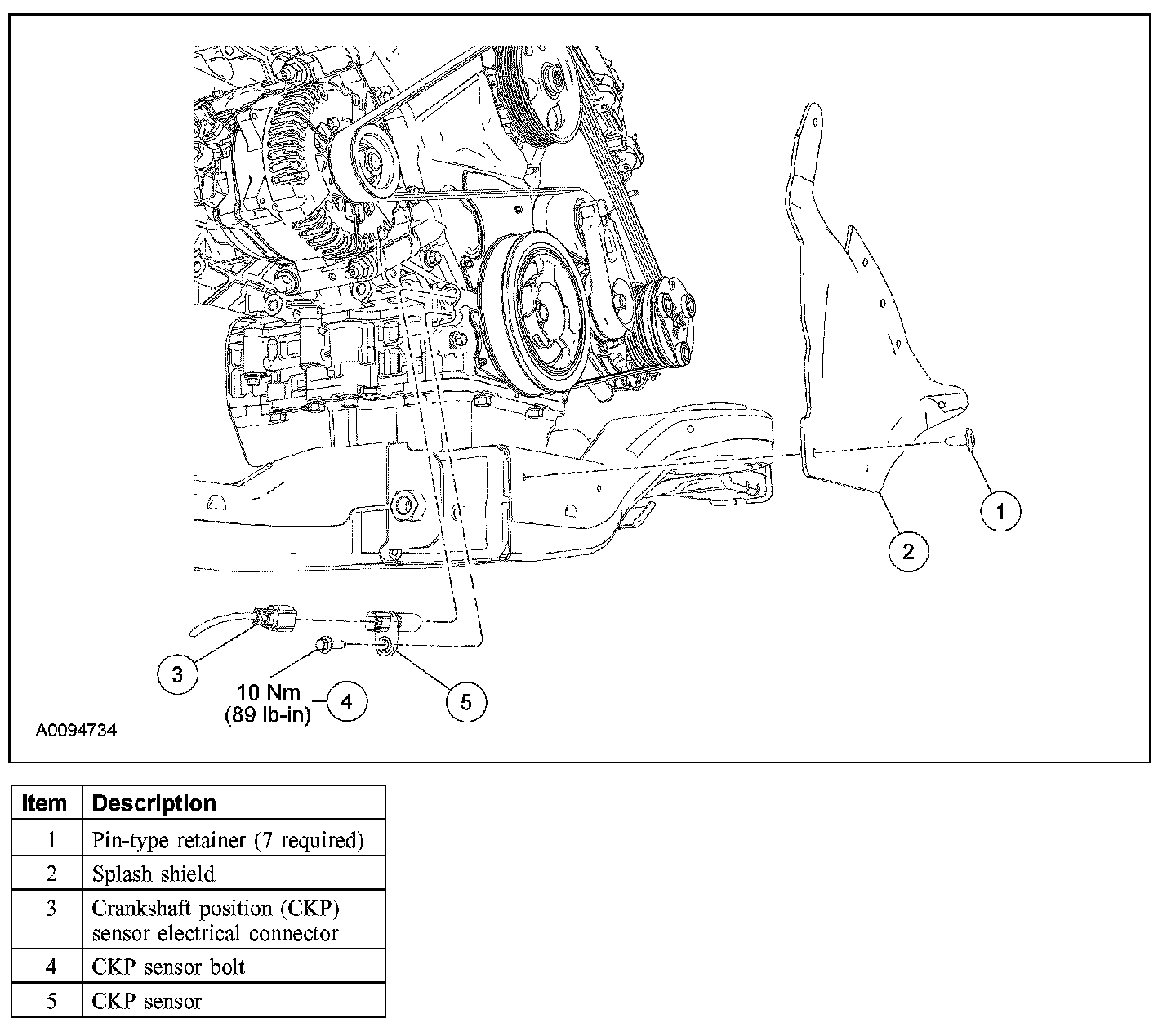

Removal and Installation
1. With vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the 7 pin-type retainers and the RH splash shield.
4. Disconnect the crankshaft position (CKP) sensor electrical connector.

5. Remove the bolt and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).

6. To install, reverse the removal procedure.
