Transmission Fluid Cooler: Notes

MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

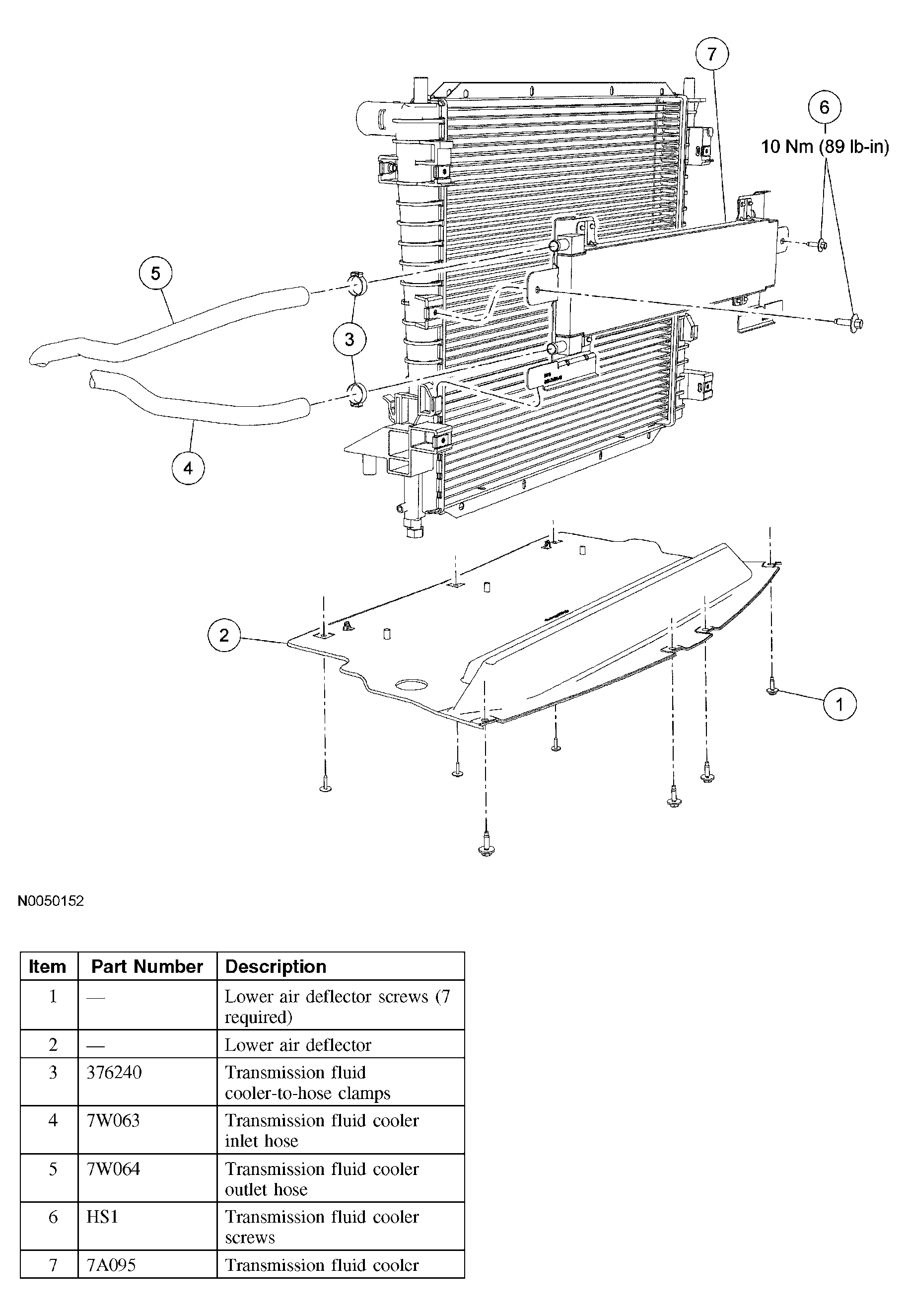

Fig 1: Identifying Components Transmission Fluid Cooler
G03985615Courtesy of FORD MOTOR CO.
