Home >> Ford >> 2005 >> Mustang Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Steering Column Switches >> Removal And Installation >> Steering Column Multifunction Switch >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Steering Column Multifunction Switch: Notes

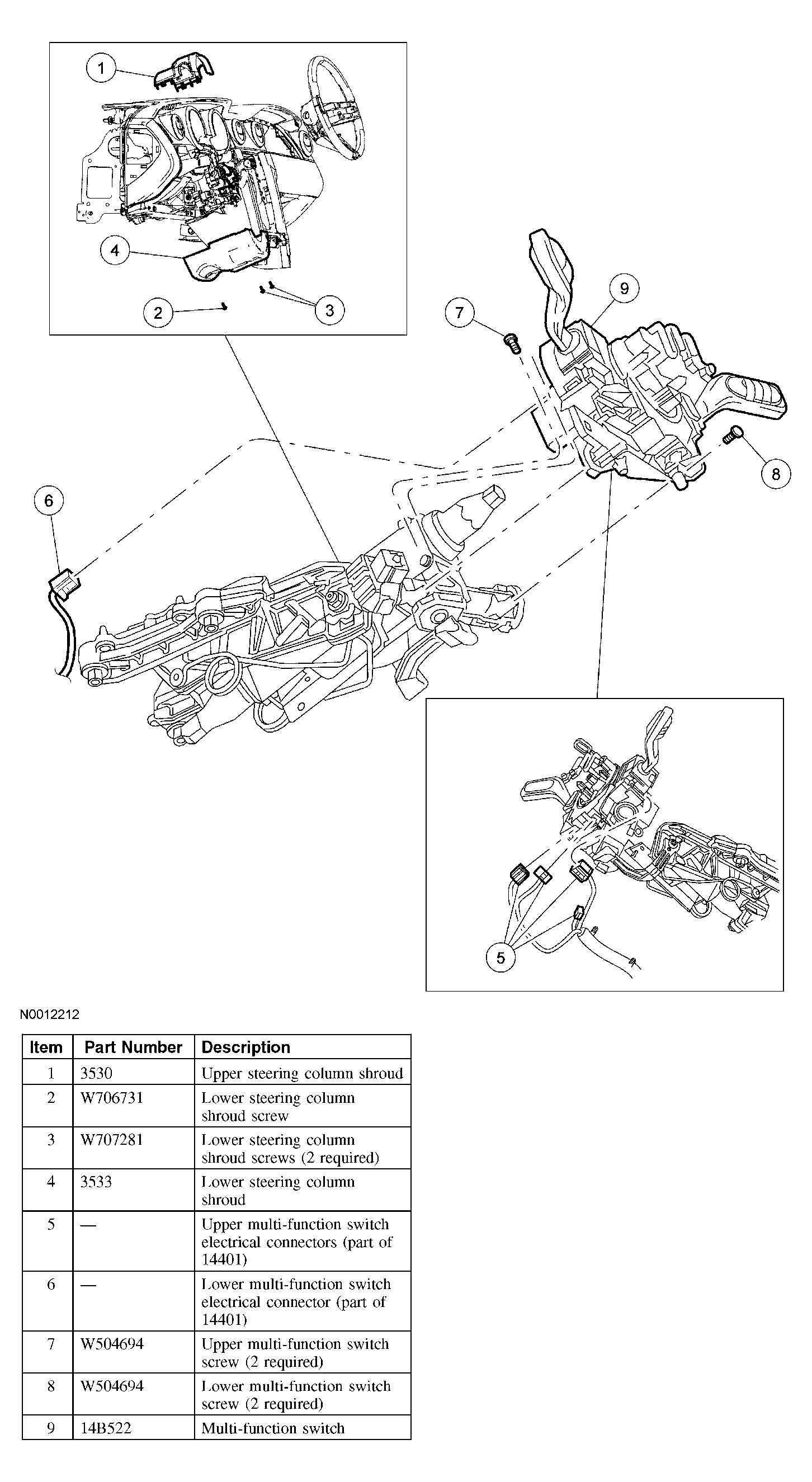

Fig 1: Steering Column Multifunction Switch Components
G03983560Courtesy of FORD MOTOR CO.
