Seat Backrest - Front: Notes

Front Seat Backrest

NOTE: Driver backrest shown, passenger backrest similar.

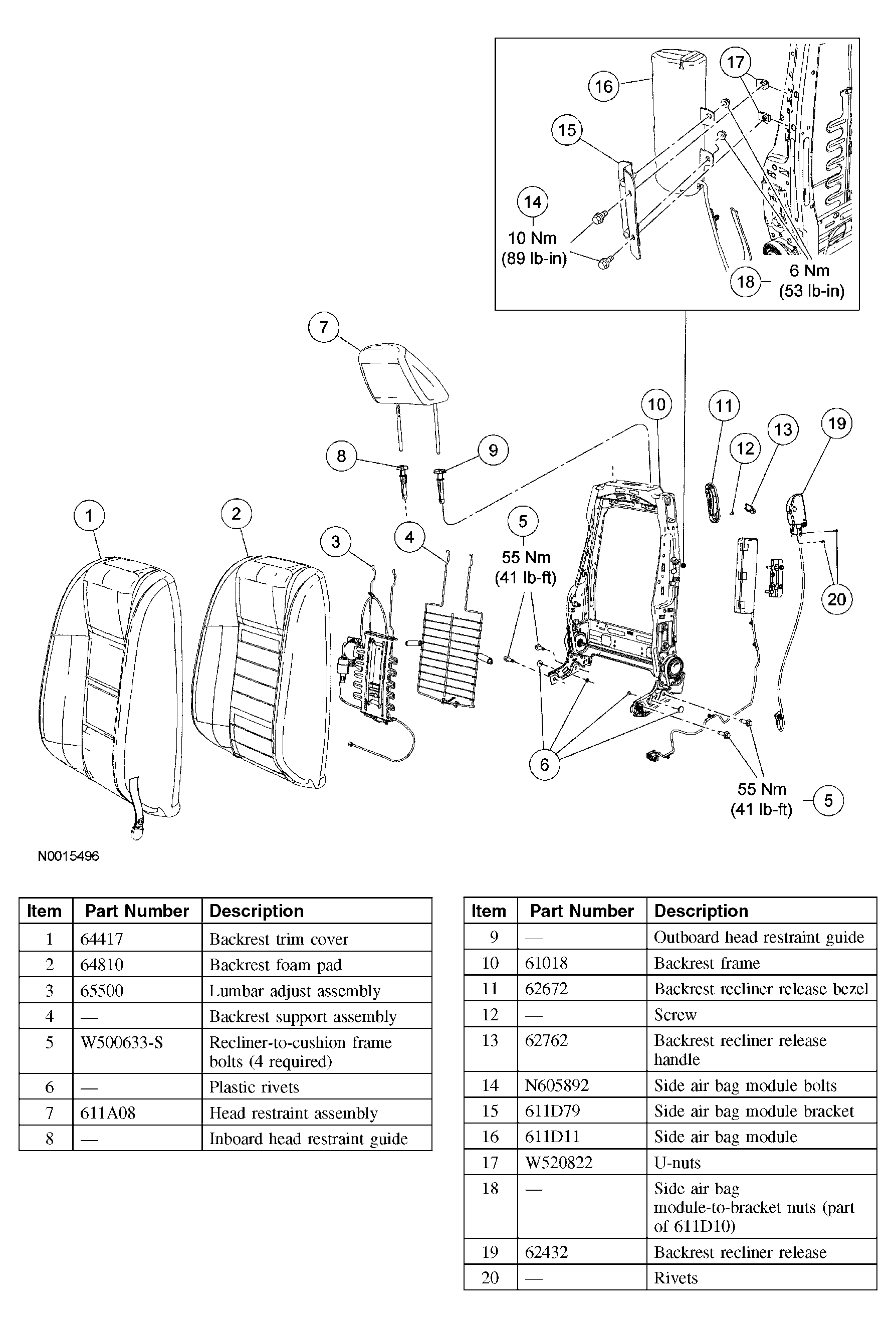

Fig 1: Exploded View Of Front Seat Backrest
G03986985Courtesy of FORD MOTOR CO.
