Hydraulic Control Unit (HCU): Notes

MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

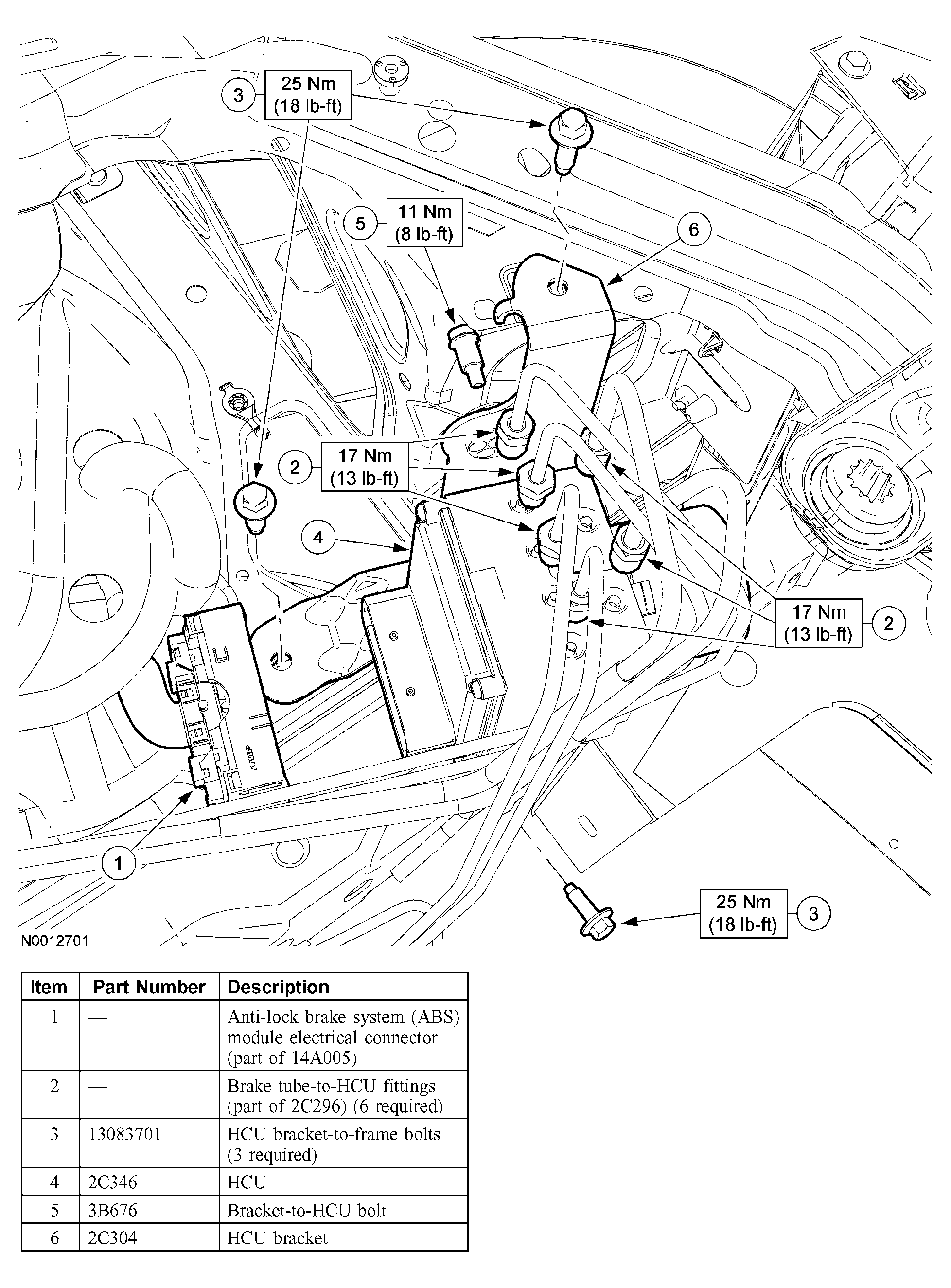

Fig 1: Identifying Components Of Hydraulic Control Unit
G03983480Courtesy of FORD MOTOR CO.
