Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Press the retaining tabs and remove the switchblock.

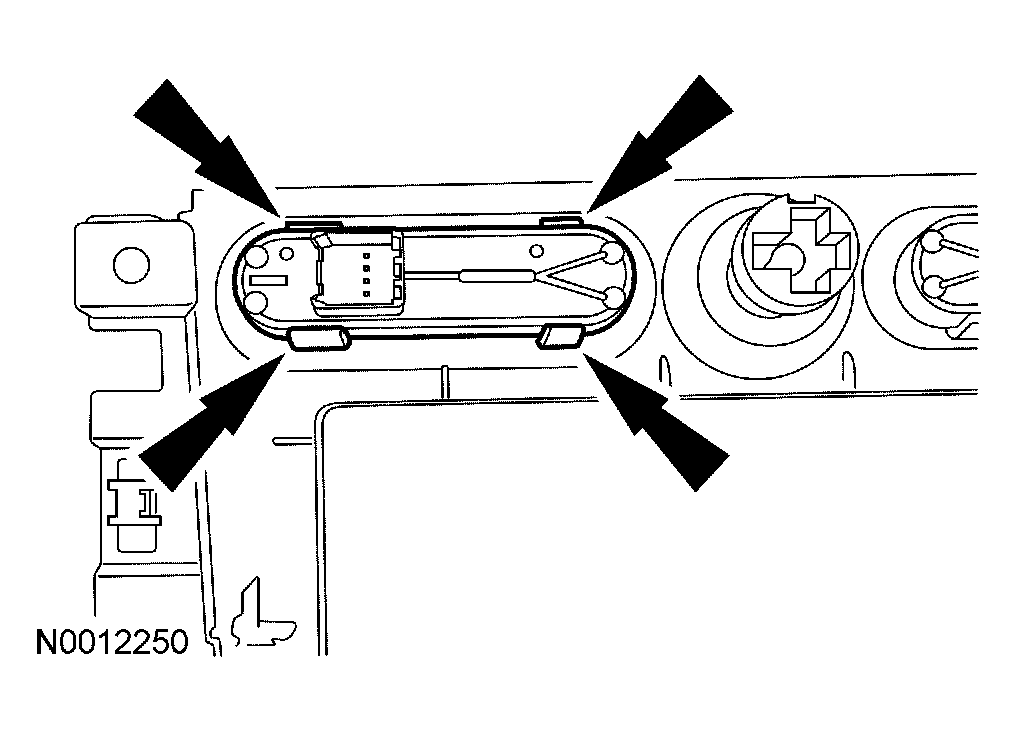

    Fig 1: Removing/Installing Traction Control Switch
    G03983494Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
