Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07842914

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07842915

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07842916

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07842917

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07842918

Courtesy of FORD MOTOR CO.

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07842919

Courtesy of FORD MOTOR CO.

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)

G07842920

Courtesy of FORD MOTOR CO.

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)

G07842921

Courtesy of FORD MOTOR CO.

Fig 9: Knock Sensor Connector End View (C108)

G07842922

Courtesy of FORD MOTOR CO.

Fig 10: Knock Sensor Connector End View (C109)

G07842923

Courtesy of FORD MOTOR CO.

Fig 11: Inline Connector End View (C110)

G07842924

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G07842925

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G07842926

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G07842927

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G07842928

Courtesy of FORD MOTOR CO.

Fig 16: Coil On Plug (COP) 4 Connector End View (C114)

G07842929

Courtesy of FORD MOTOR CO.

Fig 17: Coil On Plug (COP) 5 Connector End View (C115)

G07842930

Courtesy of FORD MOTOR CO.

Fig 18: Coil On Plug (COP) 6 Connector End View (C116)

G07842931

Courtesy of FORD MOTOR CO.

Fig 19: Coil On Plug (COP) 7 Connector End View (C117)

G07842932

Courtesy of FORD MOTOR CO.

Fig 20: Coil On Plug (COP) 8 Connector End View (C118)

G07842933

Courtesy of FORD MOTOR CO.

Fig 21: Power Steering Pressure Switch Connector End View (C121)

G07842934

Courtesy of FORD MOTOR CO.

Fig 22: EVAP Canister Purge Valve Connector End View (C123)

G07842935

Courtesy of FORD MOTOR CO.

Fig 23: Brake Fluid Level Switch Connector End View (C124)

G07842936

Courtesy of FORD MOTOR CO.

Fig 24: Windshield Wiper Motor Connector End View (C125)

G07842937

Courtesy of FORD MOTOR CO.

Fig 25: Anti-Theft Hood Switch Connector End View (C127)

G07842938

Courtesy of FORD MOTOR CO.

Fig 26: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07842939

Courtesy of FORD MOTOR CO.

Fig 27: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07842940

Courtesy of FORD MOTOR CO.

Fig 28: Horn Connector End View (C131)

G07842941

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C133)

G07842942

Courtesy of FORD MOTOR CO.

Fig 30: Inline Connector End View (C134)

G07842943

Courtesy of FORD MOTOR CO.

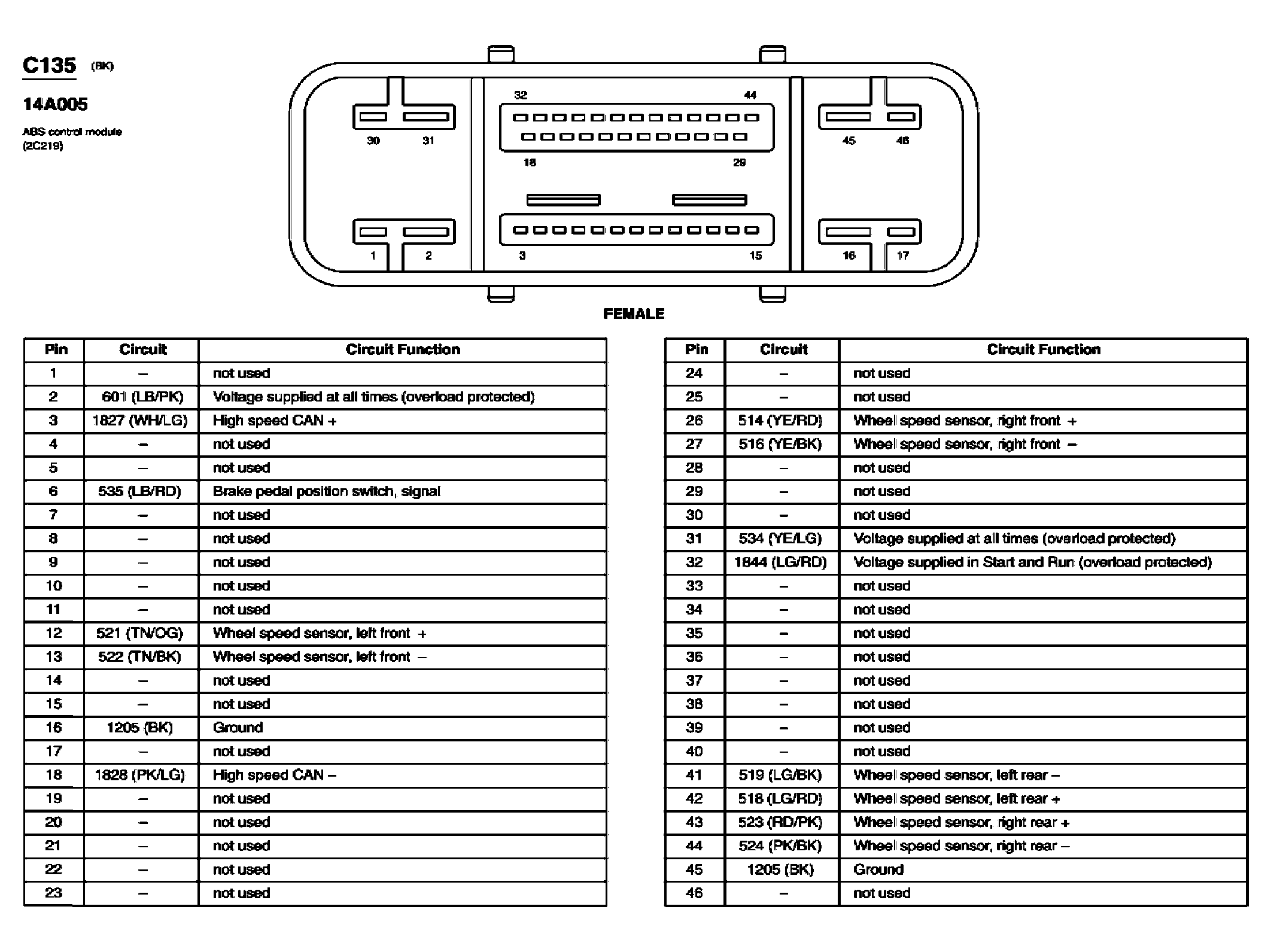

Fig 31: ABS Control Module Connector End View (C135)

G03987877

Courtesy of FORD MOTOR CO.

Fig 32: Windshield Washer Pump Motor Connector End View (C137)

G07842944

Courtesy of FORD MOTOR CO.

Fig 33: Inline Connector End View (C139)

G07842945

Courtesy of FORD MOTOR CO.

Fig 34: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07842946

Courtesy of FORD MOTOR CO.

Fig 35: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07842947

Courtesy of FORD MOTOR CO.

Fig 36: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07842948

Courtesy of FORD MOTOR CO.

Fig 37: Inline Connector End View (C146)

G07842949

Courtesy of FORD MOTOR CO.

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07842950

Courtesy of FORD MOTOR CO.

Fig 39: Side Lamp, Left Front Connector End View (C151)

G07842951

Courtesy of FORD MOTOR CO.

Fig 40: Fog Lamp, Left Front Connector End View (C152)

G07842952

Courtesy of FORD MOTOR CO.

Fig 41: Wheel Speed Sensor, Right Front Connector End View (C160)

G07842953

Courtesy of FORD MOTOR CO.

Fig 42: Side Lamp, Right Front Connector End View (C161)

G07842954

Courtesy of FORD MOTOR CO.

Fig 43: Fog Lamp, Right Front Connector End View (C162)

G07842955

Courtesy of FORD MOTOR CO.

Fig 44: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G07842956

Courtesy of FORD MOTOR CO.

Fig 45: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07842957

Courtesy of FORD MOTOR CO.

Fig 46: Reversing Lamps Switch Connector End View (C169)

G07842958

Courtesy of FORD MOTOR CO.

Fig 47: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07842959

Courtesy of FORD MOTOR CO.

Fig 48: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07842960

Courtesy of FORD MOTOR CO.

Fig 49: Ignition Transformer Capacitor 1 Connector End View (C174)

G07842961

Courtesy of FORD MOTOR CO.

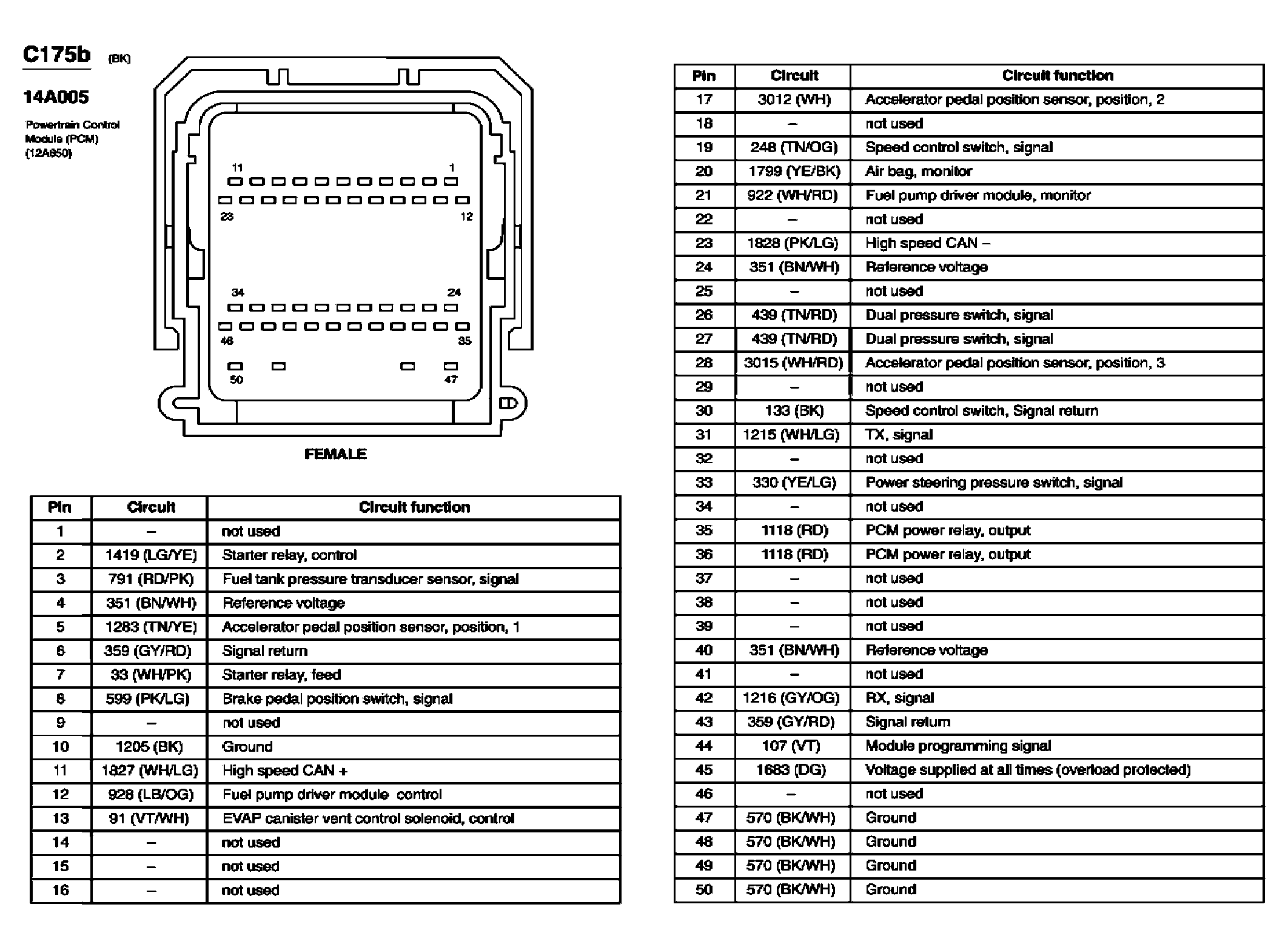

Fig 50: Powertrain Control Module (PCM) Connector End View (C175b)

G03987883

Courtesy of FORD MOTOR CO.

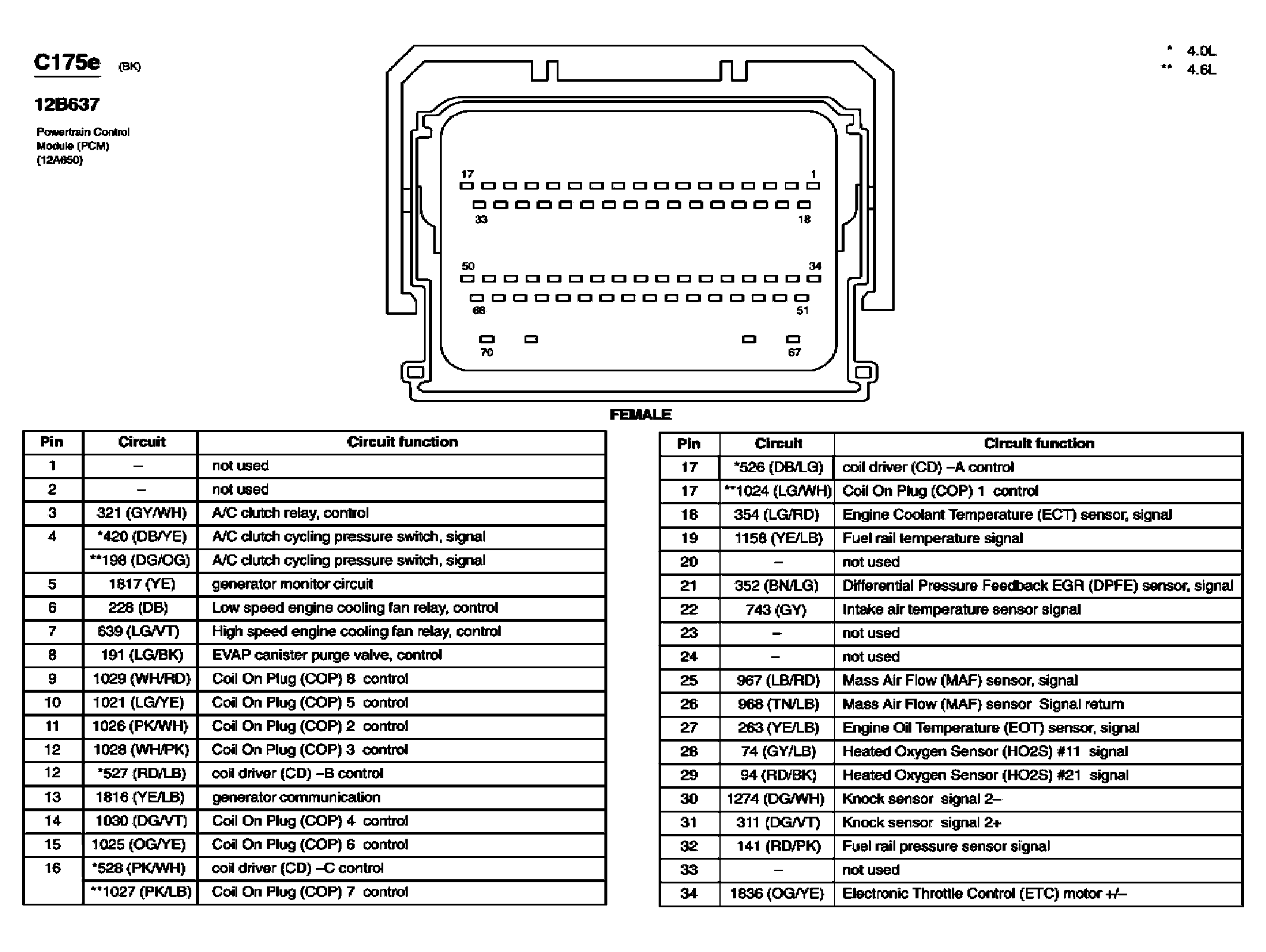

Fig 51: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G03987884

Courtesy of FORD MOTOR CO.

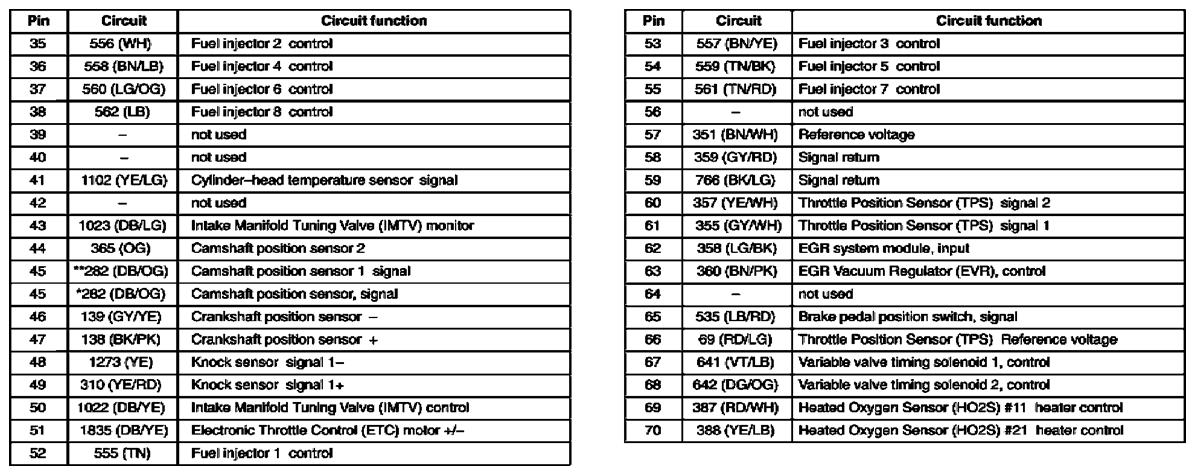

Fig 52: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G03987885

Courtesy of FORD MOTOR CO.

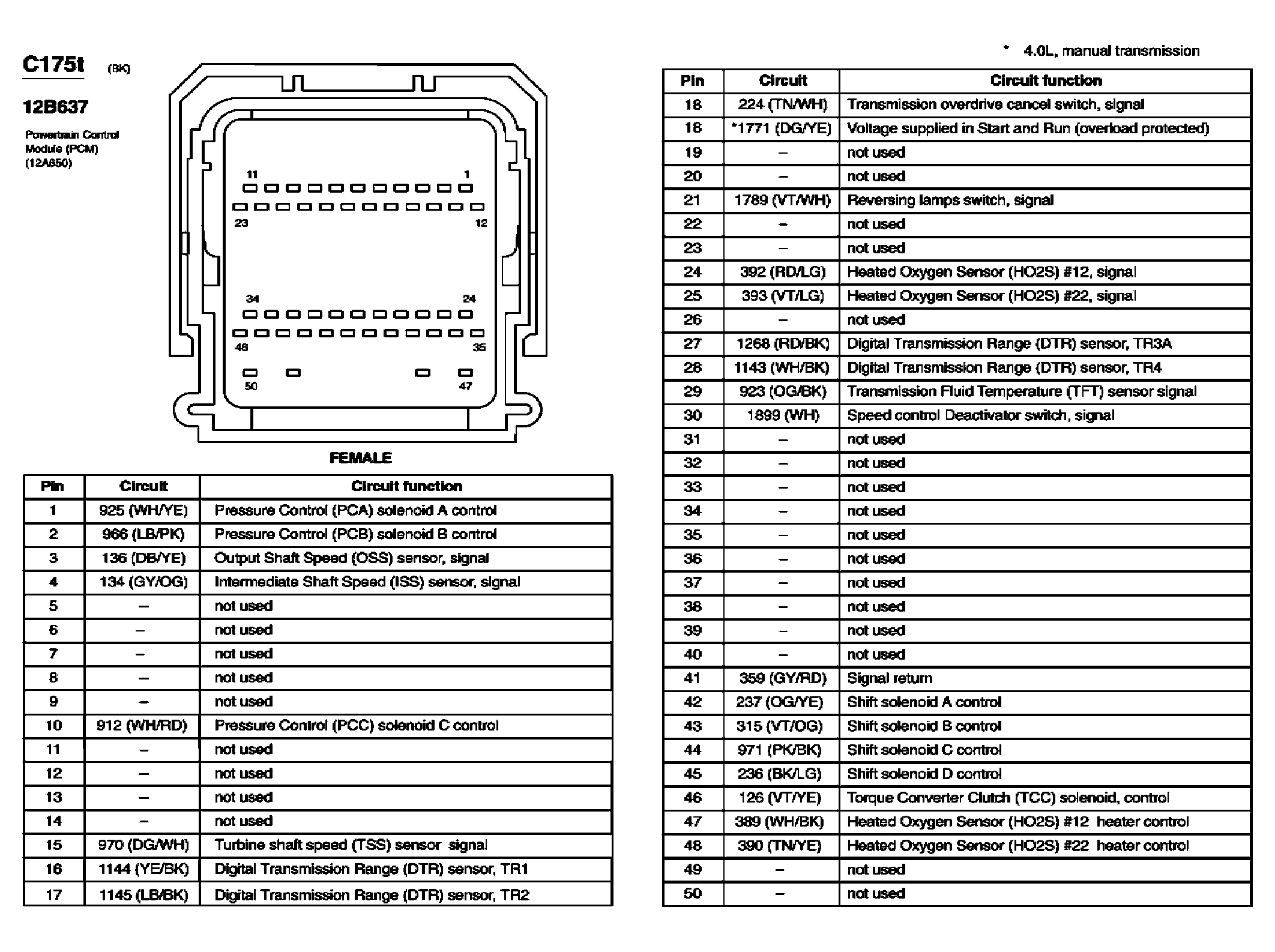

Fig 53: Powertrain Control Module (PCM) Connector End View (C175t)

G03987886

Courtesy of FORD MOTOR CO.

Fig 54: Front Impact Severity Sensor Connector End View (C177)

G07842962

Courtesy of FORD MOTOR CO.

Fig 55: Camshaft Position Sensor Connector End View (C180)

G07842963

Courtesy of FORD MOTOR CO.

Fig 56: Throttle Position Sensor (TPS) Connector End View (C189)

G07842964

Courtesy of FORD MOTOR CO.

Fig 57: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07842965

Courtesy of FORD MOTOR CO.

Fig 58: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)

G07842966

Courtesy of FORD MOTOR CO.

Fig 59: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07842967

Courtesy of FORD MOTOR CO.

Fig 60: Ignition Transformer Capacitor 2 Connector End View (C194)

G07842968

Courtesy of FORD MOTOR CO.

Fig 61: Starter Motor Connector End View (C197a)

G07842969

Courtesy of FORD MOTOR CO.

Fig 62: Starter Motor Connector End View (C197b)

G07842970

Courtesy of FORD MOTOR CO.

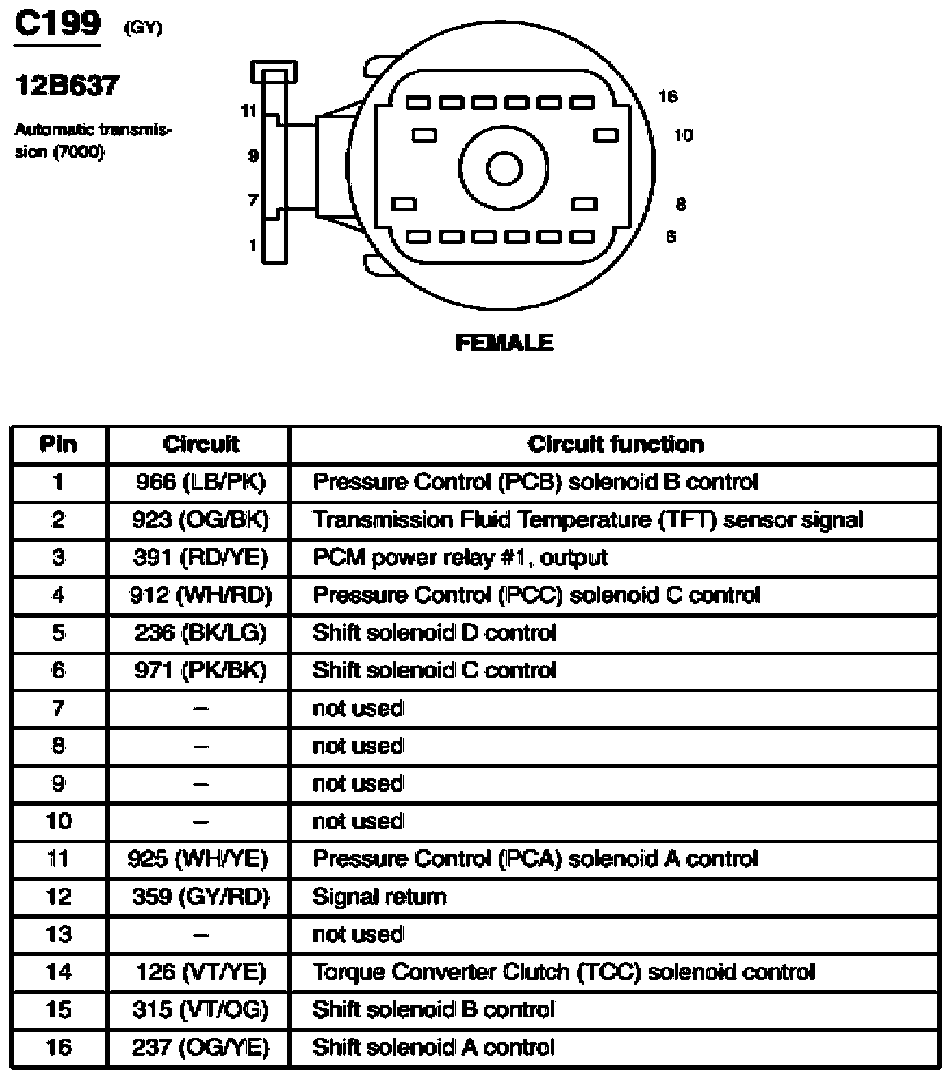

Fig 63: Automatic Transmission Connector End View (C199)

G07842971

Courtesy of FORD MOTOR CO.

Fig 64: Multifunction Switch Connector End View (C202)

G07842972

Courtesy of FORD MOTOR CO.

Fig 65: Main Light Switch Connector End View (C205)

G07842973

Courtesy of FORD MOTOR CO.

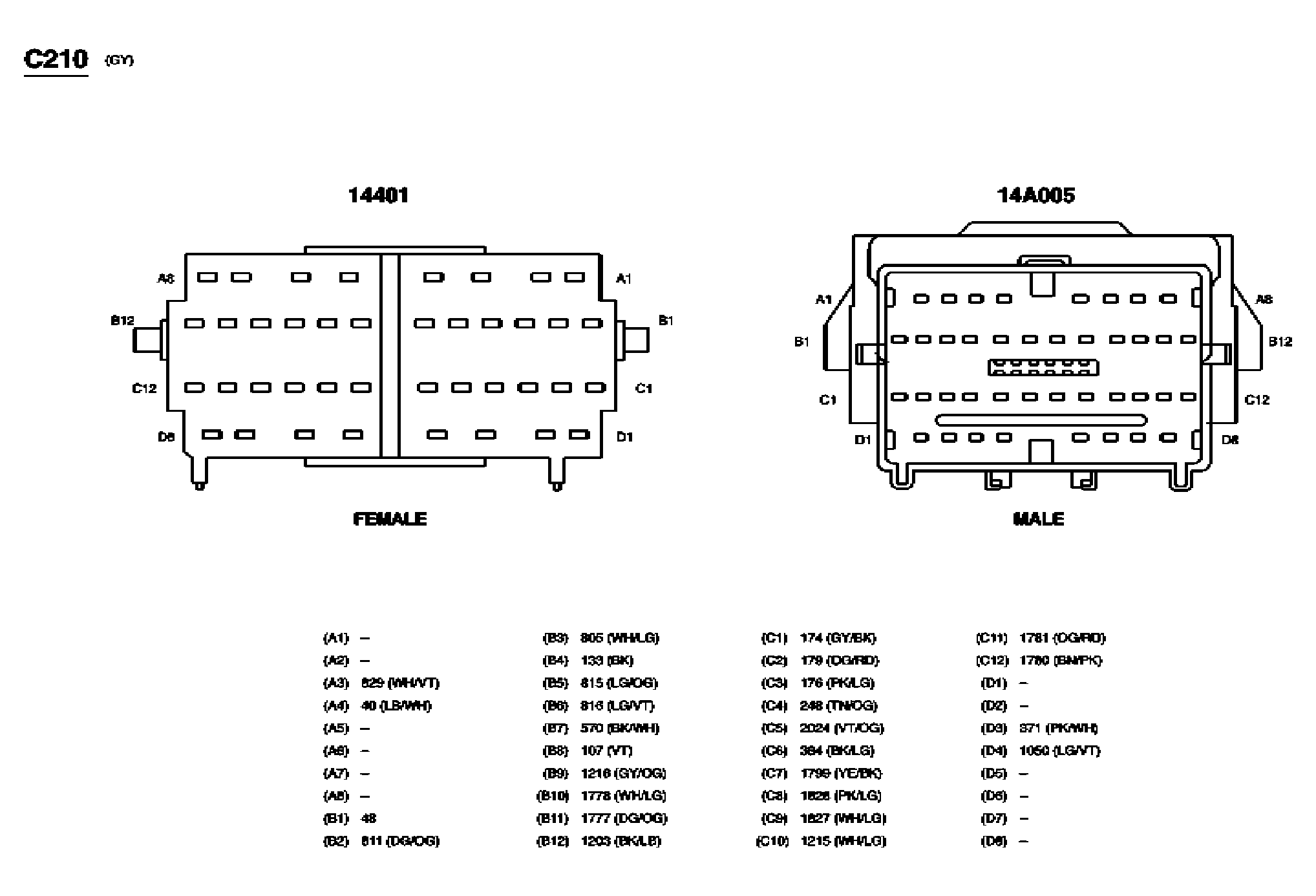

Fig 66: Inline Connector End View (C210)

G03987890

Courtesy of FORD MOTOR CO.

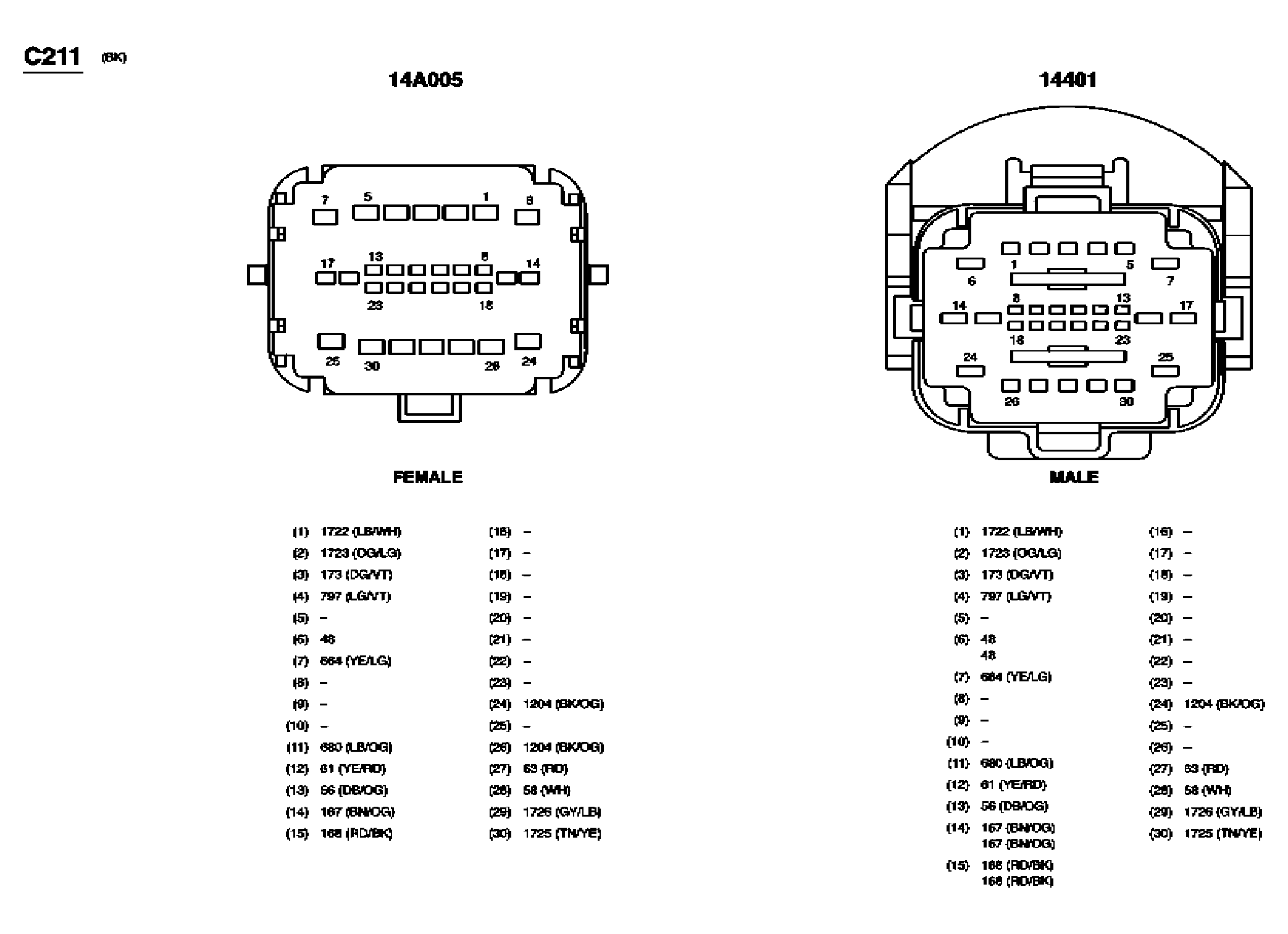

Fig 67: Inline Connector End View (C211)

G03987891

Courtesy of FORD MOTOR CO.

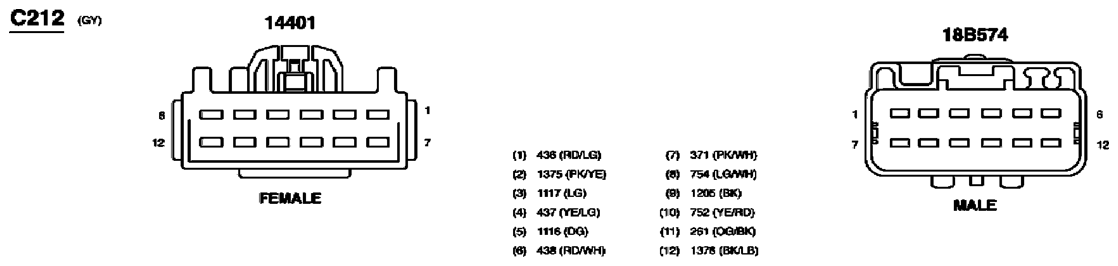

Fig 68: Inline Connector End View (C212)

G07842974

Courtesy of FORD MOTOR CO.

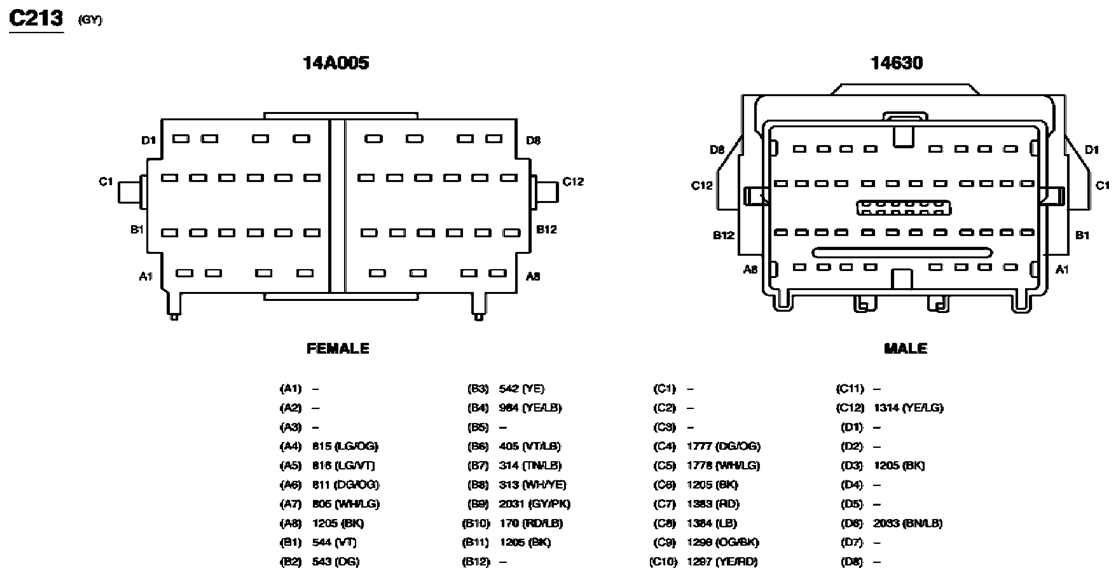

Fig 69: Inline Connector End View (C213)

G07842975

Courtesy of FORD MOTOR CO.

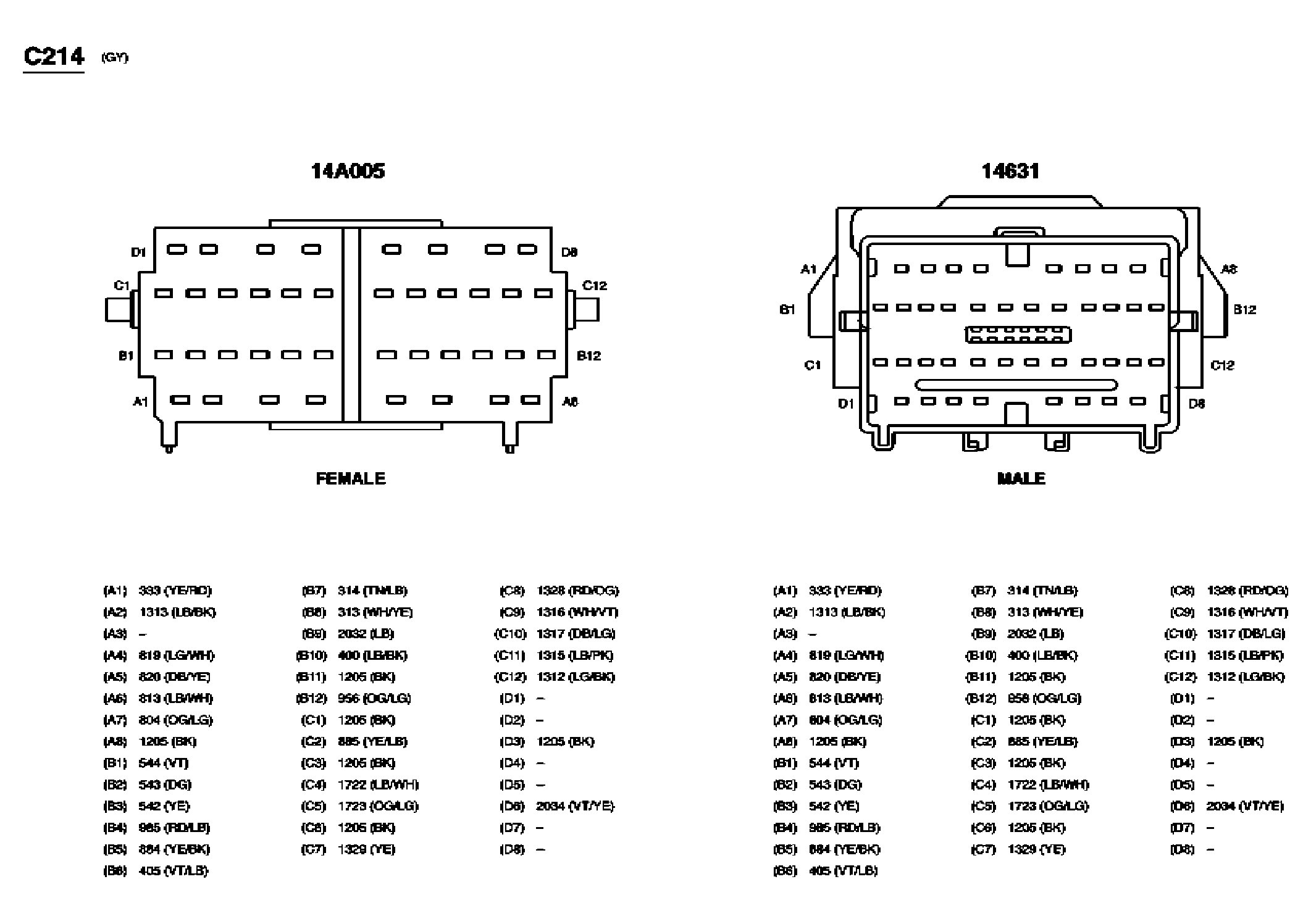

Fig 70: Inline Connector End View (C214)

G03987893

Courtesy of FORD MOTOR CO.

Fig 71: Inline Connector End View (C215)

G07842976

Courtesy of FORD MOTOR CO.

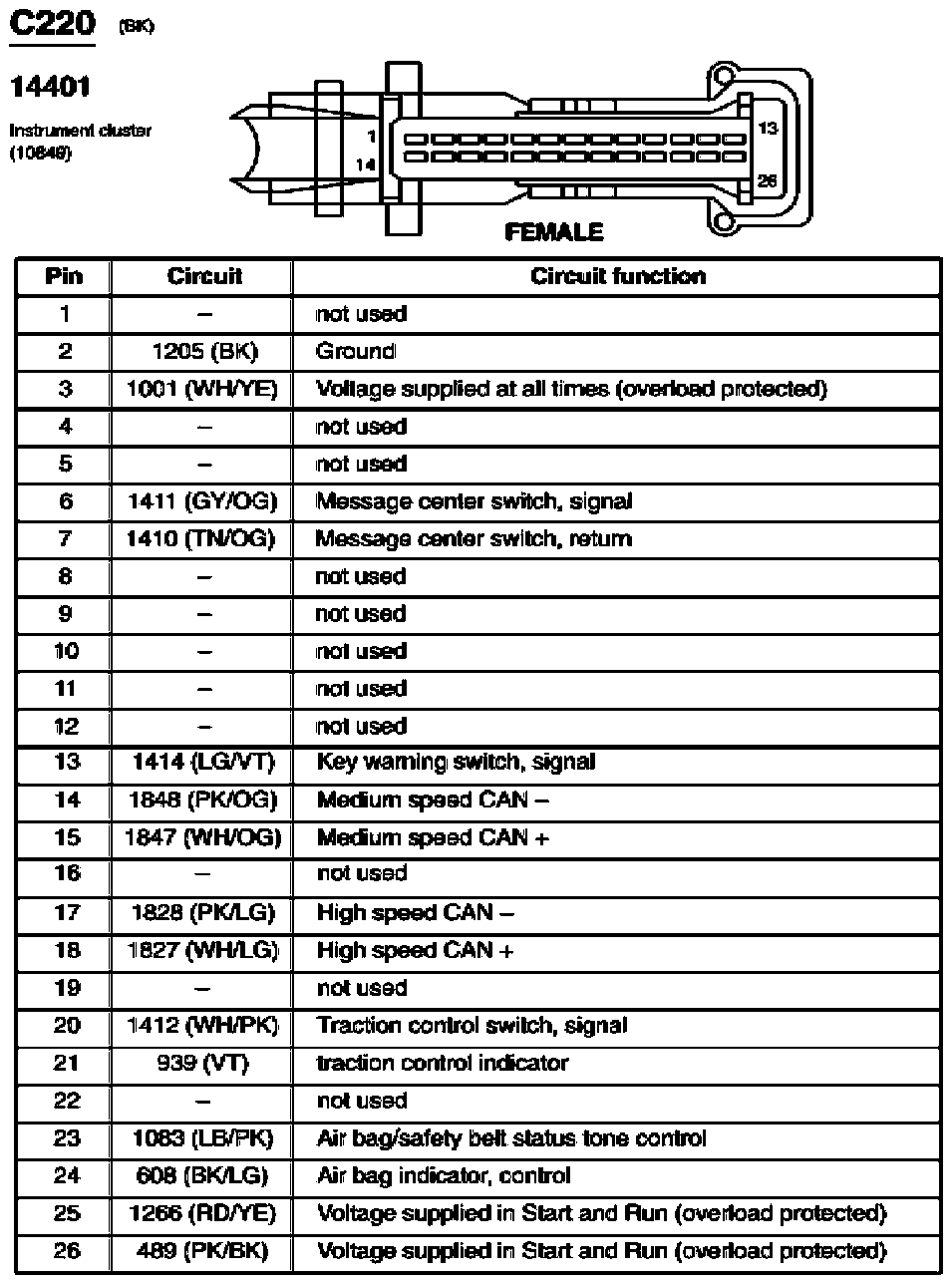

Fig 72: Instrument Cluster Connector End View (C220)

G07842977

Courtesy of FORD MOTOR CO.

Fig 73: Defrost Mode Actuator Connector End View (C232)

G07842978

Courtesy of FORD MOTOR CO.

Fig 74: Floor Mode Actuator Connector End View (C234)

G07842979

Courtesy of FORD MOTOR CO.

Fig 75: Ignition Switch Connector End View (C250)

G07842980

Courtesy of FORD MOTOR CO.

Fig 76: Data Link Connector (DLC) Connector End View (C251)

G07842981

Courtesy of FORD MOTOR CO.

Fig 77: Message Center Switch Connector End View (C253)

G07842982

Courtesy of FORD MOTOR CO.

Fig 78: Passenger Air Beg Module Connector End View (C256)

G07842983

Courtesy of FORD MOTOR CO.

Fig 79: Clutch Pedal Position Switch Connector End View (C257)

G07842984

Courtesy of FORD MOTOR CO.

Fig 80: Deactivator Switch Connector End View (C277)

G07842985

Courtesy of FORD MOTOR CO.

Fig 81: Brake Pedal Position Switch Connector End View (C278)

G07842986

Courtesy of FORD MOTOR CO.

Fig 82: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07842987

Courtesy of FORD MOTOR CO.

Fig 83: Temperature Blend Door Actuator Connector End View (C289)

G07842988

Courtesy of FORD MOTOR CO.

Fig 84: Radio Connector End View (C290a)

G07842989

Courtesy of FORD MOTOR CO.

Fig 85: Radio Connector End View (C290b)

G07842990

Courtesy of FORD MOTOR CO.

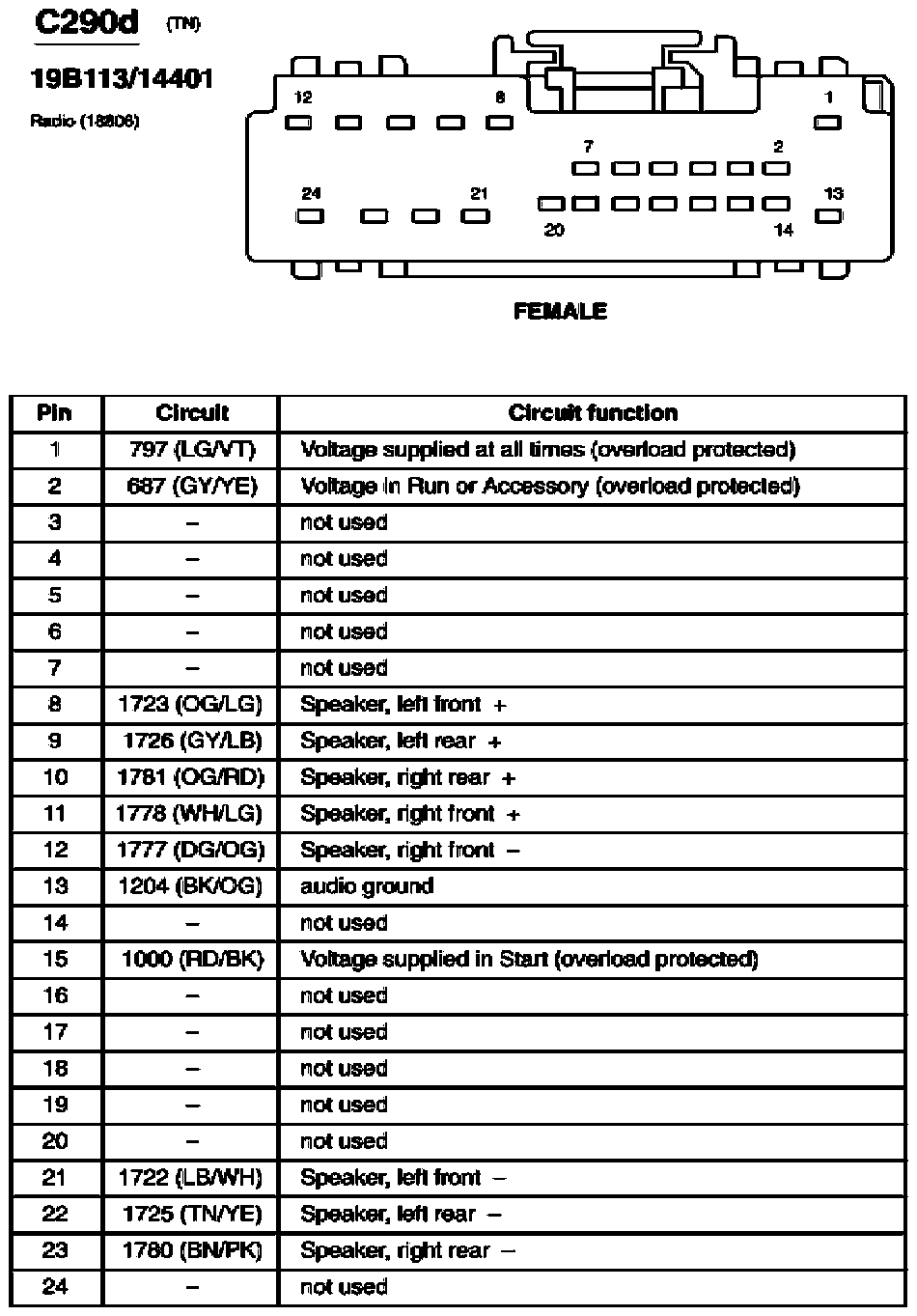

Fig 86: Radio Connector End View (C290d)

G07842991

Courtesy of FORD MOTOR CO.

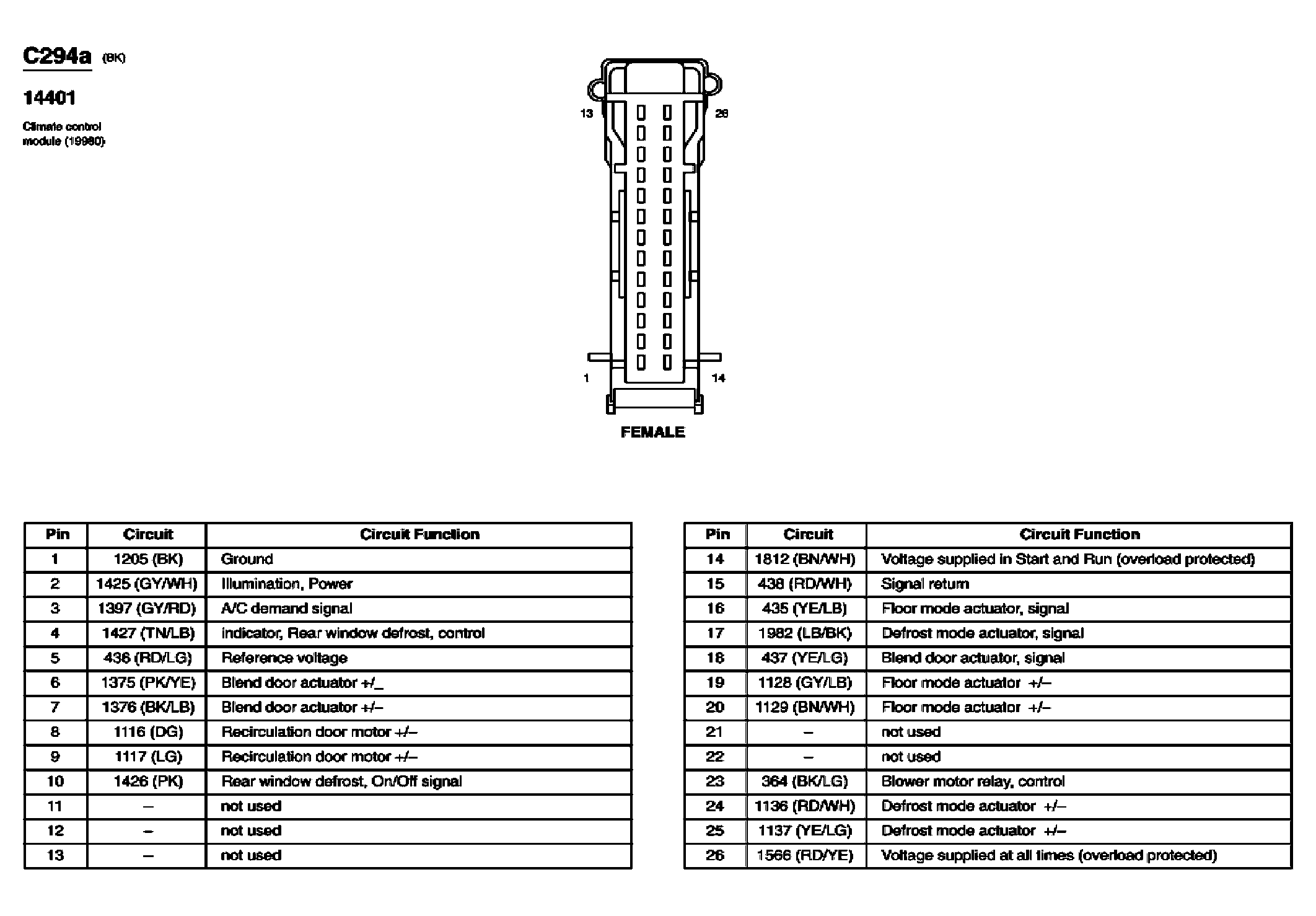

Fig 87: Climate Control Module Connector End View (C294a)

G03987900

Courtesy of FORD MOTOR CO.

Fig 88: Climate Control Module Connector End View (C294b)

G07842992

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C300)

G07842993

Courtesy of FORD MOTOR CO.

Fig 90: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07842994

Courtesy of FORD MOTOR CO.

Fig 91: Parking Brake Switch Connector End View (C306)

G07842995

Courtesy of FORD MOTOR CO.

Fig 92: Transmission Shift Selector Connector End View (C307)

G07842996

Courtesy of FORD MOTOR CO.

Fig 93: Inline Connector End View (C311)

G07842997

Courtesy of FORD MOTOR CO.

Fig 94: Inline Connector End View (C312)

G07842998

Courtesy of FORD MOTOR CO.

Fig 95: Inline Connector End View (C313)

G07842999

Courtesy of FORD MOTOR CO.

Fig 96: Inline Connector End View (C313)

G07843000

Courtesy of FORD MOTOR CO.

Fig 97: Side Air Bag Module, Right Connector End View (C337)

G07843001

Courtesy of FORD MOTOR CO.

Fig 98: Power Seal Motor Assembly, Left Connector End View (C353)

G07843002

Courtesy of FORD MOTOR CO.

Fig 99: Seat Position Sensor, Driver Connector End View (C356)

G07843003

Courtesy of FORD MOTOR CO.

Fig 100: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07843004

Courtesy of FORD MOTOR CO.

Fig 101: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07843005

Courtesy of FORD MOTOR CO.

Fig 102: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07843006

Courtesy of FORD MOTOR CO.

Fig 103: Side Air Bag Module, Left Connector End View (C367)

G07843007

Courtesy of FORD MOTOR CO.

Fig 104: Power Point Connector End View (C380)

G07843008

Courtesy of FORD MOTOR CO.

Fig 105: Speaker, Left Rear Connector End View (C395)

G07843009

Courtesy of FORD MOTOR CO.

Fig 106: Speaker, Right Rear Connector End View (C396)

G07843010

Courtesy of FORD MOTOR CO.

Fig 107: Rear Window Defrost Grid Connector End View (C402)

G07843011

Courtesy of FORD MOTOR CO.

Fig 108: Rear Window Defrost Grid Connector End View (C402a)

G07843012

Courtesy of FORD MOTOR CO.

Fig 109: Rear Window Defrost Grid Connector End View (C402b)

G07843013

Courtesy of FORD MOTOR CO.

Fig 110: Inline Connector End View (C405)

G07843014

Courtesy of FORD MOTOR CO.

Fig 111: Inline Connector End View (C410)

G07843015

Courtesy of FORD MOTOR CO.

Fig 112: Inline Connector End View (C411)

G07843016

Courtesy of FORD MOTOR CO.

Fig 113: Tail Lamp, Left Connector End View (C412)

G07843017

Courtesy of FORD MOTOR CO.

Fig 114: Tail Lamp, Right Connector End View (C415)

G07843018

Courtesy of FORD MOTOR CO.

Fig 115: Inline Connector End View (C421)

G07843019

Courtesy of FORD MOTOR CO.

Fig 116: Inline Connector End View (C422)

G07843020

Courtesy of FORD MOTOR CO.

Fig 117: Inline Connector End View (C423)

G07843021

Courtesy of FORD MOTOR CO.

Fig 118: Luggage Compartment Lamp Connector End View (C428)

G07843022

Courtesy of FORD MOTOR CO.

Fig 119: Luggage Compartment Lid Ajar Switch Connector End View (C429)

G07843023

Courtesy of FORD MOTOR CO.

Fig 120: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07843024

Courtesy of FORD MOTOR CO.

Fig 121: Inline Connector End View (C431)

G07843025

Courtesy of FORD MOTOR CO.

Fig 122: Inline Connector End View (C432)

G07843026

Courtesy of FORD MOTOR CO.

Fig 123: Fuel Tank Unit Connector End View (C433)

G07843027

Courtesy of FORD MOTOR CO.

Fig 124: Fuel Sender Connector End View (C434)

G07843028

Courtesy of FORD MOTOR CO.

Fig 125: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07843029

Courtesy of FORD MOTOR CO.

Fig 126: Reversing Lamp, Left Connector End View (C451)

G07843030

Courtesy of FORD MOTOR CO.

Fig 127: Reversing Lamp, Right Connector End View (C461)

G07843031

Courtesy of FORD MOTOR CO.

Fig 128: High Mounted Stoplamp Connector End View (C475)

G07843032

Courtesy of FORD MOTOR CO.

Fig 129: Side Lamp, Left Rear Connector End View (C481)

G07843033

Courtesy of FORD MOTOR CO.

Fig 130: Side Lamp, Right Rear Connector End View (C482)

G07843034

Courtesy of FORD MOTOR CO.

Fig 131: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G07843035

Courtesy of FORD MOTOR CO.

Fig 132: Speaker, Left Rear Connector End View (C484)

G07843036

Courtesy of FORD MOTOR CO.

Fig 133: Speaker, Right Rear Connector End View (C485)

G07843037

Courtesy of FORD MOTOR CO.

Fig 134: Master Window Adjust Switch Connector End View (C504)

G07843038

Courtesy of FORD MOTOR CO.

Fig 135: Door Lock Switch, Driver Side Connector End View (C505)

G07843039

Courtesy of FORD MOTOR CO.

Fig 136: Anti-Theft Inhibit Switch Connector End View (C509)

G07843040

Courtesy of FORD MOTOR CO.

Fig 137: Exterior Rear View Mirror, Left Connector End View (C516)

G07843041

Courtesy of FORD MOTOR CO.

Fig 138: Power Window Motor, Left Front Connector End View (C518)

G07843042

Courtesy of FORD MOTOR CO.

Fig 139: Speaker, Left Front Connector End View (C523)

G07843043

Courtesy of FORD MOTOR CO.

Fig 140: Door Lock Actuator, Left Front Connector End View (C525)

G07843044

Courtesy of FORD MOTOR CO.

Fig 141: Door Ajar Switch, Left Front Connector End View (C526)

G07843045

Courtesy of FORD MOTOR CO.

Fig 142: Exterior Rear View Mirror Switch Connector End View (C527)

G07843046

Courtesy of FORD MOTOR CO.

Fig 143: Subwoofer, Left Front Connector End View (C536)

G07843047

Courtesy of FORD MOTOR CO.

Fig 144: Rear Window Adjust Switch Connector End View (C566)

G07843048

Courtesy of FORD MOTOR CO.

Fig 145: Door Ajar Switch, Right Front Connector End View (C602)

G07843049

Courtesy of FORD MOTOR CO.

Fig 146: Door Lock Actuator, Right Front Connector End View (C603)

G07843050

Courtesy of FORD MOTOR CO.

Fig 147: Window Adjust Switch, Passenger Side Connector End View (C604)

G07843051

Courtesy of FORD MOTOR CO.

Fig 148: Door Lock Switch, Passenger Side Connector End View (C605)

G07843052

Courtesy of FORD MOTOR CO.

Fig 149: Speaker, Right Front Connector End View (C612)

G07843053

Courtesy of FORD MOTOR CO.

Fig 150: Exterior Rear View Mirror, Right Connector End View (C622)

G07843054

Courtesy of FORD MOTOR CO.

Fig 151: Power Window Motor, Right Front Connector End View (C623)

G07843055

Courtesy of FORD MOTOR CO.

Fig 152: Subwoofer, Right Front Connector End View (C628)

G07843056

Courtesy of FORD MOTOR CO.

Fig 153: Inline Connector End View (C913)

G07843057

Courtesy of FORD MOTOR CO.

Fig 154: Overhead Console Connector End View (C930)

G07843058

Courtesy of FORD MOTOR CO.

Fig 155: Horn Relay Connector End View (C1006)

G07843059

Courtesy of FORD MOTOR CO.

Fig 156: Fog Lamp Relay Connector End View (C1007)

G07843060

Courtesy of FORD MOTOR CO.

Fig 157: A/C Clutch Relay Connector End View (C1008)

G07843061

Courtesy of FORD MOTOR CO.

Fig 158: Blower Motor Relay Connector End View (C1011)

G07843062

Courtesy of FORD MOTOR CO.

Fig 159: Starter Relay Connector End View (C1017)

G07843063

Courtesy of FORD MOTOR CO.

Fig 160: PCM Power Diode Connector End View (C1018)

G07843064

Courtesy of FORD MOTOR CO.

Fig 161: Headlamp, Left Connector End View (C1021)

G07843065

Courtesy of FORD MOTOR CO.

Fig 162: Park/Turn Lamp, Left Front Connector End View (C1023)

G03987919

Courtesy of FORD MOTOR CO.

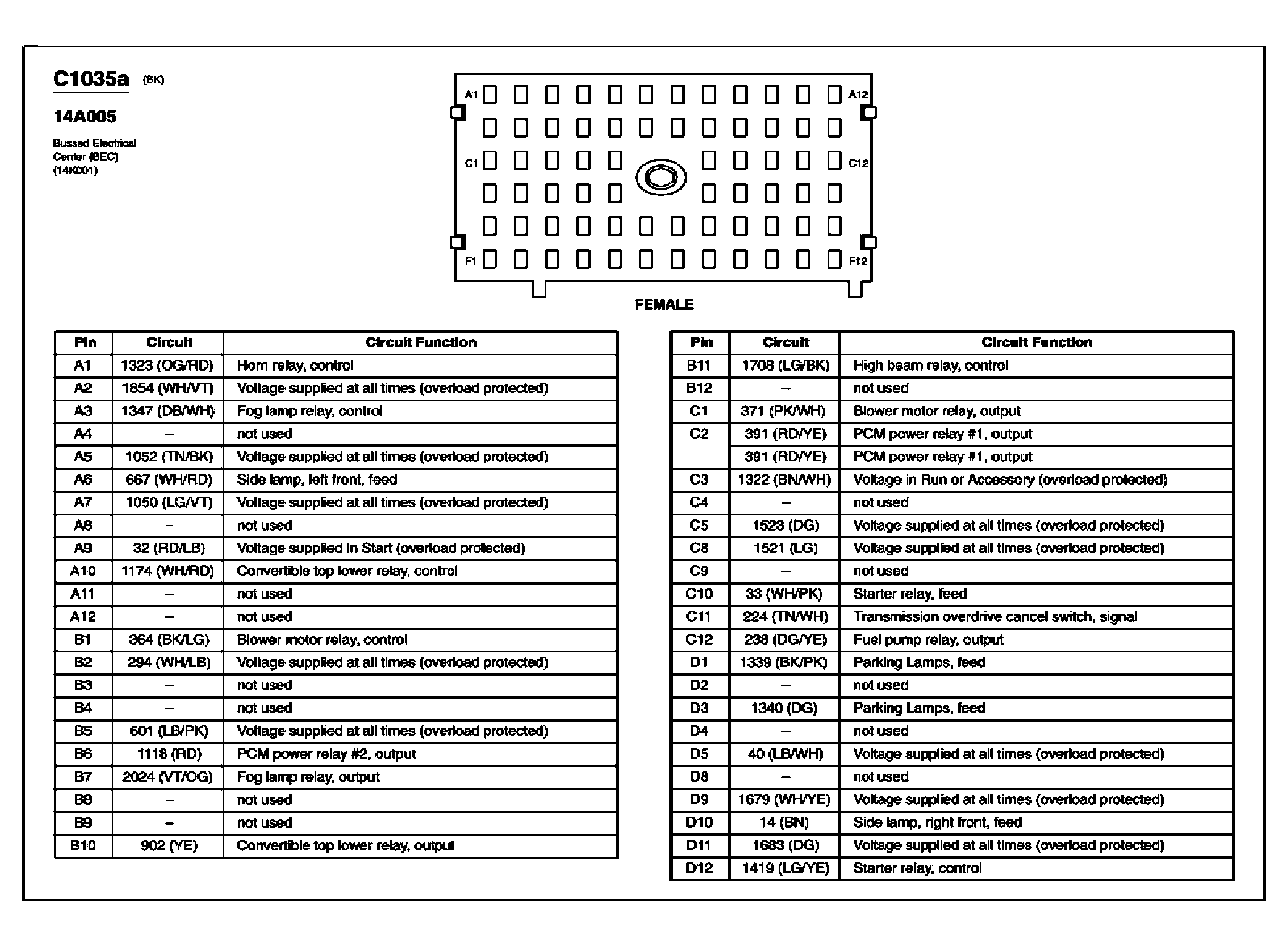

Fig 163: Bussed Electrical Center (BEC) Connector End View (C1035a) (1 Of 2)

G03987920

Courtesy of FORD MOTOR CO.

Fig 164: Bussed Electrical Center (BEC) Connector End View (C1035a) (2 Of 2)

G03987921

Courtesy of FORD MOTOR CO.

Fig 165: Bussed Electrical Center (BEC) Connector End View (C1035b) (1 Of 2)

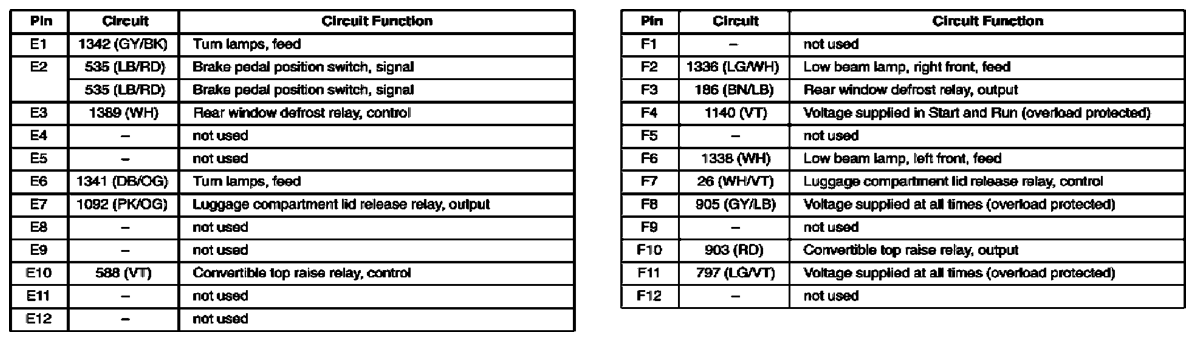

G03987922

Courtesy of FORD MOTOR CO.

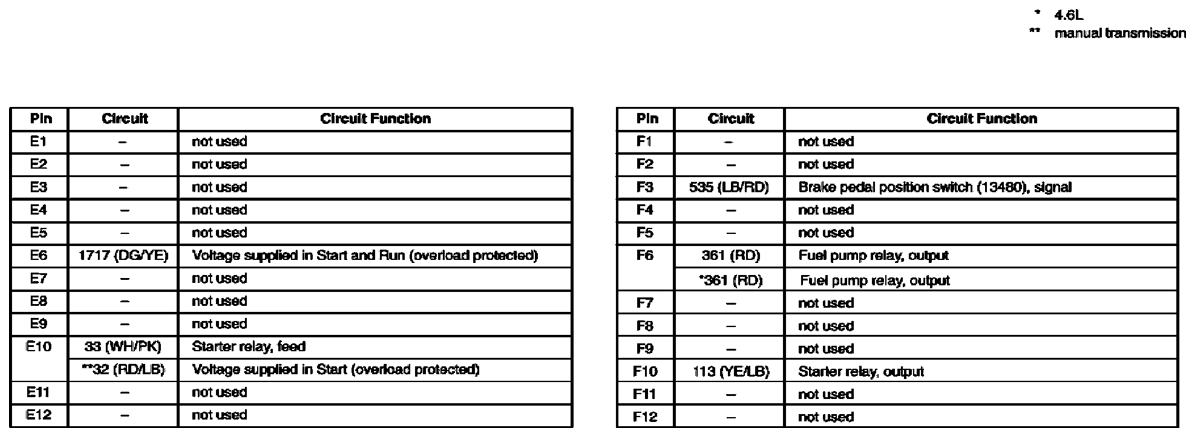

Fig 166: Bussed Electrical Center (BEC) Connector End View (C1035b) (2 Of 2)

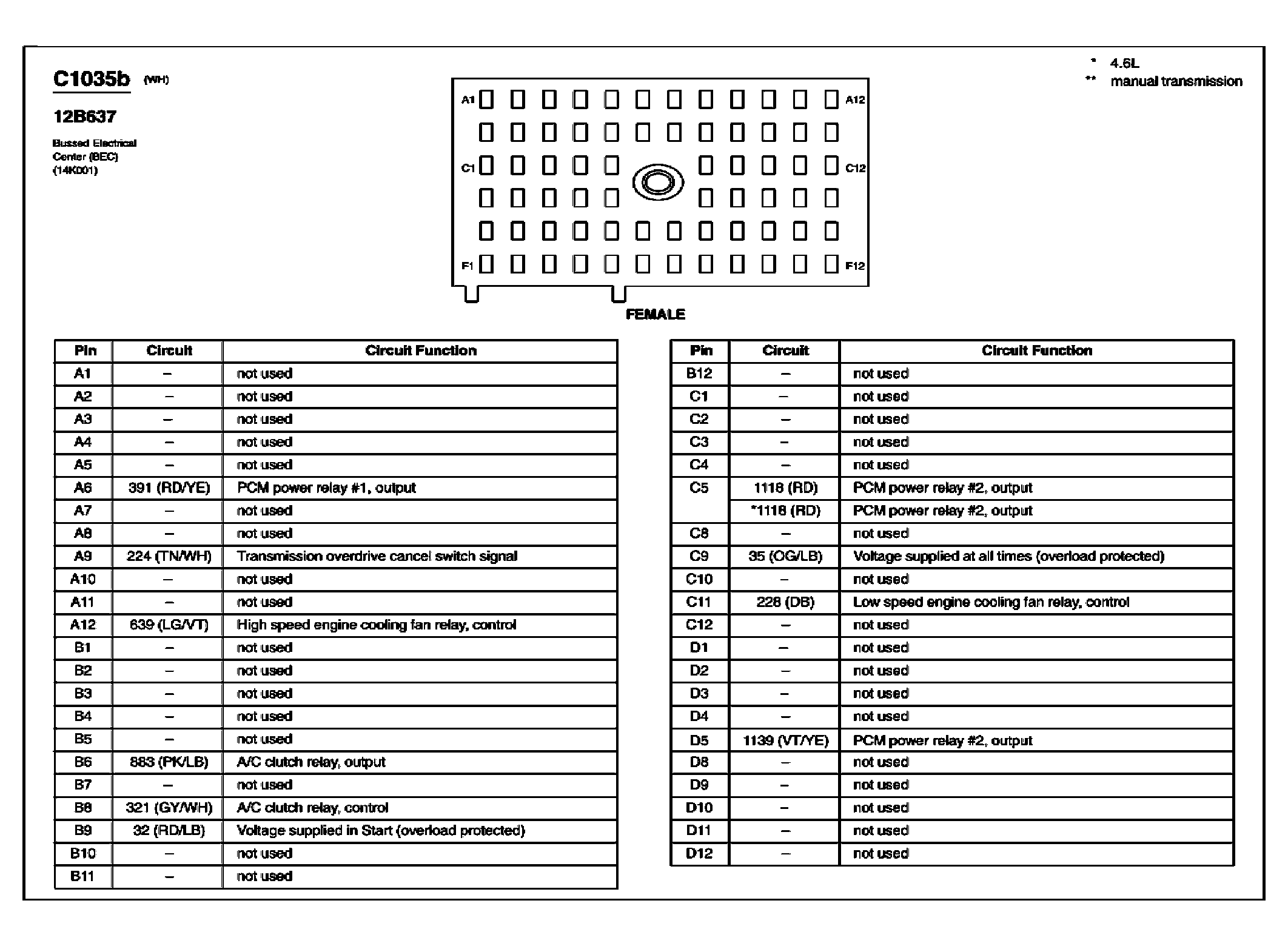

G03987923

Courtesy of FORD MOTOR CO.

Fig 167: Bussed Electrical Center (BEC) Connector End View (C1035c) (1 Of 2)

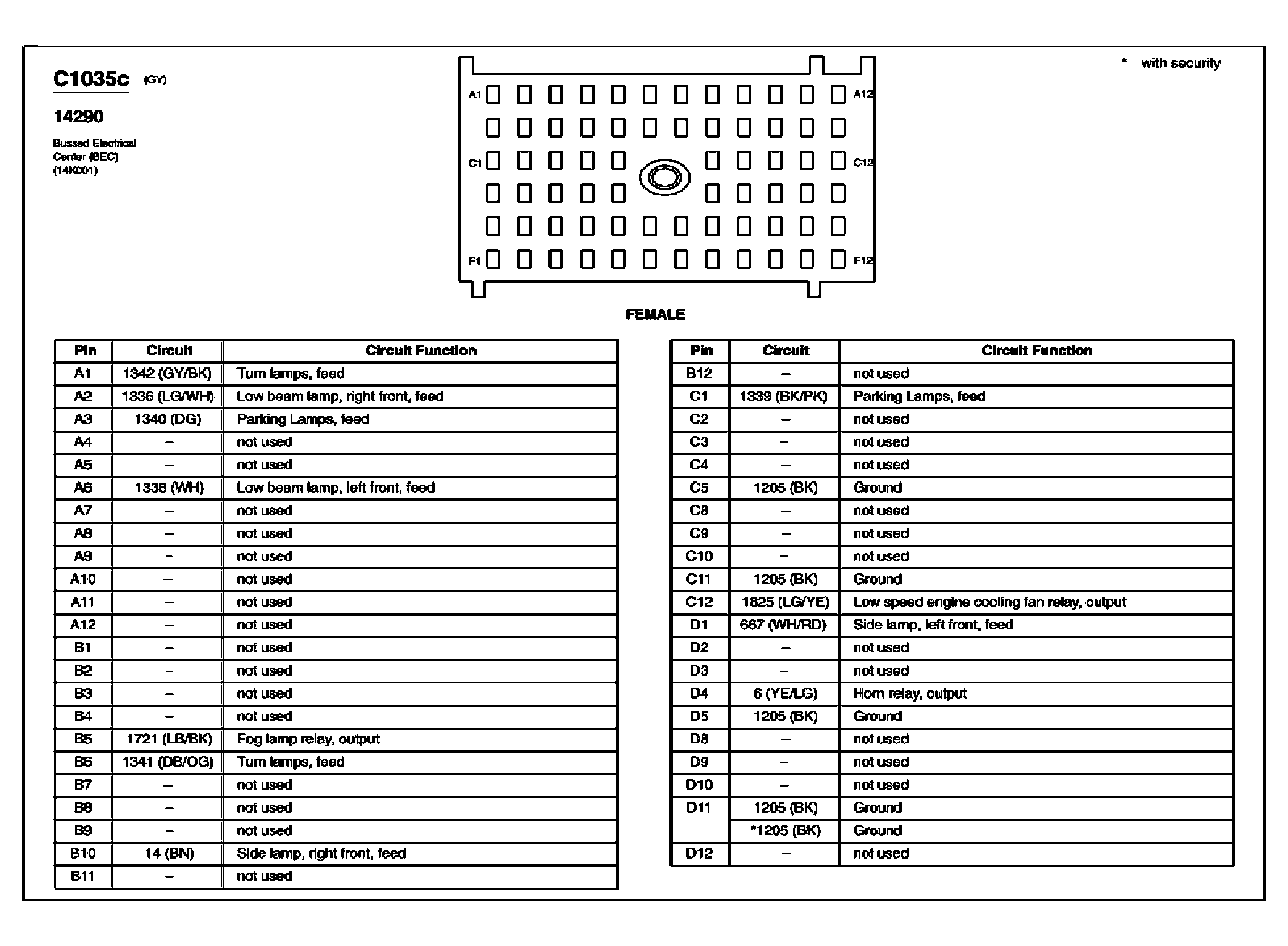

G03987924

Courtesy of FORD MOTOR CO.

Fig 168: Bussed Electrical Center (BEC) Connector End View (C1035c) (2 Of 2)

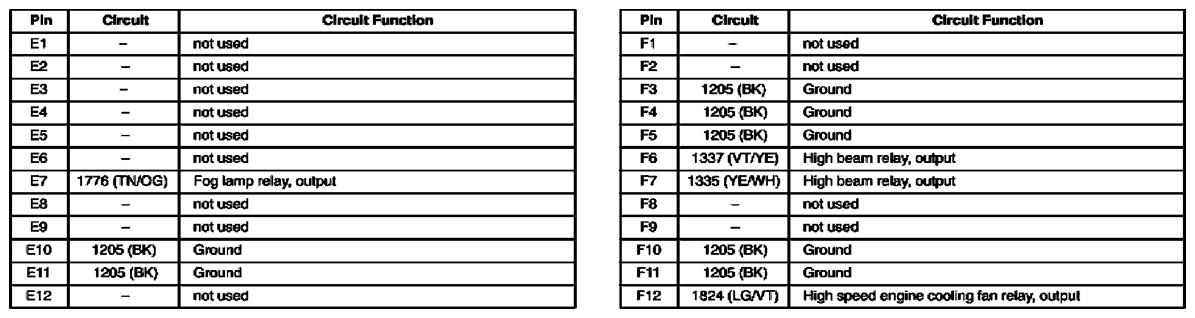

G03987925

Courtesy of FORD MOTOR CO.

Fig 169: Bussed Electrical Center (BEC) Connector End View (C1035d)

G07843066

Courtesy of FORD MOTOR CO.

Fig 170: Bussed Electrical Center (BEC) Connector End View (C1035e)

G07843067

Courtesy of FORD MOTOR CO.

Fig 171: Headlamp, Right Connector End View (C1041)

G07843068

Courtesy of FORD MOTOR CO.

Fig 172: Park/Turn Lamp, Right Front Connector End View (C1043)

G07843069

Courtesy of FORD MOTOR CO.

Fig 173: Engine Cooling Fan Motor Connector End View (C1048)

G07843070

Courtesy of FORD MOTOR CO.

Fig 174: High Beam Relay Connector End View (C1050)

G07843071

Courtesy of FORD MOTOR CO.

Fig 175: Fuel Pump Relay Connector End View (C1051)

G07843072

Courtesy of FORD MOTOR CO.

Fig 176: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07843073

Courtesy of FORD MOTOR CO.

Fig 177: Ignition Coil Connector End View (C1065)

G07843074

Courtesy of FORD MOTOR CO.

Fig 178: Dual Pressure Switch Connector End View (C1078)

G07843075

Courtesy of FORD MOTOR CO.

Fig 179: A/C Compressor Clutch Diode Connector End View (C1086)

G07843076

Courtesy of FORD MOTOR CO.

Fig 180: Rear Window Defrost Relay Connector End View (C1099)

G07843077

Courtesy of FORD MOTOR CO.

Fig 181: Battery Connector End View (C1100a)

G07843078

Courtesy of FORD MOTOR CO.

Fig 182: Battery Connector End View (C1100b)

G07843079

Courtesy of FORD MOTOR CO.

Fig 183: Fuel Injector 1 Connector End View (C1181)

G07843080

Courtesy of FORD MOTOR CO.

Fig 184: Fuel Injector 2 Connector End View (C1182)

G07843081

Courtesy of FORD MOTOR CO.

Fig 185: Fuel Injector 3 Connector End View (C1183)

G07843082

Courtesy of FORD MOTOR CO.

Fig 186: Fuel Injector 4 Connector End View (C1184)

G07843083

Courtesy of FORD MOTOR CO.

Fig 187: Fuel Injector 5 Connector End View (C1185)

G07843084

Courtesy of FORD MOTOR CO.

Fig 188: Fuel Injector 6 Connector End View (C1186)

G07843085

Courtesy of FORD MOTOR CO.

Fig 189: Ignition Transformer Capacitor Connector End View (C1196)

G07843086

Courtesy of FORD MOTOR CO.

Fig 190: A/C Pressure Transducer Sensor Connector End View (C1260)

G07843087

Courtesy of FORD MOTOR CO.

Fig 191: Fuel Injector 7 Connector End View (C1312)

G07843088

Courtesy of FORD MOTOR CO.

Fig 192: Fuel Injector 8 Connector End View (C1313)

G07843089

Courtesy of FORD MOTOR CO.

Fig 193: Camshaft Position Sensor 1 Connector End View (C1366)

G07843090

Courtesy of FORD MOTOR CO.

Fig 194: Camshaft Position Sensor 2 Connector End View (C1367)

G07843091

Courtesy of FORD MOTOR CO.

Fig 195: Electronic Throttle Control (ETC) Motor Connector End View (C1368)

G07843092

Courtesy of FORD MOTOR CO.

Fig 196: Variable Valve Timing Solenoid 1 Connector End View (C1369)

G07843093

Courtesy of FORD MOTOR CO.

Fig 197: Variable Valve Timing Solenoid 2 Connector End View (C1370)

G07843094

Courtesy of FORD MOTOR CO.

Fig 198: EGR System Module Connector End View (C1450)

G07843095

Courtesy of FORD MOTOR CO.

Fig 199: Convertible Top Raise Relay Connector End View (C1501)

G07843096

Courtesy of FORD MOTOR CO.

Fig 200: Convertible Top Lower Relay Connector End View (C1502)

G07843097

Courtesy of FORD MOTOR CO.

Fig 201: PCM Power Relay #1 Connector End View (C1503)

G07843098

Courtesy of FORD MOTOR CO.

Fig 202: PCM Power Relay #2 Connector End View (C1504)

G07843099

Courtesy of FORD MOTOR CO.

Fig 203: High Speed Engine Cooling Fan Relay Connector End View (C1505)

G07843100

Courtesy of FORD MOTOR CO.

Fig 204: Low Speed Engine Cooling Fan Relay Connector End View (C1506)

G07843101

Courtesy of FORD MOTOR CO.

Fig 205: Luggage Compartment Lid Release Relay Connector End View (C1511)

G07843102

Courtesy of FORD MOTOR CO.

Fig 206: Passive Anti-Theft Transceiver Connector End View (C2007)

G07843103

Courtesy of FORD MOTOR CO.

Fig 207: Cigar Lighter, Front Connector End View (C2031)

G07843104

Courtesy of FORD MOTOR CO.

Fig 208: Hazard Flasher Switch Connector End View (C2039)

G07843105

Courtesy of FORD MOTOR CO.

Fig 209: Accelerator Pedal Position Sensor Connector End View (C2040)

G07843106

Courtesy of FORD MOTOR CO.

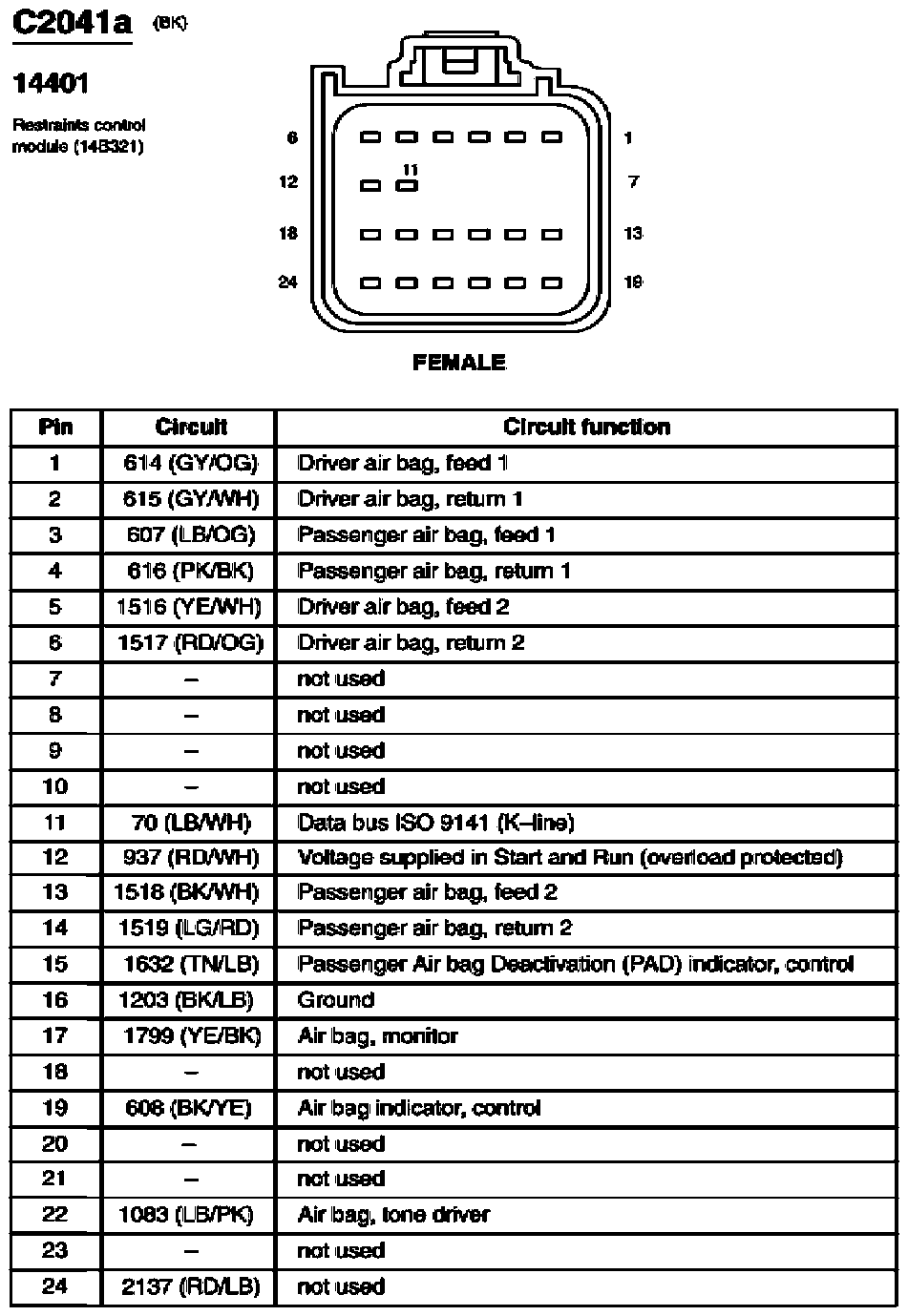

Fig 210: Restraints Control Module Connector End View (C2041a)

G03987935

Courtesy of FORD MOTOR CO.

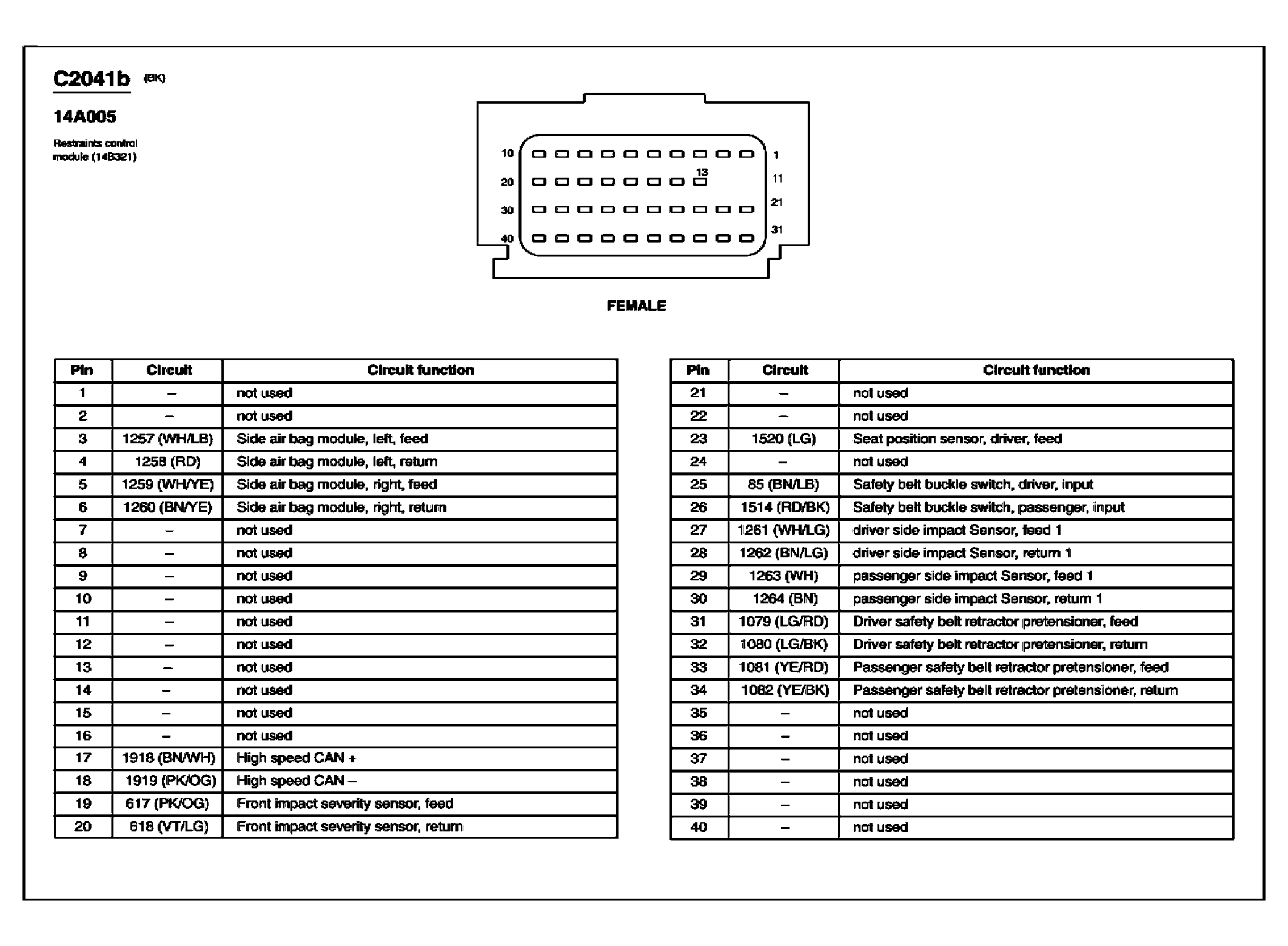

Fig 211: Restraints Control Module Connector End View (C2041b)

G03987936

Courtesy of FORD MOTOR CO.

Fig 212: Front Blower Motor Connector End View (C2066)

G07843107

Courtesy of FORD MOTOR CO.

Fig 213: Wiper/Washer Switch Connector End View (C2137)

G07843108

Courtesy of FORD MOTOR CO.

Fig 214: Blower Motor Resistor Connector End View (C2185)

G07843109

Courtesy of FORD MOTOR CO.

Fig 215: Clock Spring Connector End View (C2274)

G07843110

Courtesy of FORD MOTOR CO.

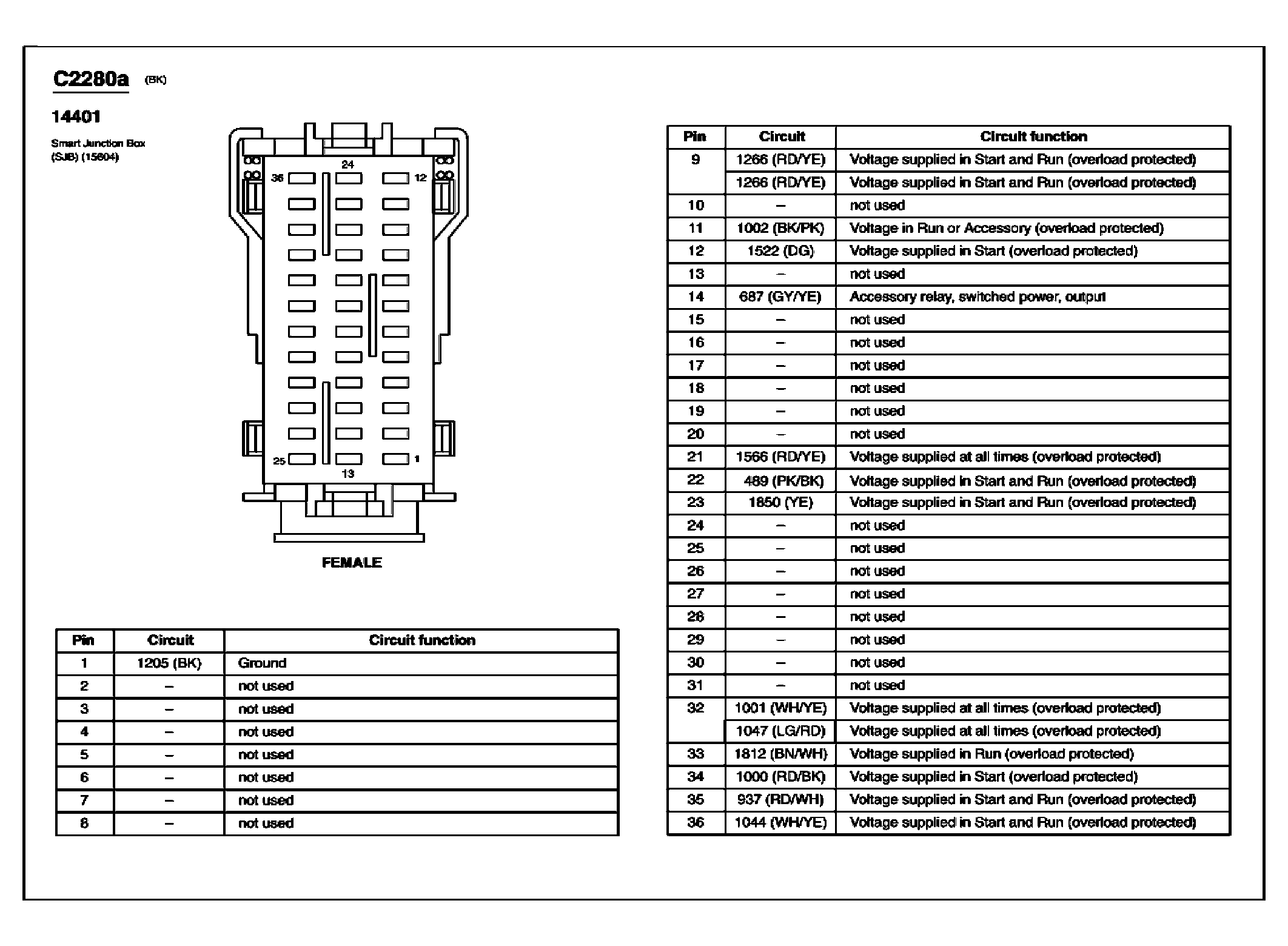

Fig 216: Smart Junction Box (SJB) Connector End View (C2280a)

G03987938

Courtesy of FORD MOTOR CO.

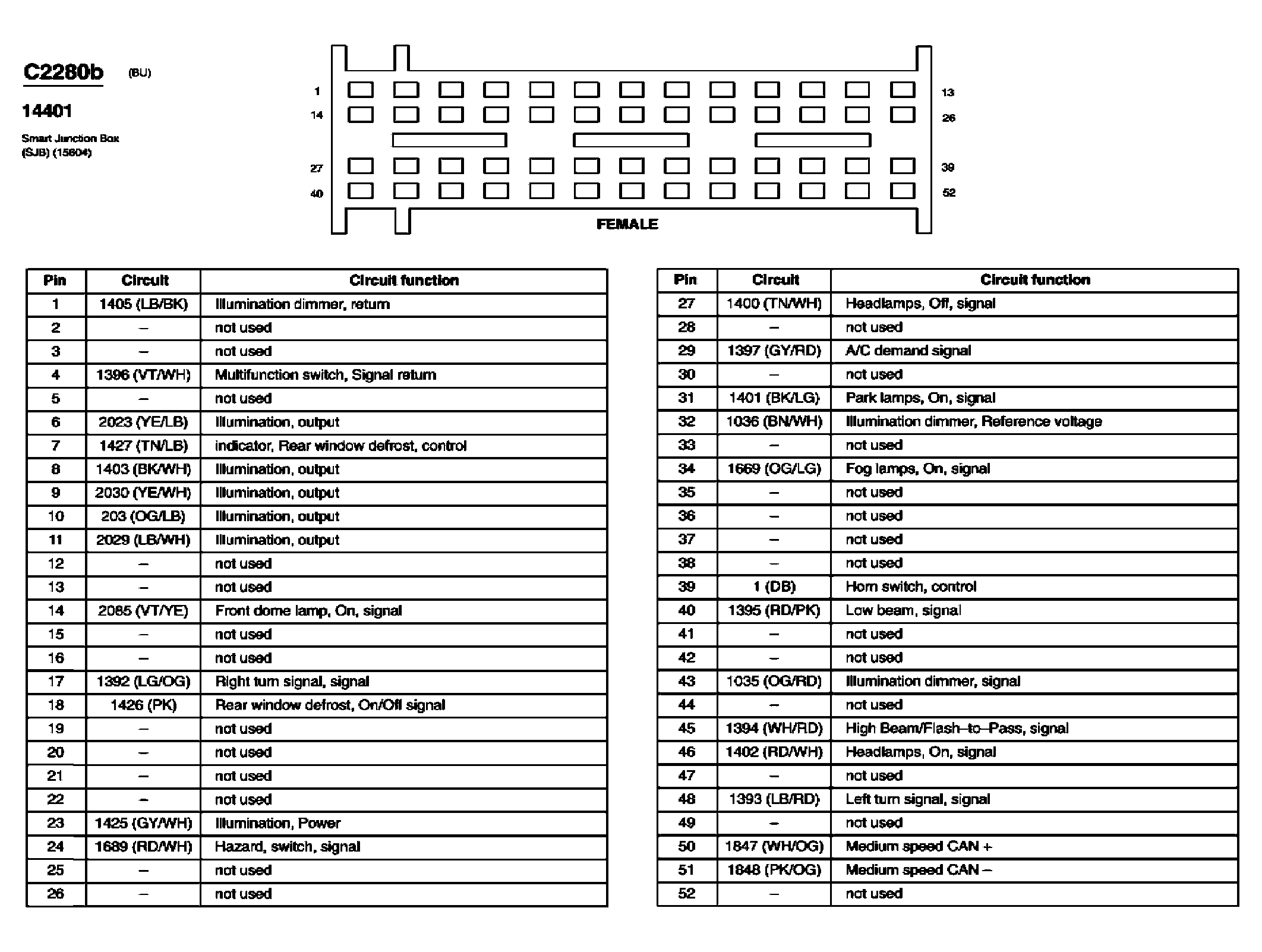

Fig 217: Smart Junction Box (SJB) Connector End View (C2280b)

G03987939

Courtesy of FORD MOTOR CO.

Fig 218: Smart Junction Box (SJB) Connector End View (C2280c)

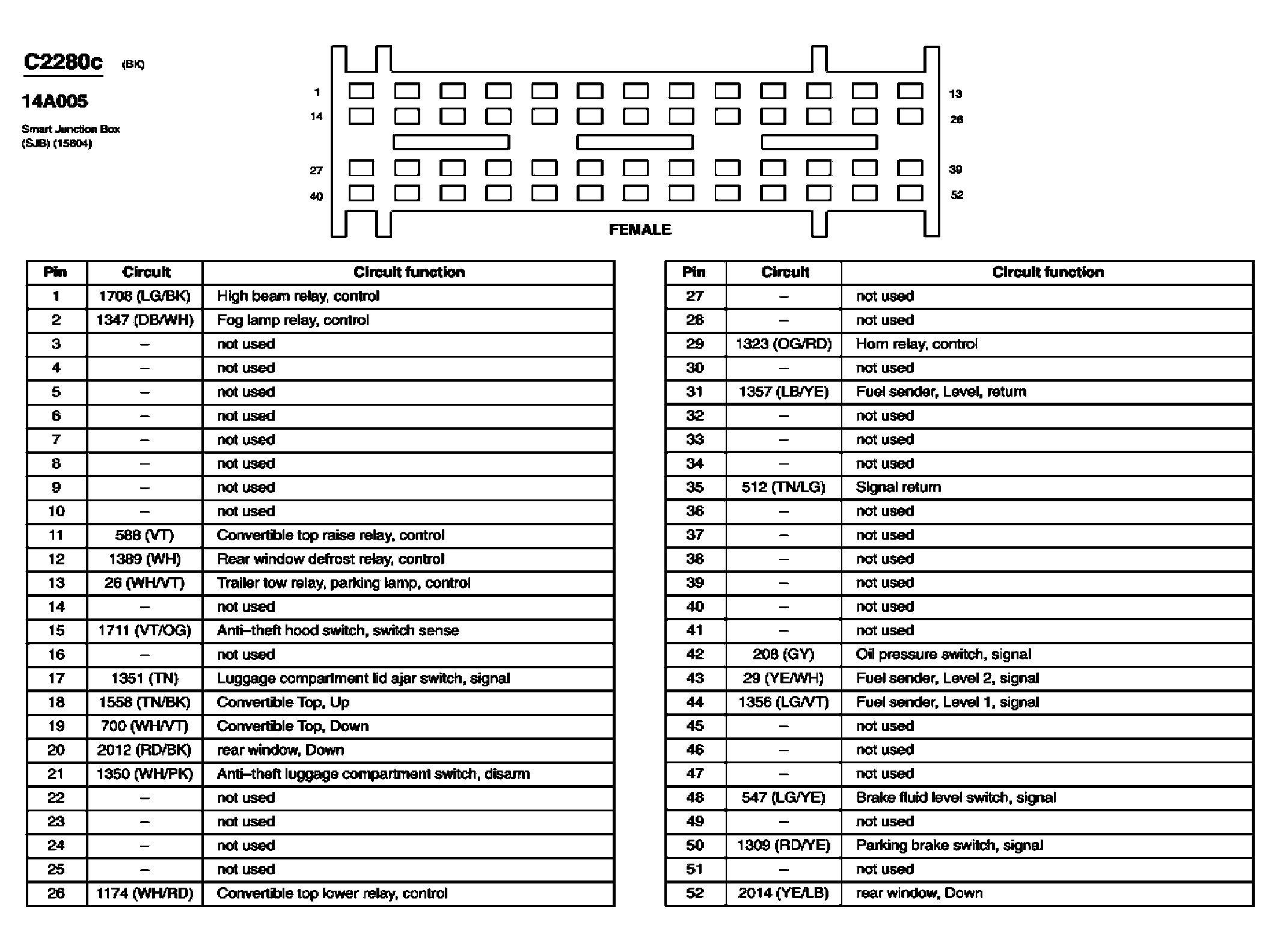

G03987940

Courtesy of FORD MOTOR CO.

Fig 219: Smart Junction Box (SJB) Connector End View (C2280d)

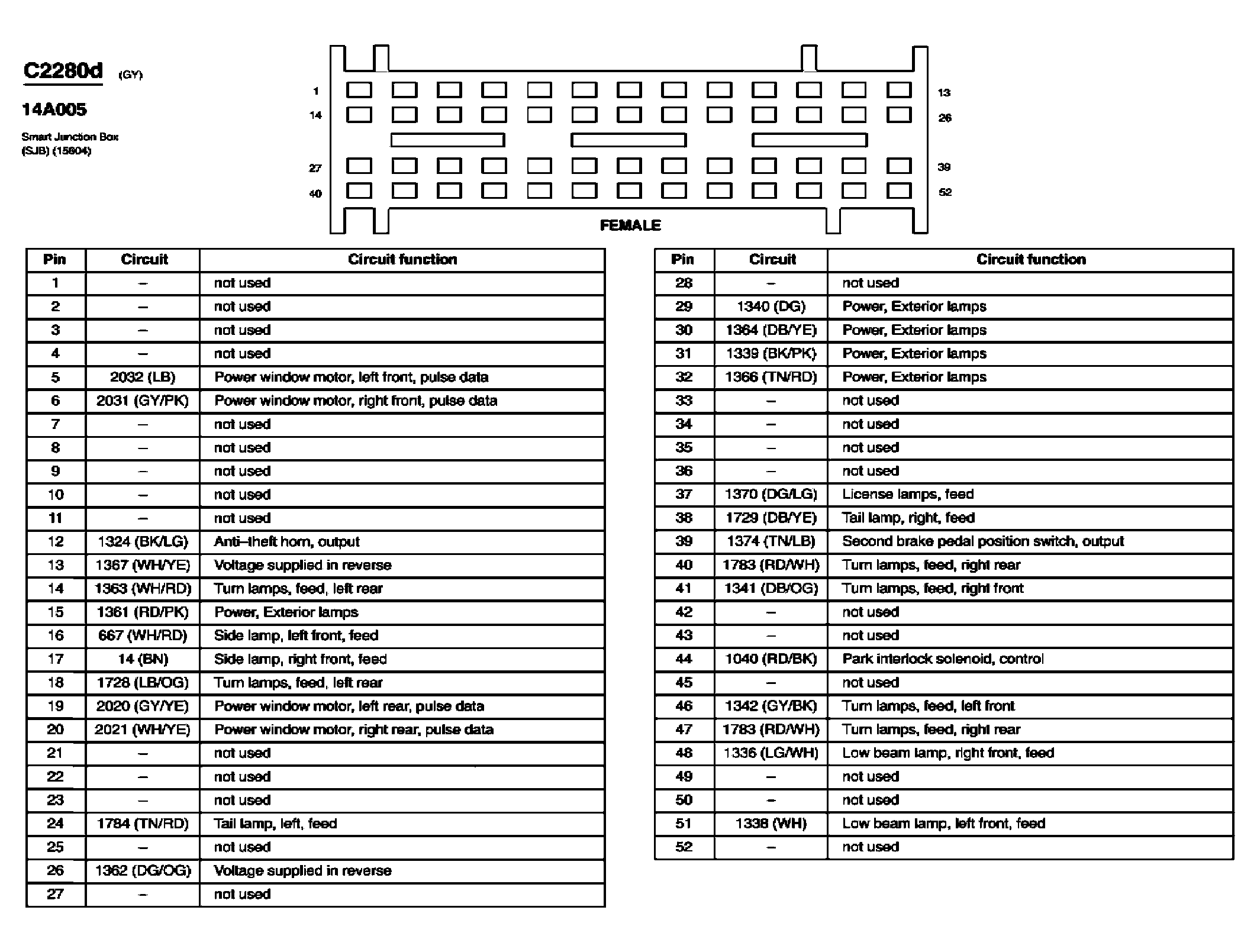

G03987941

Courtesy of FORD MOTOR CO.

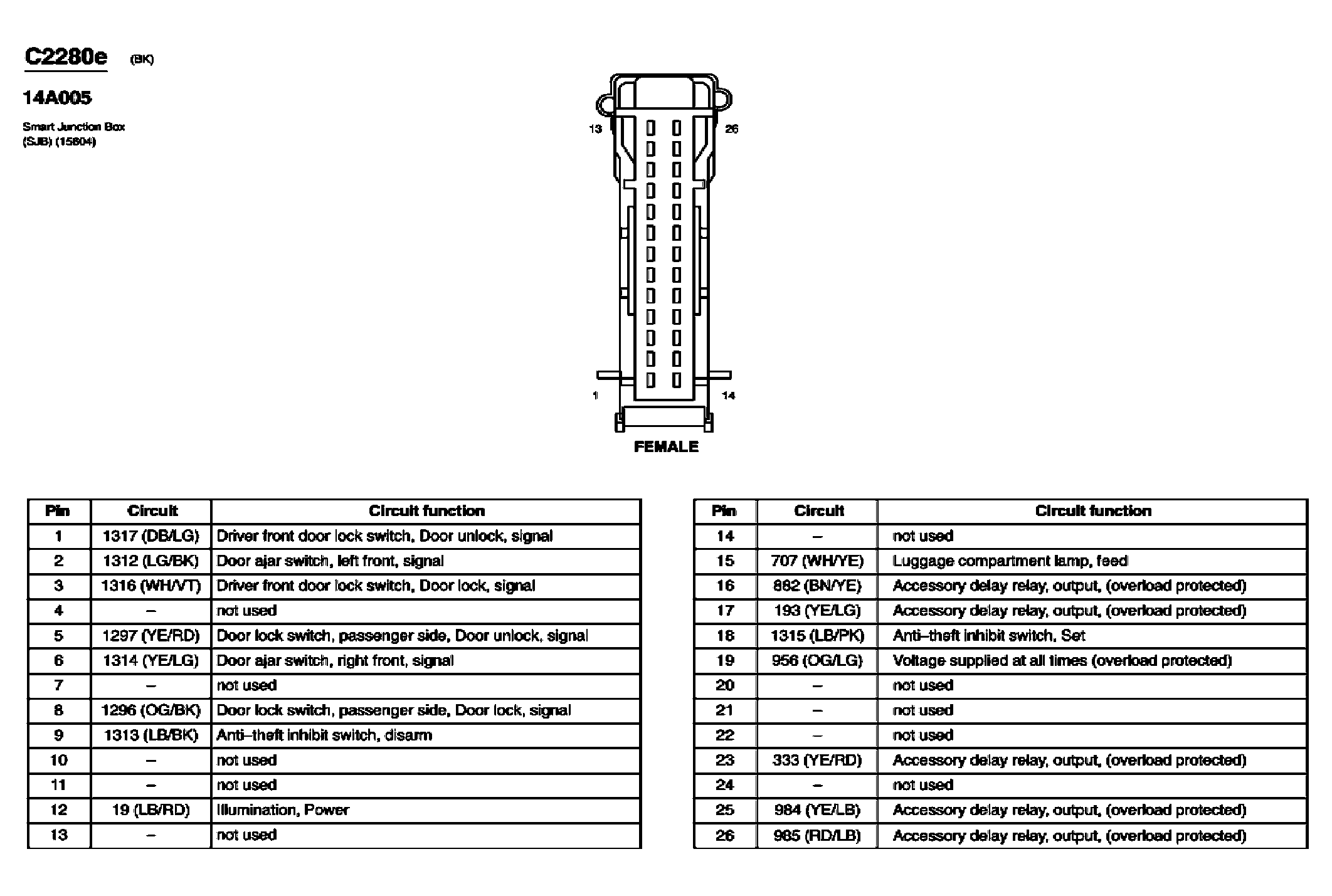

Fig 220: Smart Junction Box (SJB) Connector End View (C2280e)

G03987942

Courtesy of FORD MOTOR CO.

Fig 221: Smart Junction Box (SJB) Connector End View (C2280f)

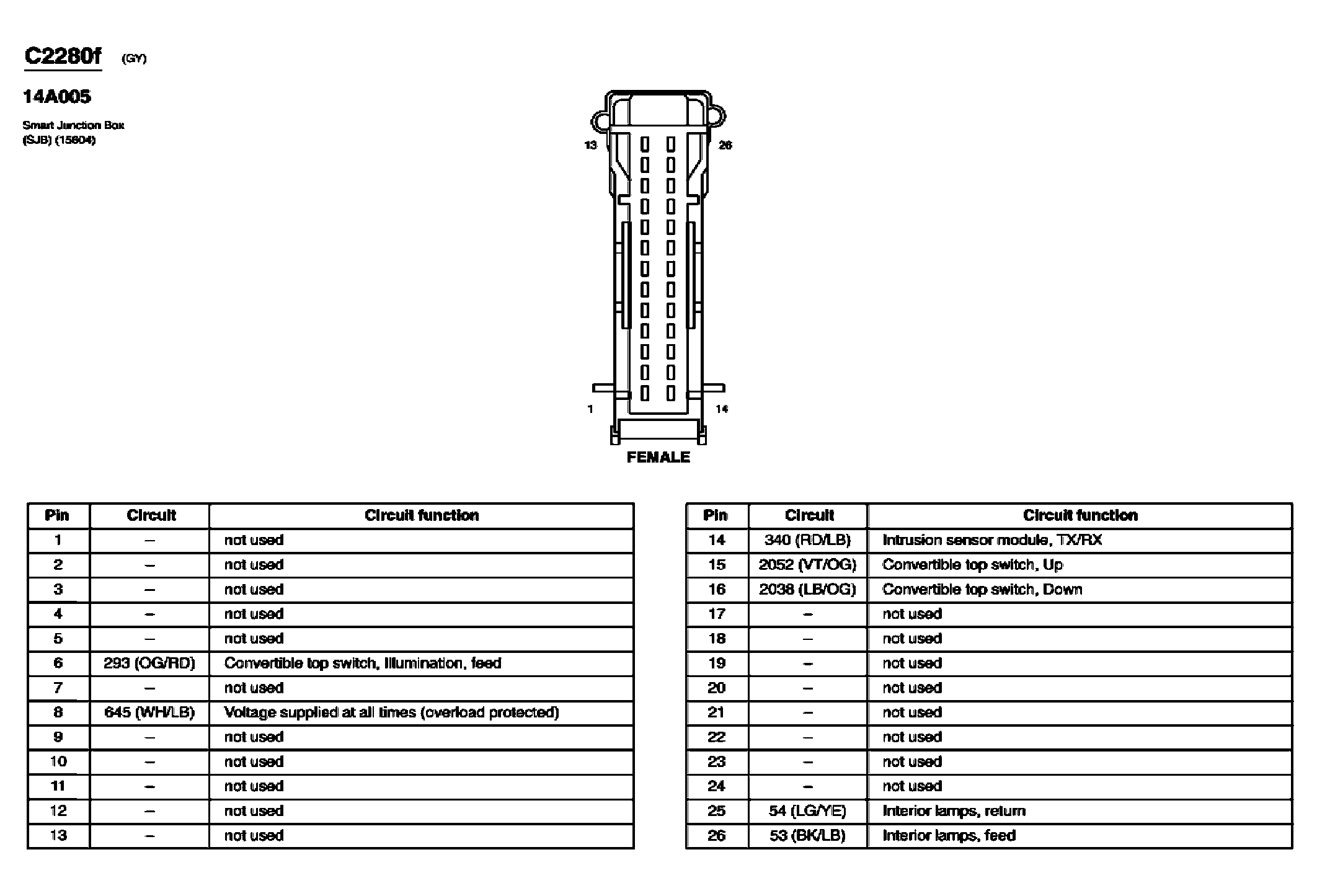

G03987943

Courtesy of FORD MOTOR CO.

Fig 222: Smart Junction Box (SJB) Connector End View (C2280g)

G03987944

Courtesy of FORD MOTOR CO.

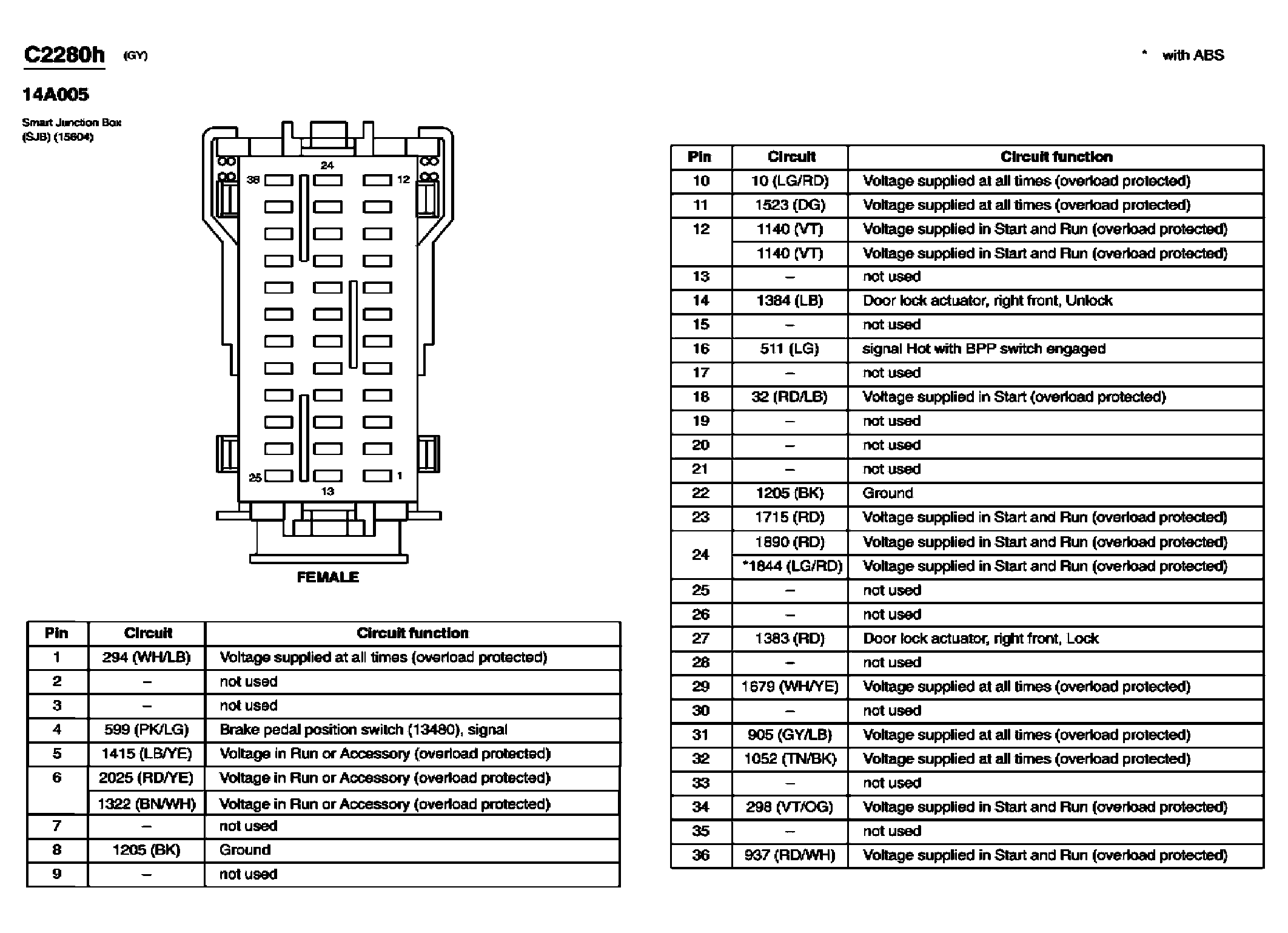

Fig 223: Smart Junction Box (SJB) Connector End View (C2280h)

G03987945

Courtesy of FORD MOTOR CO.

Fig 224: Accessory Delay Relay Connector End View (C2281)

G07843111

Courtesy of FORD MOTOR CO.

Fig 225: Illumination Dimmer Switch Connector End View (C2298)

G07843112

Courtesy of FORD MOTOR CO.

Fig 226: Stoplamp Switch 1 Connector End View (C2314)

G07843113

Courtesy of FORD MOTOR CO.

Fig 227: Recirculation Door Motor Connector End View (C2325)

G07843114

Courtesy of FORD MOTOR CO.

Fig 228: PCM Key-Off Relay Connector End View (C2335)

G07843115

Courtesy of FORD MOTOR CO.

Fig 229: PCM Key-Off Relay Diode Connector End View (C2336)

G07843116

Courtesy of FORD MOTOR CO.

Fig 230: Subwoofer Amplifier, Left Front Channel Connector End View (C2993a)

G07843117

Courtesy of FORD MOTOR CO.

Fig 231: Subwoofer Amplifier, Left Front Channel Connector End View (C2993b)

G07843118

Courtesy of FORD MOTOR CO.

Fig 232: Subwoofer Amplifier, Right Front Channel Connector End View (C2994a)

G07843119

Courtesy of FORD MOTOR CO.

Fig 233: Subwoofer Amplifier, Right Front Channel Connector End View (C2994b)

G07843120

Courtesy of FORD MOTOR CO.

Fig 234: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)

G07843121

Courtesy of FORD MOTOR CO.

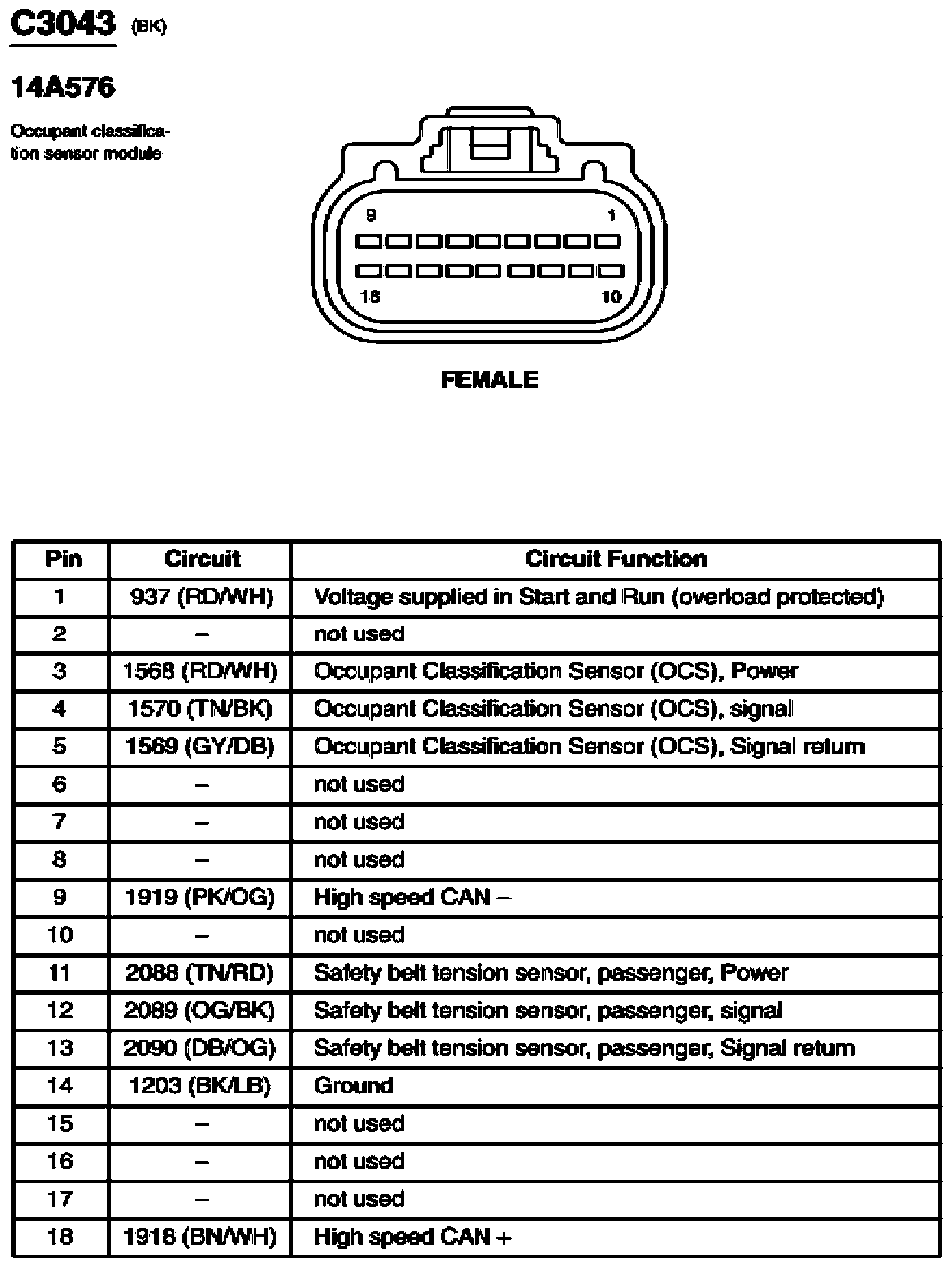

Fig 235: Occupant Classification Sensor Module Connector End View (C3043)

G07843122

Courtesy of FORD MOTOR CO.

Fig 236: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07843123

Courtesy of FORD MOTOR CO.

Fig 237: Anti-Theft Horn Connector End View (C3069)

G07843124

Courtesy of FORD MOTOR CO.

Fig 238: Resistor Cap 2 Connector End View (C3108)

G07843125

Courtesy of FORD MOTOR CO.

Fig 239: Resistor Cap 3 Connector End View (C3109)

G07843126

Courtesy of FORD MOTOR CO.

Fig 240: Wheel Speed Sensor, Left Rear Connector End View (C3116)

G07843127

Courtesy of FORD MOTOR CO.

Fig 241: Wheel Speed Sensor, Right Rear Connector End View (C3117)

G07843128

Courtesy of FORD MOTOR CO.

Fig 242: Power Window Motor, Left Rear Connector End View (C3118)

G07843129

Courtesy of FORD MOTOR CO.

Fig 243: Power Window Motor, Right Rear Connector End View (C3119)

G07843130

Courtesy of FORD MOTOR CO.

Fig 244: Occupant Classification Sensor (OCS) Connector End View (C3159)

G07843131

Courtesy of FORD MOTOR CO.

Fig 245: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07843132

Courtesy of FORD MOTOR CO.

Fig 246: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07843133

Courtesy of FORD MOTOR CO.

Fig 247: Safety Belt Tension Sensor, Passenger Connector End View (C3238)

G07843134

Courtesy of FORD MOTOR CO.

Fig 248: Convertible Top Ajar Switch Connector End View (C3266)

G07843135

Courtesy of FORD MOTOR CO.

Fig 249: Fuel Pump Driver Module Connector End View (C4033)

G07843136

Courtesy of FORD MOTOR CO.

Fig 250: License Plate Lamp Connector End View (C4046)

G07843137

Courtesy of FORD MOTOR CO.

Fig 251: Convertible Top Motor Connector End View (C4062)

G07843138

Courtesy of FORD MOTOR CO.

Fig 252: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)

G07843139

Courtesy of FORD MOTOR CO.

Fig 253: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)

G07843140

Courtesy of FORD MOTOR CO.

Fig 254: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)

G07843141

Courtesy of FORD MOTOR CO.

Fig 255: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)

G07843142

Courtesy of FORD MOTOR CO.

Fig 256: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07843143

Courtesy of FORD MOTOR CO.

Fig 257: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157a)

G07843144

Courtesy of FORD MOTOR CO.

Fig 258: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157b)

G07843145

Courtesy of FORD MOTOR CO.

Fig 259: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158a)

G07843146

Courtesy of FORD MOTOR CO.

Fig 260: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158b)

G07843147

Courtesy of FORD MOTOR CO.

Fig 261: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159a)

G07843148

Courtesy of FORD MOTOR CO.

Fig 262: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159b)

G07843149

Courtesy of FORD MOTOR CO.

Fig 263: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160a)

G07843150

Courtesy of FORD MOTOR CO.

Fig 264: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160b)

G07843151

Courtesy of FORD MOTOR CO.

Fig 265: Subwoofer, Luggage Compartment Left Connector End View (C4161)

G07843152

Courtesy of FORD MOTOR CO.

Fig 266: Subwoofer, Luggage Compartment Right Connector End View (C4162)

G07843153

Courtesy of FORD MOTOR CO.

Fig 267: Overhead Console Connector End View (C9013)

G03987959

Courtesy of FORD MOTOR CO.
