Forward Clutch: Notes

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS

Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-051 (T74P-77548-A)
Courtesy of FORD MOTOR CO.	Bonded Piston Seal Sizer 307--434

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

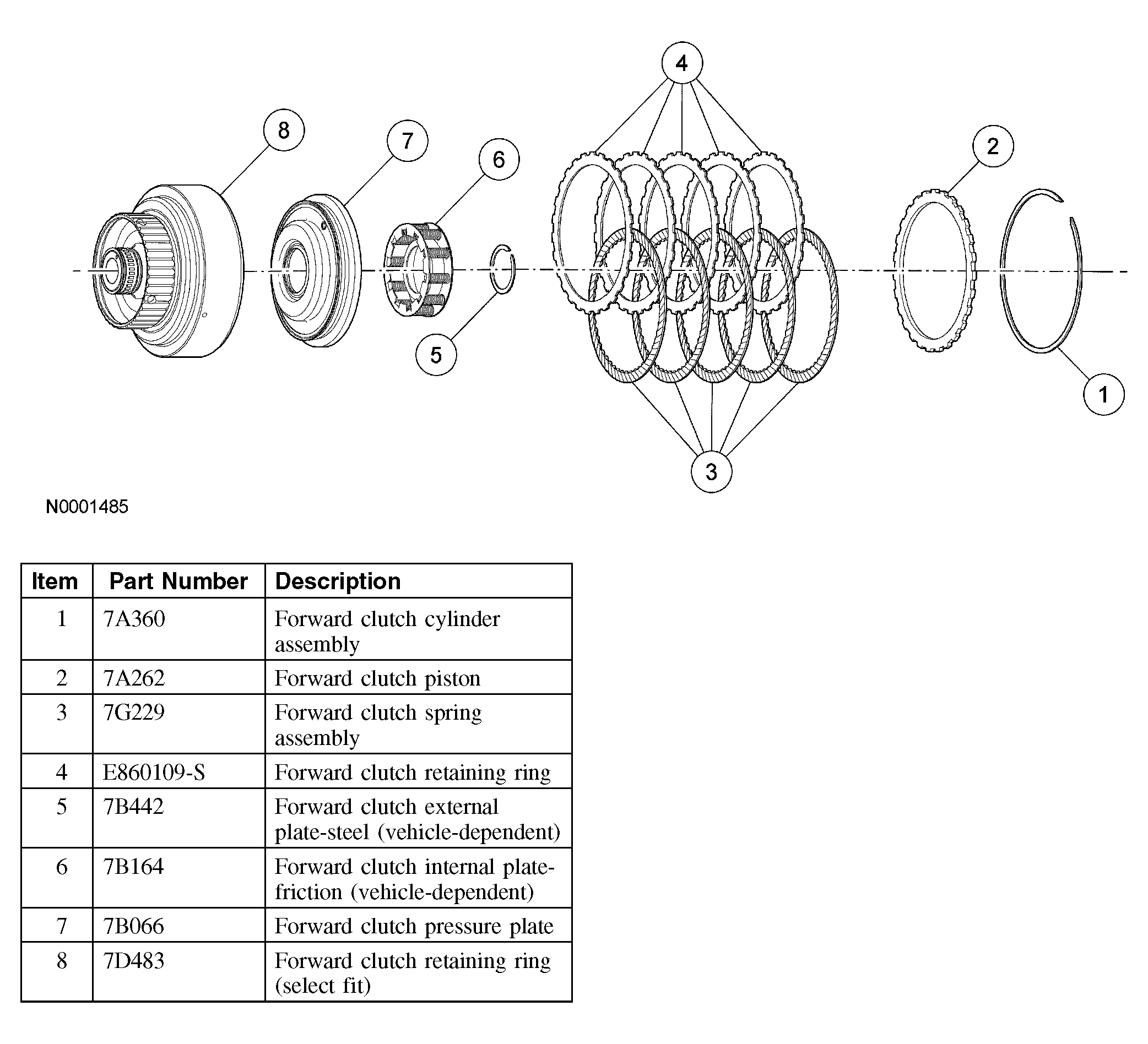

Fig 1: Identifying Forward Clutch Assembly Components

Courtesy of FORD MOTOR CO.
