Steering Column Shaft - Lower: Notes

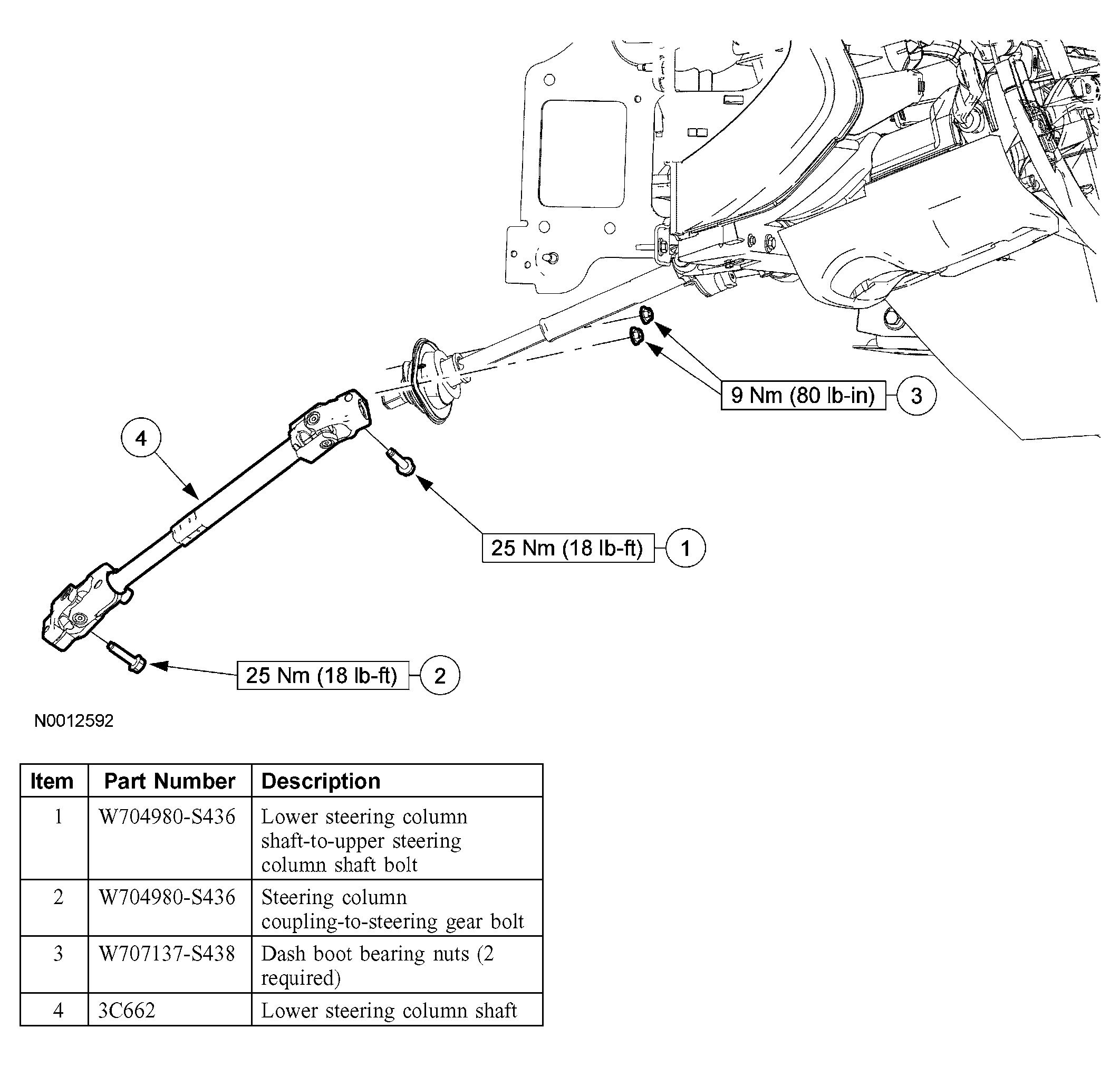

Fig 1: Identifying Components Of Steering Column Shaft - Lower
G03983542Courtesy of FORD MOTOR CO.
