Electronic Brake Control Module: Service and Repair

AntiLock Brake System (ABS) Module




Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

1. Remove the bolt and position the air cleaner assembly aside.
^ To install, tighten to 8 Nm (71 inch lbs.).
2. Disconnect the ABS module electrical connector.

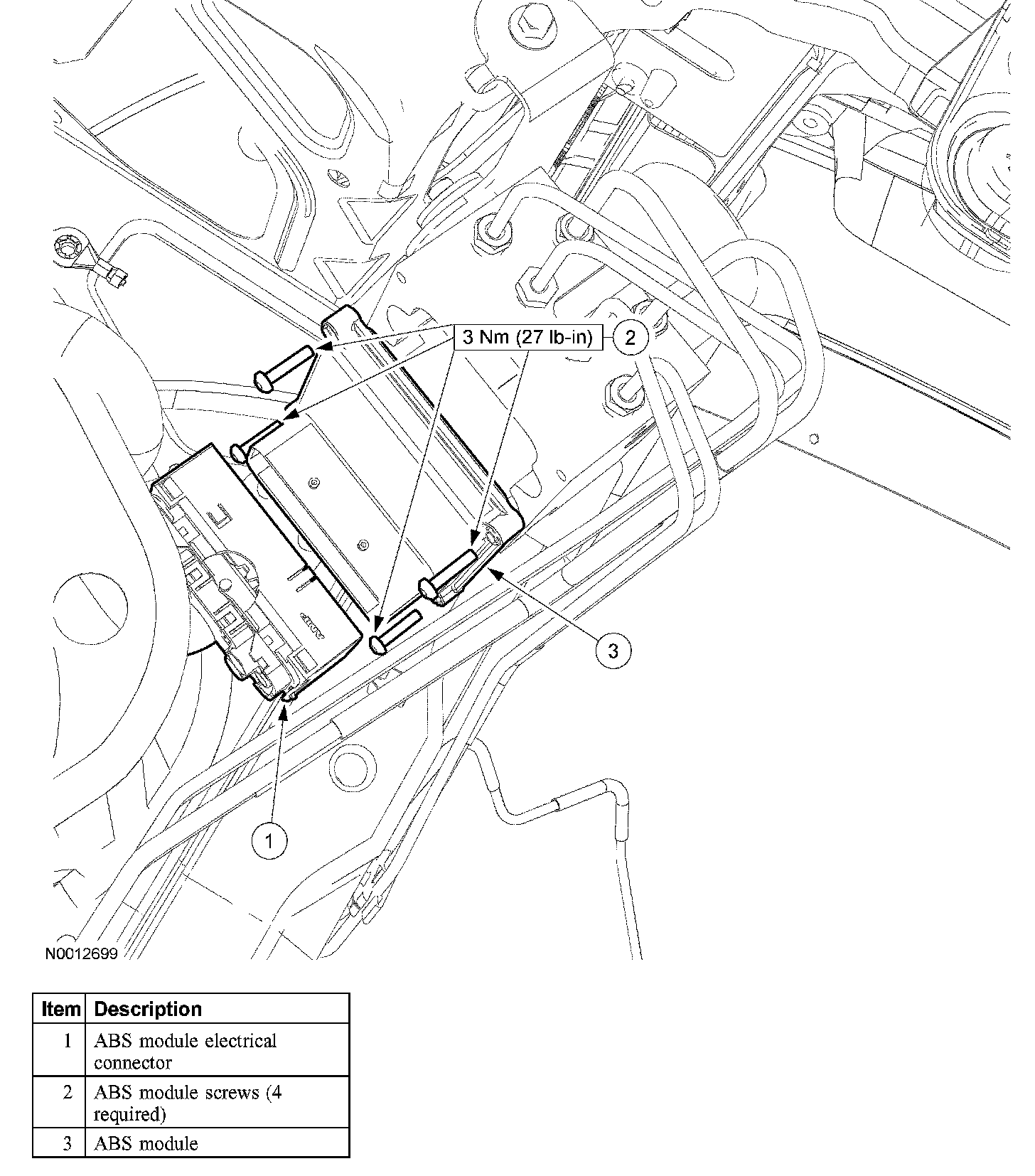

3. Remove the 4 screws and the ABS module.
^ To install, tighten to 3 Nm (27 inch lbs.) in the sequence shown.
4. To install, reverse the removal procedure.
