System Diagram

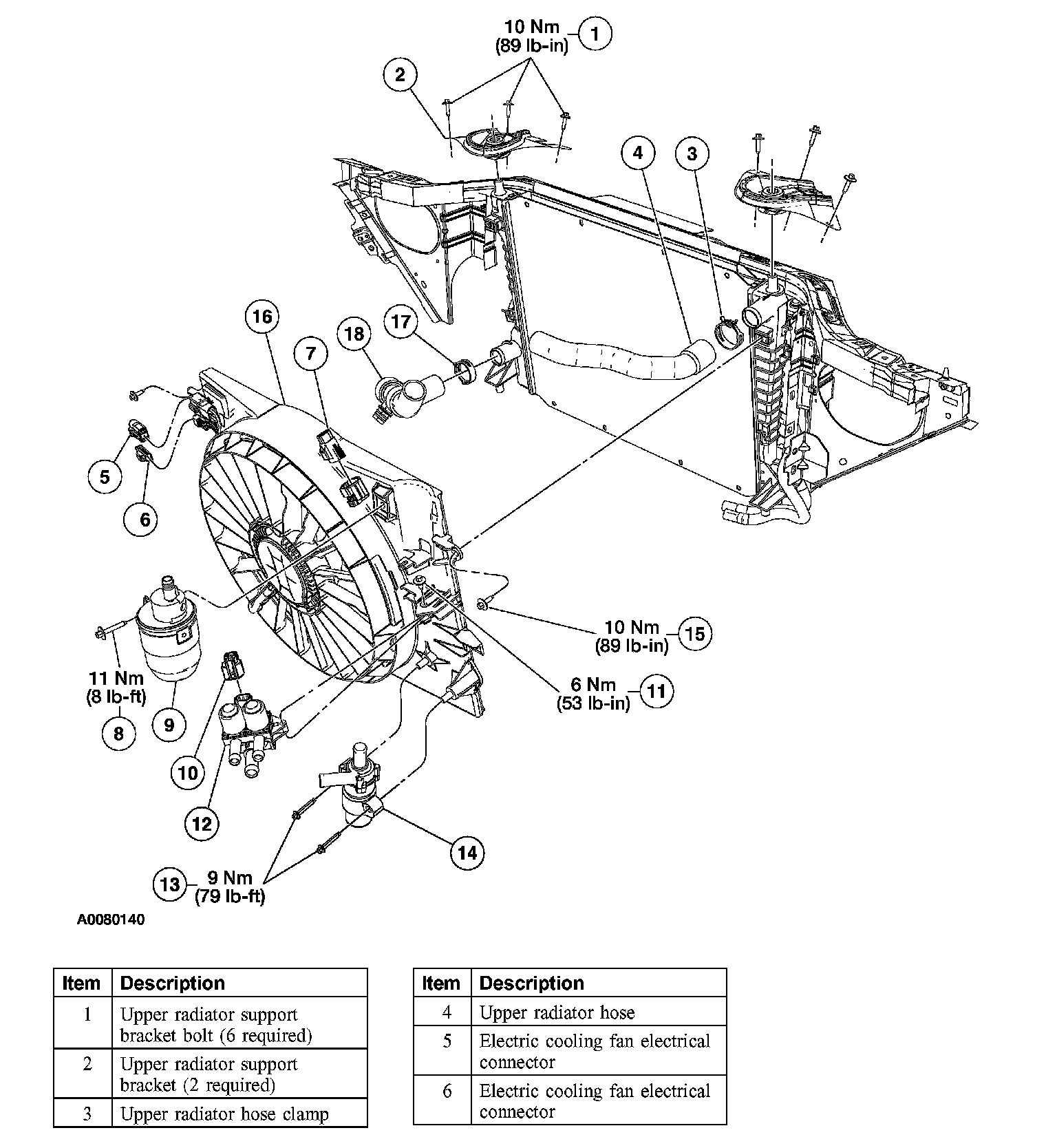

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:



Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:



Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:



Cooling System Components - Exploded View, Radiator, Cooling Fan Motor And Shroud.:
