Remote Keyless Entry (RKE) Module: Notes

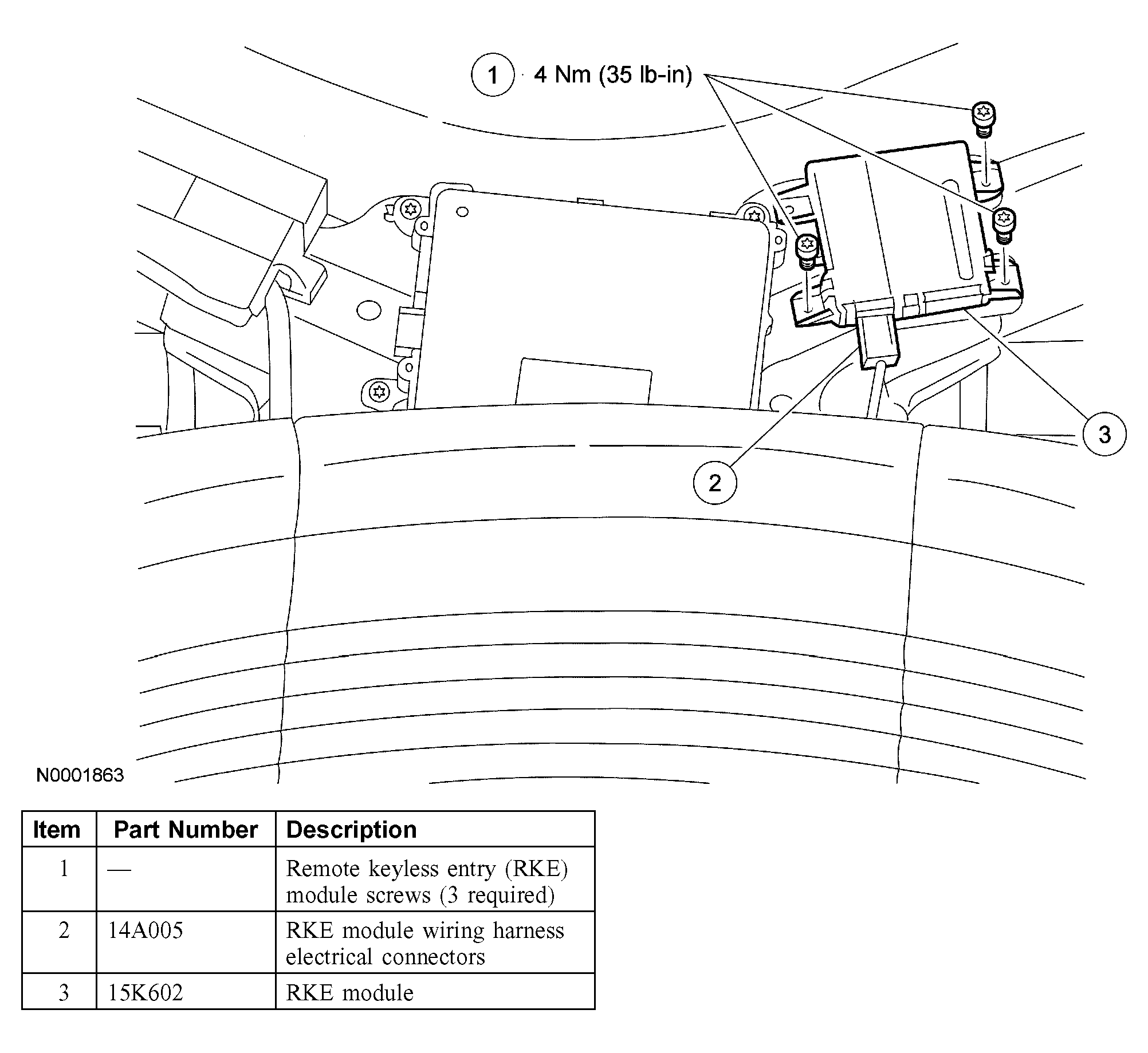

Fig 1: Remote Keyless Entry (RKE) Module Replacement Components With Torque Specifications
G04009611Courtesy of FORD MOTOR CO.
