Exhaust Gas Recirculation (EGR) System Components - Exploded View

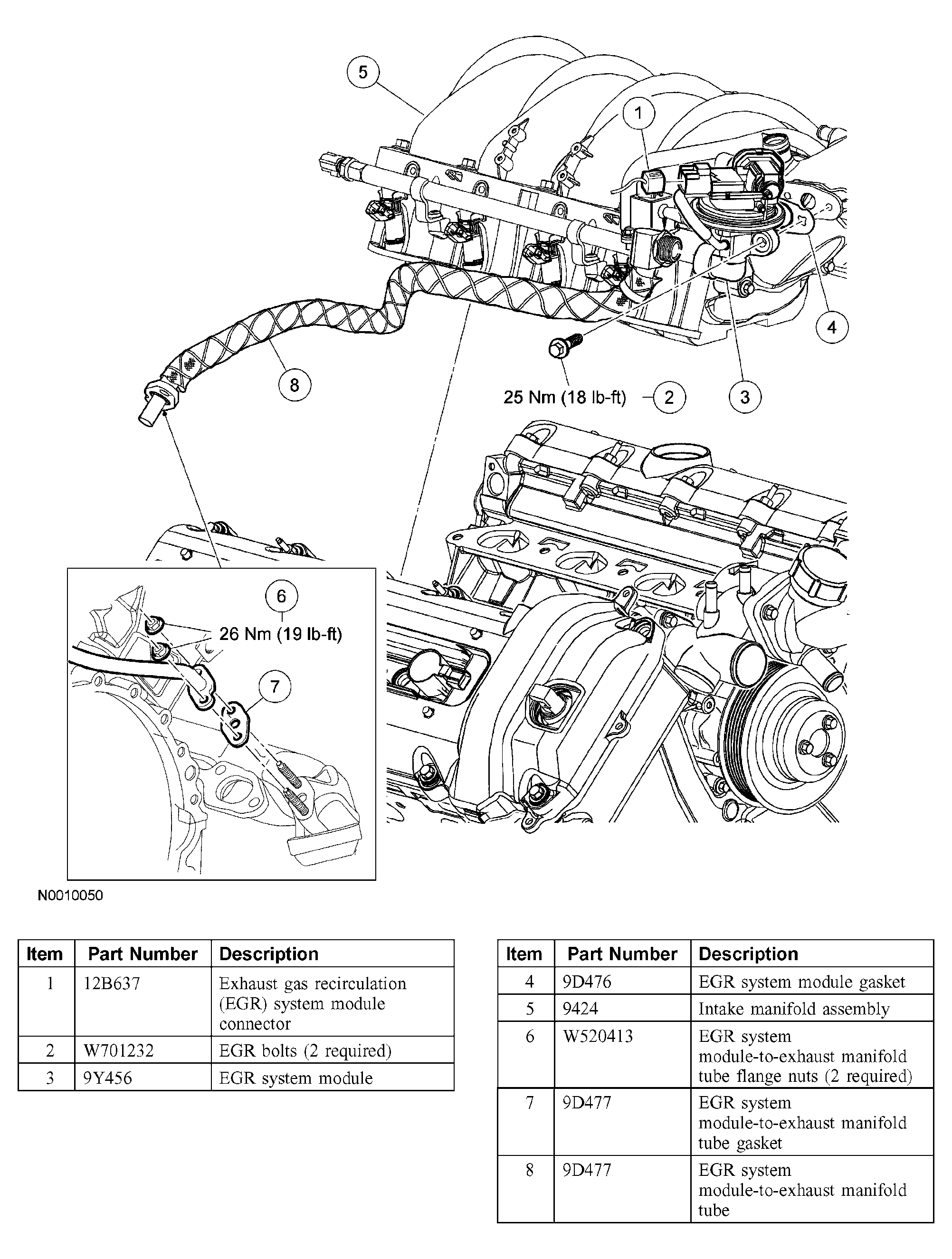

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specification
G04008025Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
